The global construction industry is increasingly embracing steel structure buildings for their superior strength, rapid construction speed, and excellent sustainability. At the core of efficient steel structure floor construction lies the floor deck—a critical component that combines load-bearing capacity, fire resistance, and cost-effectiveness. As a key piece of equipment for floor deck production, the Floor Deck Forming Machine plays a decisive role in ensuring project quality and progress. Our High-Efficiency Floor Deck Forming Machine is meticulously engineered to meet the rigorous demands of global steel structure construction projects, empowering manufacturers, contractors, and construction enterprises to produce high-quality floor decks with unmatched efficiency and precision.

Unlike conventional forming equipment, our Floor Deck Forming Machine integrates advanced roll forming technology, intelligent control systems, and rugged industrial design. It is capable of producing a wide range of floor deck profiles, adapting to diverse project requirements in commercial, industrial, and public construction fields. Backed by our 20+ years of experience in exporting construction machinery to over 85 countries, we provide comprehensive global support—from pre-sales consultation to after-sales service—helping you gain a competitive edge in the international market.

Core Competitive Advantages of Our Floor Deck Forming Machine

Precision Roll Forming for Superior Floor Deck Quality

The safety and durability of steel structure floors depend on the dimensional accuracy and structural integrity of floor decks. Our Floor Deck Forming Machine is equipped with a high-performance PLC control system and precision servo drive technology, achieving an exceptional forming accuracy of ±0.2mm. The intelligent control system fully automates the entire production process, including coil feeding, automatic leveling, step-by-step roll forming, length measurement, and precision cutting, eliminating human errors and ensuring consistent dimensions, flatness, and groove accuracy of each floor deck.

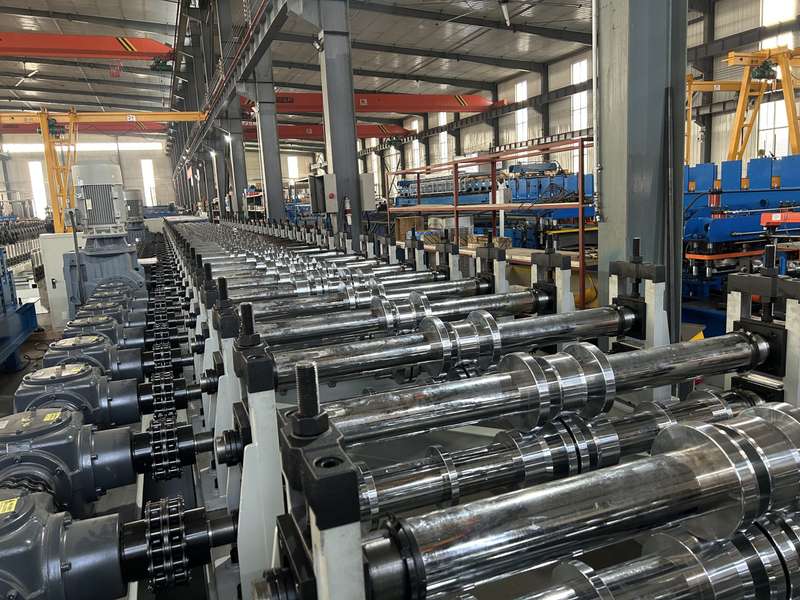

The machine’s forming rollers are made of high-grade Cr12MoV alloy steel,through precision grinding, quenching, and tempering treatment. This enhances the rollers’ hardness (HRC 58-62) and wear resistance, enabling continuous production of over 1.2 million meters of floor decks without compromising quality. Additionally, the machine is equipped with a multi-point leveling system that effectively corrects flatness defects of raw steel coils, further ensuring the structural stability and load-bearing capacity of the finished floor decks.

Versatile Profile Adaptability for Global Standards

Global steel structure projects adopt various floor deck standards and profiles, and our machine is designed to adapt seamlessly to these diverse needs. It supports the production of mainstream floor deck types, including composite floor decks (such as闭口 type, open type, and re-entrant type), steel bar truss floor decks, and custom-shaped floor decks. The machine is pre-programmed with parameters for international standards such as US AISC 360-10, European EN 1993, Australian AS/NZS 4600, and Chinese GB/T 50205, enabling one-click switching between standard profiles to meet the requirements of different markets.

Key customizable parameters cover a wide range: floor deck height (50mm-200mm), width (600mm-1200mm), raw material thickness (0.8mm-2.5mm), and length (2m-15m with automatic precision cutting). The machine’s innovative quick-change mold system allows for profile switching in just 25 minutes, significantly reducing downtime and supporting flexible production of multiple floor deck types in a single shift. This versatility makes it suitable for both large-scale mass production and small-batch custom orders.

High-Speed & Energy-Saving Production

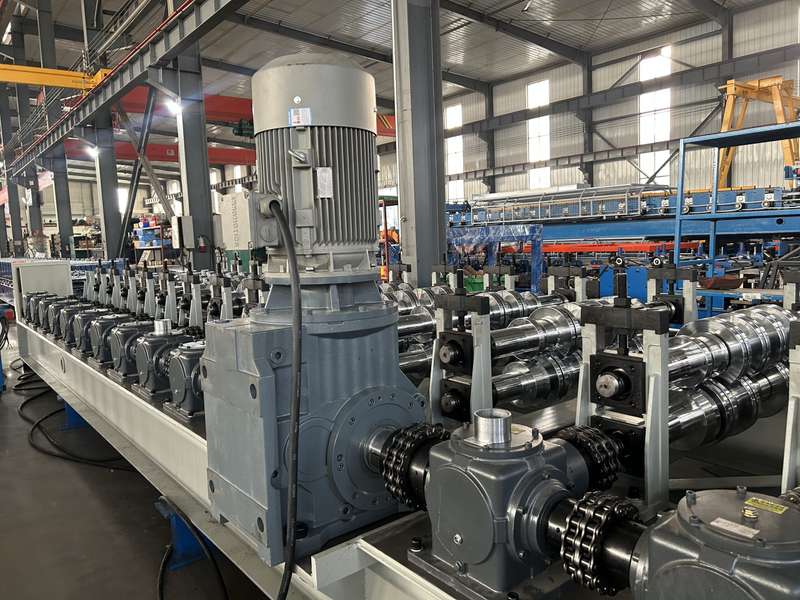

In the fast-paced construction industry, production efficiency directly affects project progress and cost control. Our Floor Deck Forming Machine boasts a maximum production speed of 40 meters per minute, with an adjustable speed range of 5-40m/min to match different production needs. The machine’s main motor adopts an energy-saving inverter control system, reducing power consumption by 20-25% compared to traditional models, effectively lowering your operational costs.

The fully automated production line is equipped with a heavy-duty uncoiler with a maximum capacity of 15 tons, featuring automatic tension control to ensure stable and smooth feeding of raw steel coils. The integrated automatic centralized lubrication system delivers precise amounts of lubricant to key components at fixed intervals, reducing friction and wear and extending the machine’s maintenance cycle to 8 months. With its high speed, energy efficiency, and low maintenance requirements, our machine helps you maximize production output, shorten delivery times, and improve overall profitability.

Industrial-Grade Durability for Harsh Working Conditions

Construction machinery often operates in harsh environments such as construction sites and factories, facing challenges like dust, vibration, and continuous high-intensity production. Our Floor Deck Forming Machine is built to withstand these conditions with a heavy-duty frame made of 25mm thick high-strength Q355B carbon steel,through integral welding and stress relief treatment. This ensures exceptional rigidity, stability, and load-bearing capacity, preventing machine deformation even during long-term continuous operation.

All key components, including gears, bearings, and hydraulic systems, are sourced from world-renowned brands (Siemens, SKF, Bosch Rexroth) to guarantee reliability and long service life. Safety is a top priority, and the machine is equipped with a comprehensive safety protection system, including emergency stop buttons at multiple positions, safety guards for moving parts, overload protection, voltage fluctuation protection, and fault alarm functions. These features effectively protect operators and prevent machine damage, ensuring safe and continuous production.

Key Technical Specifications

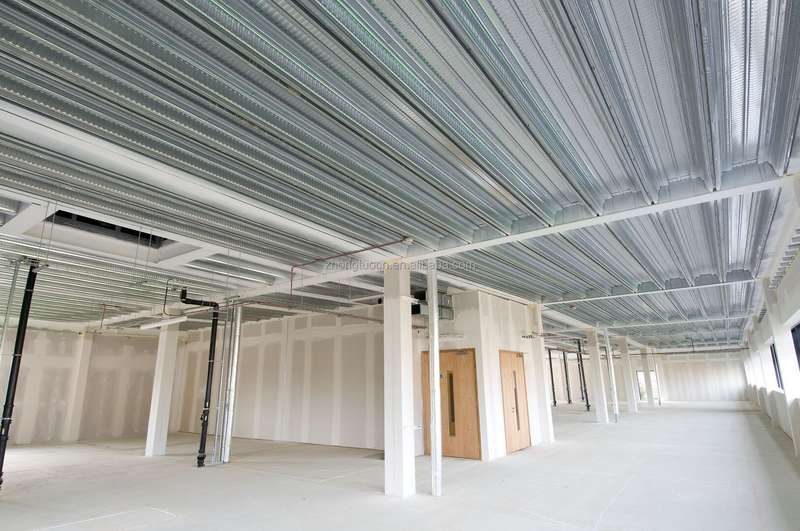

Application
