Cable Tray Roll Forming Machine: The Ultimate Guide for Global Buyers
Cangzhou Zhongtuo Roll Forming Machinery Co.,Ltd comes from Hebei-China. It is a manufacturer dedicated to design and manufacture.
different types of cold roll forming machines. We are a factory with a long history, engaged in the design and manufacture of roll forming machines since 2006. The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceiling system forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, hot laminating filmed machine,etc.
different types of cold roll forming machines. We are a factory with a long history, engaged in the design and manufacture of roll forming machines since 2006. The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceiling system forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, hot laminating filmed machine,etc.
For more information, delivery time and prices, please mail us!
Looking for a high-speed, low-waste cable tray roll forming machine? Discover how our fully automatic production lines boost efficiency by 300% and meet CE standards. Get your quote today!
In the world of electrical infrastructure, cable trays are the backbone of power distribution. Whether for data centers, oil & gas plants, or commercial buildings, the demand for high-quality, standardized cable support systems is soaring. However, traditional manufacturing methods—cutting, drilling, and welding by hand—are slow, labor-intensive, and inconsistent.

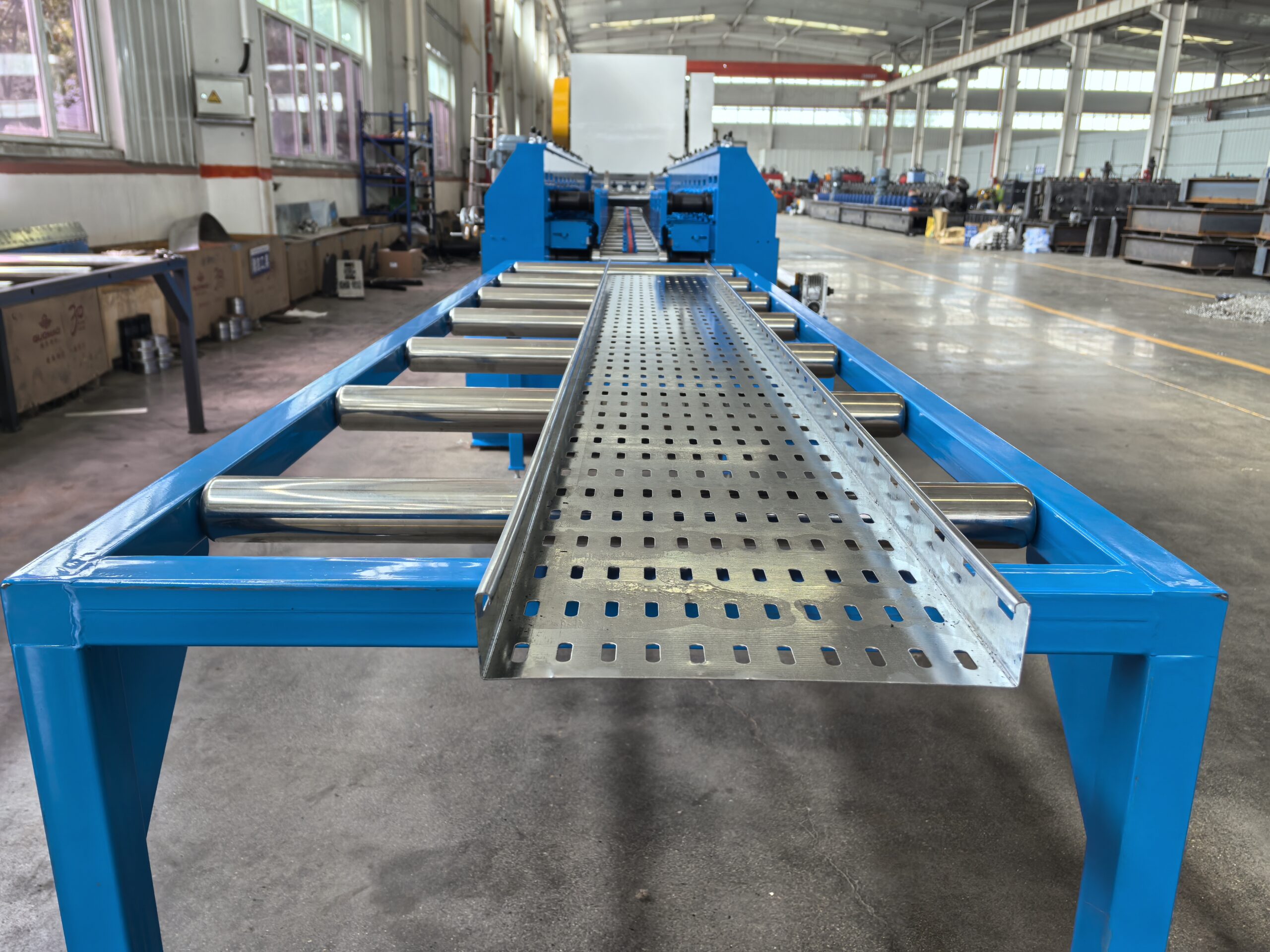

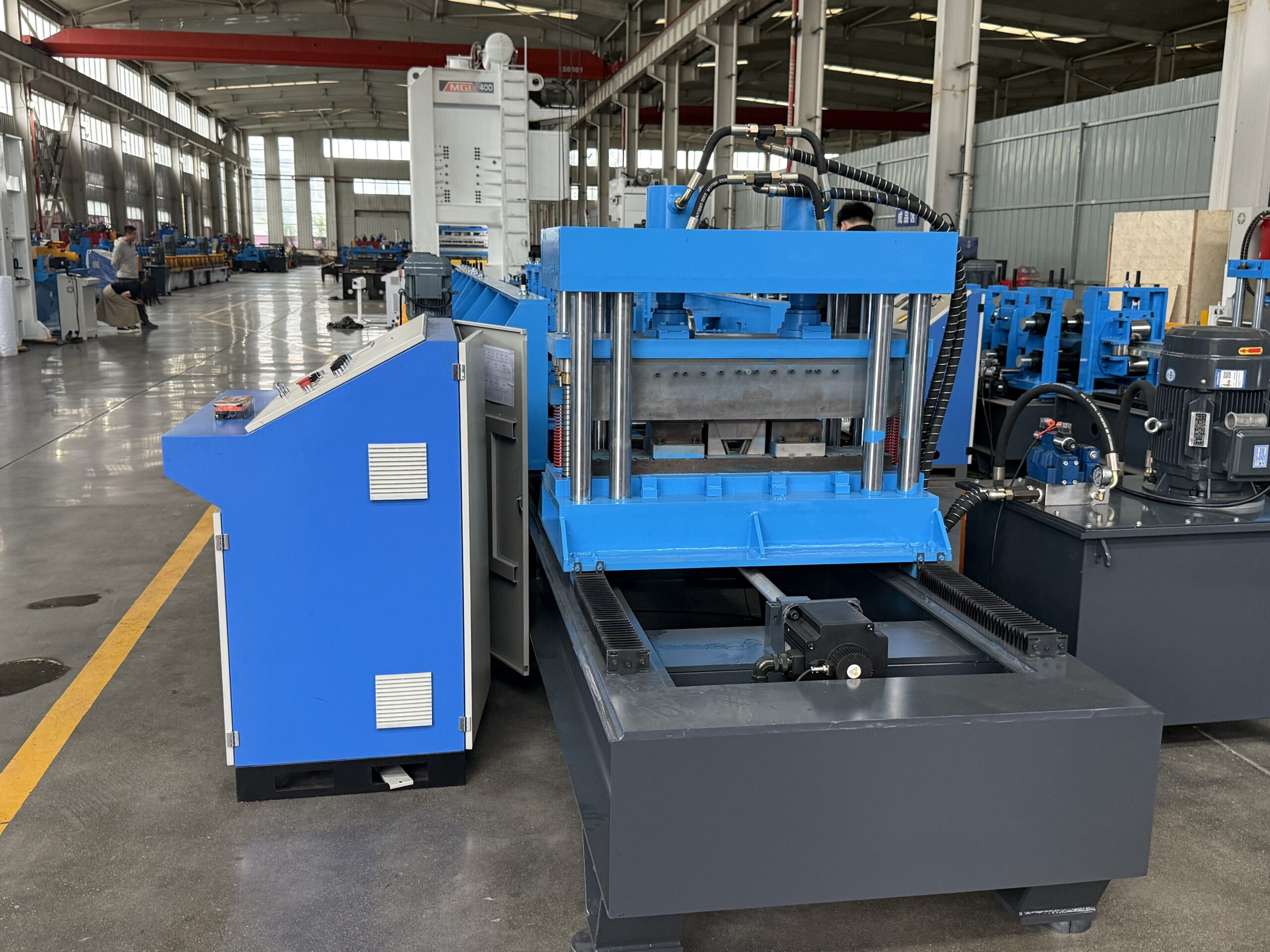

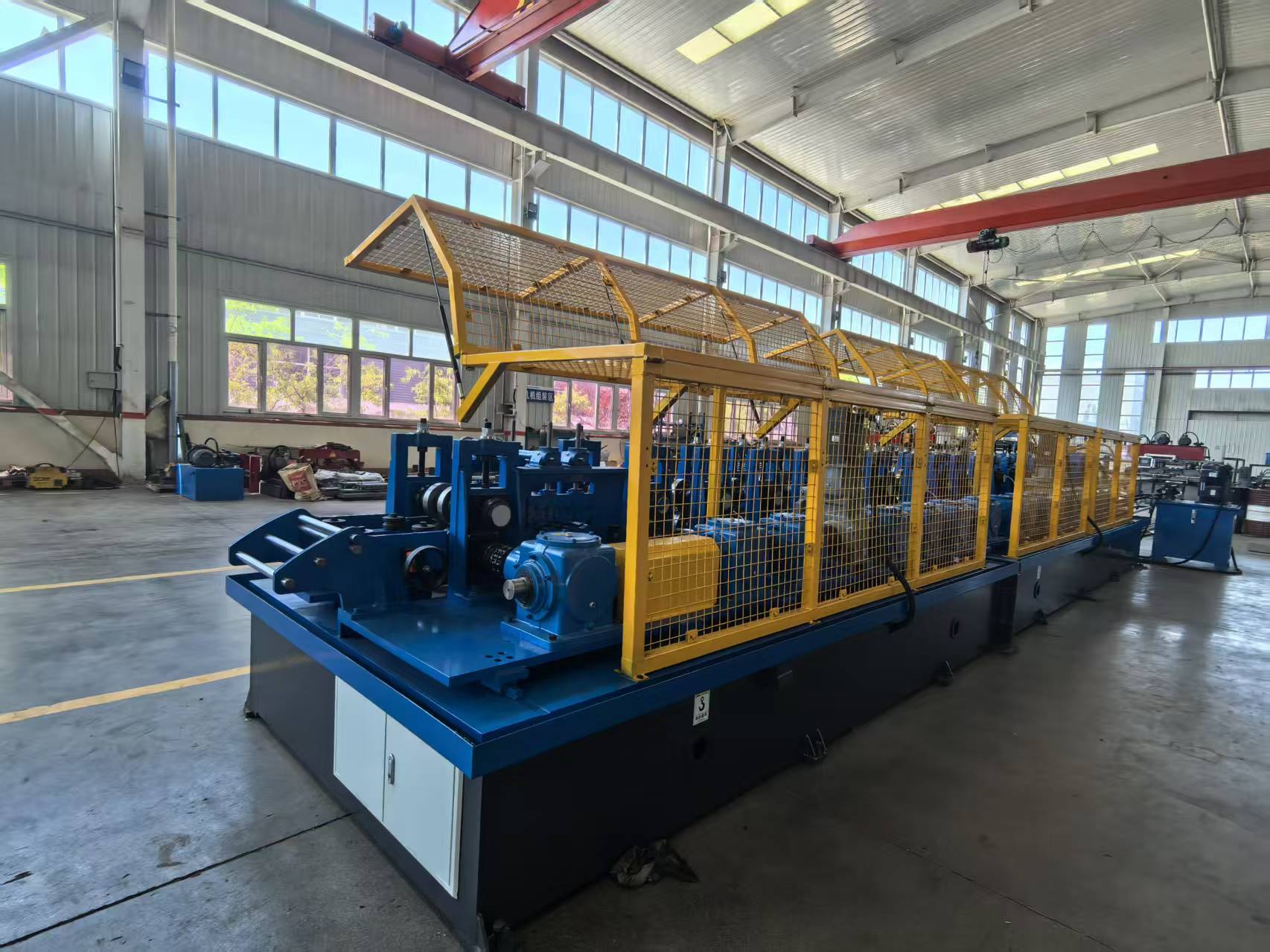

This is where the Cable Tray Roll Forming Machine comes in. It transforms a flat steel coil into finished, precision-engineered cable trays at speeds of up to 20 meters per minute.
Why Invest in an Automatic Cable Tray Roll Forming Line?
If you are still manufacturing trays manually, you are likely losing money on labor costs and material waste. Here is why automation is the future:
Labor Cost Reduction:One operator can manage the entire line. What used to require 5-6 workers now only needs one.
High Production Speed:Continuous production ensures you can fulfill large-scale government or industrial projects quickly.
Superior Consistency:Every hole, bend, and dimension is controlled by a PLC system, ensuring 100% interchangeability of parts—a critical requirement for international contractors.
Material Savings:Optimized nesting and precise cutting reduce scrap rates significantly compared to manual cutting.

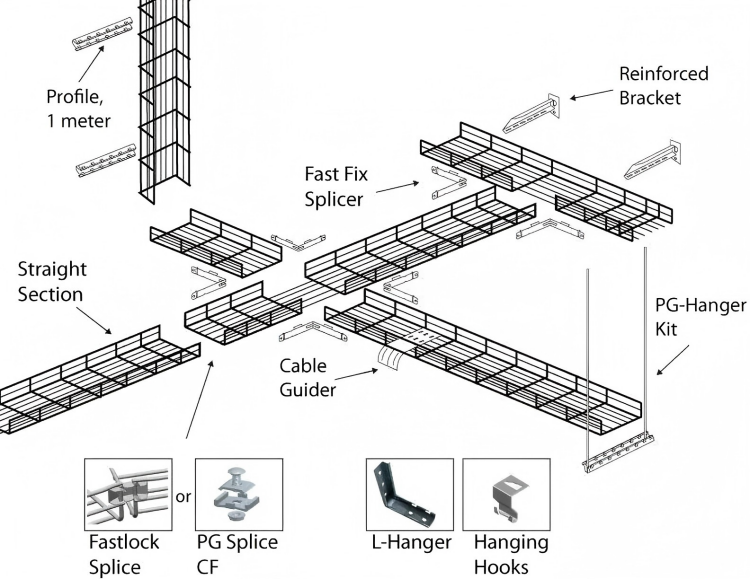

Types of Cable Trays We Manufacture
Our machines are versatile. With a simple change of parameters on the touch screen, you can produce different types of trays to suit various project needs:
Ladder Type Cable Tray:Features strong side rails and welded rungs. Ideal for heavy-duty power distribution.

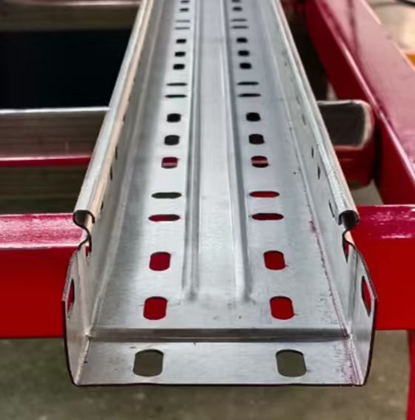

Perforated / Ventilated Trough Trays:Designed with holes for heat dissipation and lightweight structure. Perfect for data cables and control wiring.
Solid Bottom Trays:Used for sensitive cabling that requires maximum protection from dust and moisture.
Accessories:The same line can often be configured to produce bends, tees, crosses, reducers, and covers.
Key Features of Our Advanced Production Line
When sourcing machinery from China, quality and reliability are your top concerns. Our machines are built to withstand 24/7 operation:

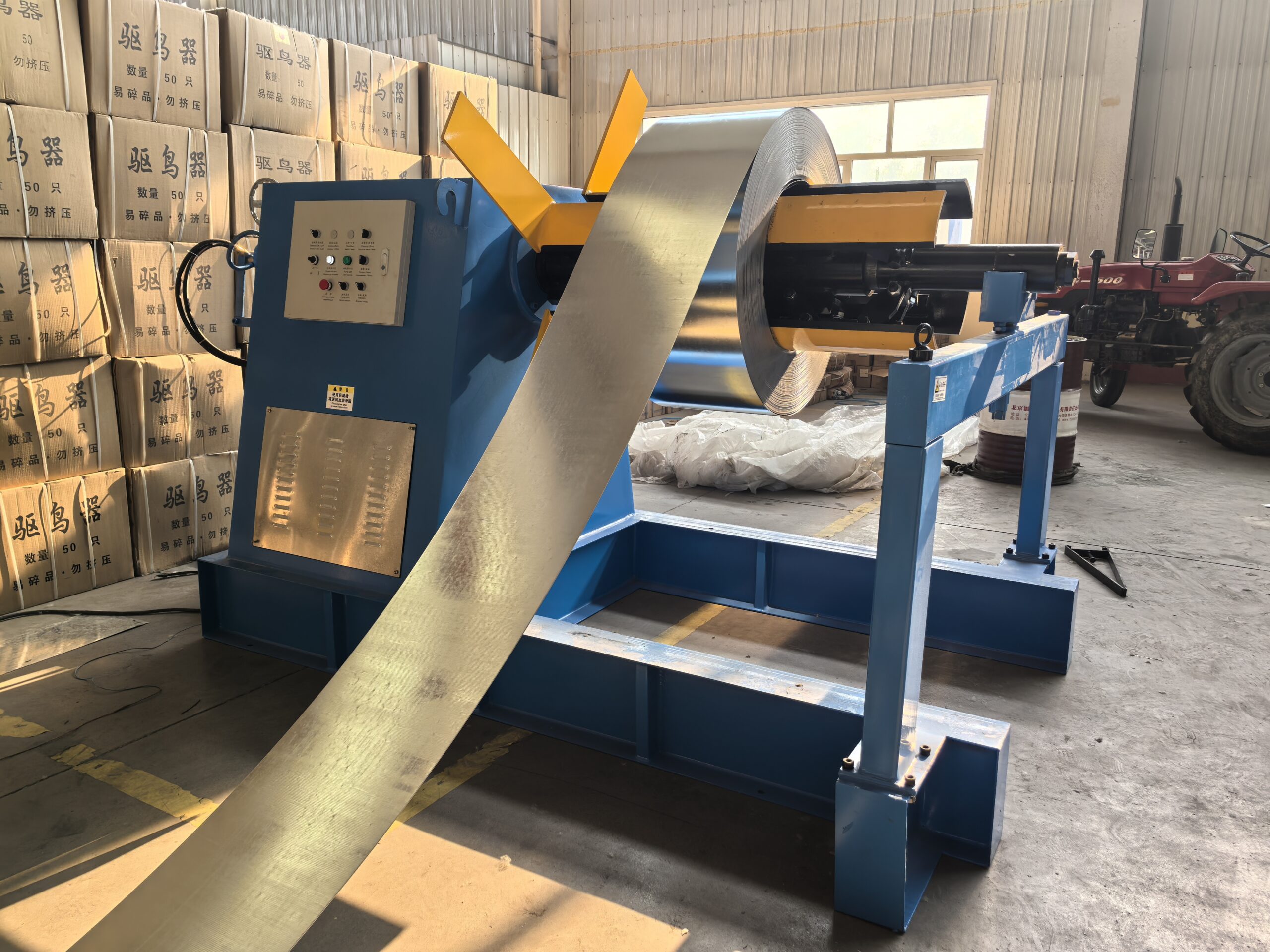

Heavy-Duty Hydraulic Uncoiler
We equip our lines with hydraulic expansion uncoilers capable of handling 5-Ton or 10-Ton coils. This ensures a stable feeding process without damaging the steel surface.

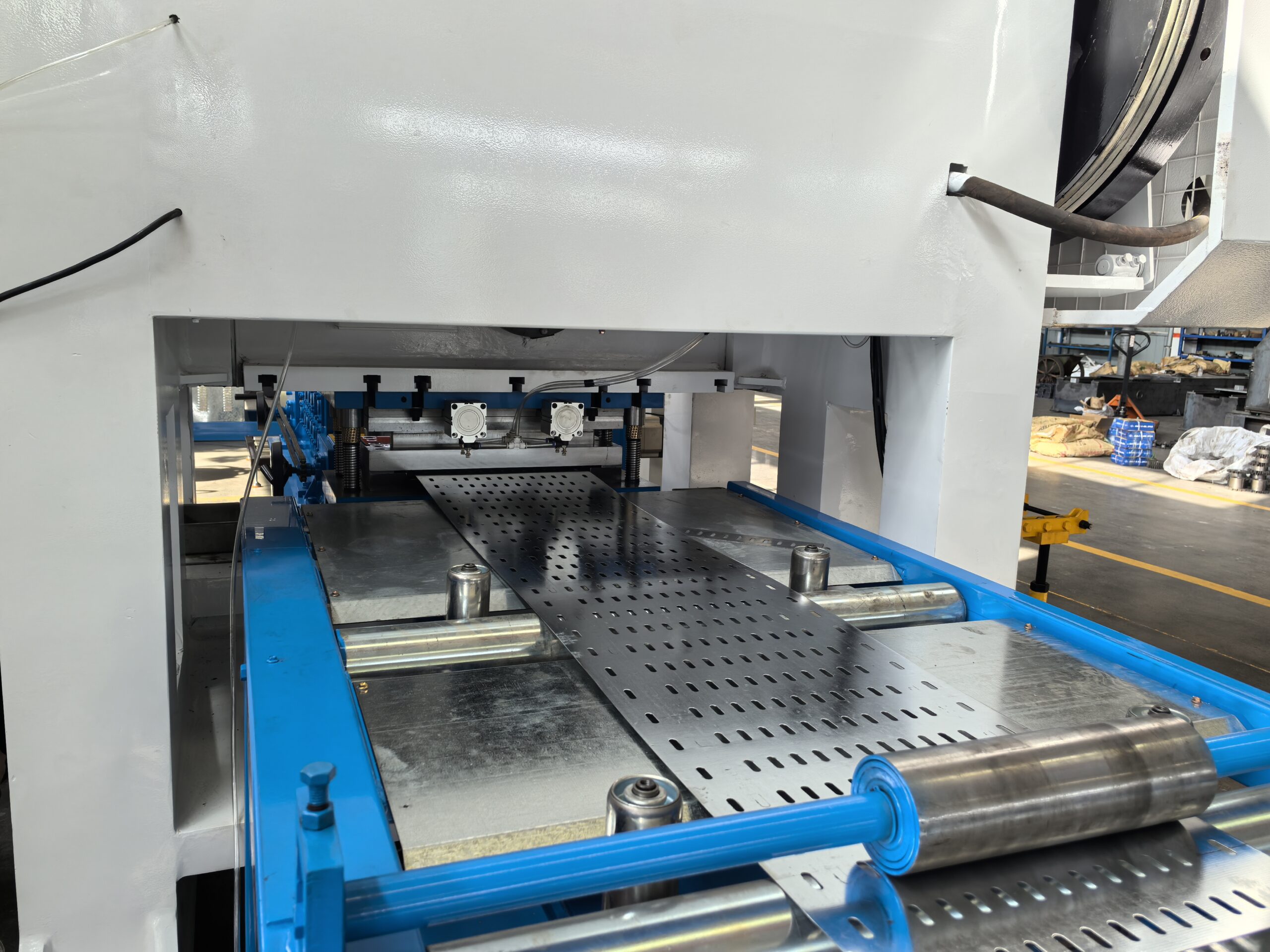

Precision Punching System
The heart of customization. Our servo-driven punching system allows you to program different hole patterns (round, square, oblong) and spacing directly via the HMI (Human-Machine Interface). No need to change physical molds for standard hole changes.

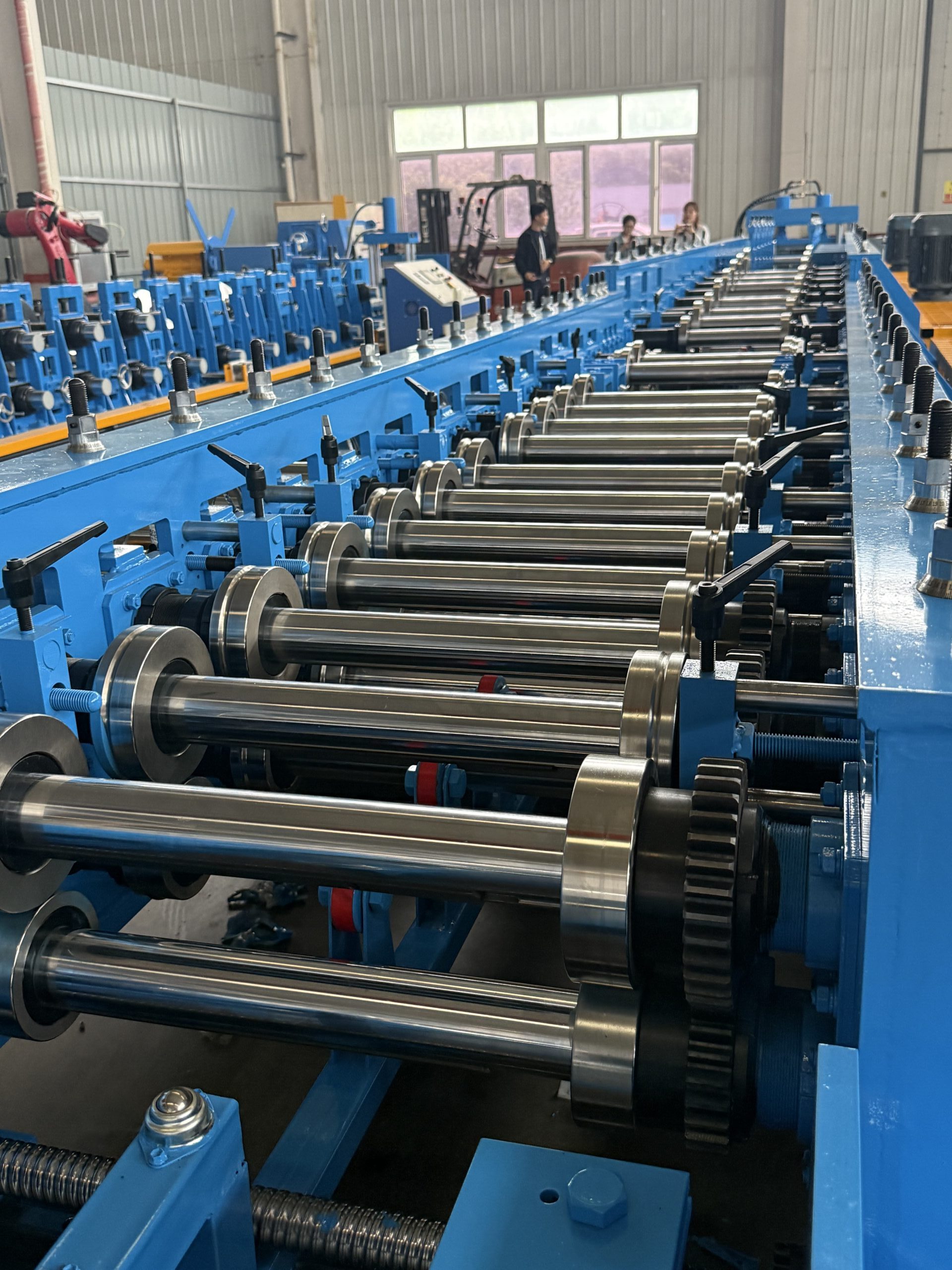

Robust Roll Forming Mill
Rollers:Made from GCr15 bearing steel, quenched (HRC58-62), and mirror-polished. This ensures a smooth surface finish on the final product without scratches.
Shafts:Solid 45# steel, ground, and chrome-plated for high torsion resistance.
Frames:Thickened steel plates (18-20mm) welded together to prevent deformation during high-speed operation.
Intelligent Flying Cut-Off Saw
Unlike traditional stop-and-cut machines, our Flying Saw moves synchronously with the profile. It cuts while the machine is running, maximizing output and reducing cycle time.

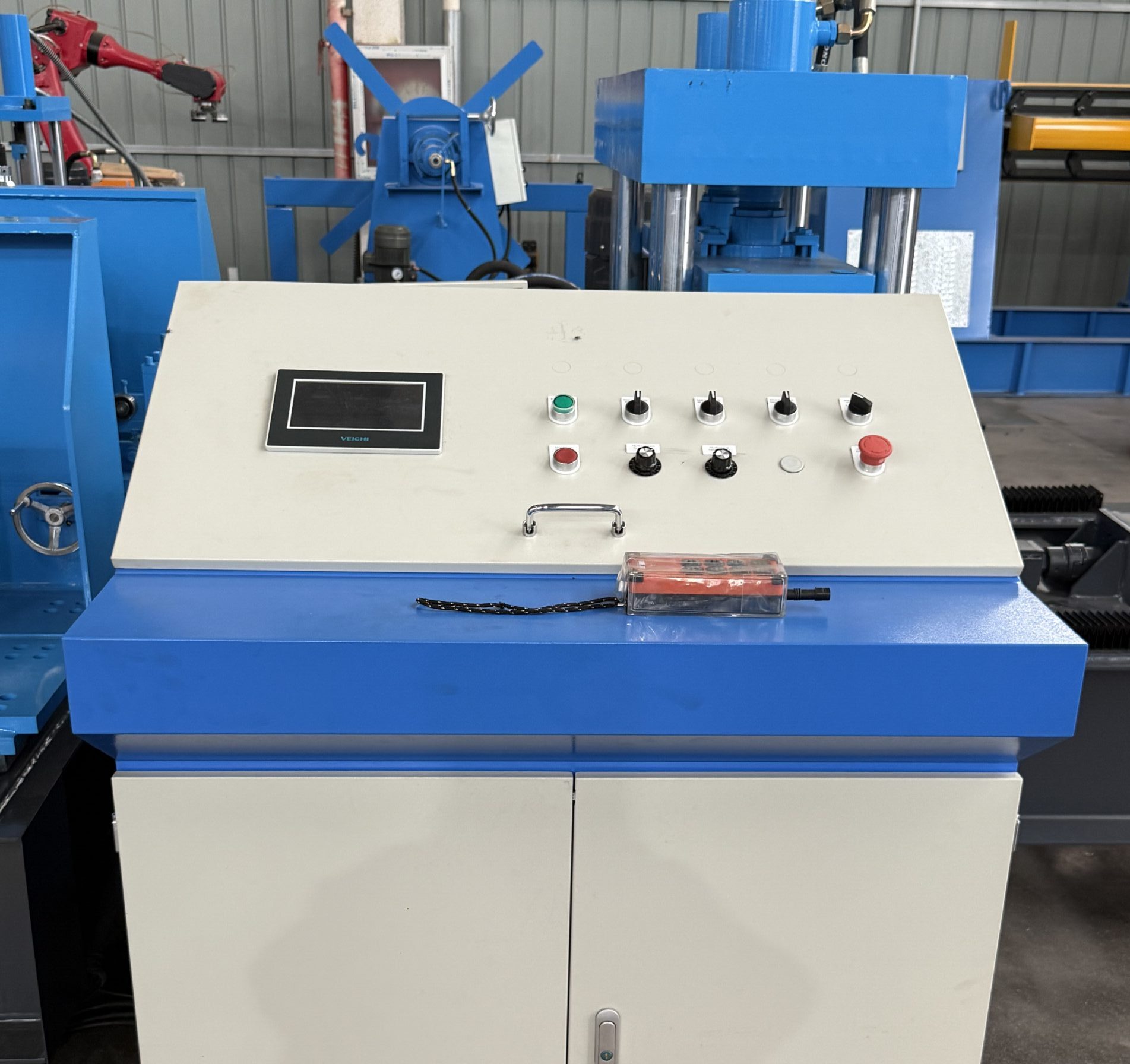

User-Friendly PLC Control System
The Siemens or Delta PLC system features a multi-language interface (English, Spanish, Russian, Arabic, etc.). Operators can input the desired length and quantity, and the machine handles the rest.
Technical Specifications (Example)
| Item | Parameter |
| Applicable Material | GI Coil, Pre-galvanized Steel, Stainless Steel |
| Material Thickness | 0.8 mm – 2.5 mm (Customizable) |
| Main Motor Power | 11 KW – 22 KW Servo Motor |
| Forming Speed | 0-15 m/min (Standard); Up to 25 m/min (High-Speed) |
| Control System | PLC (Siemens/Delta) + Touch Screen |
| Hydraulic Pressure | 12-16 Mpa |
| Total Weight | Approx. 12-18 Tons |
| Machine Dimension | L30m x W2.5m x H1.8m (Approx.) |
(Note: Specifications vary based on specific tray width range and customer requirements. Contact us for a tailored solution.)
How to Choose the Right Machine for Your Factory?
Selecting the right configuration depends on three factors:
Your Market Demand:Are you producing mostly standard sizes (e.g., 100mm-600mm width)? Or do you need extreme flexibility (50mm-1000mm)?
Production Volume:For small workshops, a semi-automatic line might suffice. For industrial suppliers, a full-auto line with auto-stacking is essential.
Local Standards:Ensure the machine can meet local building codes regarding thickness tolerance and load capacity.
Why Partner With Us?
CE Certified:Our machines meet European safety standards.
Turnkey Solution:We provide installation guidance, commissioning, and operator training (online or onsite).
Global Support:Spare parts warehouses and technical support available for clients in
Customization:We don’t just sell machines; we build solutions based on your factory layout and production goals.
