In electrical and construction projects, cable trays are the backbone of organized wire management—supporting power, data, and control cables in commercial buildings, industrial plants, data centers, and infrastructure. To produce standardized, high-volume cable trays at low labor cost, manufacturers increasingly rely on the cable tray roll forming machine​ (also called cable tray cold roll forming machine or cable ladder tray making machine).

This guide explains what the machine does, how the line is configured, typical technical parameters, and what to check before importing one from a Chinese manufacturer.

What Is a Cable Tray Roll Forming Machine?

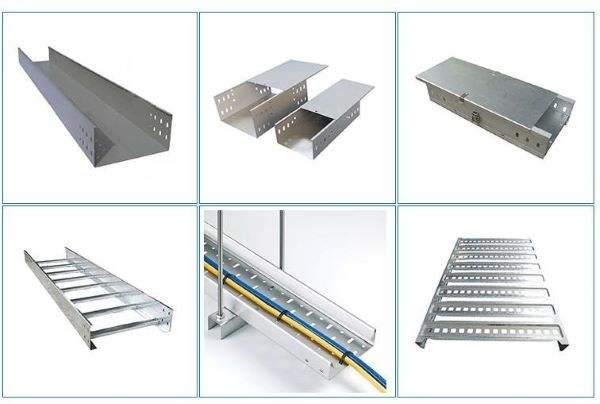

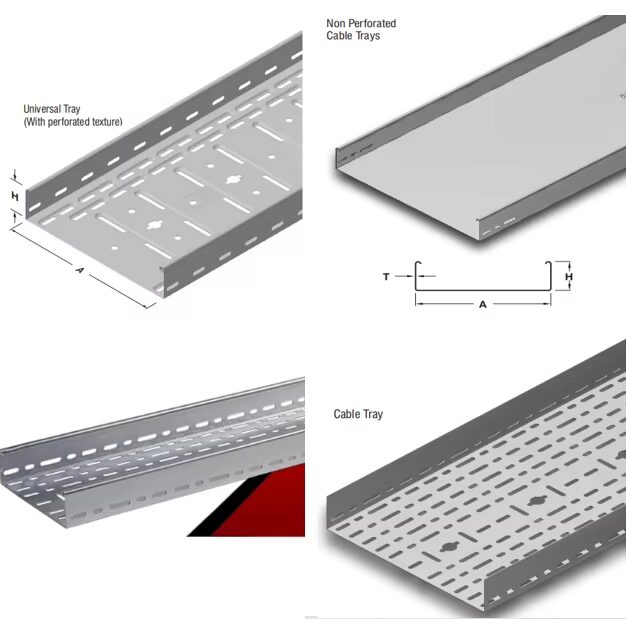

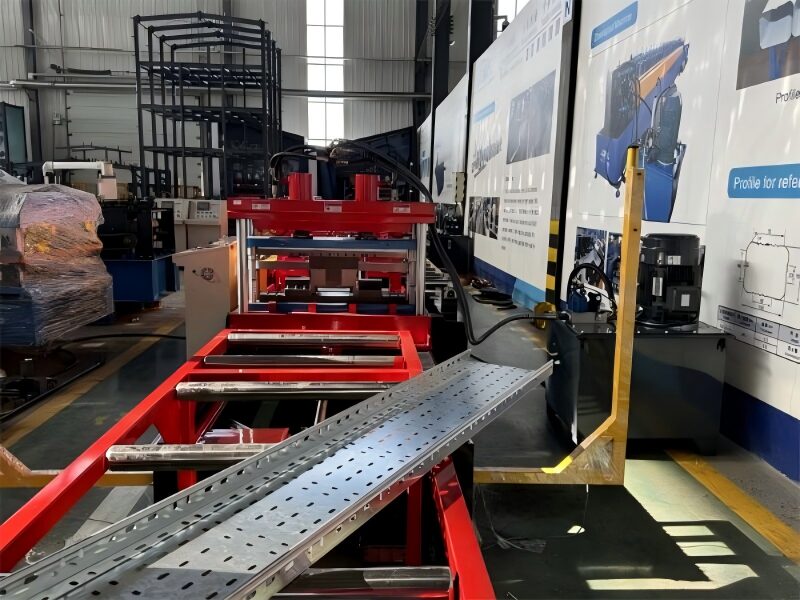

A cable tray roll forming machine is a continuous cold-forming production line that turns steel coils (galvanized steel, cold-rolled steel, stainless steel, or aluminum) into finished cable tray profiles—such as ladder tray side rails, trough/slot trays, perforated trays, and channel-type supports—through decoiling, leveling, servo feeding, punching, roll forming, and cut-to-length.

Unlike standalone press brakes, a roll former delivers:

Consistent profile dimensions across thousands of meters

Higher line speed (typically 10–30 m/min depending on punching)

Lower labor dependency via PLC + HMI automation

Quick size change for different widths/heights

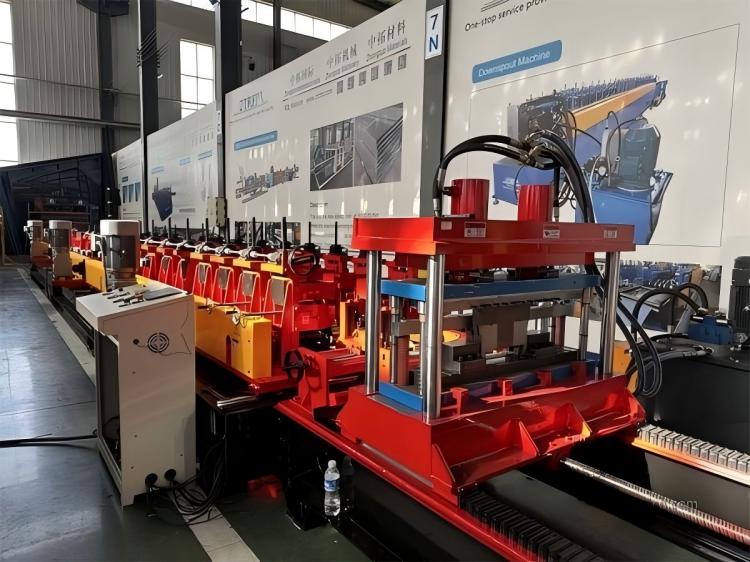

Standard Production Line Configuration

Most export-grade cable tray forming machines follow this flow:

Hydraulic/Manual Uncoiler​ (3T–10T capacity)

Leveling Unit​ – flattens the strip before forming

Servo Feeding & Guide​ – accurate pitch control

Hydraulic Punching Station​ – holes, slots, ventilation openings

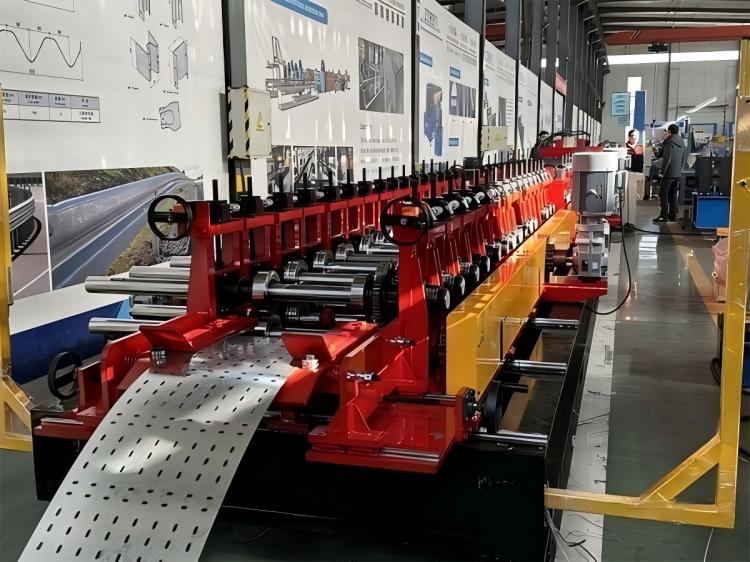

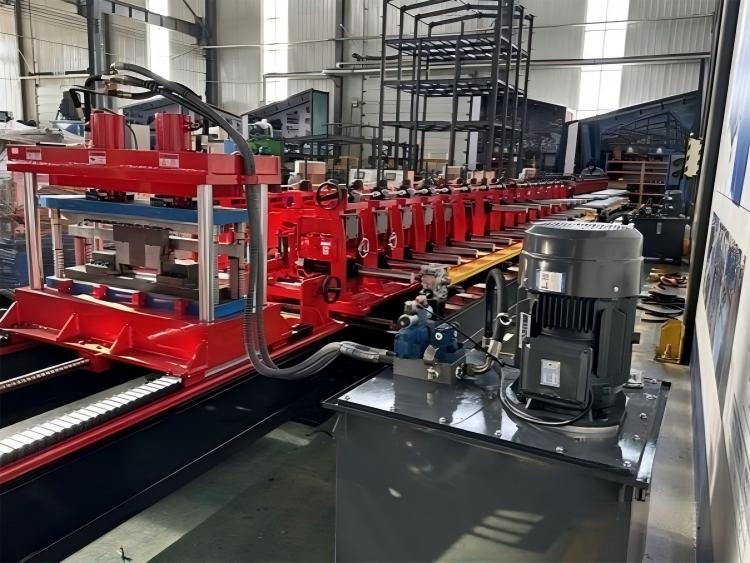

Main Roll Forming Mill​ – 14–23 stations, Cr12 or 45# chrome-plated rollers

PLC Control Cabinet​ – Delta/Siemens/Mitsubishi options

Hydraulic Cut-Off​ – ±0.3 to ±0.5 mm length tolerance

Run-Out / Auto Stacking Table

Optional add-ons: automatic width adjustment (electric shuttle), online embossing, bending/folding unit for edges, remote IoT monitoring.

Typical Technical Specifications

Parameters above reflect mainstream Chinese export models; OEM configuration is available on request.

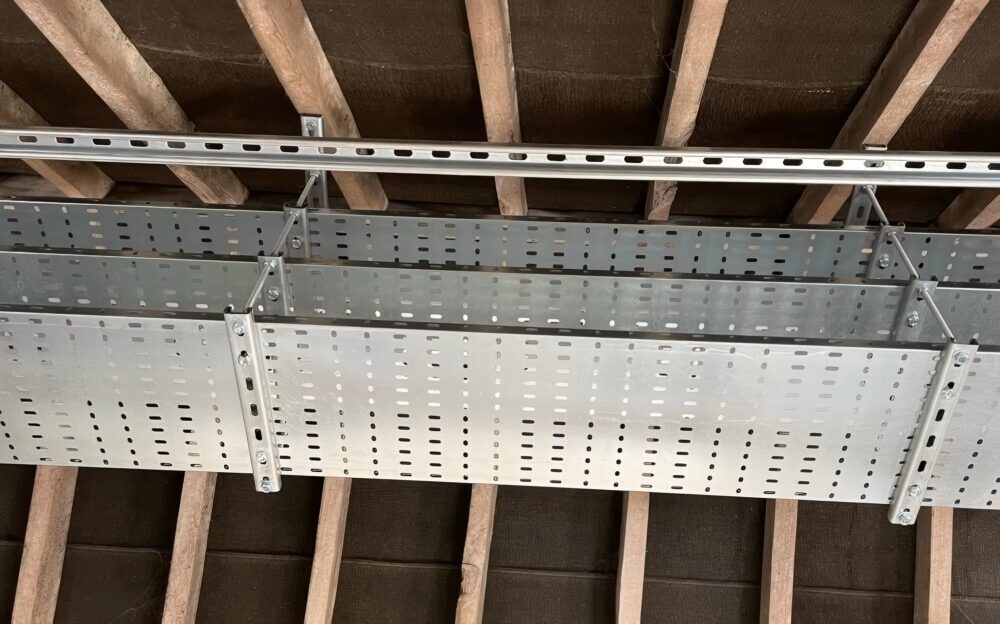

Application Scenarios

A cable tray roll forming machine is suitable for:

Electrical accessory factories supplying trays to contractors

Steel structure & building material manufacturers

Data center and telecom infrastructure projects

Oil & gas, power plant, and mining cable management

Export traders​ serving Middle East, Southeast Asia, Africa, EU, and South America markets

It supports both small workshop setups (one-line investment)​ and full-scale automated plants​ with multiple roll formers running in parallel.

Why Buyers Choose Our Cable Tray Forming Machines

Factory-direct pricing​ – no trading margin, ROI-friendly for startups

CE / ISO documentation​ – machinery directive file, wiring diagram, spare parts list

Custom profile development​ – send us your CAD/DXF drawing, we design rollers

Pre-shipment trial run video​ – every line tested with your material before loading

English/Hindi/Spanish/Russian remote support​ + optional on-site installation

Spare rollers & punch dies shipped together to reduce downtime

We have supplied cable tray roll forming lines to clients in UAE, Saudi Arabia, Turkey, Indonesia, Vietnam, Chile, Nigeria, and Poland, with voltage, plug, and label customization per destination country.

How to Choose the Right Model

Before requesting a quotation, prepare the following so the manufacturer can engineer the right line:

Target tray types (ladder / trough / perforated / combined)

Min & max width/height/thickness

Monthly output target (meters or tons)

Material coil weight and width

Required hole patterns (send drawings)

Local voltage and container loading limit

Budget range and preferred delivery time

FAQ

Q: What is the difference between a cable tray roll forming machine and a press brake?

A: A press brake bends one piece at a time; a roll former produces continuous meters of identical profile at higher speed with better repeatability.

Q: Can one machine make different tray sizes?

A: Yes. Manual spacer change is standard; electric width-adjustment is optional for fast changeover.

Q: How long does production and shipping take?

A: Normally 30–45 days for standard config, plus 20–35 days sea freight depending on port.

Q: Do you provide installation overseas?

A: We offer remote video guidance as standard and on-site engineer service as a paid option.

Q: What after-sales warranty is typical?

A: 12 months from commissioning, lifetime technical support, critical spares included in the container.

Conclusion

A cable tray roll forming machine​ is a high-return investment for any factory serving the electrical construction supply chain. By choosing a supplier with proven export experience, CE paperwork, and customizable line design, you reduce commissioning risk and shorten time-to-first-order.
