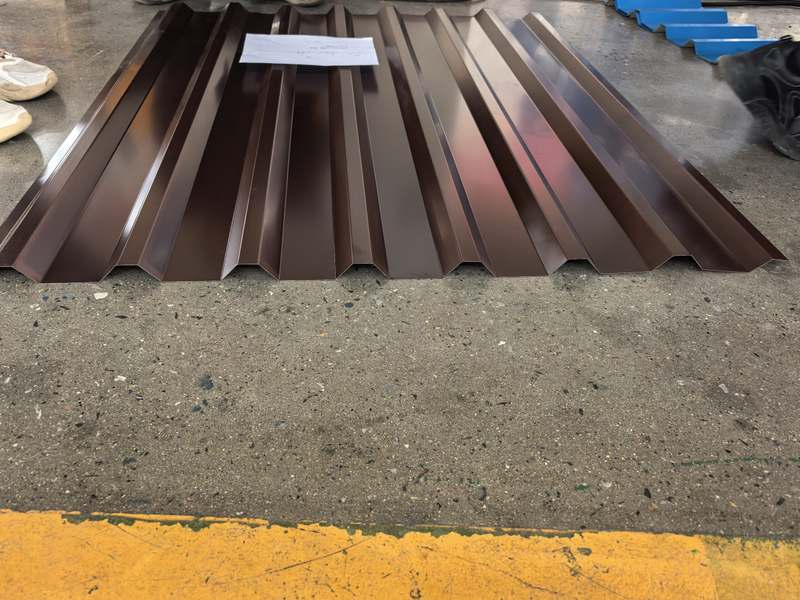

In the global construction industry, trapezoidal roof sheets have become the most widely used roofing material for industrial plants, warehouses, logistics parks, prefabricated houses, greenhouses and commercial buildings, thanks to their unique trapezoidal rib structure, excellent strength-to-weight ratio, good drainage performance, strong wind and snow resistance, and easy installation. As a core component of modern light steel structure roofing systems, trapezoidal roof sheets not only provide reliable waterproof and protective functions, but also have aesthetic advantages with clean lines, which can be installed vertically, diagonally or horizontally to meet the design needs of various architectural styles. They are widely used in both industrial and civil construction fields, and the market demand is growing steadily worldwide.

With the global promotion of prefabricated construction, green building and energy-saving renovation concepts, the demand for high-precision, high-efficiency, standardized and cost-effective trapezoidal roof sheets is surging. Traditional manual or semi-automatic processing methods have low efficiency, poor product consistency, high material waste and difficulty in meeting large-scale project supply needs. Our Trapezoidal Roof Sheet Roll Forming Machine is a professional cold roll forming equipment specially designed for the mass production of high-standard trapezoidal roof sheets. It integrates advanced continuous cold roll forming technology, intelligent PLC control system and high-precision transmission structure, realizing fully automatic, high-speed and stable production. It can produce trapezoidal roof sheets of various specifications on one machine, and even support on-site production at construction sites, avoiding the trouble of long-distance transportation and reducing the risk of sheet damage. It has become the preferred equipment for steel structure manufacturers, building materials enterprises, roofing engineering contractors and municipal construction enterprises around the world.

Core Components & Structural Highlights

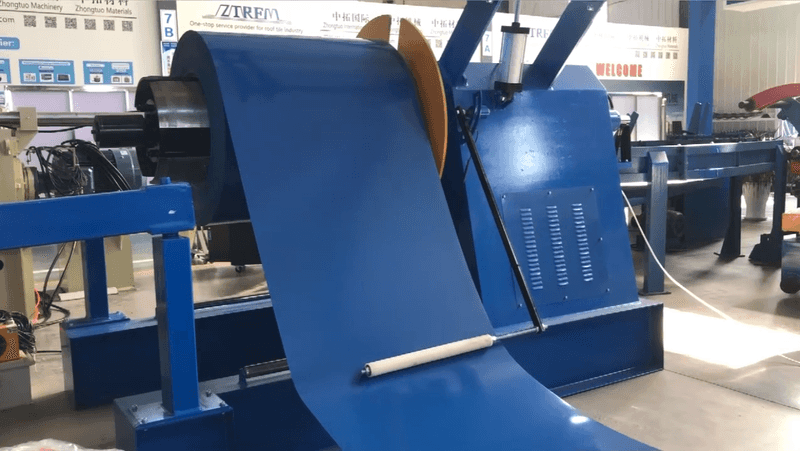

Heavy-Duty Hydraulic Uncoiler: Made of high-strength welded steel structure with overall tempering treatment, featuring strong rigidity and stable load-bearing, suitable for 5-15 tons of various raw material coils with a width range of 1200-1250mm. Equipped with hydraulic expansion function, automatic tension control and photoelectric deviation correction device, it realizes smooth and stable unwinding, adapts to long-term high-load continuous production, and effectively avoids sheet deviation and material waste caused by unstable feeding. It can be equipped with manual, hydraulic or passive uncoiling mode according to customer needs, and the inner diameter of the coil can be adjusted to 460-530mm to adapt to different raw material specifications.

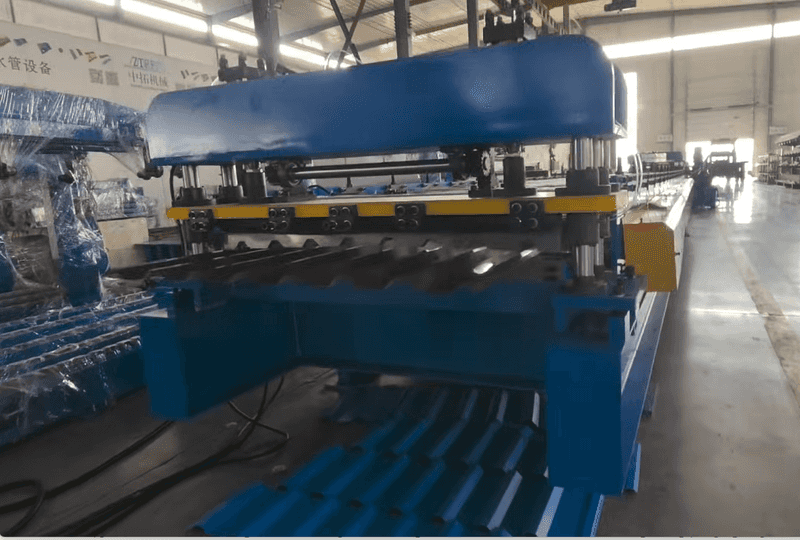

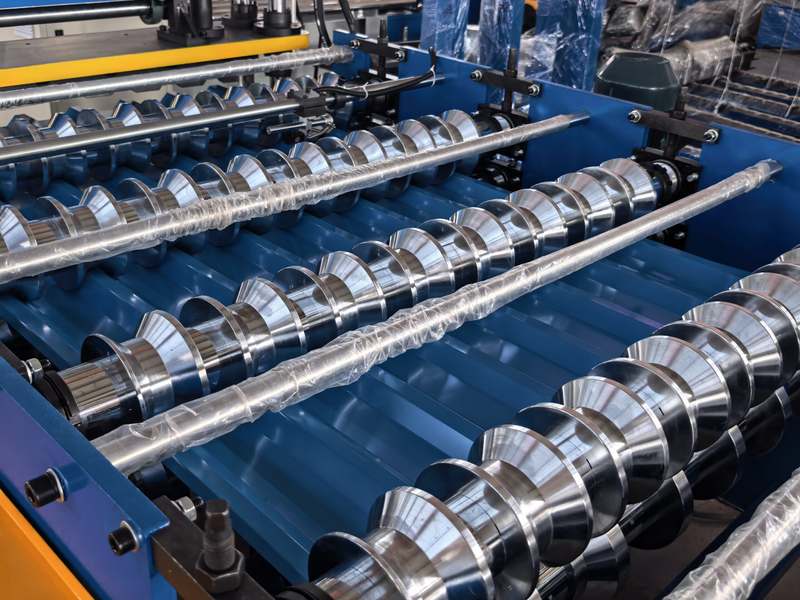

High-Precision Main Forming Host: The core component of the equipment, adopting a thickened heavy-duty frame structure (350# H steel welded), with high rigidity and low vibration, ensuring stable operation under long-term working conditions. Internal forming rollers are made of high-quality GCr15 bearing steel or 45# steel with chromed treatment, processed by precision CNC machining, quenched and tempered to HRC 58-62, with ultra-high wear resistance, corrosion resistance and high precision. The forming station is designed with 12-16 groups of rollers, ensuring that the trapezoidal rib structure is formed step by step, with uniform stress and no deformation. The roller shaft is made of 40Cr alloy steel, with high strength and stable transmission; the quick-adjustment roller design is adopted, which can quickly switch different specifications of trapezoidal sheets (wave height 40-100mm, effective width 750-1065mm) without disassembling the entire roller group, saving time and improving production flexibility.

High-Efficiency Cutting & Optional Punching System: Equipped with hydraulic fixed-length cutting or flying shear cutting system, matched with high-precision encoder length measurement, the length error is controlled within ±0.3mm, with neat notches, no burrs, and no damage to the surface coating of the sheet. The flying shear cutting system supports non-stop cutting during high-speed production, which can improve production efficiency by more than 20% compared with traditional cutting methods. The optional automatic hydraulic punching system can punch standard mounting holes, ventilation holes and wiring holes synchronously during the forming process, with high position accuracy and consistent spacing, avoiding secondary processing and greatly improving overall production efficiency. The cutting blade is made of Cr12MoV alloy steel with quenching treatment, ensuring long service life.

智能 PLC 控制系统： Adopting international brand PLC programmable controller (Siemens, Mitsubishi optional) + humanized touch screen operation interface, supporting Chinese-English bilingual operation (Spanish, Arabic, Russian and other multi-language customization is available). The system realizes one-key automatic production, with complete functions including parameter setting, production counting, fault self-diagnosis, emergency stop and overload protection. It supports storage and quick call of production parameters of different specifications, and can import CAD drawings to realize numerical control production, reducing operation difficulty and manual errors. Operators only need simple training to get started quickly, and even new operators can master the operation skills in one day.

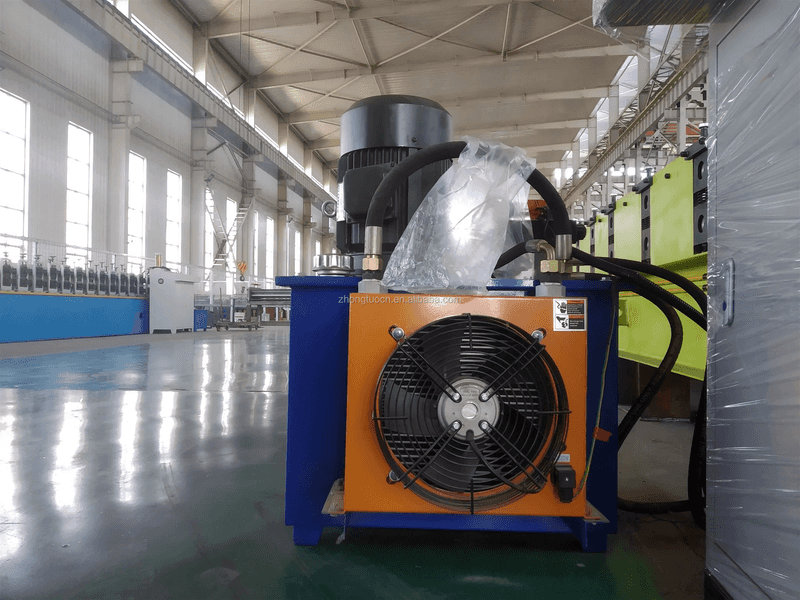

Stable Hydraulic & Electrical System: Equipped with an independent hydraulic station with cooling and oil filtering system, with stable pressure, low noise (≤75dB) and low failure rate, providing reliable power support for uncoiling, forming, cutting and punching. The hydraulic system adopts double-loop design, ensuring independent operation of lifting and cutting actions. Electrical components adopt well-known international brands, complying with international electrical safety standards, with safe and stable lines, ensuring long-term reliable operation of the equipment, and meeting the safety production requirements of global customers. It supports 220V/380V/415V/460V power supply, 50/60Hz, 3P, adapting to the power supply standards of different countries and regions.
