Trapezoidal Roof Tile Roll Forming Machine：Automatic Metal Roof Panel Making Line
Description:Our trapezoidal roof tile roll forming machine produces high-precision metal trapezoidal roofing sheets for warehouses, factories and residential buildings. PLC control, flying cut, custom profiles available. Get a quote today.

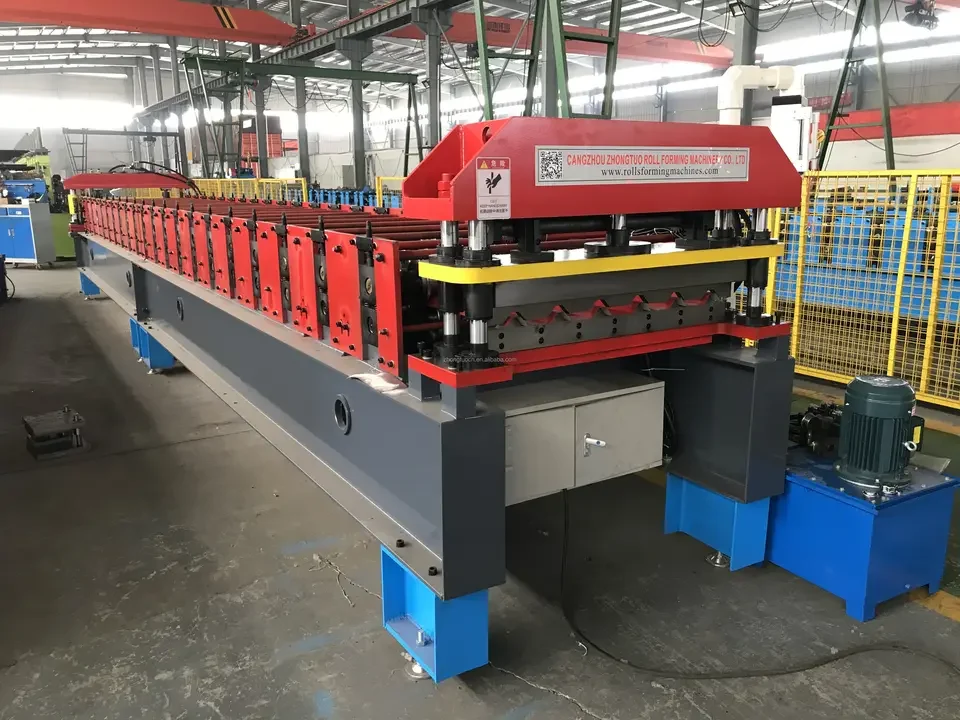

A trapezoidal roof tile roll forming machine is a dedicated cold roll forming line to manufacture trapezoidal metal roof panels, also widely known as IBR roof sheets, trapezoidal roofing tiles, ribbed roof panels. It continuously processes galvanized steel, prepainted color steel, galvalume and aluminum coils into uniform trapezoidal roof tiles used for industrial plants, warehouses, farm sheds, commercial buildings and residential roof cladding.

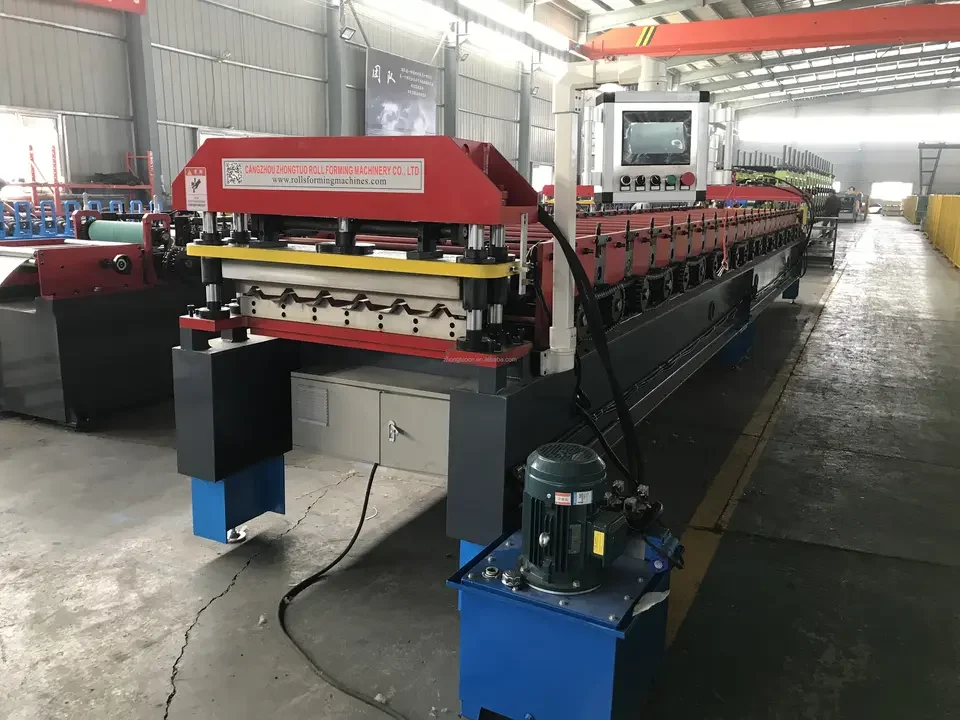

Our fully automatic trapezoidal roof tile forming machine is engineered for stable high-speed running, precise forming and low maintenance. The whole line runs from coil feeding, guiding, multi-pass rolling forming, hydraulic flying cutting to finished sheet stacking. It does not stop during cutting, which maximizes continuous production efficiency for metal roofing manufacturers.
Main Features of Trapezoidal Roof Tile Roll Forming Machine
PLC touch screen control system, supports multi-language setting, easy to set length, quantity and speed. Operators can master operation after short training.
Flying hydraulic shear, cutting tolerance within ±2 mm. Blade material Cr12MoV with quenching treatment, long service life and smooth cutting edge without sheet deformation.

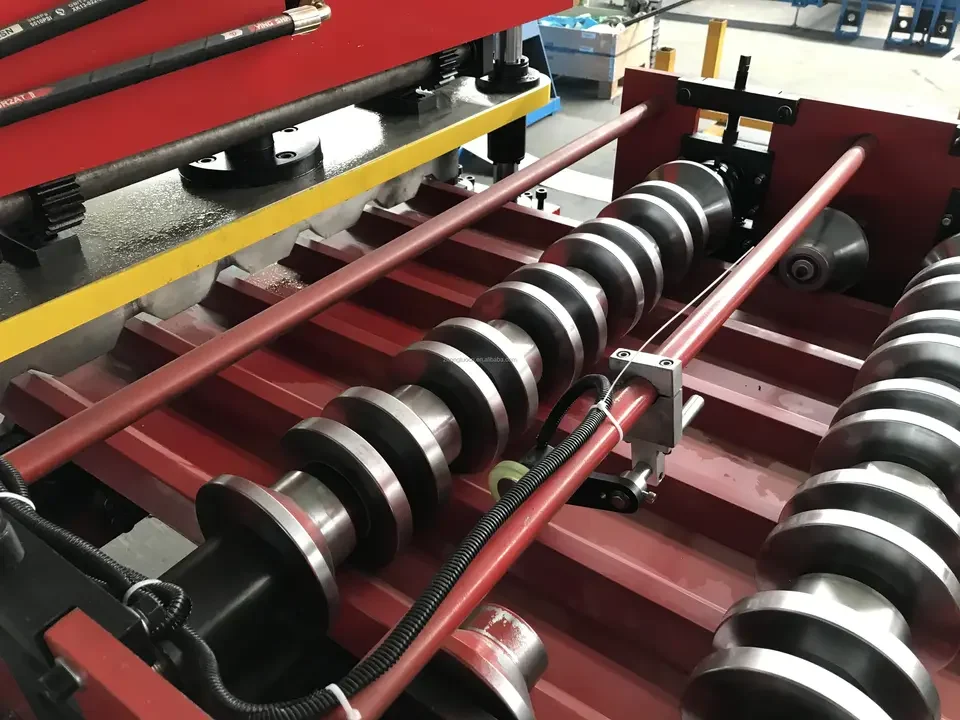

Forming rollers made of 45# steel with hard chrome plating, anti-wear and scratch-free on painted steel surface, ensuring consistent profile shape.
Variable frequency drive, adjustable forming speed 10–30 m/min, suitable for mass production of trapezoidal roof tiles.
Heavy welded machine frame, stable running, low vibration and low noise for long 24-hour continuous work.
Customizable profile: wave height, cover width, sheet thickness can be made according to customer drawings, including TR4, TR5, IBR and other popular trapezoidal roof profiles.
Compatible material thickness: 0.3–0.8 mm color steel, galvanized steel, galvalume, aluminum sheet.

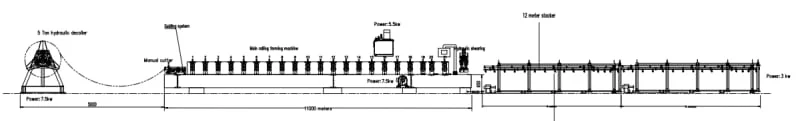

Machine Working Flow
Coil holder: manual or hydraulic decoiler to load steel coil

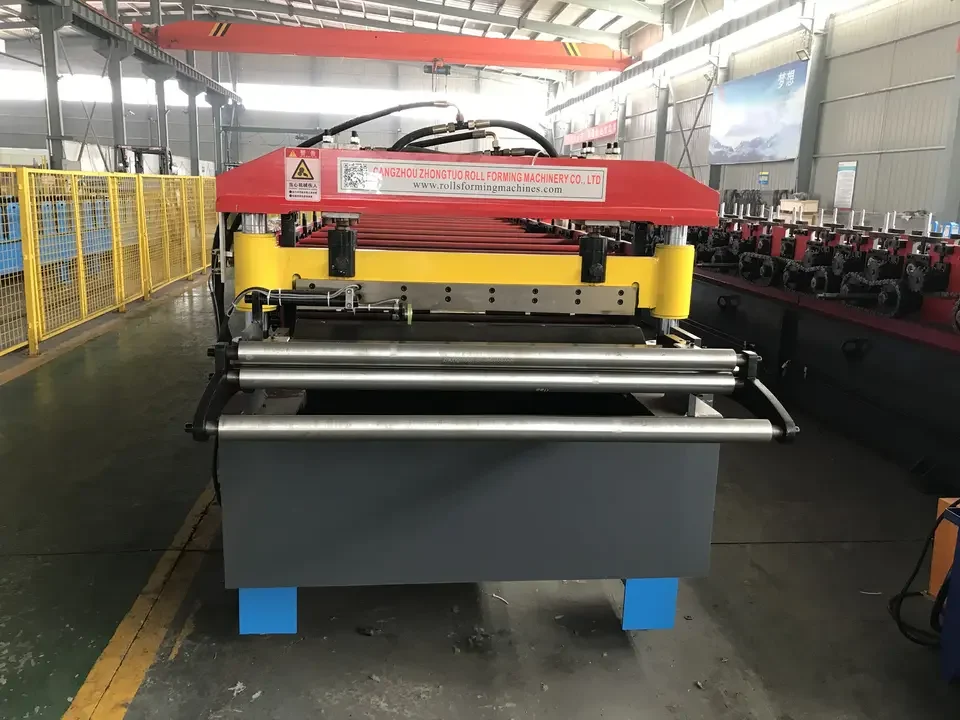

Feeding & guiding device: straighten the strip and keep centering
Roll forming stations: progressive cold bending to form trapezoidal ribs
Length encoder: real-time length tracking
Flying hydraulic cutting unit: cut sheets to preset length without line stop
Run-out table / automatic stacker: collect finished trapezoidal roof panels
Why Choose Our Trapezoidal Roof Tile Forming Equipment
Consistent panel quality is critical for roof installation. Uniform trapezoidal peaks and gaps guarantee tight overlapping, better waterproof performance and neat roof appearance, reducing customer complaints about leakage on site.
Compared with manual or small semi-automatic machines, this automatic roll former greatly saves labor cost and lowers material waste. Simple daily lubrication and cleaning are required, and spare parts are easy to source locally. We provide one-year warranty, lifetime remote video technical support and overseas engineer service if needed.
This trapezoidal roof tile machine is popular among metal roof factories, steel structure contractors and roofing material distributors across South America, Africa, Southeast Asia and the Middle East. If you plan to expand your metal roofing production line, it is a reliable investment with fast return.
Custom Options Available
We support many optional upgrades for the trapezoidal roof tile roll forming line:
Double layer design: one machine for trapezoidal roof sheet plus another wall panel profile
Servo tracking cutting system for higher precision
Automatic hydraulic decoiler with coil car
Automatic counting and stacking system
Custom electrical voltage for different countries (380V/50Hz, 220V, 415V etc.)
Get Your Technical Specification and Quotation
If you need trapezoidal roof tile roll forming machine specifications, profile drawings, machine layout or factory price, please send us your requirements: required profile, effective cover width, material thickness and coil width. Our engineering team will reply with a detailed proposal quickly.
