Rack Upright Roll Forming Machine

Rack Upright Roll Forming Machine：Automatic Warehouse Shelf Column Forming Machine

Description:The rack upright roll forming machine is a professional fully automatic cold roll forming production line specially designed for manufacturing warehouse shelf columns and pallet rack uprights. As core specialized equipment for storage shelf manufacturing, this machine integrates automatic decoiling, leveling, precision punching, continuous roll forming and fixed-length cutting into one streamlined workflow. It is dedicated to producing high-strength standard shelf upright profiles that serve as the main load-bearing structure of various storage rack systems.

Different from ordinary metal forming machines, our shelf column forming machine is tailor-made for the structural characteristics of warehouse rack uprights. It can stably process galvanized steel, cold-rolled steel and other raw materials into U-shaped, special-shaped and customized shelf upright profiles with precise hole spacing and accurate bending angles. The whole production line realizes one-time cold bending forming without secondary processing, effectively improving finished product consistency and production efficiency. It is widely applicable to mass production of heavy-duty warehouse racks, supermarket display shelves, industrial storage racks and logistics equipment supporting frames.

Complete Working Process

Adopting advanced progressive cold roll forming technology, the equipment processes flat steel strips into integrated shelf upright profiles through multi-pass gradual extrusion, avoiding material damage and internal stress concentration. The standardized full-automatic production process ensures stable operation and uniform product quality for long-term batch production.

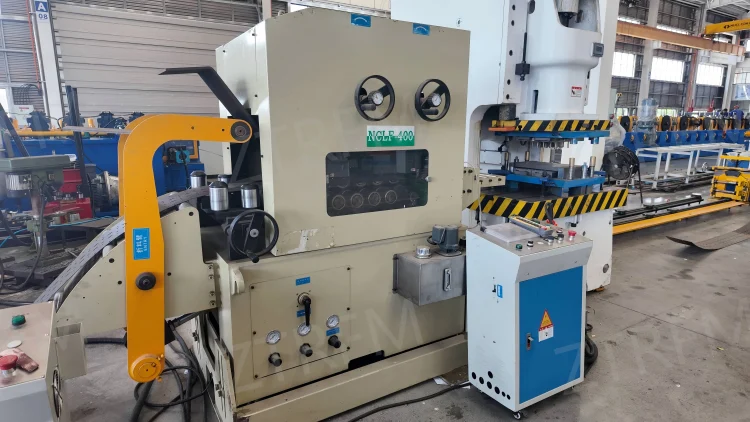

The entire working flow is fully automated and uninterrupted. First, the hydraulic automatic decoiler steadily releases steel coils to ensure continuous and stable material feeding. The precision leveling unit corrects raw material warping and unevenness to eliminate initial processing errors. After accurate guiding and positioning, the steel strip enters the integrated punching system to complete standard hole punching for shelf assembly, including common diamond holes, round holes and adjustment holes. Subsequently, multi-group high-precision forming rollers gradually bend and shape the steel strip into standard shelf upright profiles. Finally, the servo tracking hydraulic cutting system performs fixed-length cutting, and finished upright products are automatically output and collected, realizing unmanned assembly line production.

Core Features & Competitive Advantages

Ultra-high Forming Precision & Standardized Hole Position

Shelf uprights are load-bearing core components of storage racks, requiring extremely high dimensional accuracy and hole position consistency. Our rack upright roll forming machine adopts high-precision alloy steel rollers processed by overall heat treatment and fine grinding, with strong wear resistance and no deformation after long-term operation. The independent servo punching system realizes synchronous punching and forming, with hole spacing error and profile dimensional tolerance strictly controlled within international industrial standards. The finished uprights feature neat incision, no burrs, uniform bending radian and good interchangeability, perfectly matching automatic shelf assembly requirements.

Integrated Punching & Forming, High Production Efficiency

This equipment abandons the traditional separate processing mode of manual punching and secondary forming. It integrates punching, forming and cutting into one machine, realizing one-time molding of finished shelf uprights. The continuous cyclic production mode effectively shortens the production cycle and greatly improves daily output. The intelligent speed regulation system can adjust production speed according to raw material thickness and product specifications, balancing efficiency and molding quality, helping manufacturers greatly improve production capacity and market delivery capability.

Intelligent PLC Automatic Control System

Equipped with industrial-grade PLC control system and human-machine touch screen operation interface, the machine supports one-key parameter setting, automatic length counting, batch production setting and fault self-detection. Operators can quickly switch production specifications and adjust parameters such as cutting length and hole spacing according to production needs. The system is equipped with overload protection, emergency stop and automatic alarm functions, which effectively reduce operational risks, minimize manual errors and realize safe, stable and intelligent production.

Stable Structure & Strong Durability

The main frame of the machine adopts thickened steel plate integral welding structure, with overall stress relief treatment, ensuring no deformation and strong shock resistance during long-term high-load operation. Key transmission parts adopt high-strength transmission components, with stable operation and low noise. All electrical and hydraulic core accessories adopt well-known international brands, effectively reducing equipment failure rate and later maintenance costs, and extending the overall service life of the production line.

Strong Compatibility & Flexible Customization

The equipment supports processing of various metal materials such as galvanized steel and cold-rolled steel, and adapts to multiple conventional material thicknesses for shelf production. It can produce various mainstream shelf upright specifications including heavy-duty warehouse rack columns, medium-sized storage uprights and supermarket shelf columns. We support personalized mold and parameter customization according to customers’ local market standards and product drawings, meeting diversified production needs of global shelf manufacturers.

Application Scope

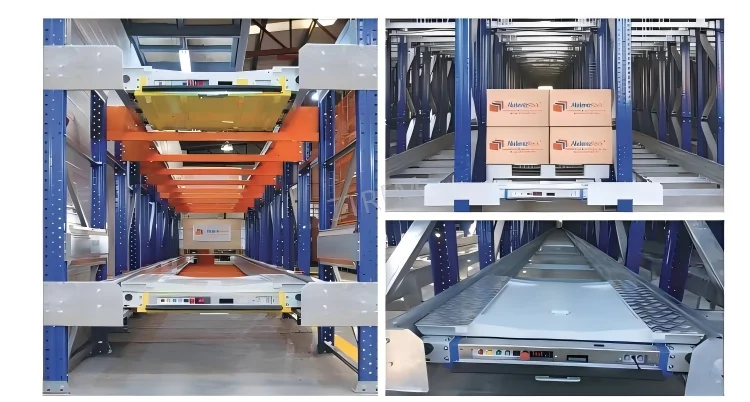

The shelf uprights produced by this machine have high structural strength, good stability and strong bearing capacity, which are core supporting components of various storage equipment. The finished products are widely used in industrial warehouse pallet racks, logistics storage shelves, supermarket display racks, workshop storage racks, automated three-dimensional warehouse supporting frames and cold storage special storage racks. With stable quality and high assembly accuracy, the products meet the storage and handling needs of logistics, e-commerce warehousing, industrial manufacturing, retail and many other industries.

Quality Certification & Global After-Sales Service

All our rack upright roll forming machines are manufactured in strict accordance with international mechanical manufacturing standards. Each equipment undergoes strict factory aging tests, precision calibration and continuous operation testing before delivery, and has passed CE certification, fully meeting the export standards of Europe, Southeast Asia, the Middle East, Africa and other global regions, ensuring smooth market access for customers.

We provide full-cycle one-stop overseas service for global buyers. Before delivery, we complete full machine debugging and trial production, and provide complete English operation manuals, maintenance guides and professional operation video tutorials. We support non-standard customized services according to customer requirements. In terms of after-sales support, we provide long-term remote technical guidance, real-time fault diagnosis, spare parts supply and lifelong technical consultation, ensuring customers’ stable and continuous production.

Why Choose Our Rack Upright Roll Forming Machine

We are a professional manufacturer focusing on the R&D and production of storage shelf special forming equipment, with rich overseas export experience and mature technical solutions. Compared with ordinary forming equipment on the market, our shelf upright forming machine is more targeted in structural design, with higher molding precision, more stable operation and lower failure rate, specially optimized for long-term high-intensity shelf batch production.

We adopt factory direct sales mode, eliminating intermediate agents and providing customers with high-quality and cost-effective equipment. Whether it is small-scale factory customized production or large-scale standardized batch production, our equipment can fully meet the demand. With reliable product quality and perfect after-sales service system, our machines have been exported to many countries and regions, winning high recognition and trust from global shelf manufacturers.

If you are looking for a high-precision, high-efficiency and stable automatic rack upright roll forming machine, welcome to contact us for free quotation, detailed parameter information and customized production solutions!
