Russian Style Cable Tray Roll Forming Machine：GOST-Type Perforated & Ladder Tray Line
Cangzhou Zhongtuo Roll Forming Machinery Co.,Ltd comes from Hebei-China. It is a manufacturer dedicated to design and manufacture.
different types of cold roll forming machines. We are a factory with a long history, engaged in the design and manufacture of roll forming machines since 2006. The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceiling system forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, hot laminating filmed machine,etc.
different types of cold roll forming machines. We are a factory with a long history, engaged in the design and manufacture of roll forming machines since 2006. The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceiling system forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, hot laminating filmed machine,etc.
For more information, delivery time and prices, please mail us!
Russian Style Cable Tray Roll Forming Machine：GOST-Type Perforated & Ladder Tray Line
Description:Buy Russian style cable tray roll forming machine for perforated, ladder and trough trays. GOST-type sizes, 380V/50Hz or 415V, 0.8–3.0mm galvanized steel, PLC auto line for Russia & CIS.
The Russian style cable tray roll forming machine is a full-automatic cold roll forming line engineered for plants supplying cable support systems to the Russian and CIS market. Unlike a generic cable tray machine, this model is calibrated to GOST R 52868-type dimensions, Russian preference for perforated trays, ladder trays and trough trays, and local factory conditions such as 380V/50Hz or 415V three-phase power, low-temperature workshops, and galvanized coil stock.
It converts galvanized steel, cold-rolled steel or stainless coil into finished trays in one pass: uncoiling → leveling → servo feeding → punching → roll forming → flying shear → stacking.
Why “Russian Style” Is Not Just a Marketing Word
Russian EPC contractors and tray distributors usually ask for:
Perforated side rails with standard hole patterns for coupling and fixing
Ladder trays (LT / NL type) with stiffened side members for long spans
Trough/solid-bottom trays for cable protection in industrial rooms
Tray widths roughly 100–600 mm, heights 50–150 mm, thickness 0.8–3.0 mm
Compatibility with GOST R 52868-2021 tray terminology and typical local drawings
Our machine does not force Russian buyers to re-engineer your tray. The roller flower, punch die and cut length are set to match local profile drawings.

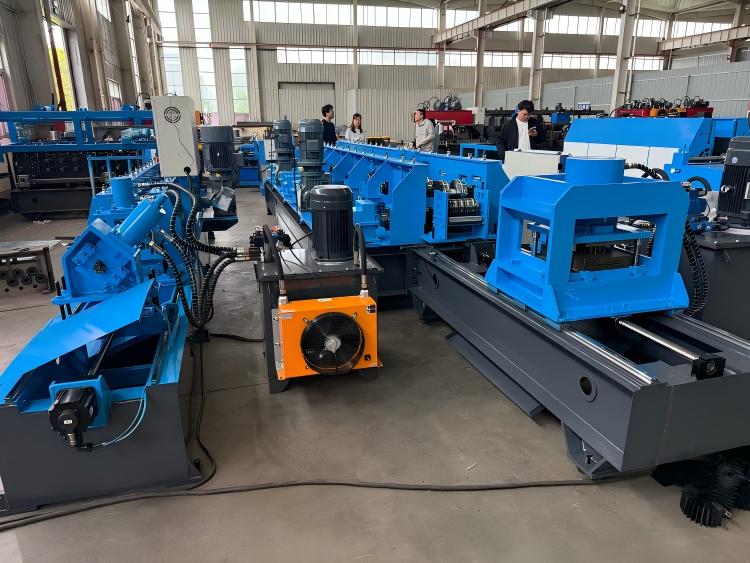

Production Process
Hydraulic decoiler – 3–10 t coil capacity
Leveling unit – removes coil camber
Servo feeder + hydraulic punch – side holes, joint holes, bottom ventilation holes

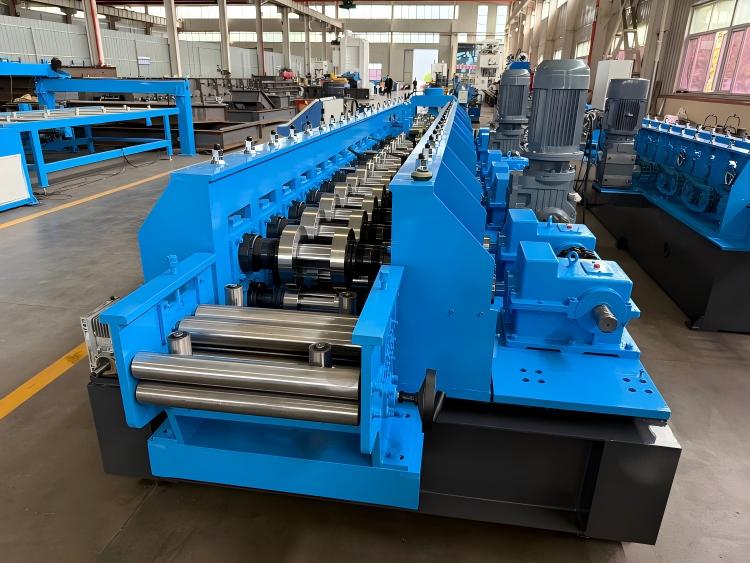

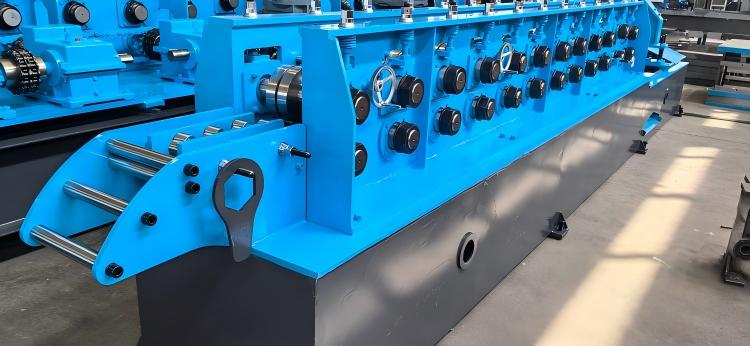

Main roll forming stands – 14–20 stations, Cr12MoV rollers HRC 58–62

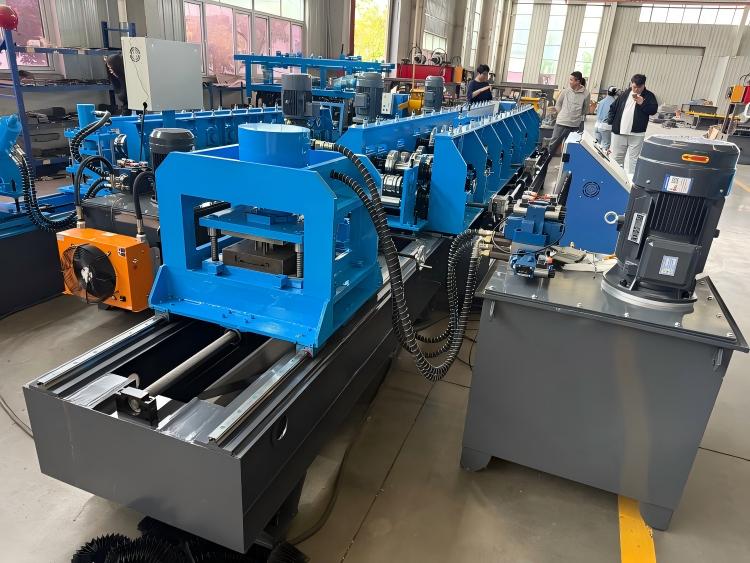

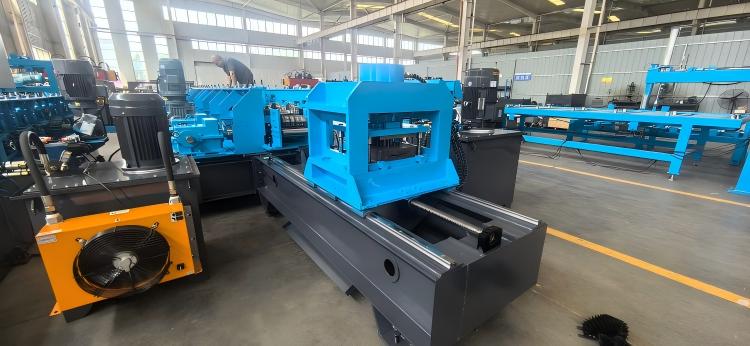

Flying hydraulic shear – cut while running, ±0.5 mm length tolerance
Outfeed conveyor + stacker – auto counting and bundling
One operator can manage the line with PLC touch screen (English/Russian UI).
Technical Parameters (Typical 0.8–3.0 mm Model)
| Item | Specification |
| Raw material | Galvanized steel, cold-rolled steel, SS304 (yield ≤ 345 MPa) |
| Thickness | 0.8–3.0 mm (max 3.5 mm on heavy model) |
| Tray width | 100–600 mm (adjustable) |
| Tray height | 50–150 mm |
| Line speed | 5–15 m/min (up to 20 m/min high-speed) |
| Punch system | Hydraulic multi-station, servo positioning ±0.2 mm |
| Cutting | Flying hydraulic shear, ±0.5 mm |
| Roller material | Cr12MoV, quenched HRC 58–62 |
| Main motor | 15–30 kW depending on gauge |
| Voltage | 380V/50Hz standard; 220V/415V configurable for Russia |
| Control | PLC + HMI, recipe storage for multi-size |
| Optional | Auto stacker, remote VPN diagnostics, GOST paint/nameplate |
Parameters are adjustable per customer profile drawing.

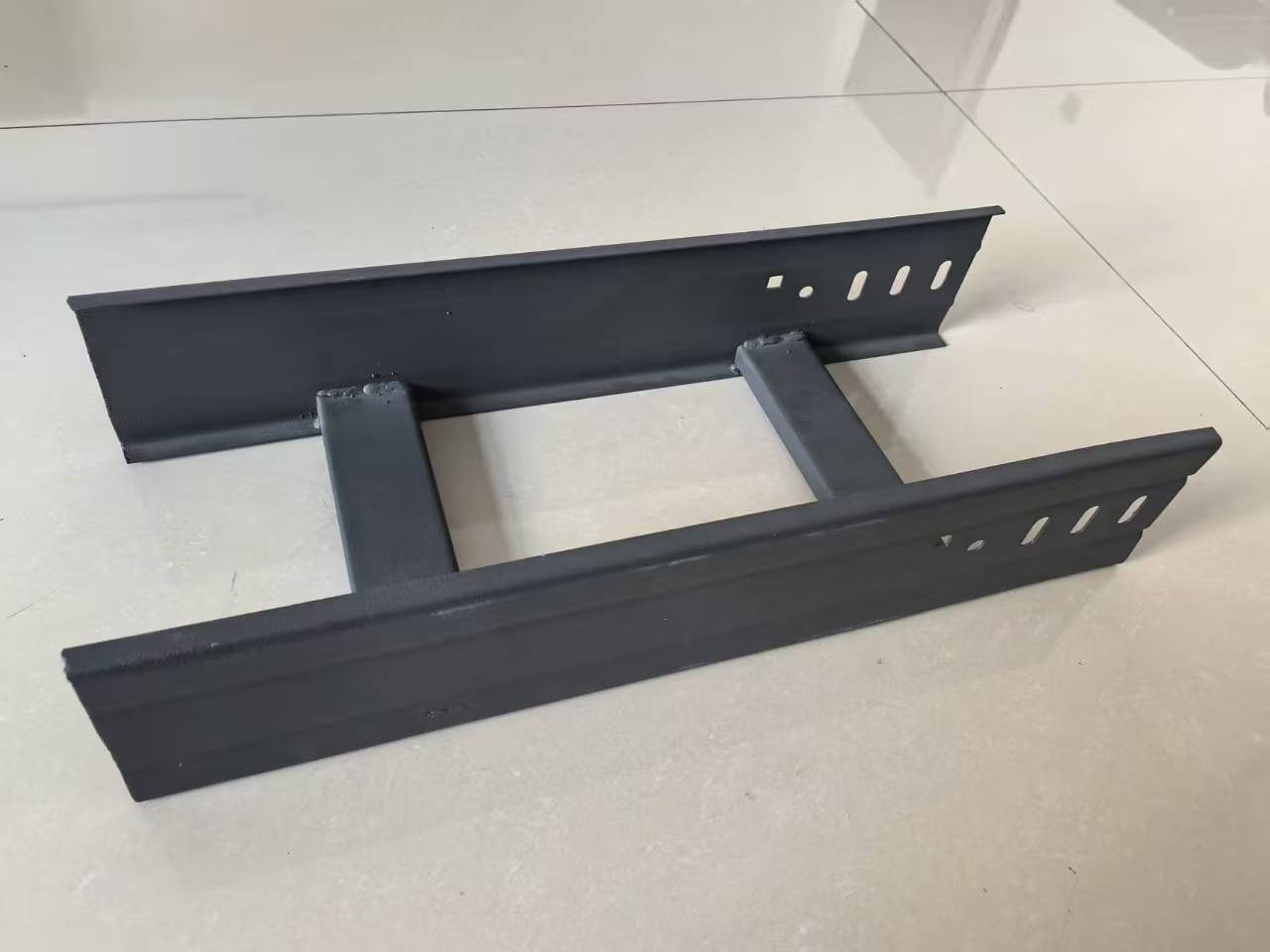

Types of Russian-Style Trays Produced
Perforated cable tray – ventilated, for cable plants, data centers, oil & gas rooms
Ladder cable tray – high load, long span, outdoor and tunnel use
Trough/solid tray – dust-protected version for instrument cable
Custom GOST-type sections – send your DWG/PDF, we match roller flower
Market Fit: Russia & CIS
This line is built for:
Cable tray factories in Moscow, St. Petersburg, Kazan, Novosibirsk
EPC sub-suppliers for power stations, metro, oil refinery, mining
Distributors replacing imported Turkish/Chinese trays with local production
Plants needing one machine, multiple tray sizes
We supply voltage adaptation, Russian-language HMI, winter-grade hydraulic oil option, and GOST-type nameplate on request.
FAQ
Q1: Can one machine make both ladder and perforated tray?
Yes. With quick-change roller cassettes and adjustable punch dies, the same line switches between perforated tray, ladder tray and trough tray in 30–60 minutes.
Q2: Do you support Russian 415V / 50Hz?
Yes. Default is 380V/50Hz three-phase, but we configure transformer, motor rating and PLC inputs for 415V or 220V control per Russian panel standard.
Q3: Is GOST certification included for the machine?
Machine can be supplied with EAC/CU-TR supporting documents on request. GOST R 52868 applies to the finished tray, not the roll former; we tune the line so your tray matches that standard.
Q3: What coil thickness is best for Russian galvanized tray?
Most Russian buyers run 1.2–2.0 mm galvanized for perforated tray, 1.5–3.0 mm for ladder side rail. We recommend 0.8–3.0 mm universal model.
Q4: How many workers needed?
1–2 workers: one for coil loading/unloading, one for quality check and HMI. Full auto mode runs without manual forming.
Conclusion
The Russian style cable tray roll forming machine is not a renamed universal line. It is tuned for GOST-type tray geometry, Russian power supply, galvanized coil behavior, and local project specs. For tray manufacturers targeting Russia, Belarus, Kazakhstan or Uzbekistan, it reduces import dependence and shortens lead time.
