Highway Guardrail Roll Forming Machine：W & Thrie Beam Manufacturer
Cangzhou Zhongtuo Roll Forming Machinery Co.,Ltd comes from Hebei-China. It is a manufacturer dedicated to design and manufacture.
different types of cold roll forming machines. We are a factory with a long history, engaged in the design and manufacture of roll forming machines since 2006. The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceiling system forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, hot laminating filmed machine,etc.
different types of cold roll forming machines. We are a factory with a long history, engaged in the design and manufacture of roll forming machines since 2006. The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceiling system forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, hot laminating filmed machine,etc.
For more information, delivery time and prices, please mail us!
Introduction: Precision Engineering for Road Safety
Our Highway Guardrail Roll Forming Machine is engineered to produce high-strength W-Beam (Two-Wave) and Thrie-Beam (Three-Wave) crash barriers according to international standards, including AASHTO M180, EN 1317, and JT/T 281. Designed for high-volume production, this fully automatic line transforms galvanized steel coils into perfectly shaped guardrails with consistent accuracy. It is the ideal solution for road safety contractors, steel mills, and infrastructure manufacturers worldwide.
Key Features & Benefits

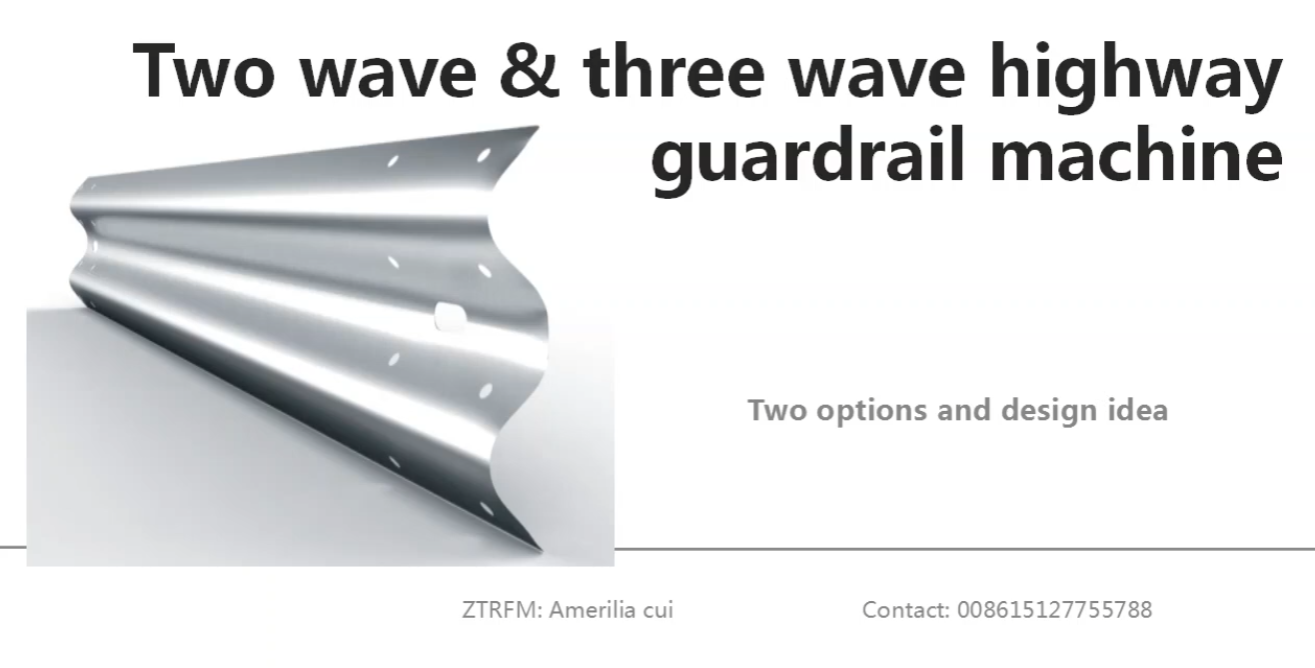

Dual Profile Capability:Easily switch between Two-Wave (310mm) and Three-Wave (506mm) profiles by adjusting spacers or replacing specific roller stations. (Optional feature based on model).

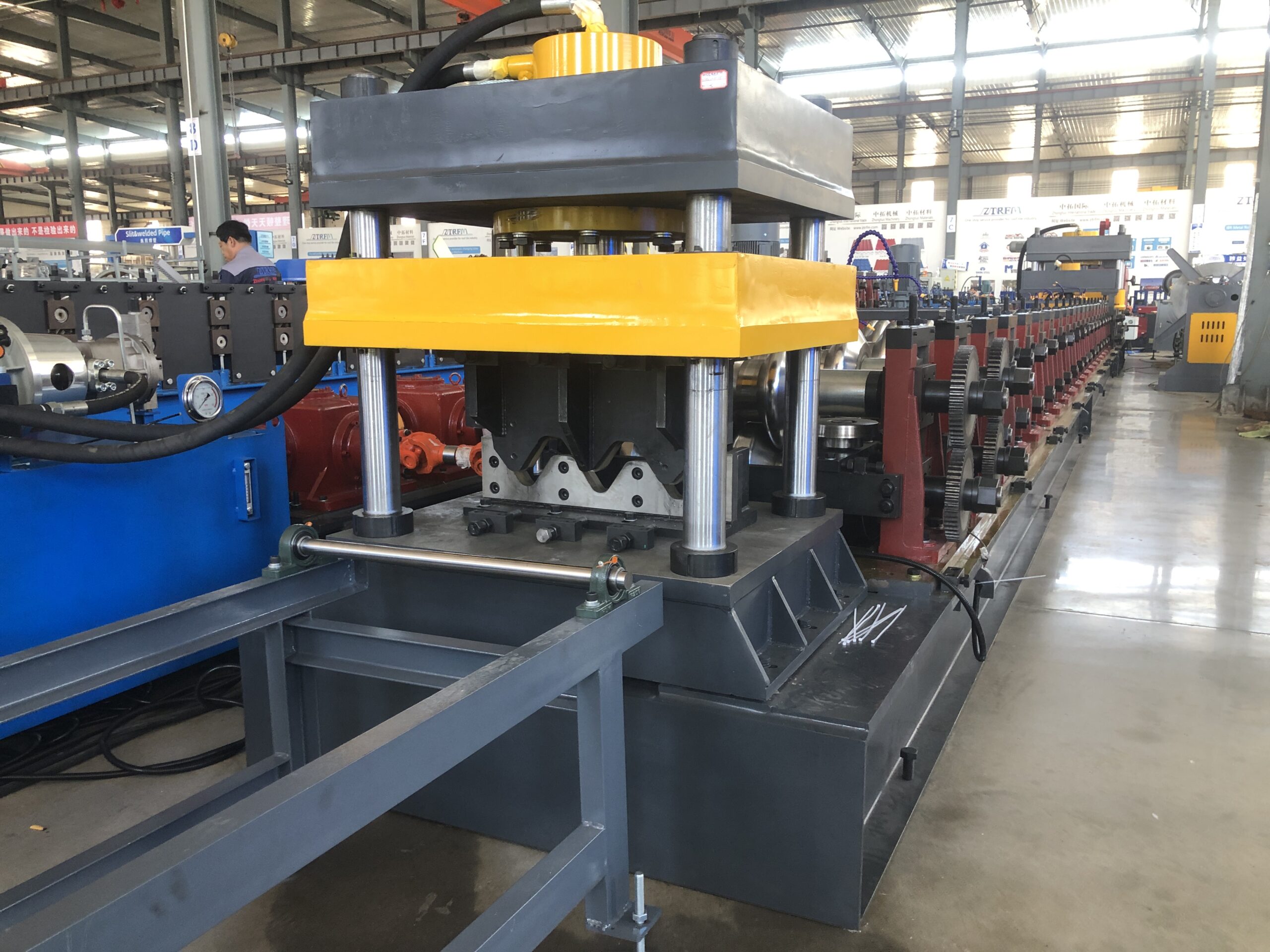

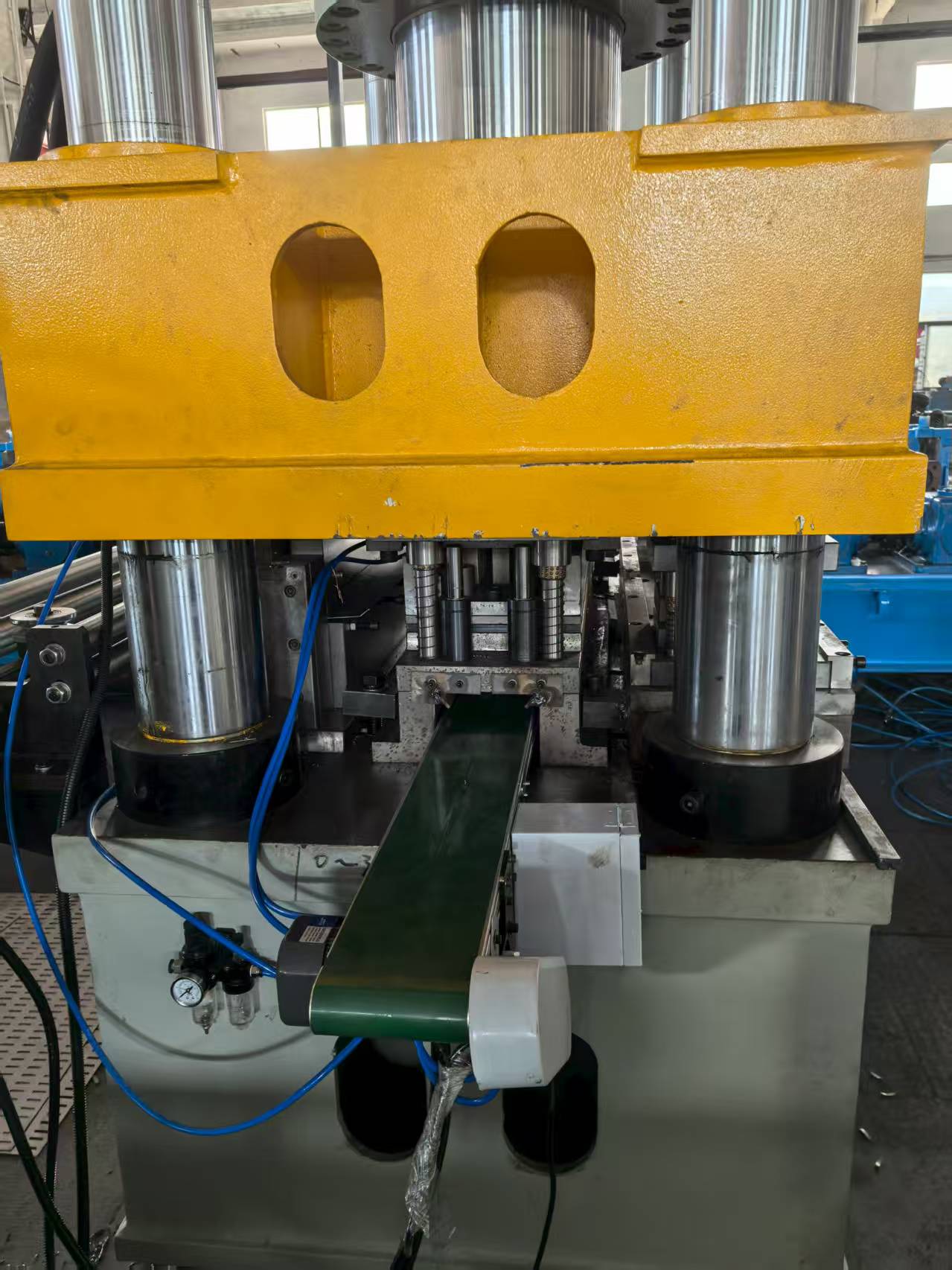

Integrated Hydraulic Punching:Equipped with a hydraulic punching system to create bolt holes (blockout holes) and splicer holes simultaneously during the forming process, ensuring precise hole alignment.

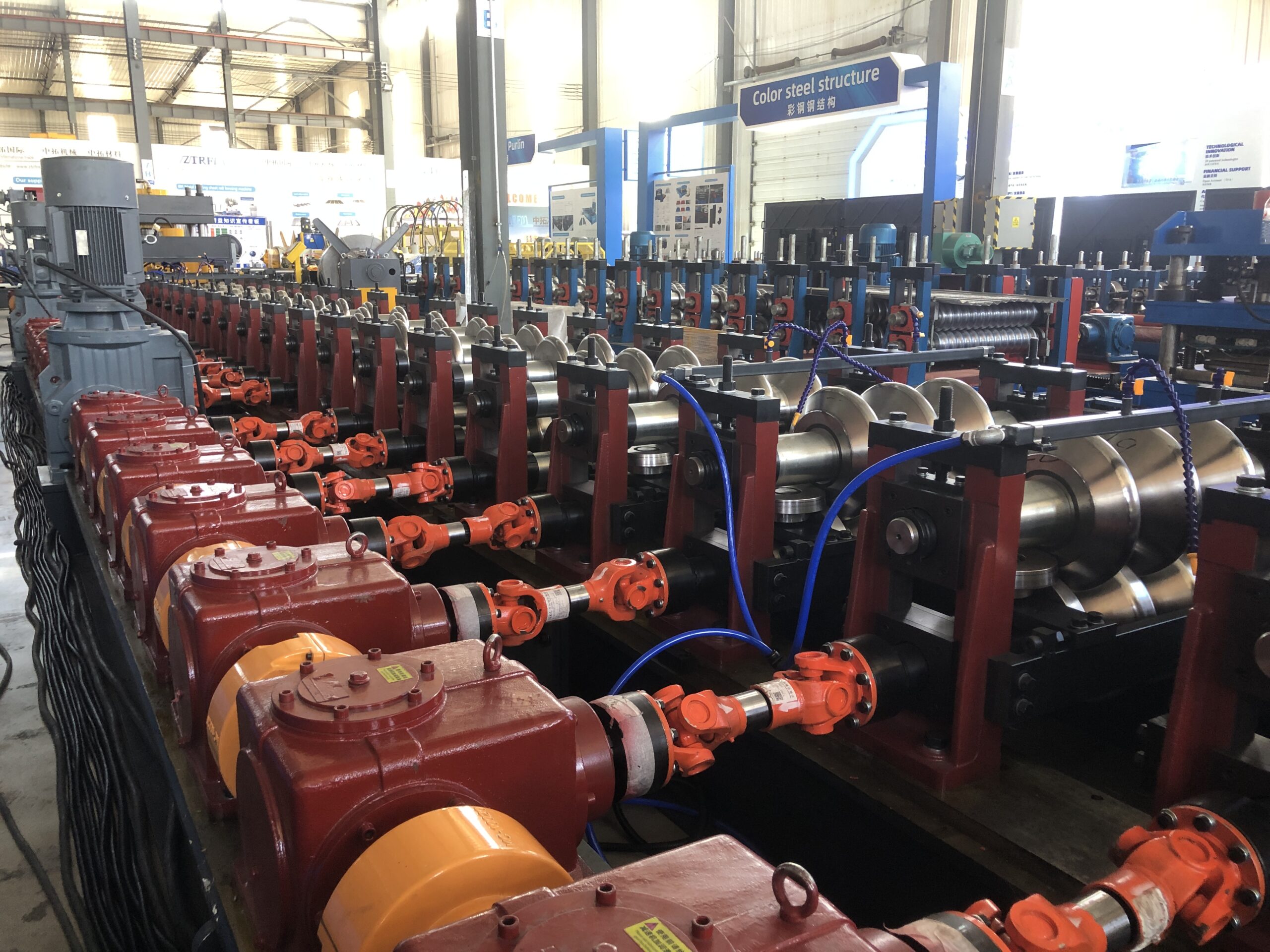

Heavy-Duty Construction:The machine base is constructed from high-tensile steel plates, stress-relieved to prevent deformation, ensuring longevity even under 24/7 operation.

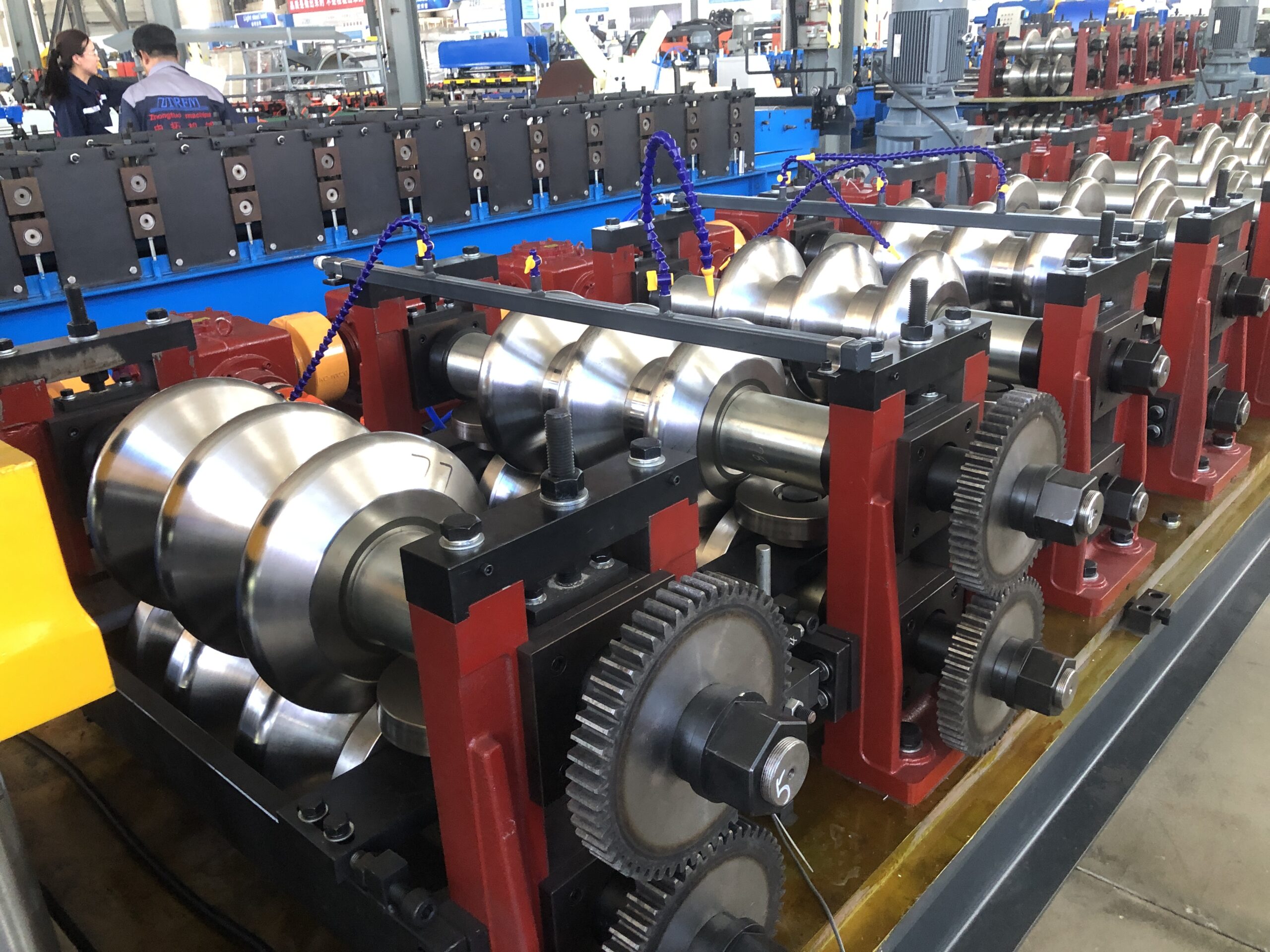

High-Grade Rollers:Rollers are made from GCr15 bearing steel, CNC machined, heat-treated (HRC 58-62), and hard chrome-plated to resist wear and protect the zinc coating of the material.

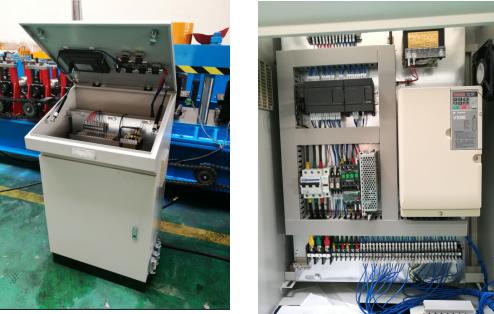

Smart PLC Control:Utilizes a Siemens/Mitsubishi/Delta PLC with a user-friendly touchscreen interface. Operators can set production length, quantity, and punching positions easily.
Technical Specifications
| Parameter | Specification |
| Applicable Material | Galvanized Steel Coil (GI), Q235, Q355 |
| Material Thickness | 2.5 mm – 4.0 mm (Optional: up to 5.0 mm) |
| Profile Width | 312 mm (W-Beam) / 506 mm (Thrie-Beam) |
| Forming Speed | 10 – 15 meters/min (with punching) |
| Roller Stations | 18 – 24 Stations (Progressive forming) |
| Main Motor Power | 22 kW – 37 kW (Depend on thickness) |
| Shaft Diameter | Φ90 mm (High-grade 45# steel) |
| Hydraulic Power | 11 kW – 15 kW |
| Cutting Type | Hydraulic Post-Cutting (No material waste) |
| Control System | PLC (Siemens/Mitsubishi) + Encoder |
| Voltage | 380V/50Hz/3Ph (Customizable) |
(Note: Specifications can be customized based on your local standards and requirements.)
Production Process Flow
Decoiling: Hydraulic Uncoiler holds the steel coil (Max 10 Tons).
Leveling: 7-roller leveling device flattens the coil entry.
Punching: Hydraulic punching unit creates holes according to AASHTO/JT/T patterns.

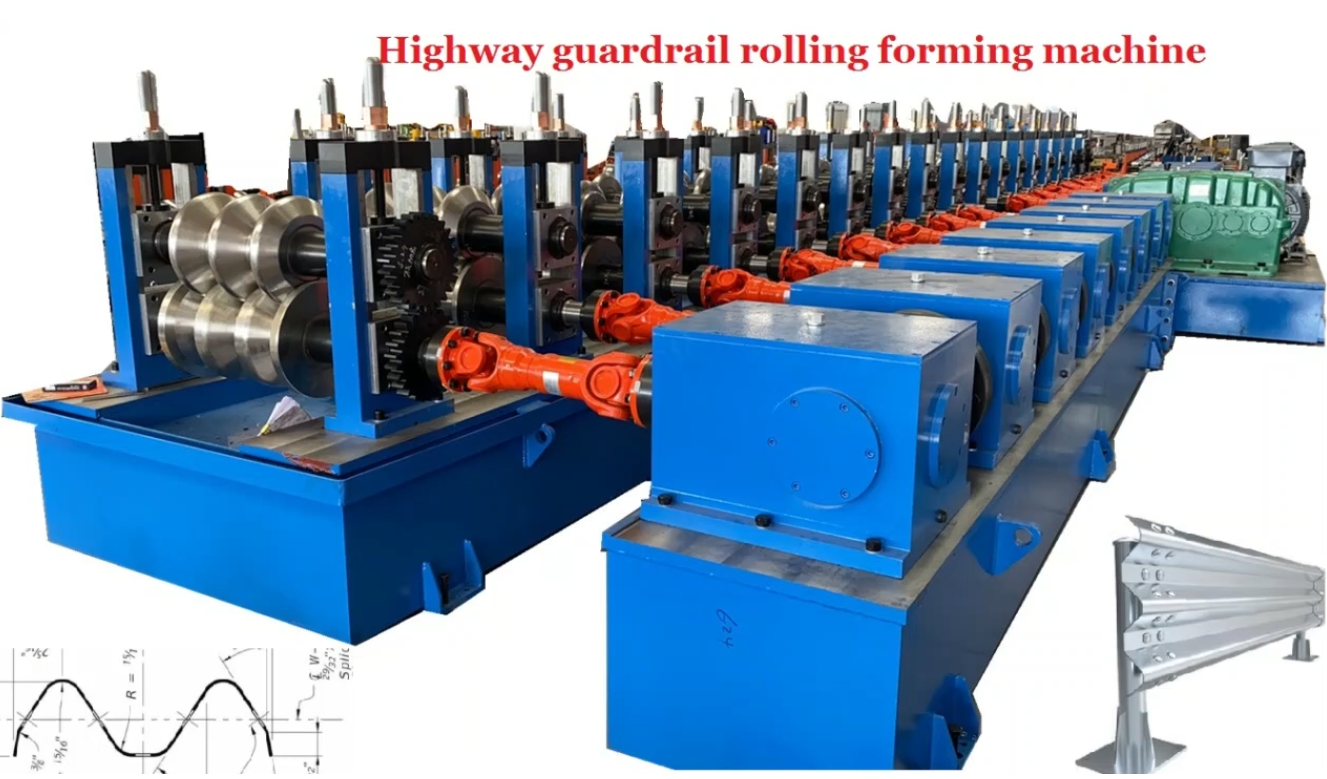

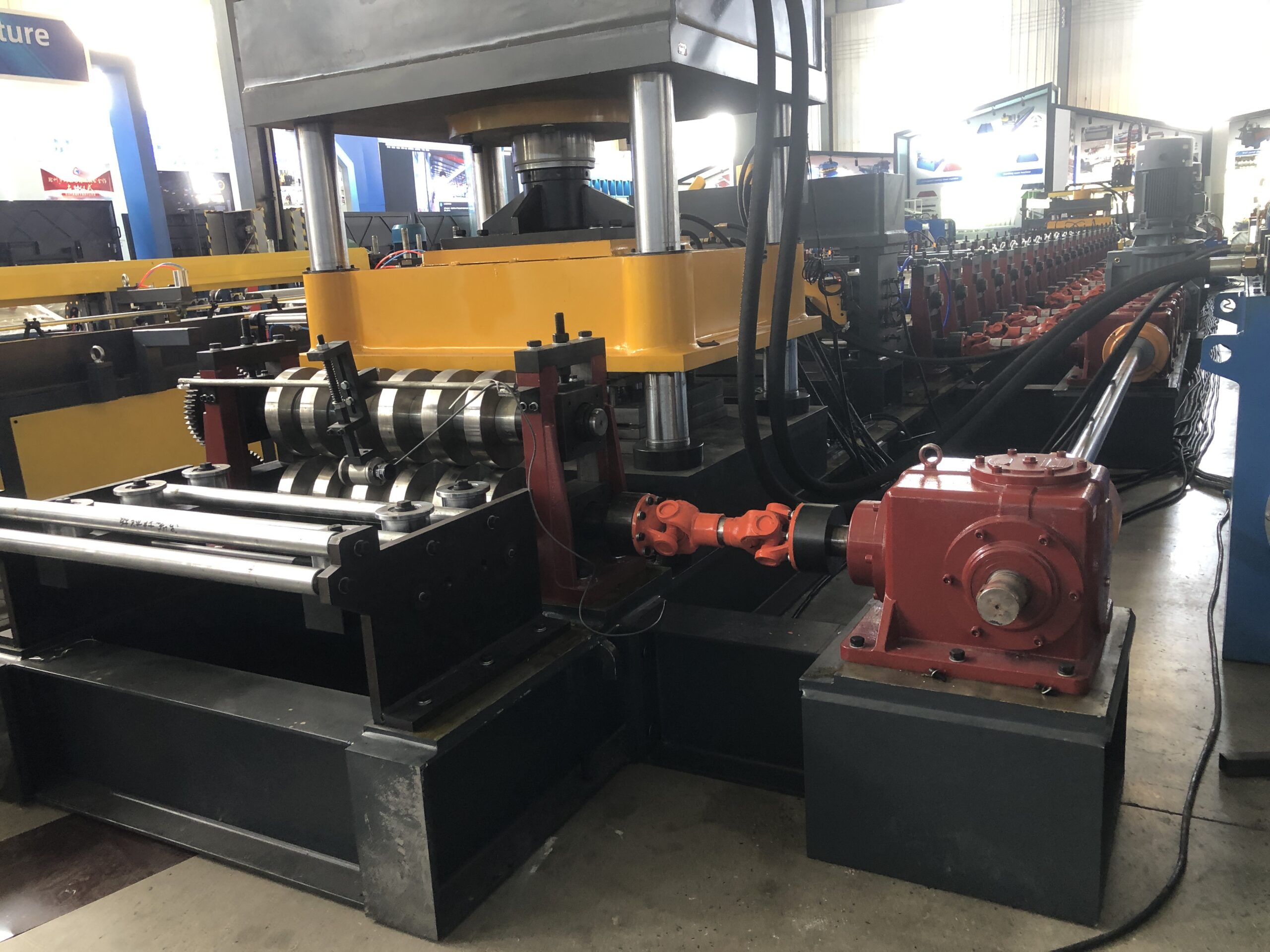

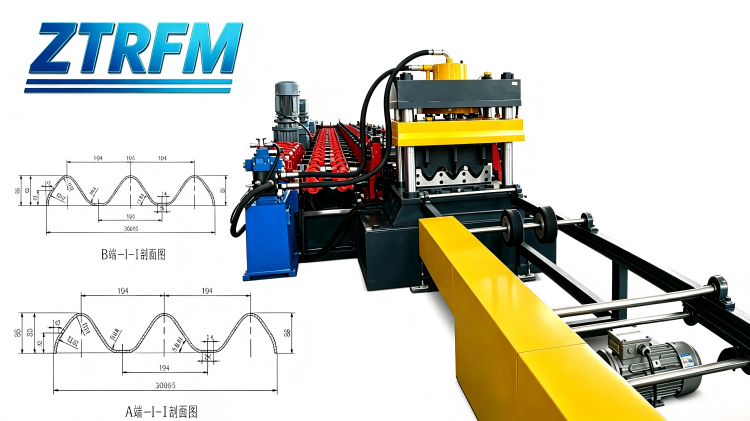

Roll Forming: The strip passes through multiple roller stations to form the W or Thrie shape gradually.
Cutting: Hydraulic flying shear cuts the profile to the exact length required.
Runout: Finished guardrail panels slide onto a runout table or stacking system.
Compliance & Applications
Our guardrail machines are widely used for producing components compliant with various regional standards:
USA/Canada: AASHTO M180 W-Beam & Thrie-Beam.
China: JT/T 281-2007 Standard.
Europe: EN 1317 Standard.
Australia: AS/NZS 3845.

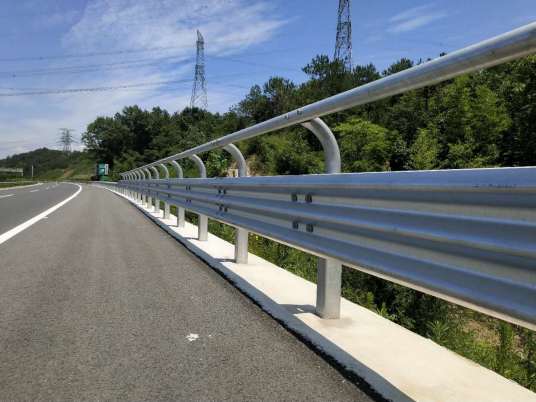

Applications:
Highways, Expressways, and Interstates.
Bridge Parapets and Medians.
Rural Roads and Mining Sites.
Perimeter Security for Industrial Parks.
Why Choose Us? (Trust Signals)
Global Experience:We have successfully installed guardrail lines in Indonesia, Philippines, Kenya, Chile, and Russia.
Quality Assurance:ISO 9001 certified manufacturing processes. CE certification available upon request.
Turnkey Support:We provide foundation drawings, electrical layouts, overseas engineer installation, and operator training.
Spare Parts:Guaranteed supply of rollers, cutters, and hydraulic seals for the lifespan of the machine.
Internal Linking
Related Product:https://zhongtuomachine.com/product/cable-tray-rolling-forming-machine/
Related Product: https://zhongtuomachine.com/product/cable-tray-roll-forming-machine/
Related Product:https://zhongtuomachine.com/product/solar-purlin-machine-photovoltaic-c-channel-forming-machine/
Related Product:https://zhongtuomachine.com/product/c-purlin-roll-forming-machine/
Frequently Asked Questions (FAQ)
Q1: Can one machine produce both 2-wave and 3-wave guardrails?
A: Yes, our semi-combinational models allow you to produce both profiles. Usually, the 3-wave requires a wider base and specific roller sets, while the 2-wave uses the same line with adjusted spacers. We can design a dedicated combinational line based on your budget.
Q2: What is the difference between AASHTO M180 and Chinese JT/T standard machines?
A: The main differences lie in the width (12″ vs 310mm), thickness gauge, and hole punching patterns. Our engineers will confirm your target market standard before production to ensure compliance.
Q3: How long does it take to install the machine overseas?
A: Typically, our engineer will complete the mechanical installation and commissioning within 7-10 days, followed by 3-5 days of operational training for your staff.
Q4: Do you provide the steel coils as well?
A: We specialize in the machinery, but we have long-term partners for galvanized steel coils and can help you source materials if needed.
