C Purlin Roll Forming Machine：Adjustable C Channel Steel Making Line
Cangzhou Zhongtuo Roll Forming Machinery Co.,Ltd comes from Hebei-China. It is a manufacturer dedicated to design and manufacture.
different types of cold roll forming machines. We are a factory with a long history, engaged in the design and manufacture of roll forming machines since 2006. The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceiling system forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, hot laminating filmed machine,etc.
different types of cold roll forming machines. We are a factory with a long history, engaged in the design and manufacture of roll forming machines since 2006. The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceiling system forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, hot laminating filmed machine,etc.
For more information, delivery time and prices, please mail us!
C Purlin Roll Forming Machine：Adjustable C Channel Steel Making Line
Description:Zhongtuo C purlin roll forming machine produces high-precision C channel steel from galvanized coil. Adjustable web & flange, hydraulic cut, optional pre-punching, ideal for warehouse, workshop and solar support framing. Get a quote today.

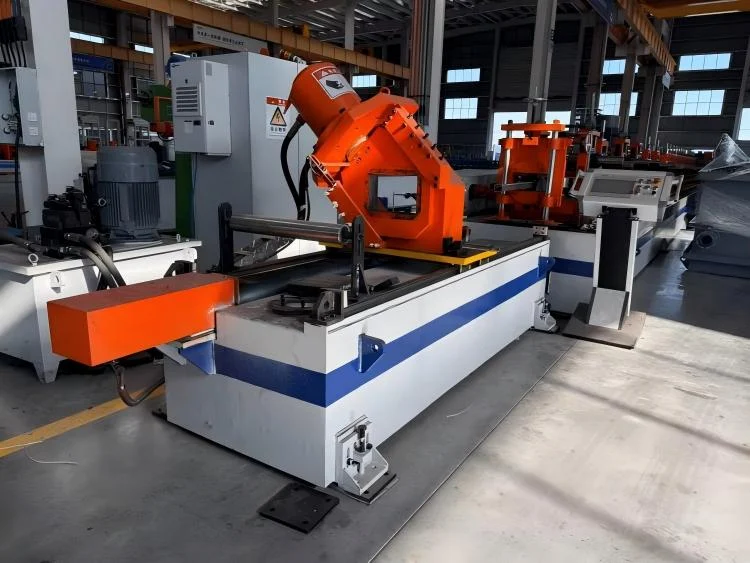

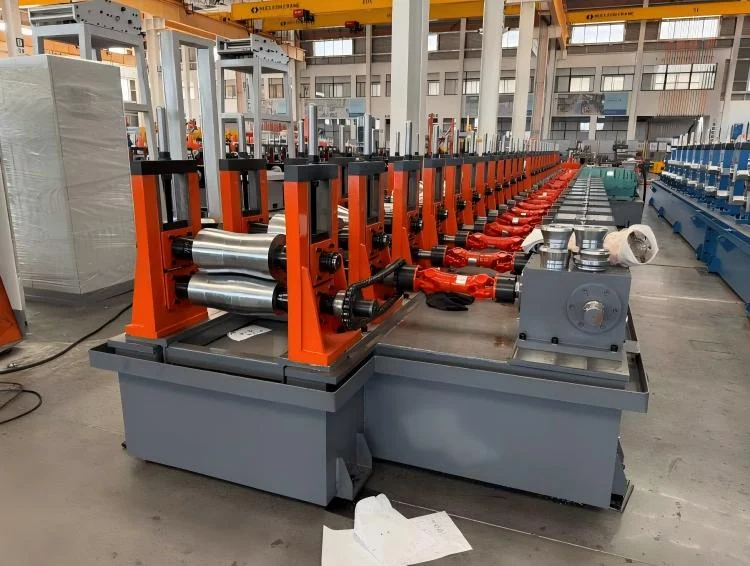

A C purlin roll forming machine is a dedicated cold roll forming line that continuously processes galvanized steel, PPGI or carbon steel coil into standard C-shaped purlin profiles. Unlike combined CZ machines, this C channel former is optimized for stable, high-volume C purlin production, with simpler adjustment and lower failure rate for manufacturers focusing mainly on C-section orders.

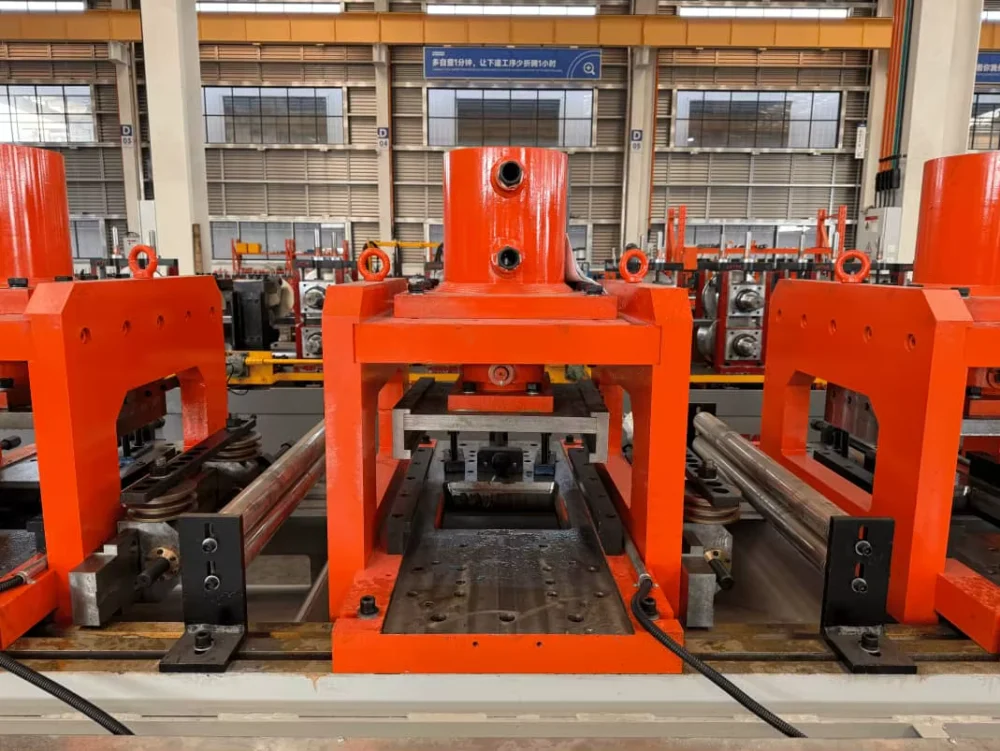

Our Zhongtuo adjustable C purlin machine adopts heavy welded main frame and PLC touch screen control. Operators can set web height, flange width, lip size and cutting length directly on HMI. Motorized size adjustment version is available; you can switch different C purlin dimensions quickly without disassembling rollers manually. Servo hydraulic flying cut ensures clean, burr-free end faces and accurate fixed-length cutting.
Main Features of C Purlin Roll Forming Machine
Specialized for C purlin only, stable running, low maintenance cost
Adjustable range: C80–C300, fits most popular steel structure sizes
Rollers made of GCr15 bearing steel, quenched and polished, long service life
Optional servo pre-punching system for standard hole patterns on web or flange
Forming tolerance within ±0.5 mm, straight finished profiles, easy on-site installation
Variable frequency speed regulation, forming speed: 12–24 m/min
Safety guard cover, emergency stop, CE standard electrical components
Customizable: working thickness, punching layout, outlet rack, voltage and control brand
Why Choose Our C Channel Roll Forming Line?
If your factory takes large-volume C purlin orders for wall frames, secondary steel structures or solar mounting brackets, this dedicated C purlin machine brings better consistency than multi-profile combined equipment. The whole line is stress-relieved after welding, supporting long-time 24-hour continuous shift production.
Finished C purlins keep uniform flatness and hole spacing, greatly reducing rejection rate and assembly complaints from your customers. It is easy for new workers to learn and operate, which helps you cut labor training cost. We also keep common spare parts in stock for fast global delivery.
Our after-sales package includes operation manual, remote video guidance, on-site commissioning upon request, operator training and lifetime technical support.

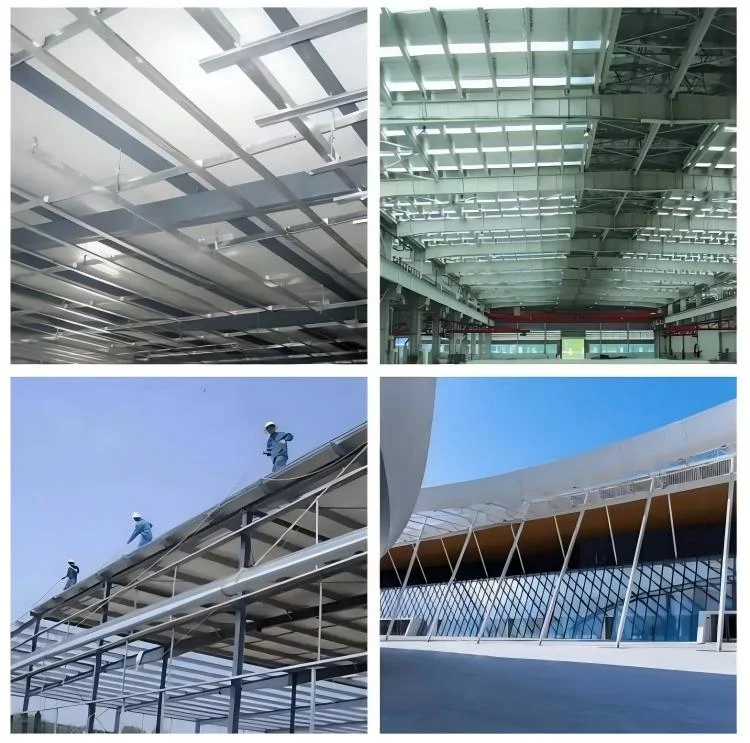

Applications of C Purlin / C Channel Steel
C purlin is widely used as secondary structural members in all kinds of steel construction projects:
Industrial workshops, logistics warehouses, factory steel buildings
Prefabricated buildings, modular houses and container supporting frames
Wall support frames for metal roofing and wall cladding
Solar panel mounting brackets and agricultural farm sheds
Small-span roof support, guardrail frames and equipment support structures
Complete Working Process

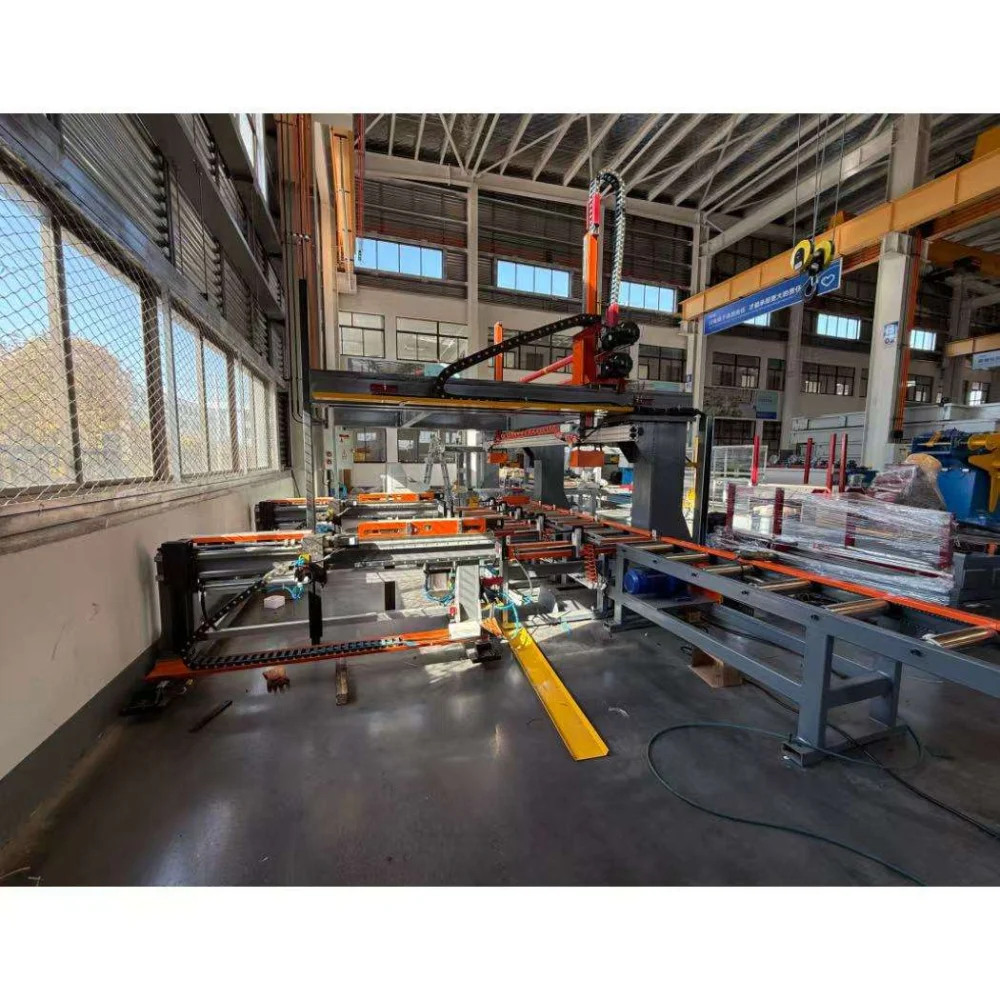

Steel coil → Decoiler → Feeding & guiding → Roll forming stations → Optional punching → Hydraulic flying cutting → Finished C purlin → Discharge stacking table
Technical Parameters
Raw material: Galvanized steel, PPGI, carbon steel
Material thickness: 1.2 mm – 3.0 mm
Adjustable size: C80 to C300
Control system: PLC + touch screen
Cutting way: Hydraulic flying cut
Forming speed: 12–24 m/min
Power supply: Customized according to local standard
