Our glazed roof sheet roll forming machine is a professional automated equipment designed for the continuous production of interlocking glazed roof sheets. It takes metal coils (such as galvanized steel, aluminum alloy) as raw materials and integrates multiple processes including uncoiling, leveling, progressive roll forming, automatic glazing, precision cutting, and finished product stacking into a single automated workflow. The core function of this machine is to transform flat metal coils into preset interlocking roof sheet profiles and apply a uniform, high-adhesion glazed coating on the surface, ensuring the final products have both structural stability and excellent waterproof, corrosion-resistant, and decorative properties.

The glazed roof sheets produced by this machine are widely used as core roofing components. The interlocking design ensures tight connection between sheets, effectively preventing water leakage; the glazed coating not only enhances the aesthetic appeal of the roof but also provides long-term protection against harsh environmental factors such as UV radiation, rain, and corrosion. Whether for residential villas, commercial shopping malls, industrial warehouses, or cultural and historical building renovations, the glazed roof sheets produced by our machine can meet diverse architectural needs.

작동 원리

The working principle of our glazed roof sheet roll forming machine is based on precise mechanical transmission and intelligent control, realizing efficient and high-quality production of glazed roof sheets. The detailed workflow is as follows:

First, the metal coil is placed on the hydraulic uncoiler, which unwinds the coil stably and evenly under the control of the intelligent system to avoid material deformation caused by uneven tension. The unwound metal sheet is then conveyed to the precision leveling machine, which eliminates internal stress and surface bending of the sheet caused during transportation and storage, ensuring the flatness of the material and laying a solid foundation for subsequent precise forming.

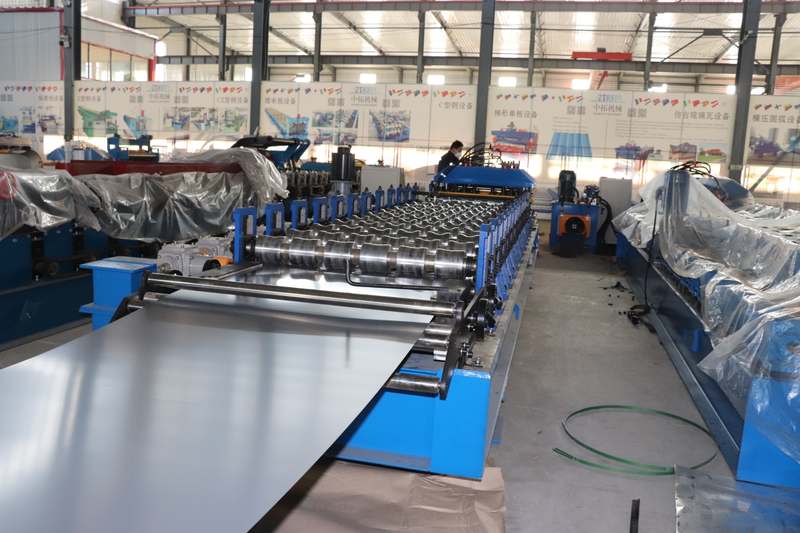

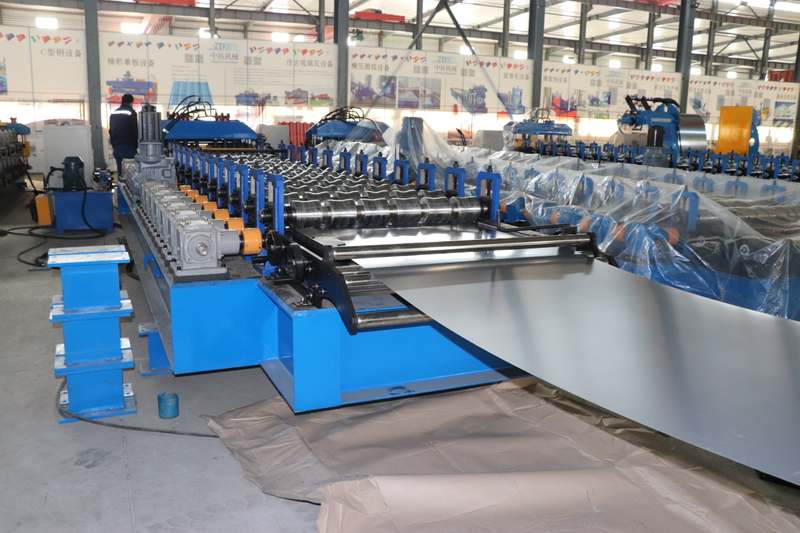

Next, the leveled sheet enters the progressive roll forming unit, which consists of 16-24 sequentially arranged forming rollers. Driven by a high-power servo motor, the rollers gradually bend the metal sheet into the preset interlocking roof sheet profile through step-by-step and gradual pressure application. The forming process is real-time monitored and adjusted by the advanced PLC control system to ensure the uniformity and accuracy of the profile shape and size.

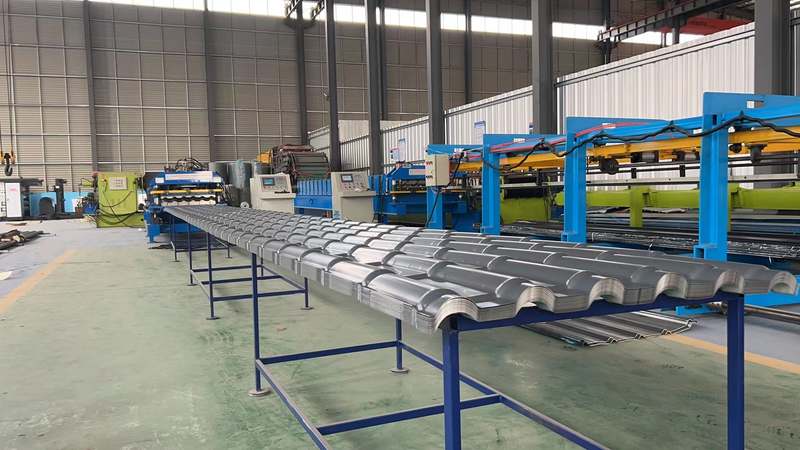

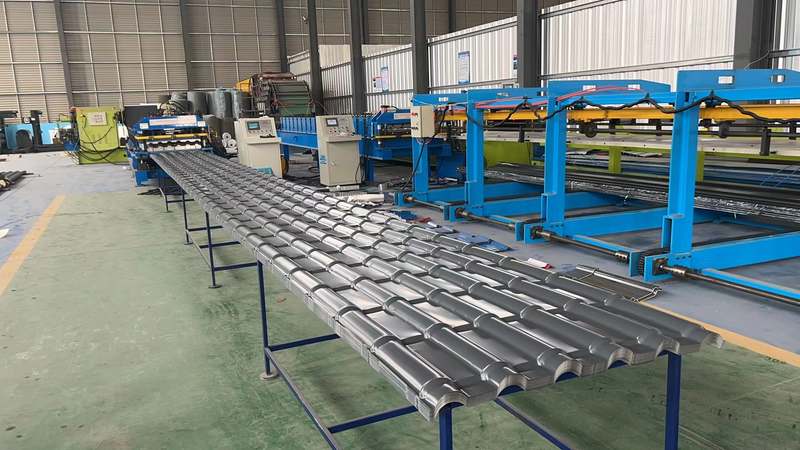

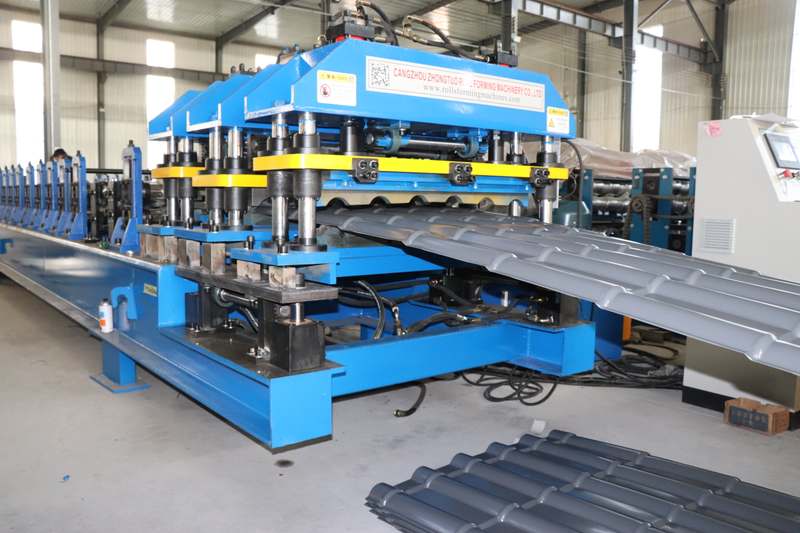

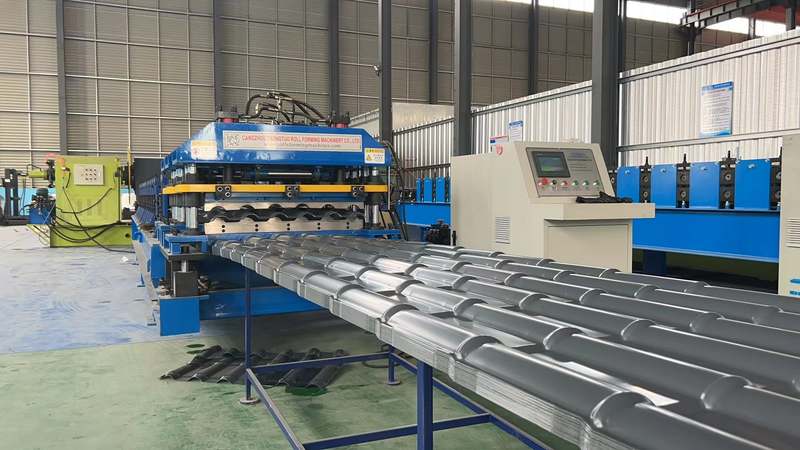

After forming, the roof sheet profile enters the automatic glazing unit. According to customer needs, the machine can adopt automatic roller glazing or curtain glazing technology to apply a uniform glazed coating on the surface of the profile. The glazing system is equipped with a precise dosage control device to ensure the thickness of the glaze layer is consistent, enhancing the adhesion and durability of the coating. Finally, the glazed roof sheet profile is conveyed to the precision cutting unit, which cuts the profile into the preset length with high accuracy. The finished glazed roof sheets are then automatically stacked by the stacking system, completing the entire automated production process.

Core Advantages: Core Advantages of Our Glazed Roof Sheet Roll Forming Machine

Precise Forming & Uniform Glazing, Ensuring Product Quality

Adopting advanced servo feeding technology and high-precision forming molds, our machine achieves exceptional forming accuracy, with the dimensional error of the roof sheet profile controlled within ±0.2mm. The interlocking structure of the produced roof sheets fits perfectly, ensuring excellent waterproof performance. In the glazing process, the automatic glazing system with precise dosage control ensures the glaze layer is uniform and smooth, with no bubbles or unevenness. The glazed coating adopts high-quality fluorocarbon glaze, which has strong adhesion and weather resistance, ensuring the roof sheets can maintain long-term aesthetic appeal and performance even in harsh environments. All products meet international quality standards such as ISO, winning wide recognition from global customers.

High Efficiency & Full Automation, Reducing Production Costs

The machine adopts a fully automated production line, integrating uncoiling, leveling, forming, glazing, cutting, and stacking. The entire production process requires minimal manual intervention, greatly reducing labor costs and the reject rate caused by human operations. The maximum production speed can reach 10-50 meters per minute, and the daily output of glazed roof sheets can reach thousands of square meters, which is 5-8 times higher than traditional production methods. The continuous production mode also minimizes material waste, with a material utilization rate of over 97%, effectively reducing raw material costs for customers. The high efficiency and low cost of the machine help customers improve their market competitiveness and quickly respond to large-order demand.

Strong Adaptability, Meeting Diverse Customization Needs

We fully understand that global customers have diverse needs for glazed roof sheets due to differences in architectural styles, climate conditions, and local standards. Our glazed roof sheet roll forming machine has strong adaptability to meet various customization requirements. In terms of materials, it can process galvanized steel, aluminum alloy, and other metal materials, with a sheet thickness range of 0.35-1mm and a sheet width range of 300-1000mm. In terms of product specifications, it can produce various standard interlocking roof sheet profiles such as flat tiles and Roman tiles, and also support the customization of non-standard profiles according to customer drawings and samples.

The machine is equipped with a quick mold change system, which allows mold replacement within 30 minutes, realizing efficient switching between different product types and specifications. In addition, the glazing system can be adjusted according to the color and thickness of the glaze required by customers, providing maximum production flexibility for customers.

Stable & Durable, Low Operation & Maintenance Costs

We adhere to strict quality control standards in the manufacturing of the glazed roof sheet roll forming machine. The machine body is made of high-strength steel through precision welding and heat treatment, ensuring strong rigidity and stability, and can withstand long-term high-intensity production operations. Key components such as servo motors, reducers, bearings, and glazing pumps are sourced from internationally renowned brands (such as Siemens, Schneider), ensuring high reliability and long service life. The forming rollers are made of high-quality alloy steel,经过 special heat treatment and surface hardening treatment, with a service life of over 800,000 cycles under normal production conditions.

The machine is also equipped with an intelligent fault diagnosis system, which can real-time monitor the operating status of each component and issue an alarm and fault prompt in case of abnormalities. This reduces the difficulty of maintenance and shortens the downtime. The stable performance and easy maintenance of the machine effectively reduce the long-term operation and maintenance costs for customers.

Application Fields & Global Success Cases

Widely Used Application Scenarios

Our glazed roof sheet roll forming machine is widely used in the global construction industry, covering a variety of application scenarios:

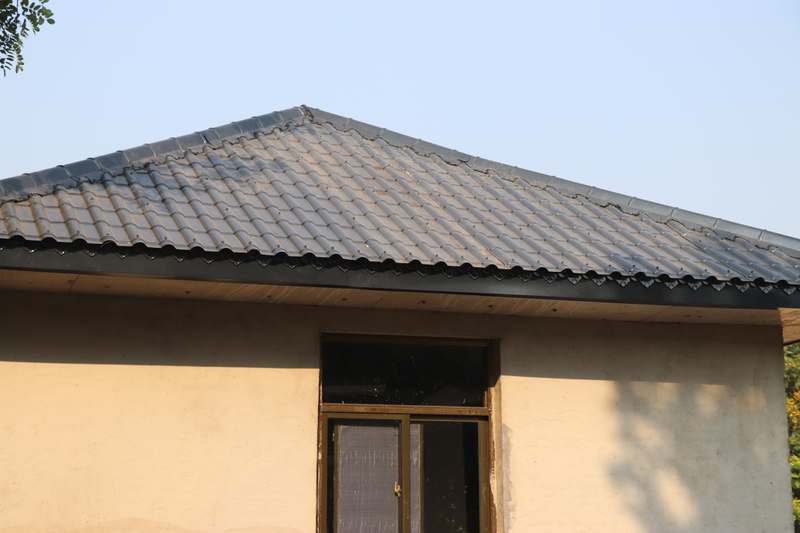

Residential Buildings: Used in the production of glazed roof sheets for villas, apartments, and rural houses. The aesthetic and waterproof glazed roof sheets enhance the overall appearance of residential buildings and provide a comfortable living environment.

Commercial & Public Buildings: Applied in shopping malls, hotels, office buildings, and cultural and sports venues. The glazed roof sheets not only meet the high aesthetic requirements of commercial buildings but also have excellent durability and easy maintenance characteristics, reducing long-term operation costs.

Industrial & Agricultural Buildings: Used in industrial warehouses, workshops, barns, and agricultural greenhouses. The corrosion-resistant and waterproof glazed roof sheets can adapt to the harsh environment of industrial and agricultural buildings, ensuring the safety of stored goods and equipment.

Old Building Renovation: Applied in the renovation of old residential areas, historical buildings, and industrial heritage sites. The glazed roof sheets can perfectly match the style of old buildings while improving the waterproof and thermal insulation performance of the roof.
