In the dynamic landscape of construction, transportation, and industrial manufacturing, footrests serve as essential components that guarantee safety, stability, and comfort. With the global demand for high-quality, durable footrests surging—driven by the expansion of infrastructure projects, the growth of the automotive and aerospace industries, and the strict enforcement of safety standards—manufacturers are facing unprecedented pressure to enhance production efficiency and product quality.

Traditional footrest production methods, which often rely on manual processing or outdated equipment, are plagued by low efficiency, high labor costs, and inconsistent product quality. These bottlenecks make it difficult for manufacturers to meet the growing market demand and maintain competitive advantages. Against this backdrop, the high-performance footrest forming machine has emerged as a transformative solution, revolutionizing the way footrests are produced and setting new standards for the industry.

Definizione e principio di funzionamento

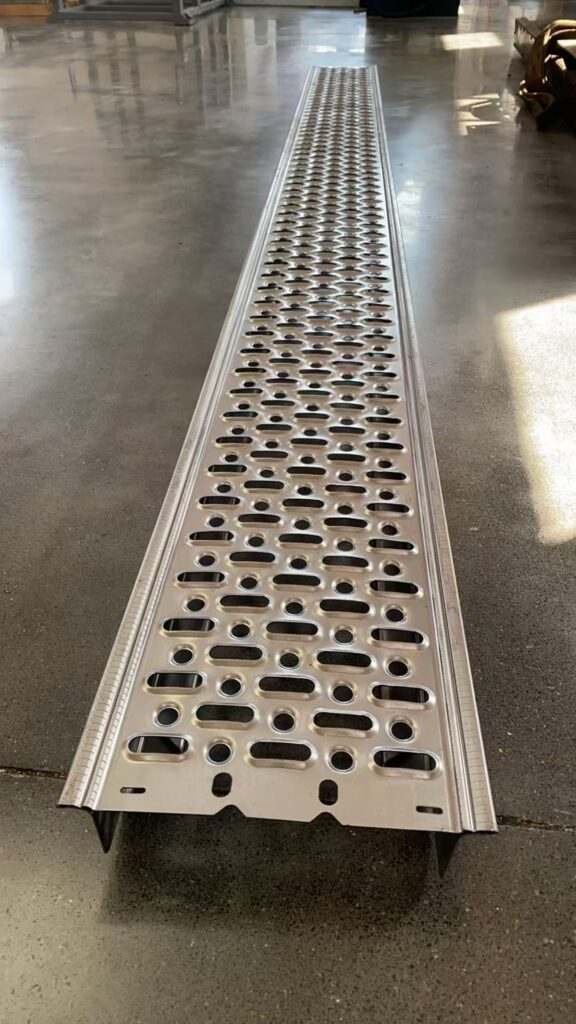

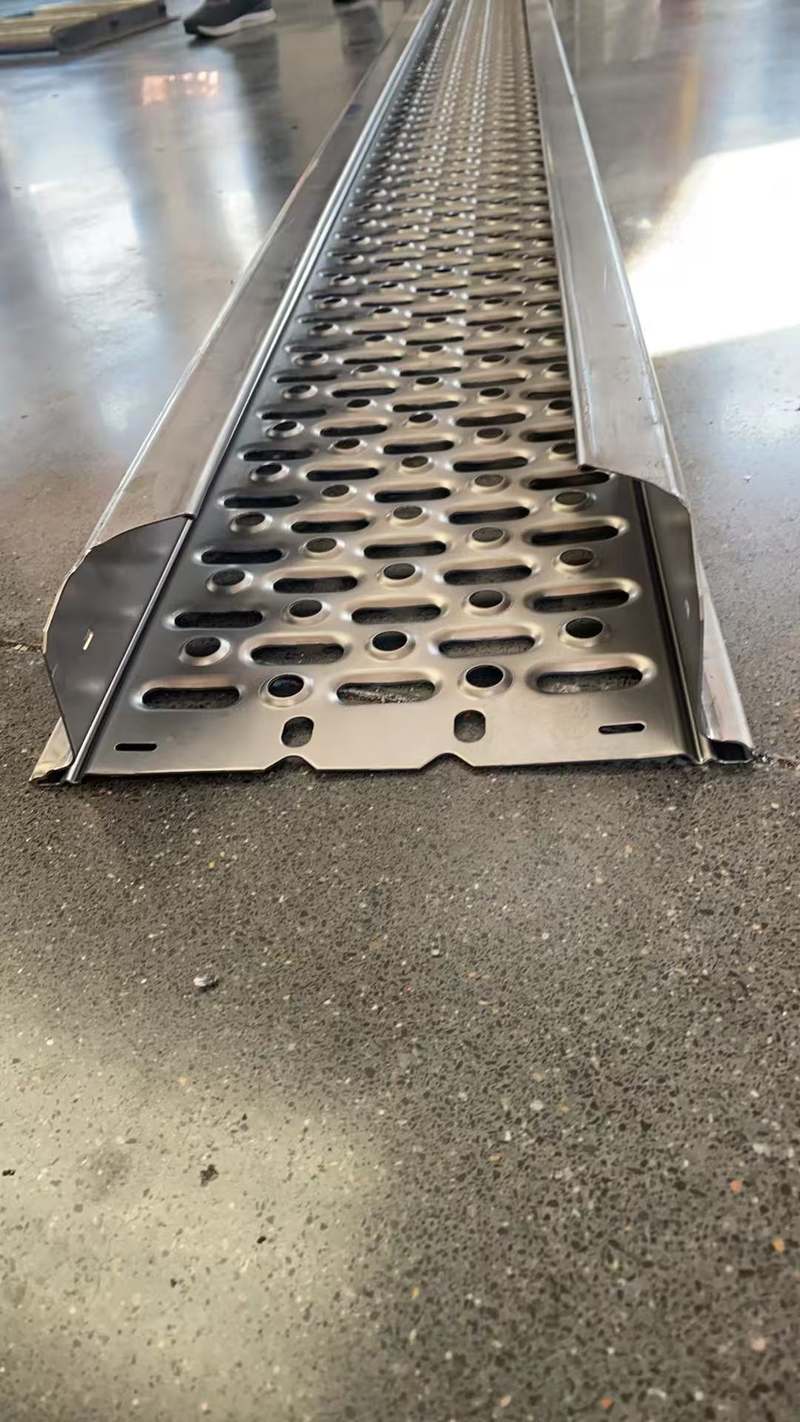

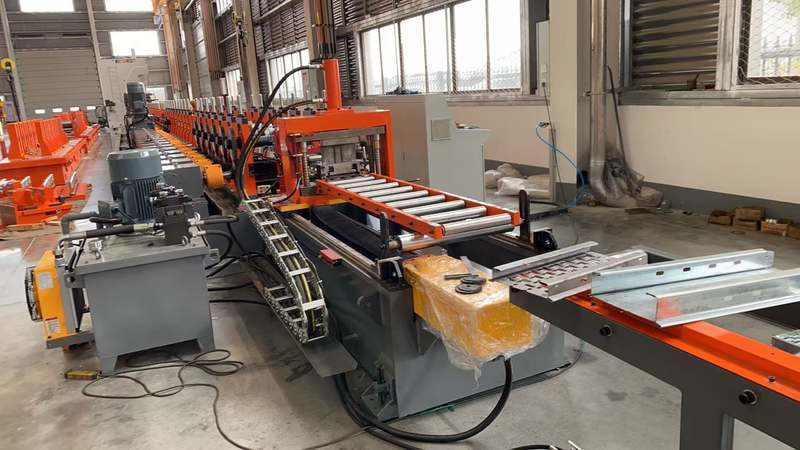

A footrest forming machine is a specialized industrial equipment designed to efficiently and precisely produce footrest components for a wide range of applications. These footrests, typically made of high-strength steel or other durable materials, are widely used in construction scaffolding, automotive interiors, industrial machinery, and aerospace equipment, providing reliable support and anti-slip functionality.

The working principle of a footrest forming machine is based on advanced cold-roll forming and precision punching technologies. The production process starts with feeding a coil of metal sheet (usually with a width of ≤500mm and thickness of ≤2.5mm) into the machine. The metal sheet first passes through a decoiling and leveling unit to ensure it is flat and free of bends, which is crucial for subsequent processing. Next, the sheet is fed into a servo-controlled punching system that creates precise holes—such as anti-slip holes or installation holes—at predetermined positions. These holes are essential for the footrest’s functionality and ease of assembly.

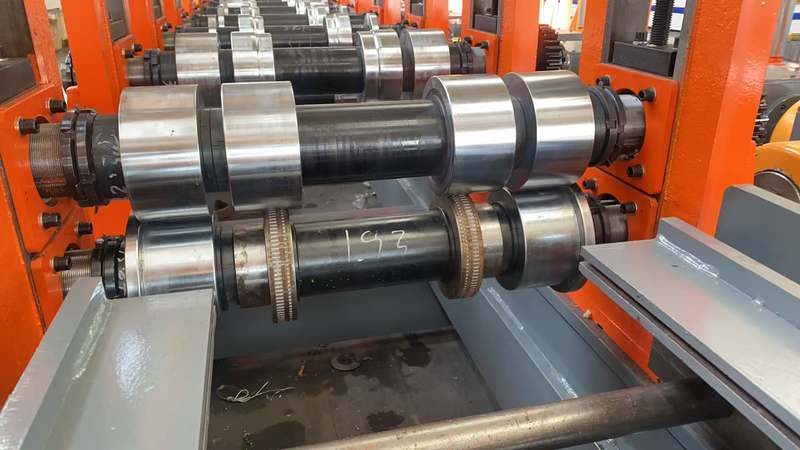

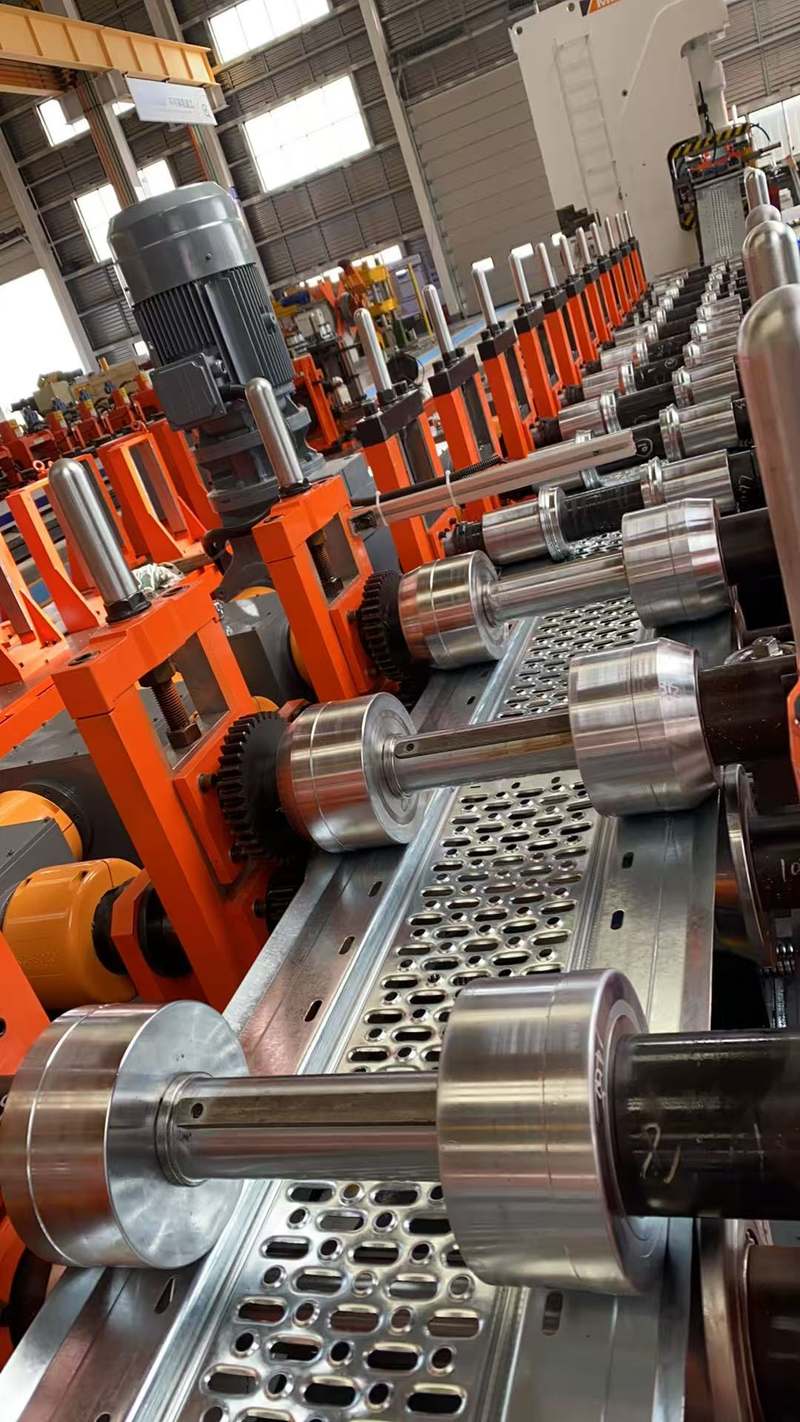

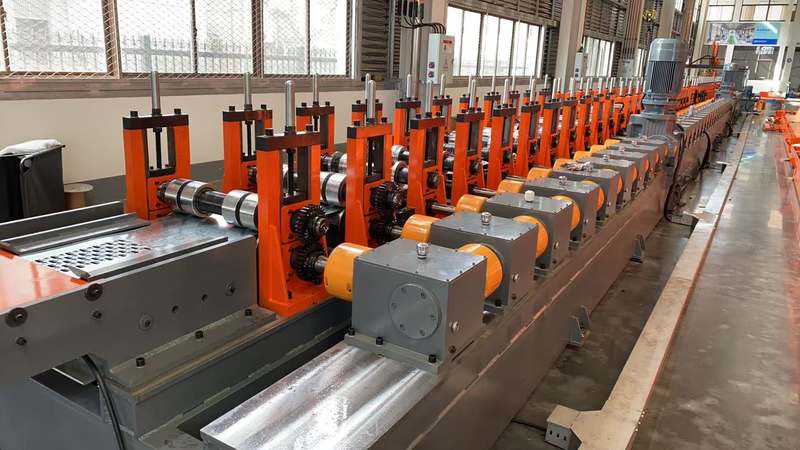

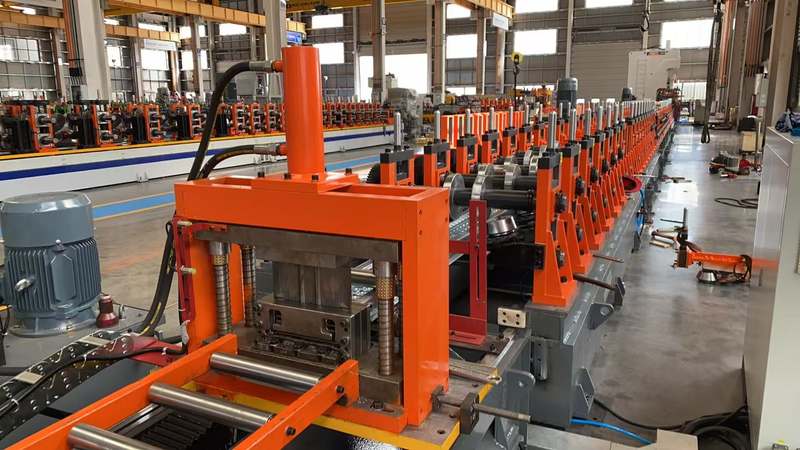

After punching, the metal sheet enters the forming unit, which consists of 16 sets of precisely calibrated rollers. Each set of rollers applies a specific amount of pressure to gradually bend the sheet into the desired cross-sectional shape of the footrest. Finally, the fully formed footrest is cut to the required length by a high-speed cutting mechanism (equipped with Cr12MoV quenched blades), completing the entire production cycle. The entire process is automated and controlled by a PLC system, ensuring consistent quality and high efficiency.

Struttura e componenti

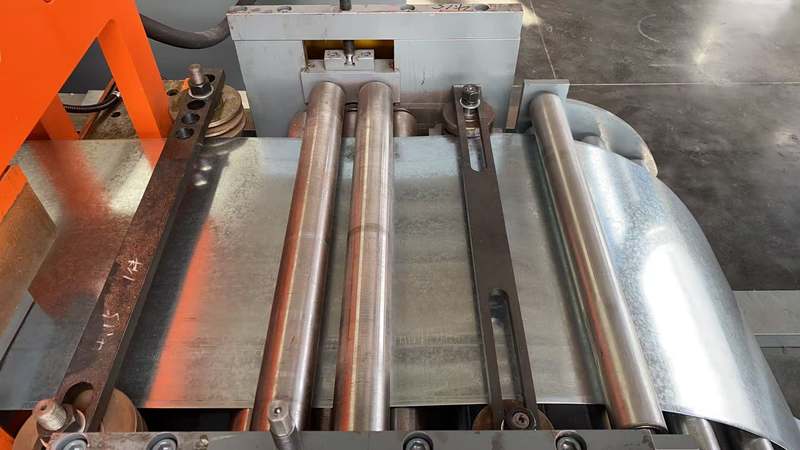

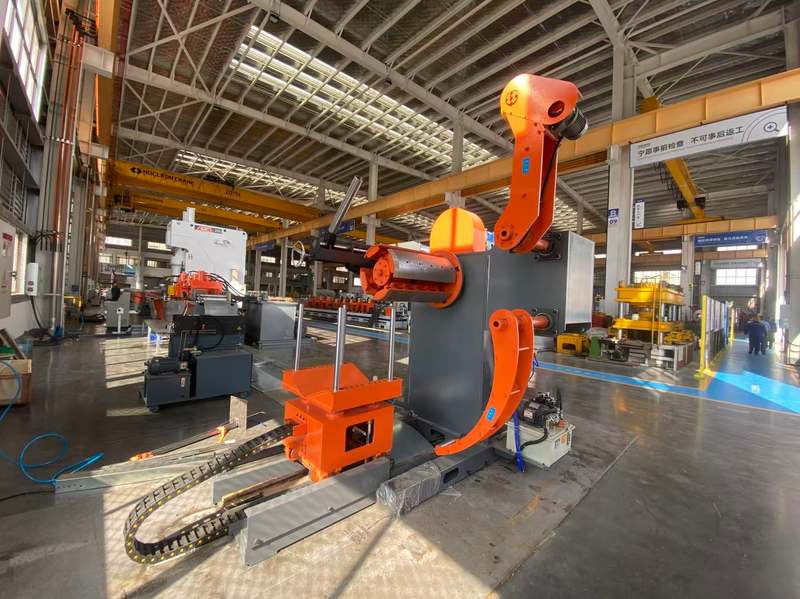

Decoiling and Leveling Integrated Machine:As the starting point of the production line, this component holds the large metal coil and feeds it smoothly into the subsequent processes. It integrates decoiling and leveling functions, with tension control mechanisms to ensure a stable feed rate. The leveling unit uses adjustable rollers to straighten the coiled sheet, eliminating any unevenness caused by storage and transportation. This component can handle coils with an inner diameter of φ508mm, providing a continuous and stable supply of raw materials for high-volume production.

Servo Feeding System:This system is responsible for accurately feeding the metal sheet into the punching and forming units. Equipped with high-precision servo motors, it ensures that the sheet is fed at a consistent speed and position, which is critical for maintaining punching accuracy and forming quality. The feeding speed can be adjusted according to production requirements, matching the overall efficiency of the machine.

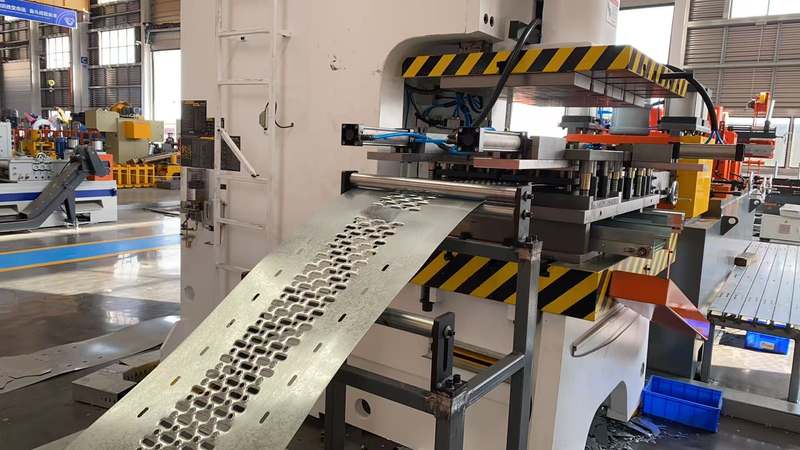

Precision Punching System:The core component for creating functional holes in the footrest, it includes a high-speed punch press, custom dies, and a PLC control system. The punch press uses mechanical and hydraulic forces to punch holes at high frequencies, with the dies made of Cr12 steel (quenched to HRC58-62°) for wear resistance and long service life. The PLC system allows for precise control of hole spacing, size, and quantity, supporting customization of various hole patterns to meet different footrest design requirements.

Unità di formatura:This unit transforms the flat metal sheet into the final footrest shape through a series of progressive bending processes. It consists of 16 sets of rollers made of 45# steel (quenched and tempered to HB240-280°) to withstand high pressure and wear. The rollers are arranged in a specific sequence, with each set gradually shaping the sheet until the desired cross-sectional profile is achieved. The unit is adjustable, enabling the production of footrests with different shapes and sizes to meet diverse application needs.

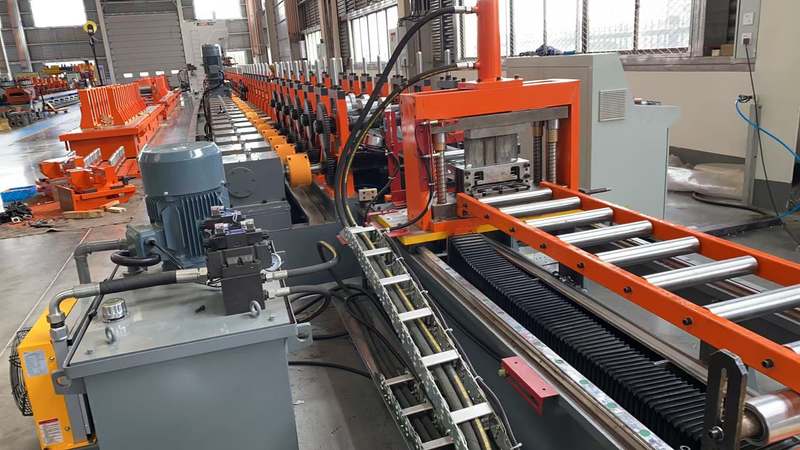

Meccanismo di taglio:After the footrest is fully formed, this mechanism cuts it to the precise length specified by the production parameters. Equipped with high-hardness cutting tools (Cr12MoV, HRC58-62°), it ensures clean and smooth cuts without burrs. The cutting process is synchronized with the feeding and forming speed, ensuring that each finished footrest has consistent length dimensions, which is essential for easy assembly and interchangeability.

Electrical Control System:Based on PLC technology, this system is the “brain” of the footrest forming machine. It features a user-friendly touchscreen interface that allows operators to input and adjust production parameters (such as footrest length, hole pattern, and production speed) with ease. The system also provides real-time monitoring of machine operation status, displays fault alerts, and supports manual and automatic control modes. Emergency stop buttons are installed to ensure operational safety.

Key Features of Our Footrest Forming Machine

Alta efficienza e produzione stabile

Our footrest forming machine boasts an impressive production speed of 0-15 meters per minute, far outperforming traditional manual or semi-automatic production methods. Traditional production lines can only produce 2-3 meters of footrest per minute, while our machine can complete the production of a large batch of footrests in a short time. For example, in a construction scaffolding project that requires 1,000 meters of footrests, our machine can finish production in just over an hour, while traditional methods would take an entire day.

The fully automated production line minimizes manual intervention, reducing labor costs by up to 50% compared to traditional methods. It also ensures continuous production without interruptions, providing a stable supply of products to meet tight project schedules. This high efficiency and stability make our machine an ideal choice for large-scale production and urgent orders, helping manufacturers improve delivery capabilities and customer satisfaction.

High Precision and Consistent Quality

Precision is a core advantage of our footrest forming machine. The servo-controlled feeding and punching system ensures that hole positions are accurate within ±0.1mm, and the dimensional accuracy of the formed footrest is maintained within ±0.5mm. This high precision guarantees that the footrests can be easily assembled with other components, avoiding fitting issues caused by size deviations.

The consistent quality of the finished products is also ensured by the machine’s stable performance and strict process control. Each footrest produced has the same shape, size, and hole pattern, with a smooth surface and no defects. This consistency not only improves the overall quality of the end products (such as scaffolding or machinery) but also enhances the safety and reliability of the footrests. For example, in construction scaffolding, precise and consistent footrests ensure stable installation, reducing the risk of accidents caused by component mismatches.
