The global construction industry is witnessing a paradigm shift towards faster, more sustainable, and cost-effective building solutions. Drywall partition systems have emerged as the cornerstone of modern interior construction, offering unparalleled flexibility in space design, rapid installation, and superior thermal and acoustic insulation. Central to unlocking the full potential of these systems is the partition keel—an essential structural component that demands precision, consistency, and durability. Our Partition Keel Roll Forming Machine is meticulously engineered to redefine keel production standards, empowering manufacturers, contractors, and construction firms worldwide to meet the evolving demands of residential, commercial, and industrial projects.

Unlike generic forming equipment, our machine is tailored to the unique requirements of partition keel manufacturing, integrating cutting-edge technology, robust construction, and user-centric design. Whether you’re producing standard or custom keel profiles, our solution ensures high-volume output without compromising on quality, helping you reduce operational costs, shorten project lead times, and gain a competitive edge in the global market. As a trusted exporter of construction machinery with a presence in over 70 countries, we are dedicated to delivering reliable, high-performance equipment backed by exceptional global support.

Game-Changing Features of Our Partition Keel Roll Forming Machine

Smart Precision Control for Flawless Keel Production

The structural integrity of drywall partitions hinges on the precision of the keels. Our Partition Keel Roll Forming Machine is equipped with a state-of-the-art smart PLC control system, paired with high-precision encoder feedback, to achieve forming accuracy of ±0.2mm—exceeding industry standards. This advanced control system automates the entire forming process, from material feeding to final cutting, eliminating human error and ensuring consistent keel dimensions, groove alignment, and straightness across every batch.

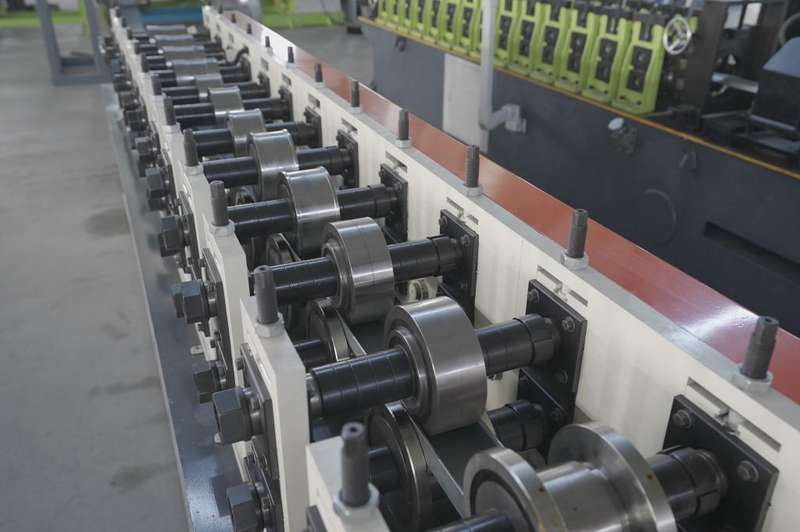

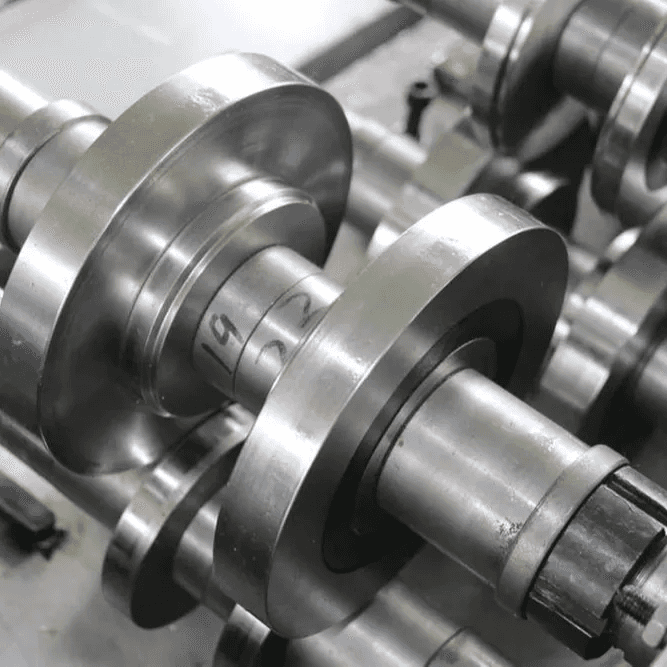

The machine’s forming rollers are crafted from high-grade Cr12MoV alloy steel,through precision forging and nitriding treatment, which enhances their wear resistance and extends their service life to over 800,000 meters of keel production. Additionally, the machine features an automatic material leveling system that corrects any flatness defects in raw metal sheets, further ensuring the uniformity and structural stability of the finished keels.

Ultimate Versatility to Meet Global Standards & Custom Needs

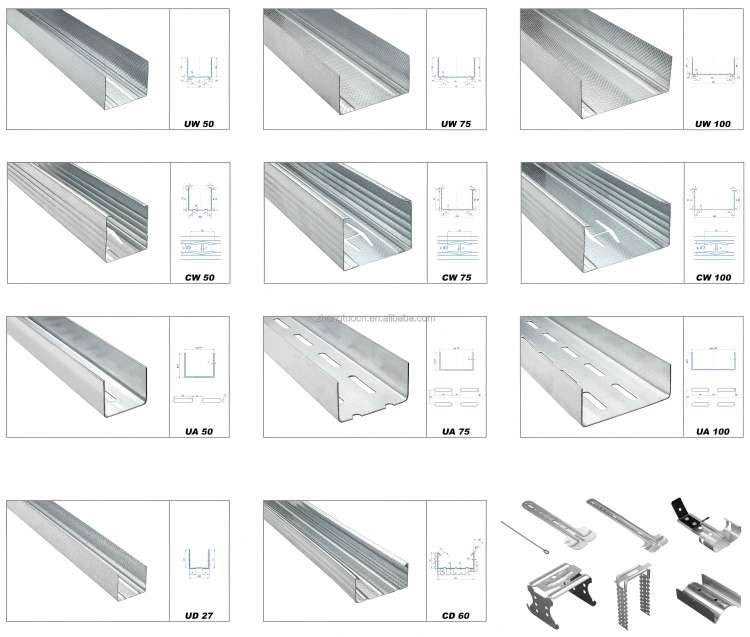

Global construction projects adhere to a diverse range of standards, and our machine is designed to adapt seamlessly. It supports the production of all mainstream partition keel profiles, including C-type (ceiling keel, wall keel), U-type (channel keel), L-type (angle keel), and special-shaped keels customized to client specifications. The machine is pre-programmed with parameters for international standards such as US ASTM C645, European EN 14195, Australian AS 2588, and Chinese GB/T 11981, enabling one-click switching between standard profiles.

Key adjustable parameters cover a wide range: keel height (38mm-150mm), width (38mm-100mm), raw material thickness (0.35mm-1.5mm), and length (2m-8m, with automatic length measurement and cutting). The machine’s innovative quick-change mold system allows for profile switching in just 20 minutes, significantly reducing downtime and enabling flexible production of multiple keel types in a single shift. This versatility makes it ideal for both large-scale mass production and small-batch custom orders.

Energy-Efficient High-Speed Production for Maximum Profitability

In an era of rising energy costs, our Partition Keel Roll Forming Machine stands out with its energy-efficient design and high production capacity. It boasts a maximum production speed of 30 meters per minute, with an adjustable speed range of 5-30m/min to match different production needs. The machine’s main motor adopts an energy-saving inverter control, reducing power consumption by 15-20% compared to traditional models, while maintaining stable performance.

The fully automated production line includes a heavy-duty uncoiler (capacity up to 8 tons) with automatic tension control, ensuring smooth feeding of raw material coils. The integrated automatic lubrication system delivers precise amounts of lubricant to key components, reducing friction and wear, and extending the machine’s maintenance cycle to 6 months. With its high speed, energy efficiency, and low maintenance requirements, our machine helps you maximize production output, minimize operational costs, and boost overall profitability.

Industrial-Grade Durability for Harsh Working Environments

Construction machinery is often subjected to harsh working conditions—dust, vibration, and continuous operation. Our Partition Keel Roll Forming Machine is built to withstand these challenges with a heavy-duty frame constructed from 20mm thick high-strength Q355B carbon steel,through integral welding and stress relief treatment, ensuring exceptional stability and load-bearing capacity. All key components, including gears, bearings, and hydraulic systems, are sourced from renowned global brands (Siemens, SKF, Rexroth) to guarantee reliability and long service life.
