Automatic and High Speed Slitting Line (80 to 100m/min)
不同类型的冷弯成型机。我们是一家历史悠久的工厂，自 2006 年以来一直从事冷弯成型机的设计和制造。我们能生产的机器包括：屋面瓦成型机、CZ 檩条成型机、轻钢龙骨成型机、金属压花机、门系统成型机、天花板系统成型机、高频焊管机、分切生产线、定长切割生产线、货架系统成型机、地板装饰板成型机、彩石瓦生产线、热贴膜机等。
Working flow:
From right to left are: Entry coil car→Decoiler →Press and pinch device→Hydraulic cutter→Looper→Side guide device→ Slitter→Scrap winder→Looper →Tension stand →Recoielr→Exit coil car
Hydraulic entry coil car with V shaped table
It is used to load the coil, to prevent from damaging the car due to putting the coil into car directly.
It is one pair (two pieces), length 1000mm, width 480mm.
The car can move levelly and vertically, which is convenient for putting the steel coils into the de-coiler.
It is driven vertically by hydraulic cylinder with 4 guide pillars
The level movement is driven by cycloid motor
Capacity:20T(Max)
Function: It is used to lift up and down, move forward and back to make it easy to load the coils on decoiler. Hydraulic controls lifting, motor drives moving. The car is controlled on the auxiliary control panel. Its moving speed is 6-7m/min. When the coils on decoiler, the car will return back to the start position. It can also carry back the unfinished coils from decoiler.

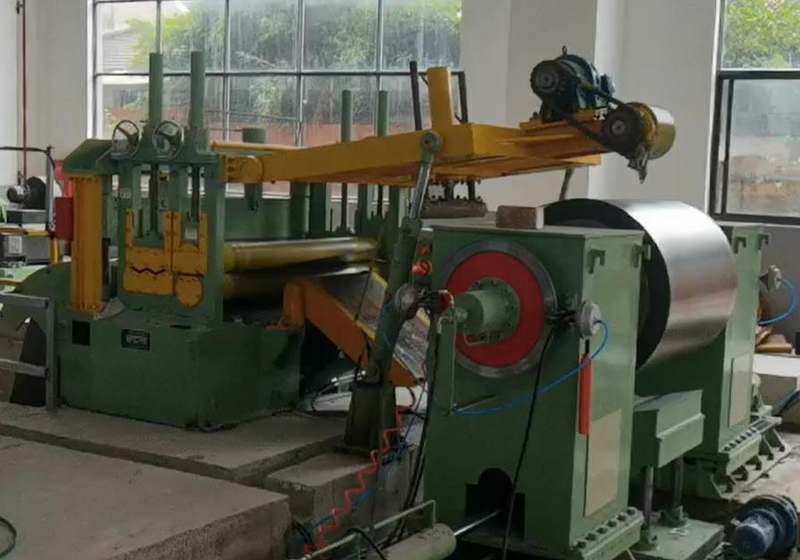

Hydraulic double head decoiler
Supporting steel rolls and uncoiling
It is designed with the double hydraulic movable structure
The hydraulic cylinders on both sides drive the landscape orientation movement
It is equipped with the brake devices and 3-step taper decoiler and the brake wheel.
Mechanical structure: the process is welded by steel plate and steel.
The capacity of it can reach to 20Tons

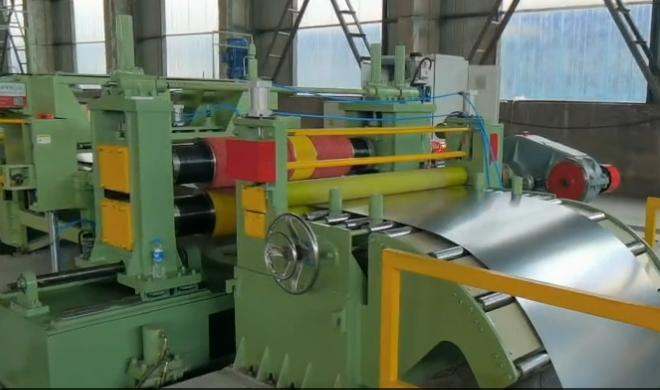

Hydraulic Press and pinch device（37KW AC）
It is good for improving the plates’ surface and do straightening then guiding the steel plates into next process.
It is made by drive device , 2 pinch roller and 5 leveler rollers and frame.
The gap between rollers can be adjusted manually to make sure the leveling quality.
Shovel head is with 4KW motor drive the coils running and do the decoiling with tension.
Drive model: all the rollers and gear box drives by 37 KW motor
Looper
The pit is equipped with magic eyes to control the speed buffer between decoiler and slitter
Magic eye is controlled by PLC.
The pit size: 4500mmX2200mmX4000mm.
Function : it is used to eliminate the different speed and make the plates which in wrong rail to back the right way. At first, the hydraulic cylinder lift the bridges to pass the steel sheets. when working , the bridges will lift down , the steel will be stored in the pit. There is equipped with the photoelectricity devices to adjust the high or low speed to make sure the certain store quantity in pit.

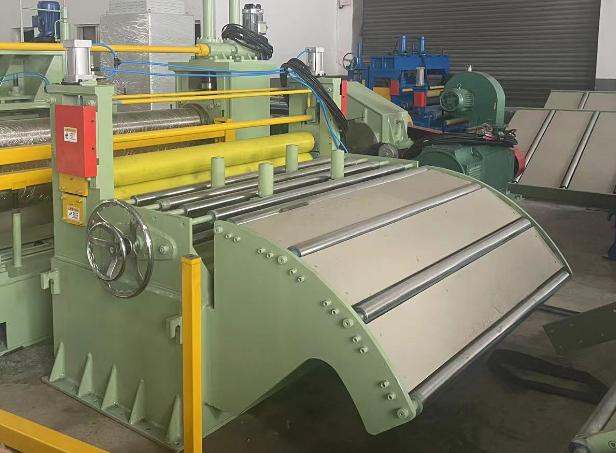

Side guide device
It uses the vertical rollers of both sides to guide the plates into the slitting machine correctly.
The guide rollers are adjusted by the rods on both sides . The width range is 500-2000mm.
Function : it is used to prevent the sheet running to the wrong way. On both sides of the plates width way , the stand rolling are fixed on their own position and can adjust the width manually to match the different width plates. There are 4 rollers (quenching HRC55-58) which divided into 2 rollers on each side.

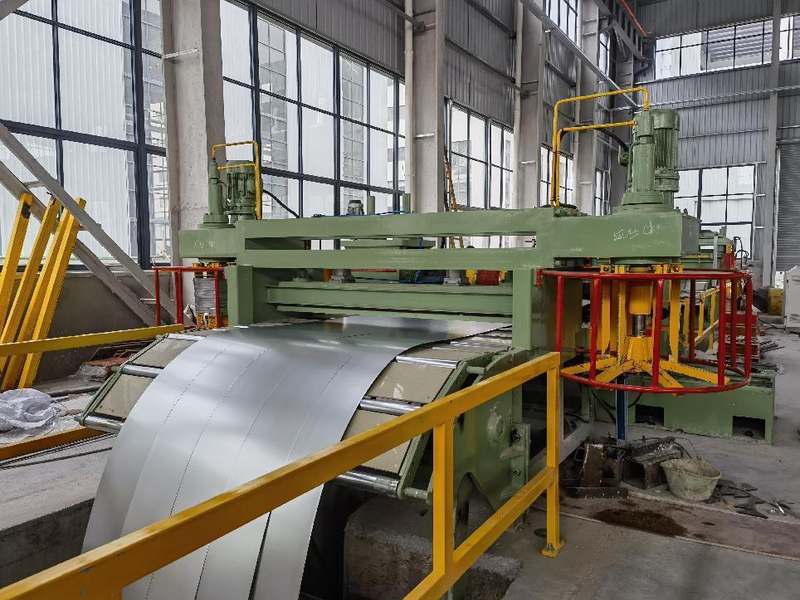

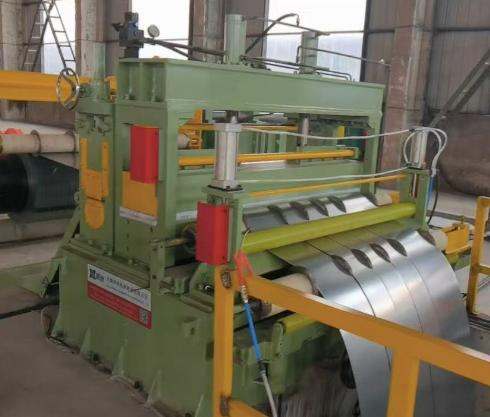

Slitter (90KW DC )
Knife pivot specification: φ220x2000mm, material: 40Cr, heat treatment HB225-250.
Host machine: This is composed of bottom-stand, fixed bracket, big slide, knife pivot(φ220mm, 2pcs), movable bracket, slide, the front and back adjustable device of bracket, knife pivot lifting and pressing down adjustment device.
Power part: 90KW DC motor with decelerator and universal coupling as well as gear distributing case, coupler, spindle, connecting-cover, etc.
Knife pivot press down device adopts the motor to lift up and down.
It change the blades through moving out the bracket hydraulically and is very convenient and fast.
Hydraulic Scrap winder (4KW )
It consists of base, the shaft roller and decelerator and two piece 4Kw motor ,etc.
Equipped with hydraulic system to make it more effective
Looper
The roller-table lift up and down by hydraulic.
At the exit part of the roller table, it is designed with the pre-dividing device.
The size of the pit: 4000mm(L)x2200mm(W)x6000mm(D)
Tension stand
It is composed of the base,pre-dividing device, tension press device and so on . It is used to divide the strips and adjust the tension power for rewinding to ensure the rewinding quality.
It is designed with two dividing device and press device. One hydraulic block device and two roller device.

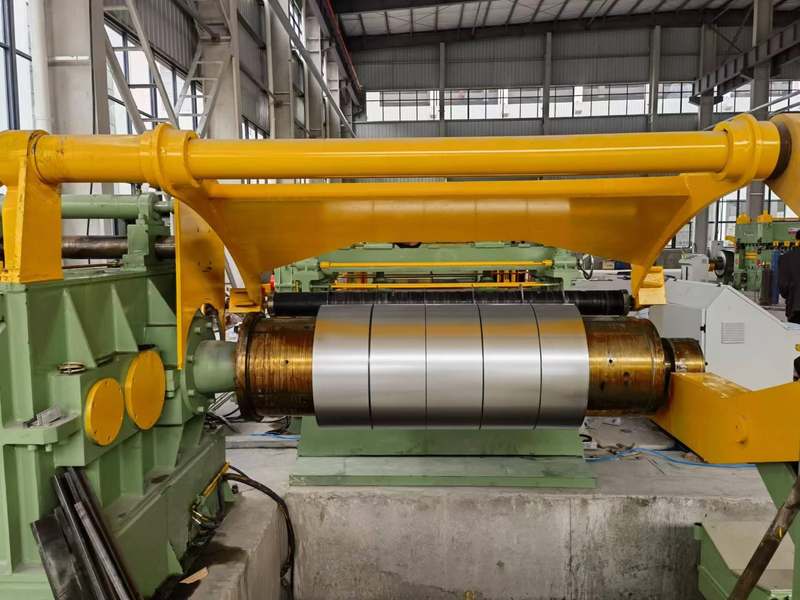

Recoiler (132KW DC)
It adopts the hydraulic expand and shrink to tight the coils inner diameter, the inner diameter is 508mm.
Designed with 8-fan-shaped plates which can be a round circle and machining as a whole to ensure the recoiling quality. It is designed with clip mouth and clip the strips heads.
It is designed with the hydraulic press arm equipped with the spacers to guarantee the even rewinding quality.
It is equipped with the hydraulic pushing device to unload the coils
132KW DC motor can guarantee the rewinding quality.
Gear adopts casting ZG45，the surface of the gears is processed by quenching， HRC45°,
Diameter of Mandrel of recoiler：220 fan –shaped plated are 45#X60mm (thickness), quenching, HB: 220mm-250mm.
Press arm lift up and down by hydraulic and it is equipped with the pushing plate which is used to help pushing the coils to the coil car.
Hydraulic exit coil car
This car carries the slitted coils and movable lifting.
Hydraulic cylinder drives it lift up and down and is equipped with 4 guide pillars.
Motor drives the leveling movement.
Capacity: 20T(Max)
液压系统
1 set hydraulic control station, control valve, and oil pipes . It is controlled by 11KW AC motor.
It is designed with the pressure storage device. When reach up to the certain amount, the motor will stop working automatically. This design saves the power consumption.
And it is equipped wind-cooling system to ensure the hydraulic works in the stable environment.
Hydraulic station, oil pipes, joints and valves .etc.
Ensure all the hydraulic parts function.
Hydraulic system working pressure 6.3-16Mp.
Electrical system
Includes the electrical cabinet, operation panel and DC controller.
590 DC controller and PLC control system, LCD touch screen system . Center control and make the speed in-phrase.
Machine installing capacity around: 280 KW. Power supple: 380V, 50HZ.
For the parameters of the steel coil:
Steel coil parameters Control model PLC DC control
Material: CRS,PPGI and GI
Tensile strength and Yield strength δb≤450Mpa，δS≤260Mpa
Steel thickness: 0.25-3mm
Steel width 500-2000mm（Max）Steel coil I.D Φ508/610/760mm
Steel coil O.D ≤Φ2000mm（Max） Steel coil weight ≤20T
| Slitter parameters | knife pivot diameter | Ф220 mm |
| Knife pivot material | 40Cr | |
| Blades specification | Φ220mmXφ360mmX15mm | |
| Blade material | H13K | |
| Slit parameter | Max slit quantity | 5pcs(3mm) 7pcs(2mm) 15pcs(1mm) 30 pcs(0.25mm) |
| Width precision | ≤±0.1mm | |
| Min strips width | More than 20mm | |
| Recoiler parameter | Recoiler ID | Φ508mm |
| Recoiler coil weight | ≤20T | |
| Other parameters | Power | 380V/50Hz/3Ph |
| Line speed | 0-100m/min | |
| Capacity | About 280 Kw | |

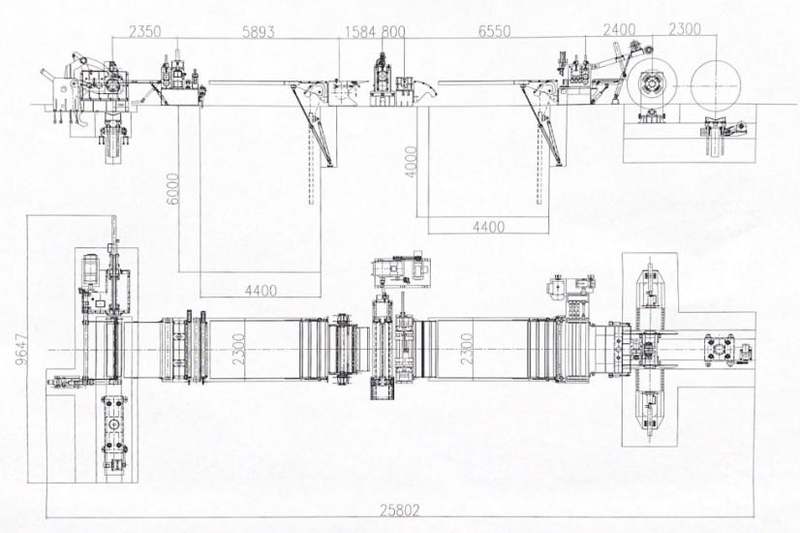

| Whole line Dimension | About 25m(L)X8m(W) | |
| Operator needed | 1 mechanical engineer ,2 common workers | |
| Line direction | From right to left(Face to machine) | |
| Machine color | Blue |
