With the rapid expansion of global warehousing logistics, supermarket retail, industrial storage and e-commerce storage industries, standardized storage racking systems have become indispensable core facilities for modern intelligent warehouses. Shelf columns (rack posts) are the main load-bearing components of all storage shelves, determining the stability, safety and service life of the entire racking system. A professional shelf column forming machine is a dedicated cold roll forming production line for mass-producing high-precision shelf uprights. It realizes fully automatic integrated production of various types of rack columns, helping hardware manufacturing enterprises produce standardized, high-strength shelf accessories efficiently and at low cost. This article comprehensively introduces the definition, working process, core advantages, application scenarios and purchasing guidance of automatic shelf column forming machines, providing professional reference for global rack equipment buyers and manufacturers.

What Is a Shelf Column Forming Machine?

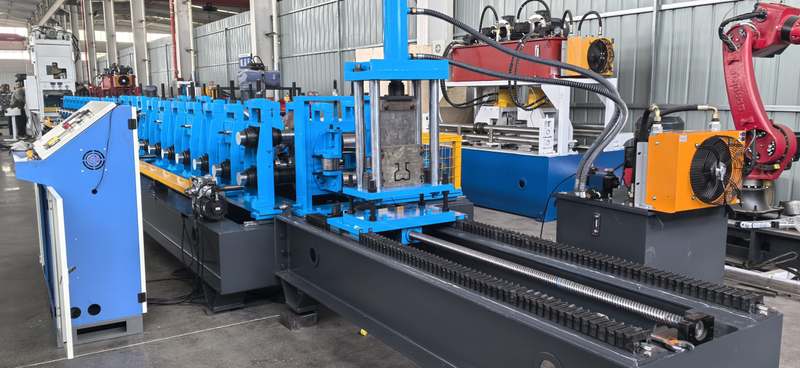

A shelf column forming machine is a specialized continuous cold roll forming equipment independently developed for the production of storage shelf uprights, rack columns and warehouse frame profiles. Different from traditional separate cutting, bending and punching equipment, this integrated production line completes the whole process from raw material uncoiling, leveling, precise punching, multi-pass roll forming, straightening to fixed-length cutting and automatic discharging in one go.

The equipment is compatible with the production of common shelf column types in the global market, including upright columns for pallet racks, heavy-duty storage racks, supermarket display shelves, boltless racks and industrial warehouse racks. All finished rack posts feature uniform size, high structural strength and precise hole spacing, fully complying with international warehouse equipment safety standards and meeting the customized production needs of various storage rack manufacturers.

Working Process of Automatic Shelf Column Forming Machine

The entire production flow of the shelf column forming machine is fully automated with minimal manual intervention, supporting 24-hour continuous stable production. The standardized working process is divided into six core steps, ensuring consistent product quality for each batch:

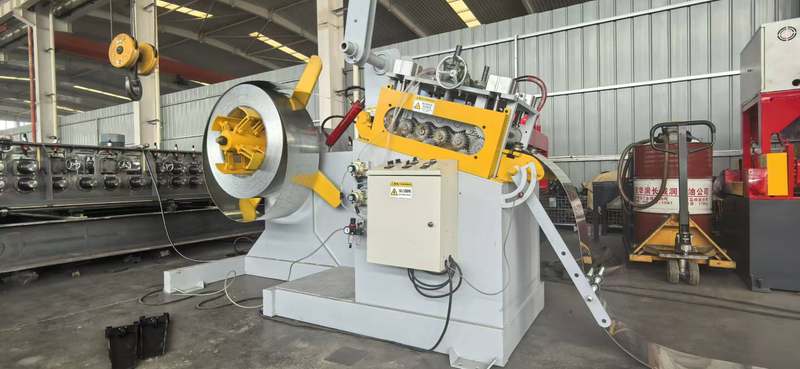

Automatic Uncoiling & Feeding

Equipped with a heavy-duty hydraulic uncoiler, the machine can stably load and release various raw materials such as galvanized steel strips, cold-rolled steel strips and stainless steel strips. The automatic constant-speed feeding system effectively avoids material deviation, jamming and stacking problems, ensuring stable and continuous material supply for subsequent processing.

Precision Material Leveling

Adopting multi-group upper and lower staggered leveling rollers, the equipment thoroughly corrects the warping, bending and internal stress of raw steel strips. After precise leveling, the material flatness reaches industrial high standards, effectively preventing finished shelf columns from deformation and torsion, and laying a foundation for high-precision forming.

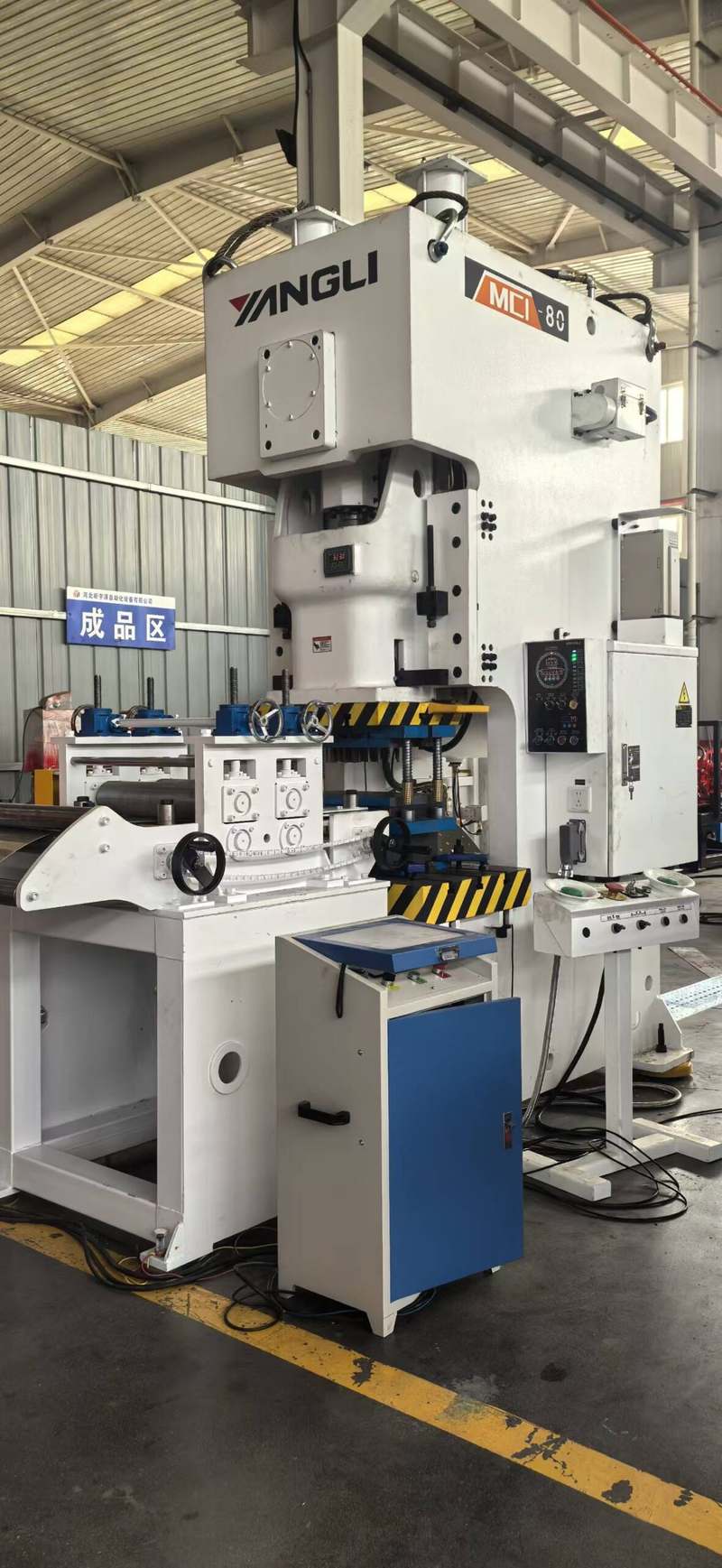

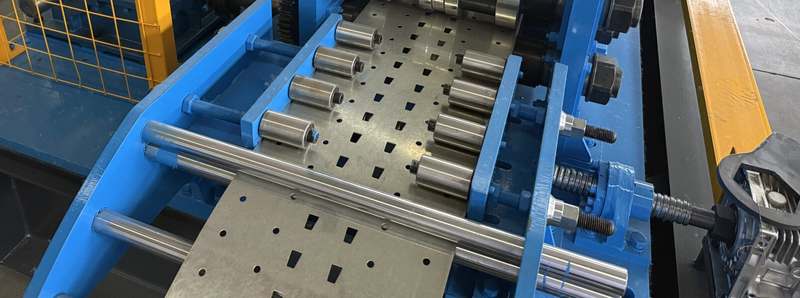

Synchronous Punching & Hole Forming

Hole position accuracy is the key index of shelf column quality. The equipment adopts servo synchronous punching system, which can precisely process standard diamond holes, round holes, square holes and butterfly holes for shelf uprights. The punching spacing and aperture are accurate and consistent, ensuring smooth assembly and flexible layer height adjustment of subsequent shelves, with strong product interchangeability.

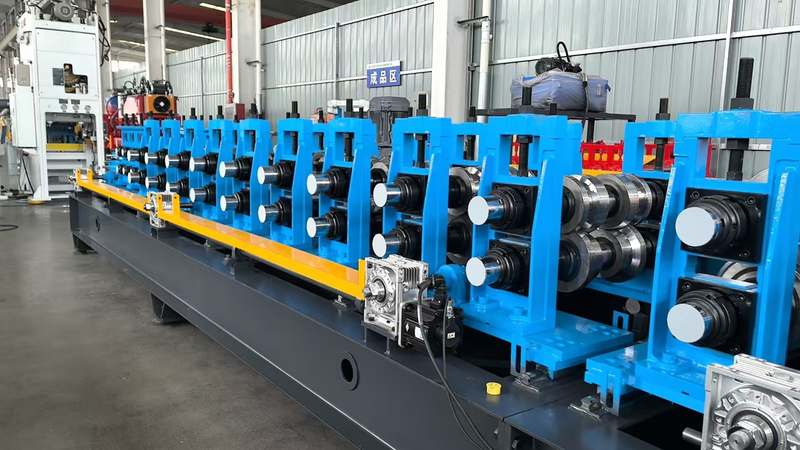

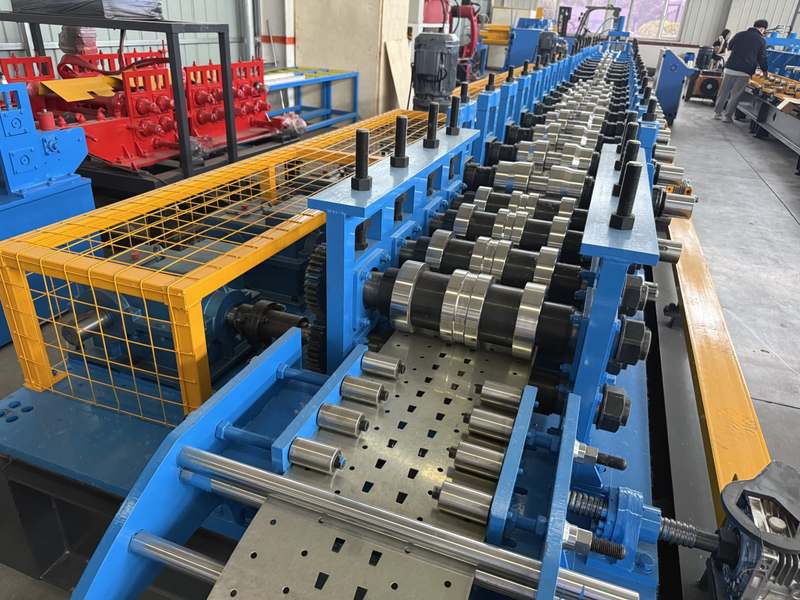

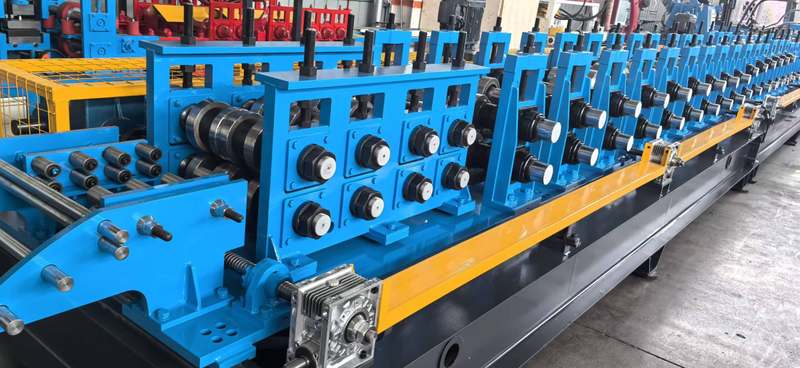

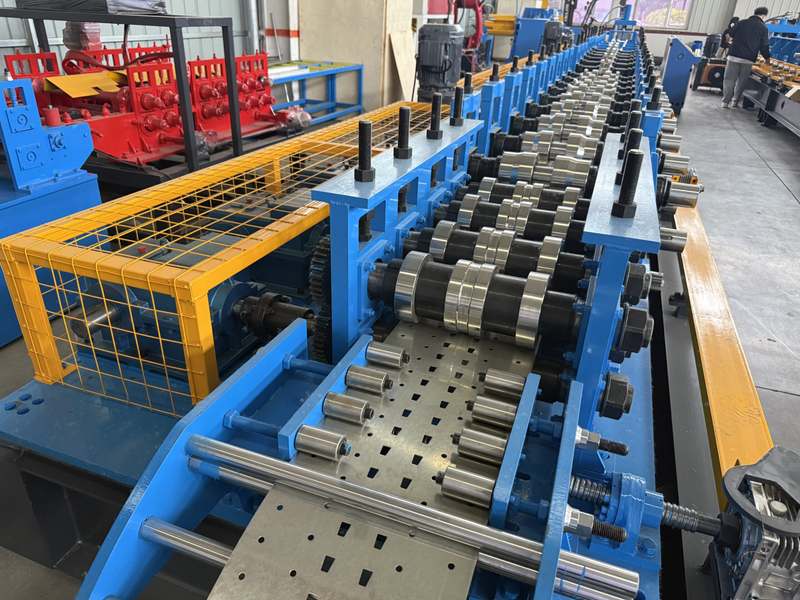

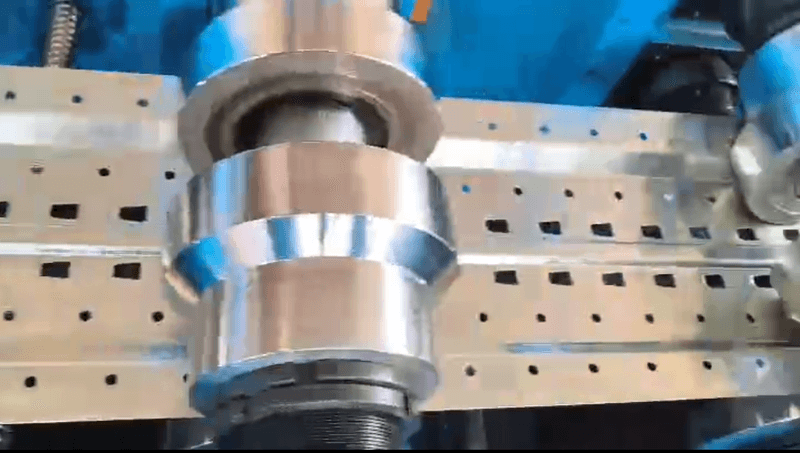

Multi-pass Cold Roll Forming

Through dozens of groups of high-hardness precision forming rollers arranged in a scientific gradient, the steel strip is gradually bent and formed according to the preset shelf column profile. The roller surface is treated with hard chrome plating and anti-wear technology, which ensures no scratches on the surface of finished products and stable forming size. It can perfectly produce C-shaped, U-shaped and special-shaped shelf upright profiles.

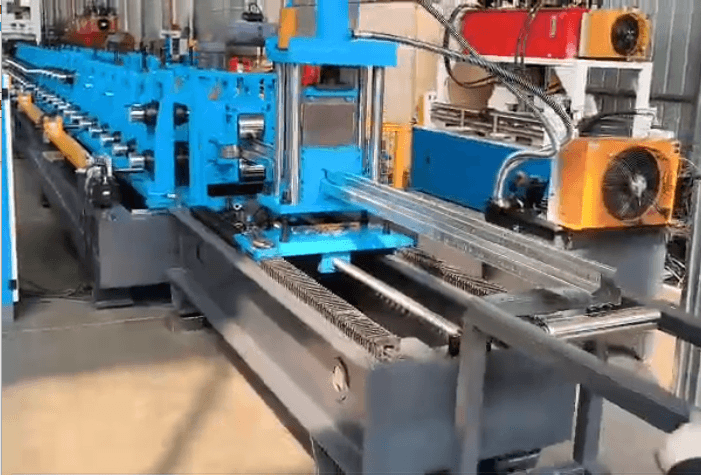

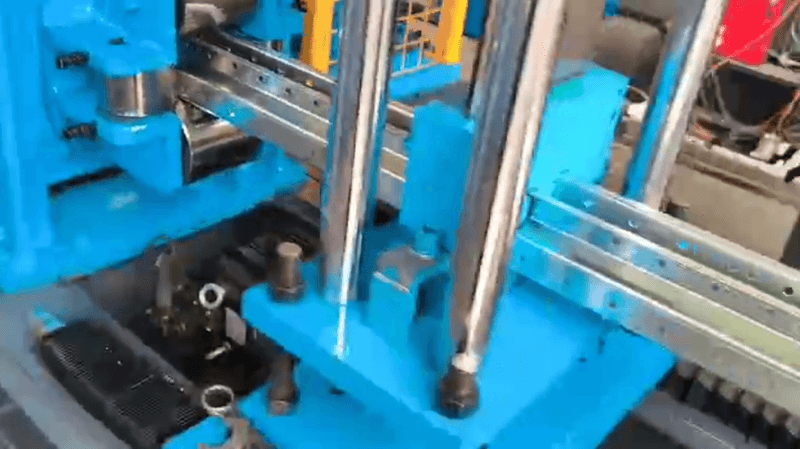

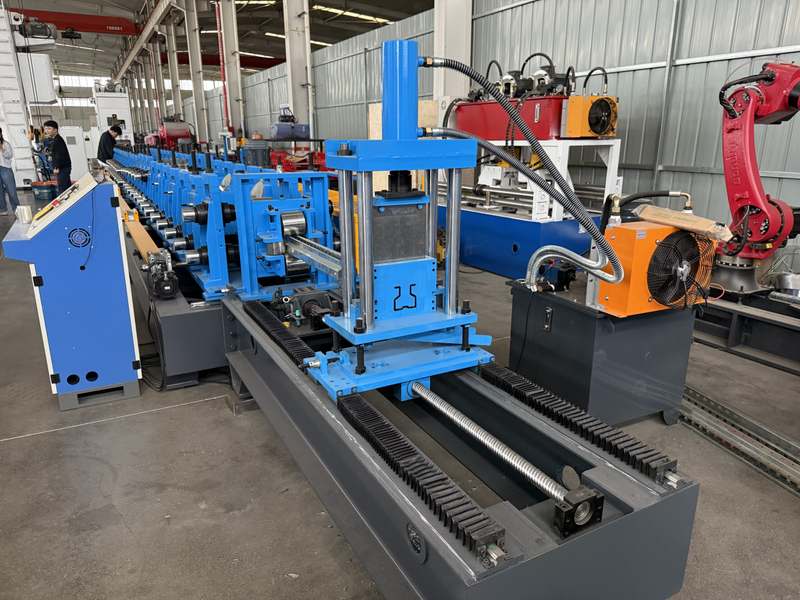

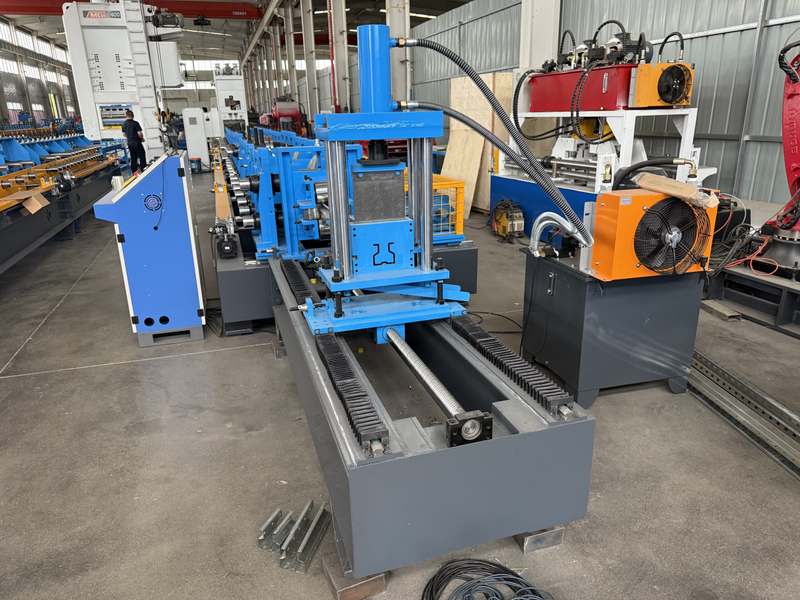

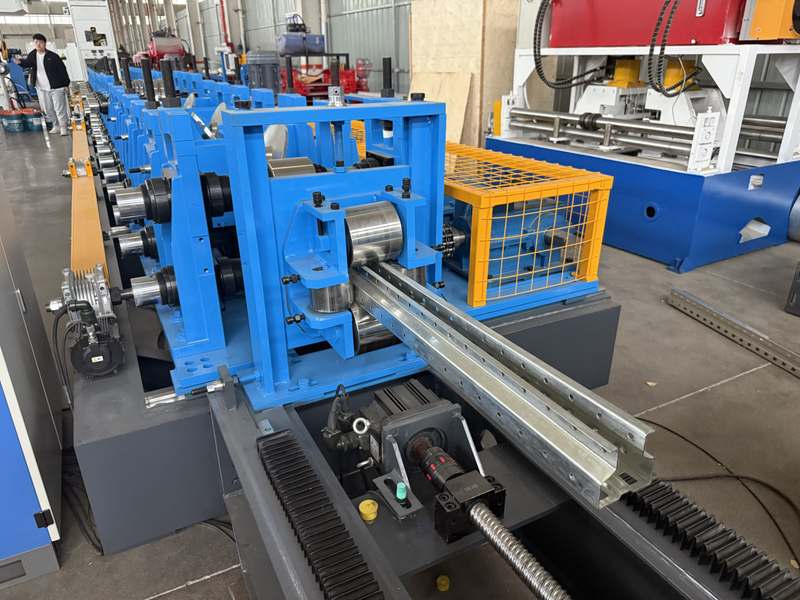

Intelligent Fixed-Length Cutting

Equipped with a high-speed hydraulic cutting system and numerical control length fixing system, the machine supports free setting of arbitrary cutting lengths according to customer needs. The cutting port is flat, smooth and burr-free without secondary grinding and trimming, which greatly improves product yield and production efficiency.

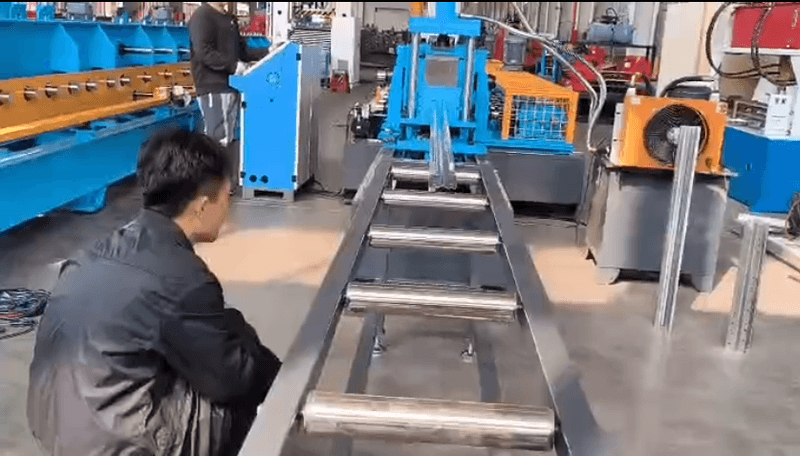

Automatic Discharging & Stacking

The finished shelf columns are automatically output through the intelligent discharging platform and stacked neatly. The whole process realizes unmanned operation, saving manual handling costs and avoiding product collision damage caused by human operation.

我司货架立柱成型机的核心优势

As a professional roll forming equipment manufacturer serving global shelf manufacturing enterprises, our automatic shelf column forming machine has obvious competitive advantages in precision, efficiency, stability and versatility, helping overseas customers reduce production costs and improve product market competitiveness:

Ultra-high Forming Precision & Stable Load-Bearing Performance

The equipment adopts imported servo control system and CNC integral processed rollers, with product dimensional tolerance controlled within ±0.2mm and hole position error less than 0.1mm. The formed shelf columns have symmetrical structure, uniform stress and strong load-bearing capacity, fully meeting the safety standards of heavy-duty warehouse racks. The products have good interchangeability, which is convenient for batch assembly and after-sales replacement of shelves.

High-efficiency Continuous Production & Labor Saving

The integrated automatic production mode breaks the limitations of traditional segmented processing. The production speed can reach 80-120 meters per minute, with a daily output far exceeding that of traditional equipment. A single production line only requires 1-2 workers to complete daily monitoring and auxiliary work, which greatly reduces labor costs, shortens the production cycle and improves enterprise production capacity.

Strong Versatility & Diversified Customization

This machine supports the production of various mainstream shelf column specifications. By adjusting numerical control parameters and replacing simple molds, it can produce light-duty, medium-duty and heavy-duty shelf uprights, covering supermarket shelves, warehouse pallet racks, industrial storage racks and other product types. It can help customers enrich product lines and meet diversified market order demands.

Durable Structure & Low Operation Cost

The main body of the equipment adopts thickened steel plate integral welding structure, with high overall rigidity, strong shock resistance and stable long-term operation. Key wearing parts are made of high-strength alloy materials with wear resistance and long service life. The modular design simplifies daily maintenance work, reduces equipment failure rate and later maintenance costs, and ensures long-term stable operation of the production line.

Intelligent PLC Control & Easy Operation

Equipped with a humanized English PLC touch screen control system, the equipment supports one-key parameter adjustment, automatic counting, fault self-detection and intelligent alarm. The operation interface is simple and intuitive. We provide complete English operation manuals and video teaching materials, and new operators can master operation and maintenance skills in a short time without professional technical background.

Energy Saving & High Material Utilization

The optimized frequency conversion power system reduces invalid energy consumption, with lower power consumption per unit product. The whole production process has no redundant waste materials, and the material utilization rate is as high as 98%, which conforms to global green and energy-saving production standards, effectively reducing customers’ raw material costs.

Main Application Scenarios of Finished Shelf Columns

The high-precision shelf columns produced by our forming machine are widely used in global storage, logistics and retail industries, with wide market applicability:

Industrial Warehouse Storage: Heavy-duty pallet racks, cantilever racks, mezzanine racks and industrial storage racks for factory warehouses, logistics centers and distribution stations

Commercial Supermarket Retail: Display shelves, commodity storage racks and light-duty exhibition racks for supermarkets, shopping malls, convenience stores and brand exhibition halls

E-commerce & Intelligent Warehousing: Special shelf uprights for automated three-dimensional warehouses, intelligent storage systems and e-commerce sorting warehouses

Special Storage Scenarios: Anti-corrosion and high-strength shelf columns for cold storage, chemical storage, dust-free workshops and special industrial storage environments

为什么选择我们的货架立柱成型机？

Our shelf column forming equipment has been exported to Europe, Southeast Asia, the Middle East, South America, Africa and many other countries and regions, winning long-term trust and cooperation from global shelf manufacturers. We always adhere to high-quality manufacturing and full-cycle professional services:

Complete International Certification

All equipment has passed CE, ISO international quality system certification, conforms to EU mechanical safety standards and global export specifications, with complete export documents, ensuring smooth customs clearance and local market access for customers.

Customized Professional Solutions

We provide personalized customization services according to customers’ local market shelf standards, product size requirements and production capacity needs, including special hole type customization, profile size adjustment, production speed optimization and other targeted solutions to meet differentiated market demands.

Perfect Global After-sales Service

We provide 24/7 multilingual online technical support, overseas door-to-door installation and commissioning, professional operator training and long-term warranty service. The professional after-sales team responds quickly to solve equipment operation, maintenance and fault problems for customers, eliminating all after-sales worries.

Factory Direct Sales & High Cost Performance

Direct factory sales without intermediate agents, providing industrial-grade high-quality equipment at competitive ex-factory prices. We provide one-stop full-service including equipment selection, production line design, technical guidance, installation and after-sales maintenance, maximizing customer benefits.
