Roof Tile Roll Forming Machine USA：480V/60Hz Metal Roof Panel Machine Supplier
沧州中拓滚压成型机械有限公司来自中国河北。它是一家致力于设计和制造的制造商。
不同类型的冷弯成型机。我们是一家历史悠久的工厂，自 2006 年以来一直从事冷弯成型机的设计和制造。我们能生产的机器包括：屋面瓦成型机、CZ 檩条成型机、轻钢龙骨成型机、金属压花机、门系统成型机、天花板系统成型机、高频焊管机、分切生产线、定长切割生产线、货架系统成型机、地板装饰板成型机、彩石瓦生产线、热贴膜机等。
不同类型的冷弯成型机。我们是一家历史悠久的工厂，自 2006 年以来一直从事冷弯成型机的设计和制造。我们能生产的机器包括：屋面瓦成型机、CZ 檩条成型机、轻钢龙骨成型机、金属压花机、门系统成型机、天花板系统成型机、高频焊管机、分切生产线、定长切割生产线、货架系统成型机、地板装饰板成型机、彩石瓦生产线、热贴膜机等。
如需了解更多信息、交货时间和价格，请给我们发邮件！
Looking for a reliable roof tile roll forming machine in the USA? We supply 480V/60Hz compliant machines for R-Panel, PBR & Glazed Tiles.
Introduction: Engineered for American Roofing Standards
In the competitive US construction and prefabrication industry, efficiency and compliance are everything. Whether you are supplying materials for residential housing in Texas or large-scale agricultural buildings in the Midwest, your equipment must perform to American standards. Our Roof Tile Roll Forming Machine is specifically engineered for the USA market, featuring standard 480V/3-Phase/60Hz power configurations, compatibility with 24-gauge steel, and precision cutting tolerances required by American contractors.
Unlike generic import machines that require costly transformers and modifications, our roll formers are plug-and-play solutions designed to integrate seamlessly into your existing production line.
Why US Contractors Prefer Our Roof Tile Roll Forming Machines
True 480V / 60Hz Industrial Compliance
Most imported machines are built for 380V/50Hz, which causes motors to overheat or burn out in the US. We configure every electrical component—from the Siemens/Delta PLC to the hydraulic station—for 480V 3-Phase 60Hz. This ensures longevity and safety without the need for external frequency converters.
Handling American-Grade Materials
We understand that US buyers typically use 24-gauge (0.6mm) to 26-gauge (0.45mm) Galvanized steel.
Yield Strength: Handles G90 coating and high-tensile steel up to 550 MPa.
Width Capacity: Accommodates standard 41″ (1041mm) and 48″ (1219mm) wide coils.

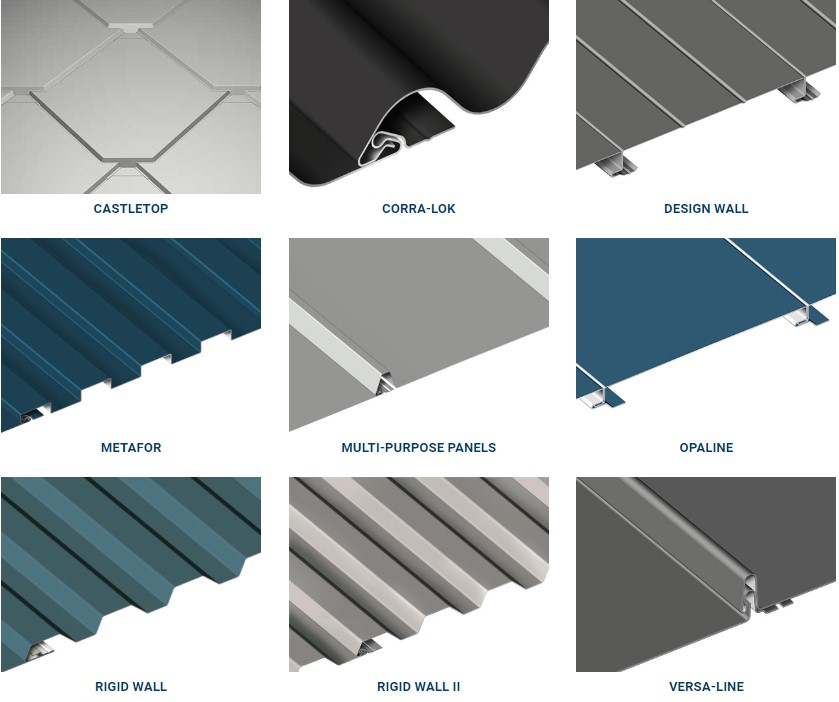

Popular US Roof Profiles
Our machines are tooled to produce the profiles that sell best in the United States:

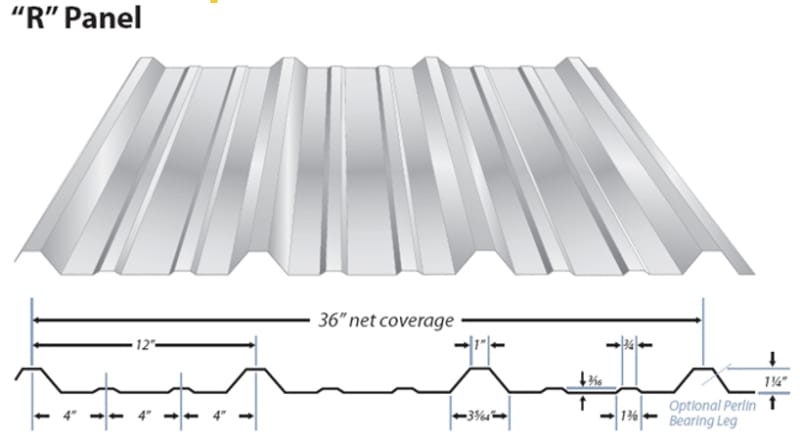

R-Panel / PBR-Panel: The industry standard for commercial and industrial roofing.

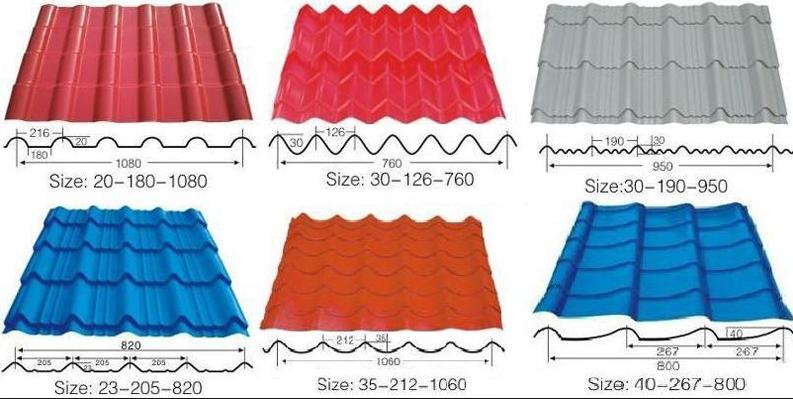

Glazed/Step Tiles:Architectural panels mimicking Spanish clay tiles, popular in Florida and California.

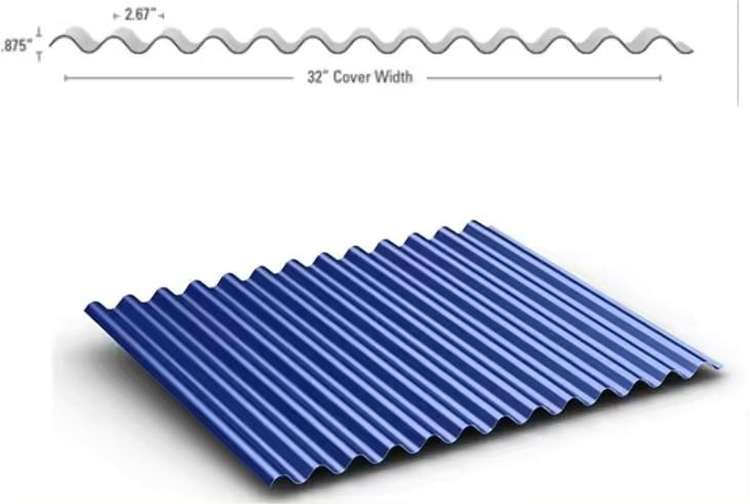

Corrugated Panels:Classic agricultural roofing.
Standing Seam:Concealed fastener panels for modern residential builds.
Technical Specifications (USA Configuration)
| 参数 | Specification (US Standard) |
| Power Requirement | 480V / 3 Phase / 60Hz (UL Listed Components Optional) |
| Material Thickness | 0.3 – 0.8 mm (22 – 29 Gauge) |
| Material Type | Galvalume, PPGI, Aluminum, Zincalume |
| Coil Width | Max 1250 mm (49 inches) |
| Forming Speed | 15 – 35 m/min (50 – 115 ft/min) |
| Roller Material | 45# Steel, CNC Machined, Hard Chrome Plated |
| Shaft Diameter | 75mm / 90mm Solid Steel (Depend on profile) |
| Cutting System | Hydraulic Post-Cutting with Cr12MoV Blades |
| Control System | Siemens / Delta PLC with 10″ Touch Screen (English UI) |
| Length Accuracy | ± 1.0 mm (± 0.04 inches) |
| Frame Type | 400# H-Beam Welded, Stress Relieved |
Key Features for High-Speed Production
Heavy-Duty Gearbox Drive: Unlike chain-driven systems that stretch and slip, our gearbox transmission ensures consistent pitch accuracy, crucial for interlocking roof tiles.
Hydraulic Pre-Cutting & Punching: Allows for precise lap notches and fastener holes, reducing on-site labor for roofers.
PLC Remote Diagnostics: Our English-speaking engineers can access your machine’s PLC remotely via Ethernet to troubleshoot errors instantly, minimizing downtime.
Container-Friendly Design: The machine base is engineered to fit securely inside a 40ft High Cube container, saving you thousands in freight costs to LA, Houston, or NY ports.

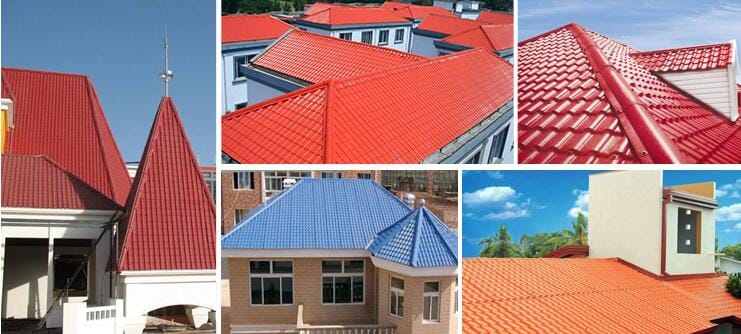

Application Scenarios in the United States
Our Metal Roof Panel Machines are currently operating successfully in:
Residential Roofing: Producing lightweight, high-wind-resistant tiles for homes in hurricane-prone areas like Florida and The Carolinas.
Agricultural Buildings: Manufacturing corrugated panels for barns and storage sheds across the Midwest.
Commercial Warehouses: Supplying PBR panels for logistics centers in Texas and Arizona.
Architectural Projects: Creating custom color-matched standing seam panels for retail and office spaces in California.
Frequently Asked Questions (FAQ) for US Buyers
Q: Will this machine work with my existing 480V power supply?
A: Yes. Every machine destined for the US is pre-wired for 480V/3Ph/60Hz. We also provide wiring diagrams and video guidance for your electrician.
Q: Can I produce both R-Panels and Step Tiles with one machine?
A: Yes, we offer Double-Layer Roll Forming Machines that allow you to produce two different profiles (e.g., R-Panel on top, Flat Sheet on bottom) using the same footprint, maximizing your investment.
Q: What kind of after-sales support do you provide in the USA?
A: We provide comprehensive English manuals, spare parts kits, and lifetime technical support. If on-site service is required, our engineers can come to your location for troubleshooting.
Q: How long does shipping take to the United States?
A: Typical ocean freight transit times are 25-35 days to the West Coast (LA/Long Beach) and 35-45 days to the East Coast (NY/Savannah).
为什么选择我们？
我们是国家级高新技术企业。公司通过了 ISO9001 质量体系认证、欧洲 CE 安全认证、北美 CAS 认证等。我们拥有丰富的出口贸易经验，了解不同国家客户的需求。 同时，我们还能为客户提供满意的设计方案。我们的机器已出口到 150 多个国家，并与客户建立了长期稳定的合作关系，赢得了客户的一致好评。
通过 360° VR 系统访问中拓，沧州中拓成立于 2014 年，致力于设计和制造不同类型的冷弯成型机。我们提供 ODM、OEM 和一站式服务。原材料、机械和配件均可从我们这里购买。
OEM/ODM 和定制一站式服务
全面的售后服务支持
提供 OEM、ODM
1.沟通：确认买方要求。
2.技术人员设计：绘制型材图和 3D 机器图
3.确定配置和生产
4.交货前测试
2.技术人员设计：绘制型材图和 3D 机器图
3.确定配置和生产
4.交货前测试
5.包装和交付
6.技术指导
7.售后服务：复杂机器的安装服务和定期客户回访
6.技术指导
7.售后服务：复杂机器的安装服务和定期客户回访
受到 95800 多家公司的信任
我们很荣幸能与许多
优质企业。通过与我们的合作，他们获得了
大力支持，实现了业务的突破和发展。
优质企业。通过与我们的合作，他们获得了
大力支持，实现了业务的突破和发展。
0
通过 ISO9001 和 CE 认证
我们拥有自主品牌 ztrfm、专业的设计团队和技术人员。
0
国家 客户
深受用户欢迎和好评的产品。
0
一站式解决方案
从配件到成型机，解决您采购的复杂性。
0
工程师团队
我们拥有 20 多人的强大工程师团队，我们将提供更准确、更快速的解决方案。
