Corrugated Roof Tile Roll Forming Machine ZTRFM
沧州中拓滚压成型机械有限公司来自中国河北。它是一家致力于设计和制造的制造商。
不同类型的冷弯成型机。我们是一家历史悠久的工厂，自 2006 年以来一直从事冷弯成型机的设计和制造。我们能生产的机器包括：屋面瓦成型机、CZ 檩条成型机、轻钢龙骨成型机、金属压花机、门系统成型机、天花板系统成型机、高频焊管机、分切生产线、定长切割生产线、货架系统成型机、地板装饰板成型机、彩石瓦生产线、热贴膜机等。
不同类型的冷弯成型机。我们是一家历史悠久的工厂，自 2006 年以来一直从事冷弯成型机的设计和制造。我们能生产的机器包括：屋面瓦成型机、CZ 檩条成型机、轻钢龙骨成型机、金属压花机、门系统成型机、天花板系统成型机、高频焊管机、分切生产线、定长切割生产线、货架系统成型机、地板装饰板成型机、彩石瓦生产线、热贴膜机等。
如需了解更多信息、交货时间和价格，请给我们发邮件！
Corrugated Roof Tile Roll Forming Machine ZTRFM
Description:A corrugated roof tile roll forming machine is a specialized metal forming equipment that transforms coil steel into decorative, arc-shaped roof tiles with consistent precision. As a leading manufacturer in China, ZTRFM has engineered this machine to deliver high output, low maintenance, and long service life for roofing material producers worldwide.
If you are looking for a reliable roof tile making machine that combines efficiency, durability, and cost-effectiveness, this guide covers everything you need to know—from working principles to technical specifications and key advantages.
What is a Curved Roof Tile Roll Forming Machine?

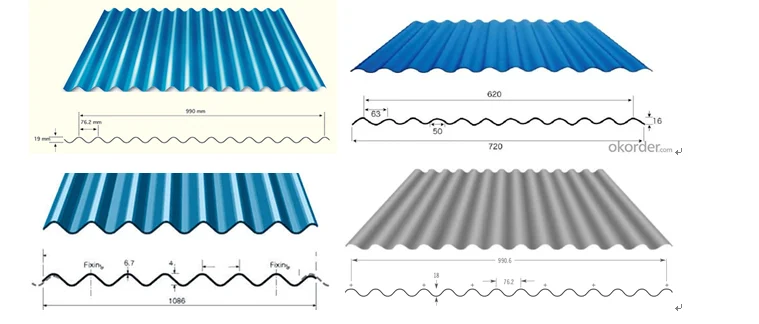

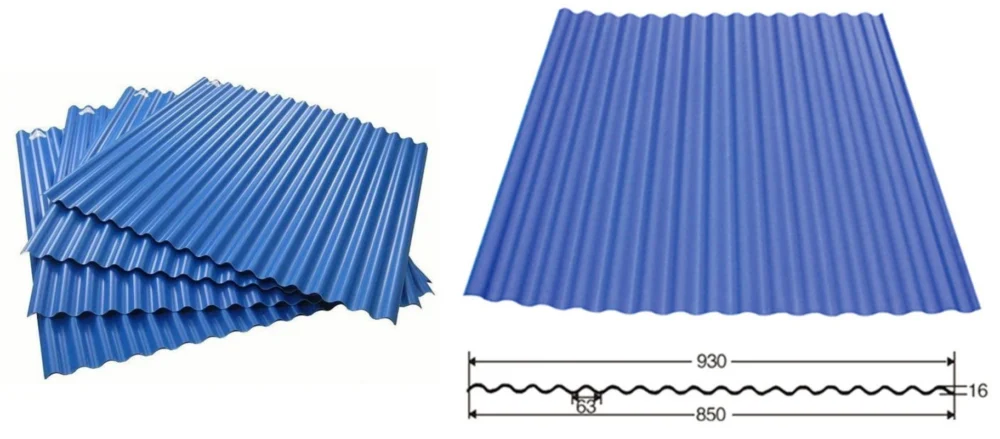

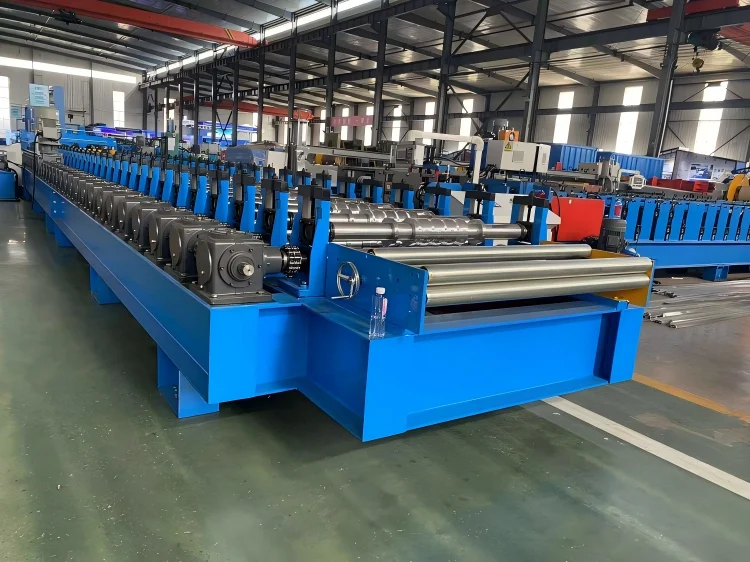

A curved roof tile roll forming machine is an automated production line that processes galvanized steel, aluminum, or color-coated coils into curved (arched) roof tiles. Unlike traditional press machines, roll forming uses a continuous series of roller dies to gradually shape the metal strip into the desired profile.
The resulting tiles feature an elegant arc design that enhances the aesthetic appeal of residential, commercial, and industrial buildings. These tiles are widely used in villa roofing, resort construction, historic restoration projects, and decorative facade applications.
Key Features and Advantages of ZTRFM Curved Roof Tile Machine

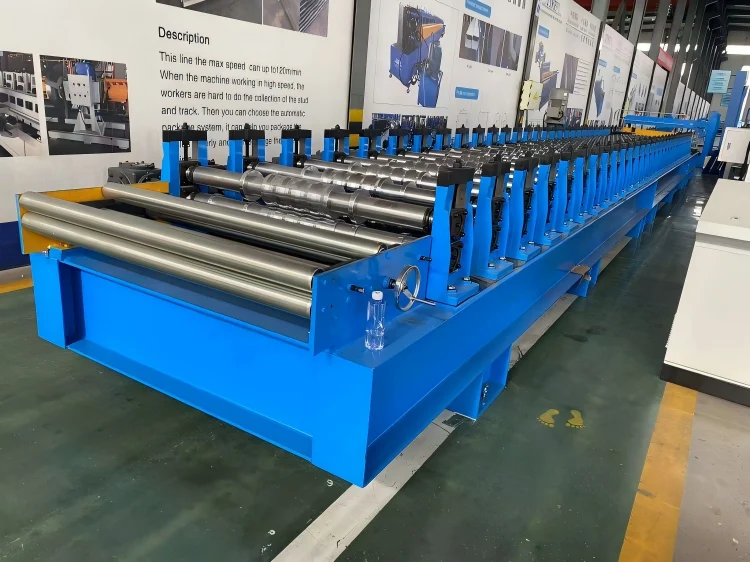

High Precision Roll Forming System

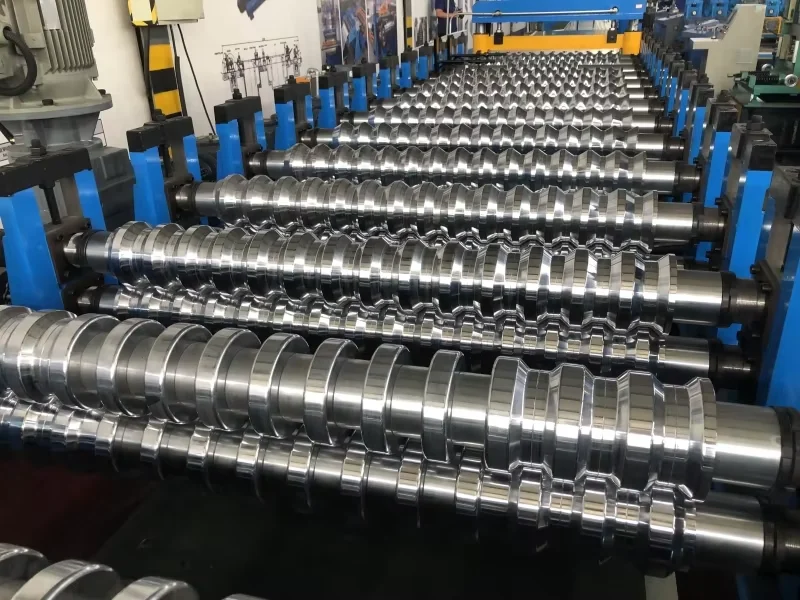

ZTRFM machines use 45# steel rollers with hard chrome plating to ensure long-lasting wear resistance and dimensional accuracy. The roller design is precisely calculated through CAD simulation, guaranteeing consistent tile profile from the first piece to the ten-thousandth.
PLC Automatic Control
Equipped with a PLC control system (Siemens or optional brand), the machine allows operators to set production length, quantity, and tile spacing through a user-friendly touch screen. Automatic length measurement with encoder ensures cutting accuracy within ±0.5mm.
Hydraulic Cutting System
The hydraulic post-cutting mechanism produces clean, burr-free cuts without deforming the tile profile. This results in superior edge quality and reduces post-processing time on the installation site.
Fast Changeover Capability
ZTRFM offers optional quick-change tooling systems that allow operators to switch between different tile profiles in under 30 minutes. This flexibility is crucial for manufacturers serving multiple market segments.
Heavy-Duty Welded Frame
The machine frame is constructed from thick-walled steel tubing with stress-relieved welding, ensuring structural rigidity and preventing vibration-induced deformation during high-speed operation.
技术规格
| 参数 | Standard Configuration |
| Raw Material | Galvanized steel / Color-coated steel / Aluminum coil |
| Material Thickness | 0.3mm – 0.8mm (customizable) |
| Coil Width | 1000mm / 1200mm (other widths available) |
| Forming Stations | 18–24 stations (depends on profile) |
| 成型速度 | 10–25 m/min (adjustable) |
| 切割方法 | Hydraulic post-cutting |
| 控制系统 | PLC + Touch Screen + Encoder |
| Cutting Tolerance | ±0.5mm |
| Main Motor Power | 3.0kW – 5.5kW |
| Hydraulic Station Power | 3.0kW |
| 机器重量 | ~3.5 – 5.5 tons |
| Overall Dimensions | ~8.5m × 1.6m × 1.5m (L×W×H) |

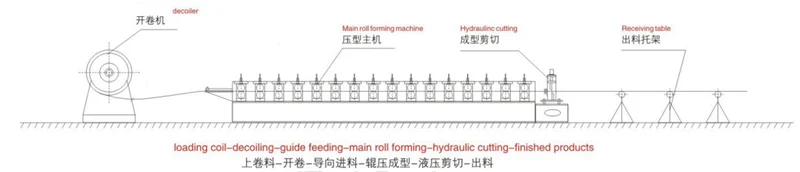

Working Process of the Curved Roof Tile Machine
Understanding the production flow helps you evaluate machine quality and identify potential bottlenecks. Here is the step-by-step process:
Decoiling: The steel coil is loaded onto a hydraulic or manual uncoiler and fed into the leveling system.
Leveling & Feeding: The strip is flattened by multiple leveling rollers to remove coil memory and ensure flat entry into the forming section.
滚压成型： The metal strip passes through a series of roller dies, each station incrementally bending the steel into the curved tile profile.
Embossing (Optional): Decorative embossing rollers can add texture or patterns to the tile surface for enhanced appearance.
Measuring & Cutting: The encoder tracks length; when the pre-set tile length is reached, the hydraulic cutter cuts the tile cleanly.
Output Conveyor: Finished tiles are conveyed out for stacking, packaging, or further processing.
Common Applications

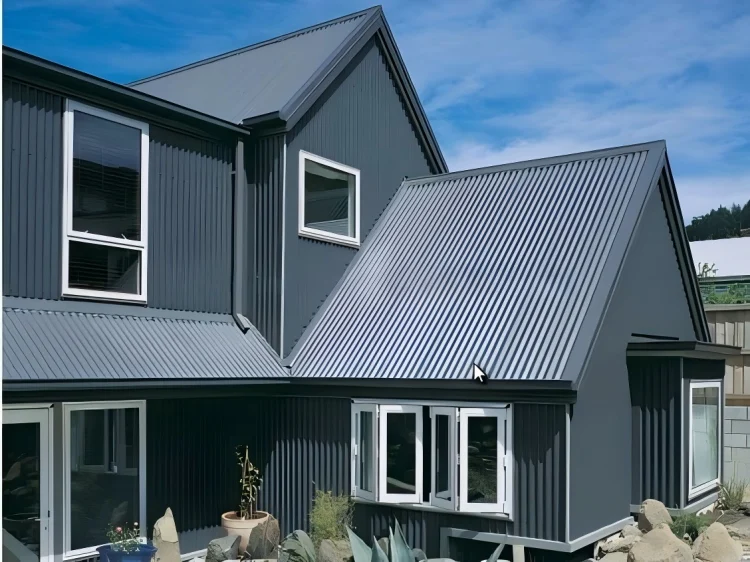

Residential roofing: Curved tiles are popular for villas, cottages, and Mediterranean-style homes.
Commercial buildings: Shopping malls, hotels, and resorts use these tiles for distinctive rooflines.
Industrial facilities: Warehouses and factories benefit from the durability and weather resistance of curved metal tiles.
Decorative facades: The same machine can produce wall cladding panels with curved profiles.
Heritage restoration: Arc-shaped tiles replicate traditional clay tile aesthetics with modern metal durability.
Why Choose ZTRFM as Your Roof Tile Machine Manufacturer?
ISO-Certified Quality Control
Every ZTRFM machine undergoes strict quality inspection at each production stage—from raw material incoming inspection to final factory testing. We provide a complete test video before shipment so you can verify machine performance firsthand.
1-Year Warranty & Lifetime Technical Support
ZTRFM offers a 3-year warranty on main components and lifetime technical support. Our engineers provide remote troubleshooting via video call.
Customization for Your Market
Different regions require different tile profiles. Whether you need European-style Roman tiles, Asian-style arc profiles, or a custom design, ZTRFM can engineer the machine to match your local market demands.
Complete Turnkey Solution
We supply not just the roll forming machine, but also the uncoiler, run-out table, and optional stacker—everything integrated into a complete production line. One-stop procurement reduces your coordination effort.
Frequently Asked Questions
Q: How long is the production lead time?
A: Standard models take 25–30 working days. Custom configurations may require 35–45 days. We provide detailed production scheduling updates throughout the build process.
Q: What is the estimated production capacity?
A: At a speed of 15 m/min with a typical tile length of 1 meter, the machine produces approximately 900 tiles per hour. Actual output depends on material thickness and profile complexity.
Q: Do you provide installation and training?
A: Yes. We offer on-site installation and operator training at your facility. Alternatively, we provide detailed video manuals and remote guidance for cost-effective self-installation.
Q: What payment terms do you accept?
A: Standard terms are 30% T/T deposit, 70% balance before shipment. We also accept L/C at sight for larger orders. Negotiable based on order volume.
