Cable trays are essential structural components in electrical wiring systems, widely used in industrial plants, commercial buildings, data centers, infrastructure engineering, and offshore projects worldwide. A clear understanding of cable tray classification helps engineers, contractors, and global buyers select the most suitable products for specific project environments, ensuring safe cable routing, stable power transmission, and convenient daily maintenance.

Based on structural design, manufacturing materials, surface treatment processes, and application scenarios, cable trays can be divided into multiple standard types. This guide systematically sorts out all mainstream cable tray categories, covering their unique features, advantages, and applicable global engineering scenarios, complying with international electrical installation standards.

Cable Tray Classification By Structural Design (Mainstream Types)

Structural classification is the most commonly adopted standard in global electrical engineering. Different structural cable trays are designed to match different cable quantities, wire types, and ventilation maintenance needs.

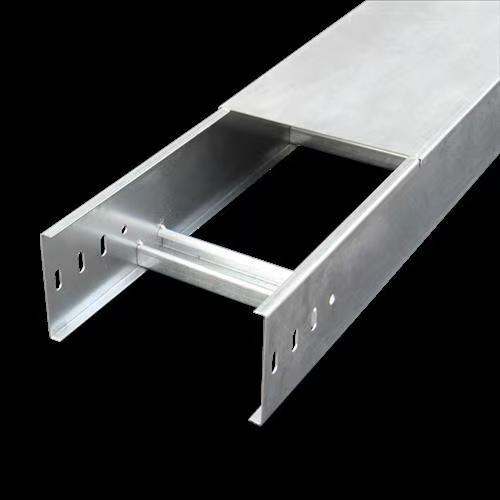

Ladder Type Cable Tray

Ladder type cable tray is the most widely used open-style cable tray in international projects. It consists of two parallel longitudinal side rails and evenly spaced transverse rungs, forming a stable ladder-like structure. This open structural design delivers outstanding heat dissipation and drainage performance, effectively avoiding heat accumulation and moisture corrosion of power cables during long-term operation.

Core Advantages: High load-bearing capacity, excellent ventilation, easy cable laying, inspection and maintenance, low comprehensive engineering cost. Custom rung spacing is available to adapt to different cable diameters and load requirements.

Application Scenarios: Ideal for large-diameter power cables, high-voltage cables, and heavy-load wiring projects. Widely applied in industrial factories, petrochemical plants, power stations, and large commercial construction projects across Europe, Southeast Asia, and the Middle East.

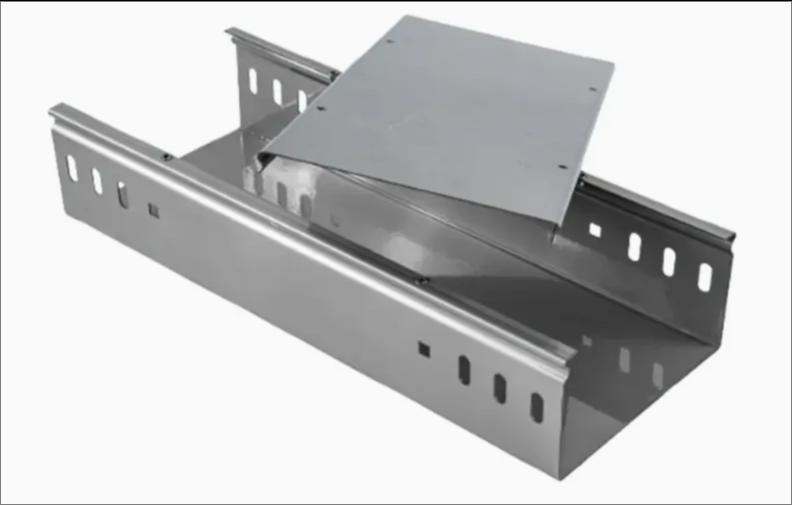

Trough Type (Solid Bottom) Cable Tray

Trough type cable tray, also known as closed cable tray, features a fully enclosed U-shaped solid bottom and continuous side walls, usually matched with supporting covers. It is a fully enclosed wiring solution with strong structural tightness, solving the problems of electromagnetic interference, dust accumulation, and cable damage in complex environments.

Core Advantages: Superior anti-interference performance, dust-proof, waterproof, anti-corrosion, and excellent cable protection ability. It effectively shields external electromagnetic signals and ensures stable transmission of control signals and data signals.

Application Scenarios: Perfect for weak current systems, communication cables, control cables, and precision wiring scenarios. Commonly used in data centers, computer rooms, intelligent buildings, and industrial workshops with strict anti-interference requirements.

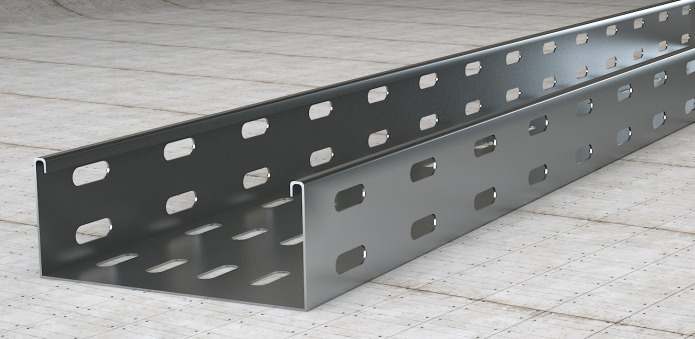

Perforated / Tray Type Cable Tray

Perforated cable tray is a semi-open structural product between ladder type and trough type. Its solid bottom is designed with uniform ventilation holes, which balances ventilation heat dissipation and cable protection performance. The integral structure is flat and neat, with good overall rigidity and stable cable bearing effect.

Core Advantages: Moderate ventilation and heat dissipation, dust and debris prevention, flexible installation, strong universality. It avoids the heat accumulation defect of fully closed trays and the insufficient protection problem of open ladder trays.

Application Scenarios: Suitable for medium and small-diameter power cables and control cables. Widely used in office buildings, shopping malls, factory workshops, and municipal infrastructure projects.

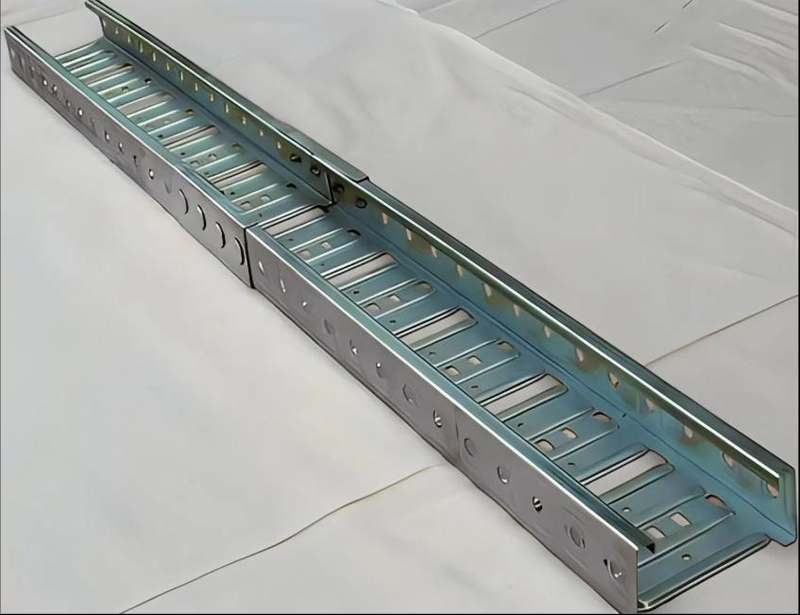

Long-Span Cable Tray

Long-span cable tray is an enhanced customized product designed for large-distance laying scenarios. It adopts high-strength profiles as raw materials, with optimized structural rigidity, which can effectively reduce the number of supporting brackets and simplify the overall installation system.

Core Advantages: Ultra-long single-span laying distance, strong wind resistance and pressure resistance, stable structure, saving installation materials and construction time.

Application Scenarios: Specialized for large-space buildings, factory workshops, logistics warehouses, and outdoor overhead wiring projects with large spacing between supports.

Cable Tray Classification By Manufacturing Material

Material selection directly determines the service life, environmental adaptability, and engineering cost of cable trays. According to international common standards, cable trays are divided into metal and non-metal categories.

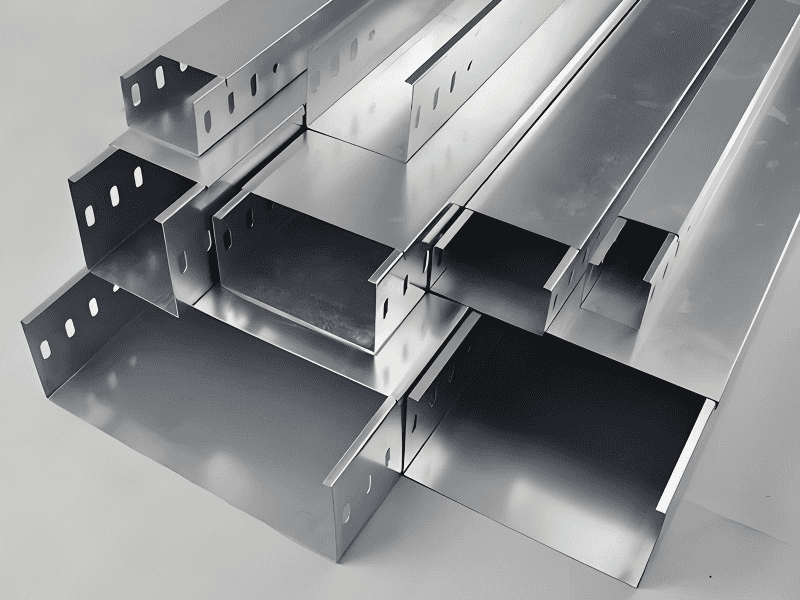

Galvanized Steel Cable Tray

Including electro-galvanized and hot-dip galvanized cable trays. Electro-galvanized products are suitable for indoor dry environments with low cost and smooth surface. Hot-dip galvanized cable trays form a thick zinc layer on the steel surface, with excellent anti-rust and anti-corrosion performance.

Features: High structural strength, stable performance, cost-effective, easy processing and installation. Hot-dip galvanized type is suitable for outdoor and humid environments.

Aluminum Alloy Cable Tray

Made of high-purity aluminum alloy profiles, with light weight, high toughness, natural oxidation resistance, and no rust. It is a high-end environmental protection wiring product.

Features: Lightweight to reduce building load, strong corrosion resistance, elegant appearance, long service life, no need for secondary anti-corrosion treatment.

Applicable Scenarios: High-end commercial buildings, coastal humid areas, and projects with high requirements for product appearance and durability.

Cable Tray Classification By Surface Treatment

Surface treatment is the key process to improve the durability of metal cable trays. Different treatment processes adapt to different climatic and environmental conditions, meeting the installation standards of various countries.

Electro-galvanized: Smooth surface, low cost, suitable for indoor dry and dust-free conventional engineering projects.

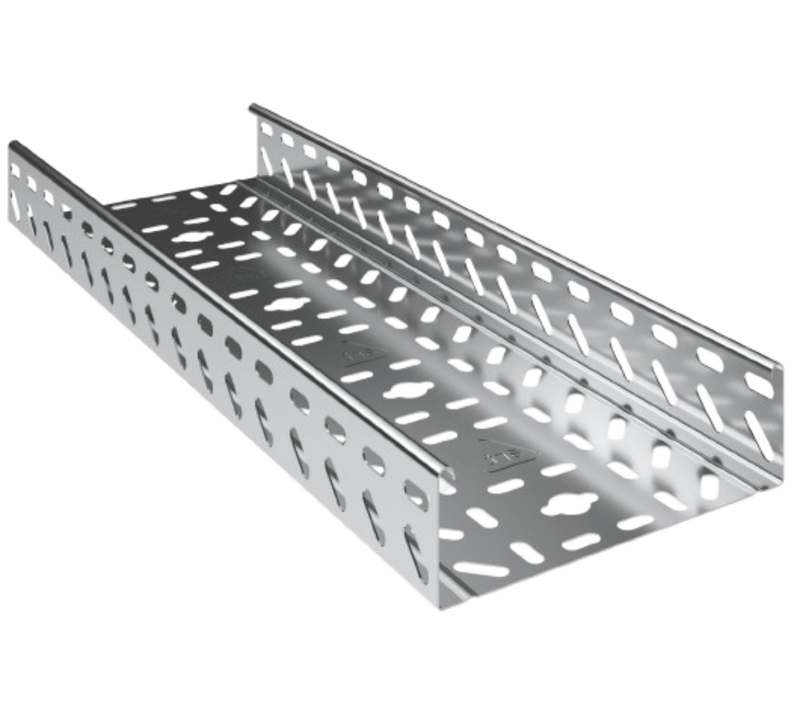

Hot-dip Galvanized: Thick zinc coating, strong adhesion, excellent anti-rust ability, suitable for outdoor, humid, and lightly corrosive environments.

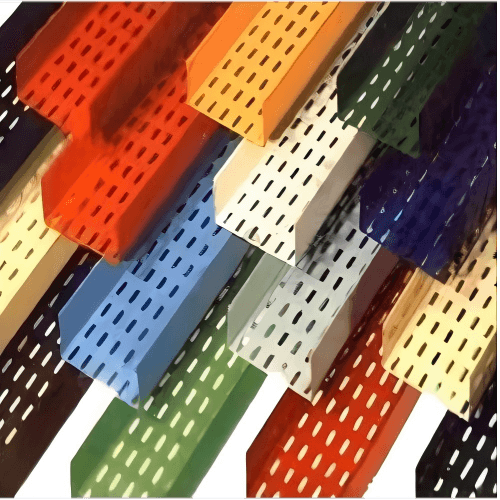

Powder Coated / Spray Paint: Rich color options, beautiful and wear-resistant, anti-corrosion and anti-oxidation, widely used in indoor decoration and high-standard construction projects.

Stainless Steel Treatment: Adopt 304/316 stainless steel raw materials, with super corrosion resistance, suitable for marine, chemical, and high-precision engineering scenarios.

How to Choose the Right Cable Tray for Global Projects?

For international engineering procurement and construction, cable tray selection needs to comprehensively consider the following core factors to avoid model mismatch and secondary replacement costs:

Wiring type: Power cables prioritize ladder type for heat dissipation; communication and control cables prioritize trough type for anti-interference.

Installation environment: Dry indoor use conventional galvanized trays; outdoor and coastal areas use hot-dip galvanized or stainless steel trays; chemical corrosive environments use FRP trays.

Span and load: Large-span and heavy-load projects choose long-span reinforced trays; light-load weak current wiring chooses lightweight mesh trays.

Local standard compliance: Comply with local electrical installation specifications and tariff standards to ensure project acceptance and smooth customs clearance.

结论

Standardized cable tray classification provides a clear selection basis for global electrical engineering construction. Each type of cable tray has its unique structural advantages and targeted application scenarios. Ladder, trough, perforated, mesh, and long-span trays cover all mainstream wiring needs in industrial, commercial, and municipal projects. Matching with scientific material and surface treatment selection can maximize the service life and operational stability of the wiring system.

As a professional global cable tray supplier, we provide full-series customized cable tray products, including standard and non-standard size customization, various material and surface treatment options, fully complying with international quality standards, supporting one-stop procurement for global engineering projects.
