With the booming development of global e-commerce, logistics, and industrial warehousing, the demand for high-performance storage rack systems is growing exponentially. As the vertical backbone of any storage rack, shelf uprights bear the entire weight of the shelf structure, directly determining the stability, load-bearing capacity, and safety of the entire storage system. Whether for heavy-duty pallet racks, medium-duty retail shelves, or light-duty display racks, high-precision, high-strength shelf uprights are indispensable—and our Shelf Upright Roll Forming Machine is professionally engineered to meet this core demand, empowering your production line with efficiency, precision, and adaptability to seize global market opportunities.

We specialize in manufacturing advanced roll forming equipment tailored for the storage and logistics industry. Our Shelf Upright Roll Forming Machine is a fully integrated automatic production solution, designed to transform metal coils into high-strength, precision-engineered shelf uprights with seamless automation, minimal material waste, and consistent quality—helping you meet the surging global demand for storage racks while maximizing your production efficiency and profitability.

Why Choose Our Shelf Upright Roll Forming Machine?

In the competitive storage equipment manufacturing industry, efficiency, precision, and reliability are the keys to standing out in the global market. Our Shelf Upright Roll Forming Machine is specifically designed to address the unique production needs of shelf uprights—vertical profiles that require strict dimensional accuracy, uniform hole spacing, and strong load-bearing capacity—with cutting-edge features and proven performance:

Ultra-High Precision & Consistent Quality

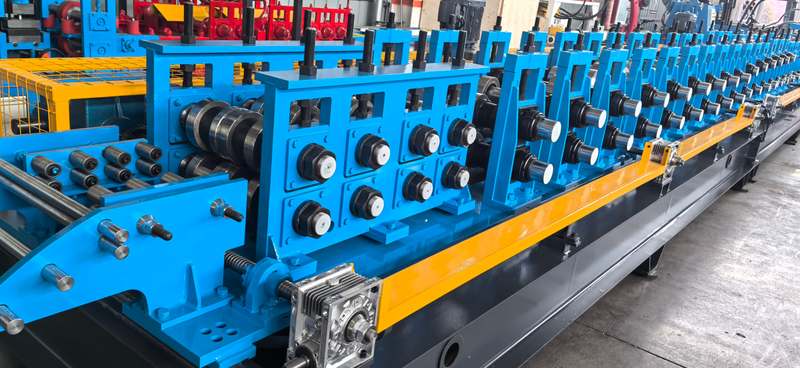

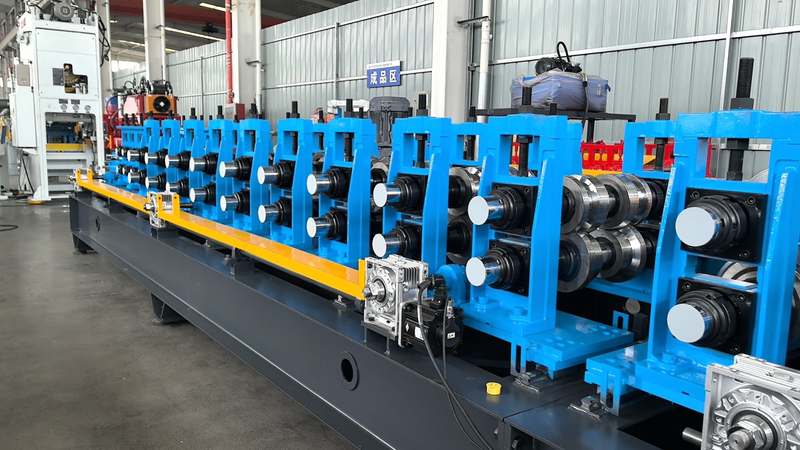

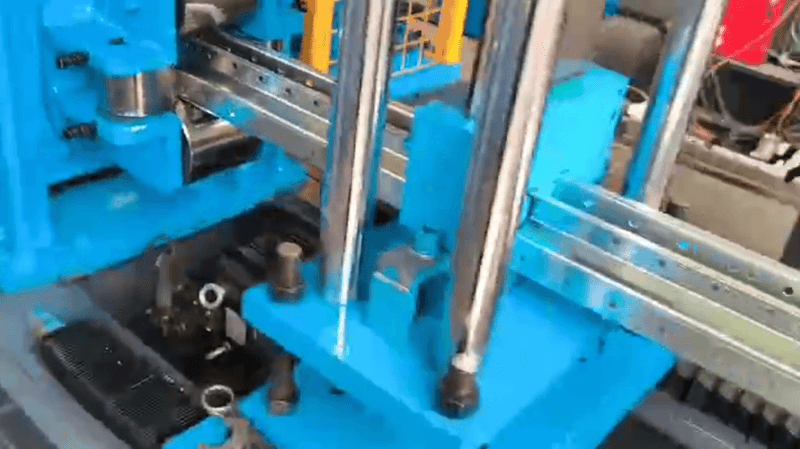

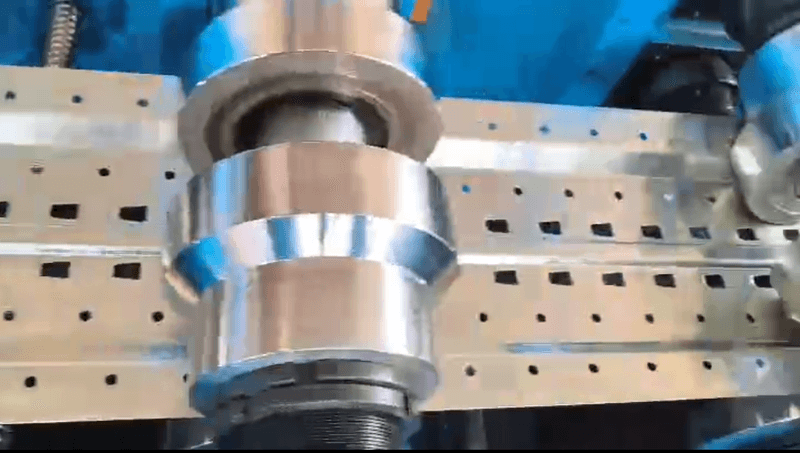

Precision is the core requirement for shelf uprights, as they need to perfectly match shelf beams, diagonal braces, and base plates, while withstanding long-term heavy loads without deformation. Our machine is equipped with 18-24 forming stations (customizable based on your profile design) and high-quality rollers made of 45# steel with chrome plating or GCR15 steel, which undergo overall quenching to reach a hardness of HRC 58-62℃, ensuring no scratches on the profile surface and consistent dimensional accuracy. The integrated hydraulic punching system (with customizable hole spacing and sizes) achieves a punching precision of ±0.5mm, and the hydraulic tracking cutting system ensures a cutting length precision of ±1.0mm—eliminating material waste and ensuring every shelf upright meets international industry standards and your exact technical specifications, including strict requirements for straightness and verticality.

Fully Automated & High Production Efficiency

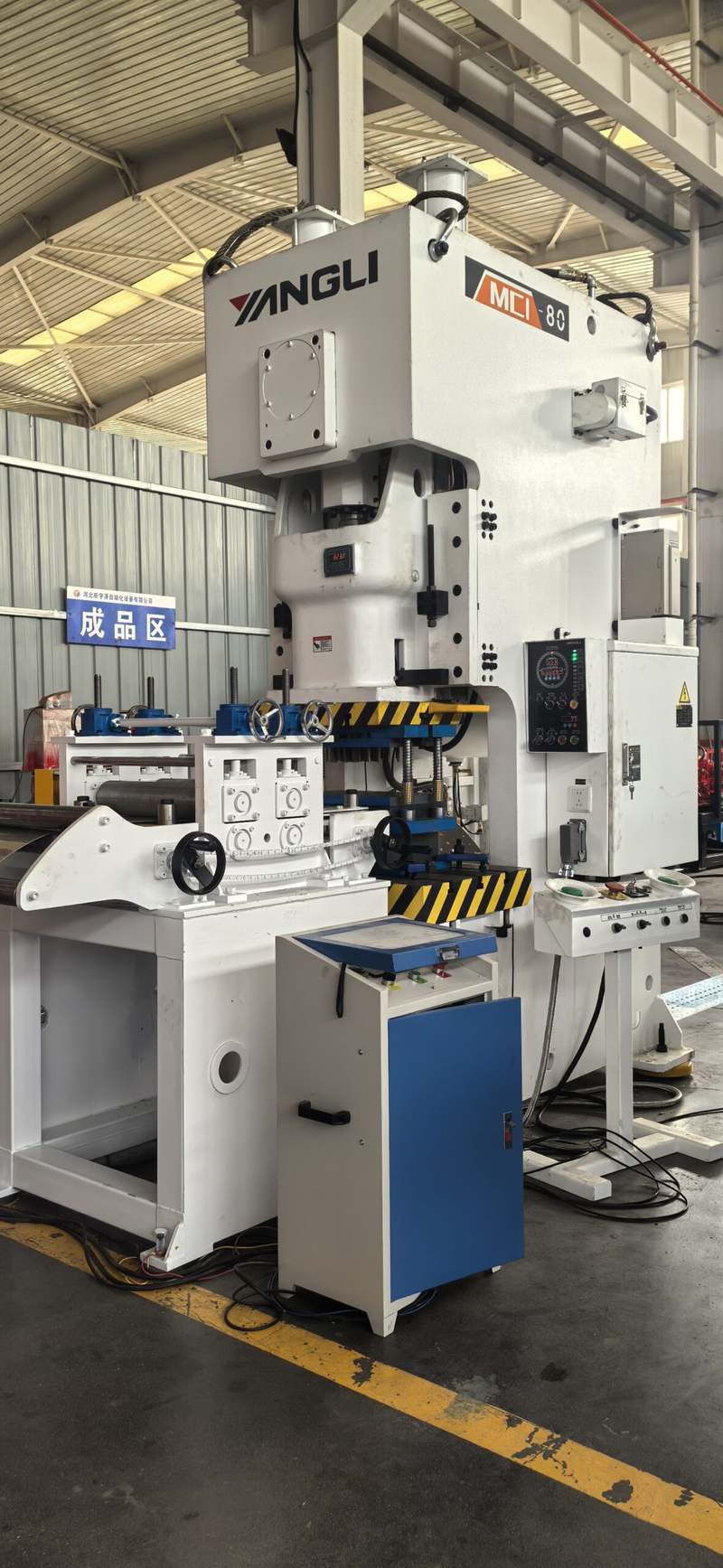

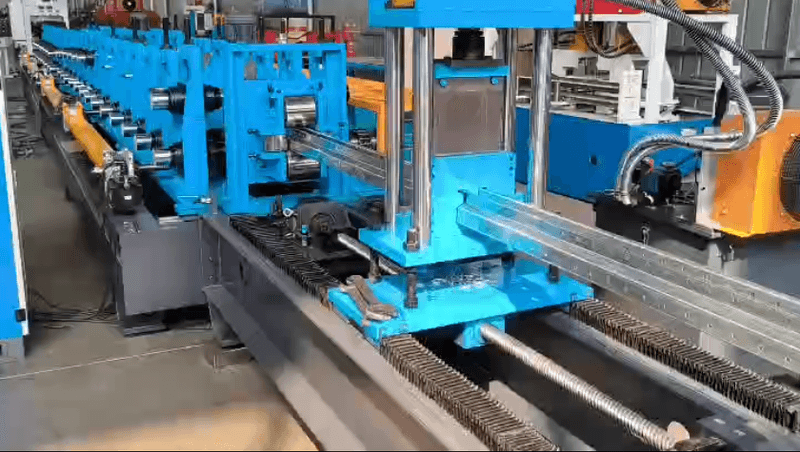

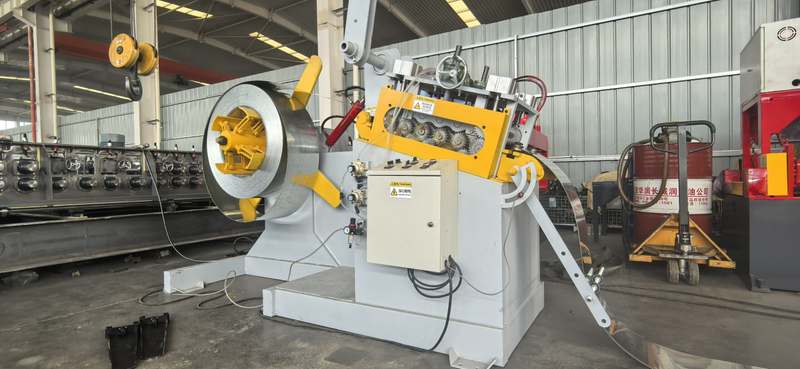

Say goodbye to labor-intensive manual punching, forming, and cutting operations that cause low efficiency and inconsistent quality. Our Shelf Upright Roll Forming Machine features a fully automated production line, integrating 2-in-1 uncoiler straightening, servo feeder, hydraulic punching device (for connecting holes), roll forming unit, hydraulic shear, and finished product rack into one continuous workflow. With a forming speed of 6-20 m/min (adjustable according to material thickness and profile complexity), the machine significantly outperforms traditional processing methods, greatly boosting your production capacity and reducing unit costs—ideal for high-volume manufacturing requirements. The advanced PLC control system (equipped with imported brands like Siemens, Delta, or Omron) and intuitive multi-language touch screen interface allow operators to easily set production parameters, monitor the entire process in real-time, and switch between different shelf upright designs with minimal downtime, realizing fully automated batch production.

Versatile & Fully Customizable

Every storage project has unique requirements for shelf height, load-bearing capacity, and profile design, and our machine is designed to adapt to your diverse needs. It supports a wide range of raw materials, including cold-rolled strip steel, galvanized sheet, hot-dip galvanized steel, PPGI/PPGL, and high-strength steel—accommodating material thicknesses from 1.5mm to 4.0mm (customizable). Whether you need to produce C-shaped, U-shaped, or custom-shaped shelf uprights for heavy-duty warehouse pallet racks, medium-duty retail shelves, or cantilever rack systems, our machine can be fully tailored to your technical drawings, load requirements, and profile dimensions (such as 50mm-150mm width, 1000mm-6000mm length for standard uprights). Quick-change roll systems and customizable punching positions (for beam connections and height adjustment holes) ensure maximum flexibility for diverse project demands, helping you cater to different market segments easily.

Durable Structure & Low Maintenance Cost

We understand that your production line relies on stable and reliable equipment to avoid costly downtime. Our Shelf Upright Roll Forming Machine features a heavy-duty frame structure, with a base made of 45# H-type welded steel plate and side panels of 18mm A3 steel, ensuring strong stability and durability during long-term continuous operation. The transmission system adopts chain drive or gear box for smooth and stable operation, and all vulnerable parts (such as rollers, punching dies, and cutting blades) are made of high-wear-resistant materials, extending the machine’s service life and reducing maintenance frequency and costs. Additionally, the machine is equipped with emergency stop buttons, protective covers for all dangerous transmission sections, and overload protection devices, ensuring the safety of your operators and equipment during daily operation.

Cost-Effective & Sustainable Production

Aligning with the global trend of sustainable manufacturing, our cold roll forming process generates minimal material waste (less than 3%) compared to traditional cutting and bending methods, reducing your environmental footprint and material costs significantly. The fully automated workflow reduces labor costs by 60% or more, while the machine’s energy-efficient design (with main power ranging from 18.5kw to 45kw, customizable) lowers energy consumption—helping you achieve higher profitability while contributing to a greener future. Moreover, the machine’s modular design allows for easy maintenance and upgrades, further reducing long-term operational costs.
