Hat Section Steel Forming Machine：High Precision Automatic Roll Former

Description:Hat section steel forming machine (also known as hat profile roll forming machine or top hat purlin forming machine) is a specialized cold roll forming equipment designed for mass production of high-strength hat-shaped steel profiles. Widely applied in construction ceiling keels, wall partition frames, solar bracket structures, and roof purlin systems, this automatic forming line processes galvanized steel, PPGI, and aluminum coils into standardized hat channel profiles with consistent precision and high efficiency. As a professional roll forming equipment manufacturer, we provide fully customized hat steel forming solutions to meet diverse industrial production requirements worldwide.

Working Principle & Production Process

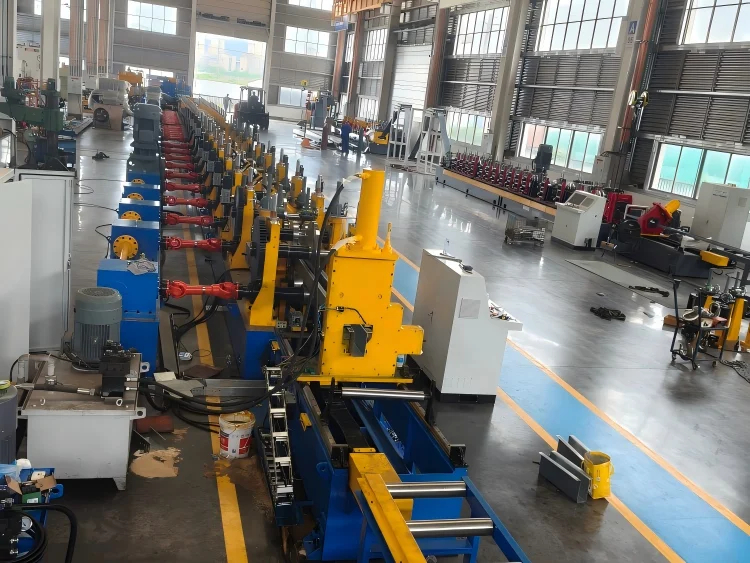

The hat section steel forming machine adopts progressive cold bending technology, completing continuous feeding, straightening, roll forming, fixed-length cutting, and finished product output in one automatic workflow. The whole production process requires minimal manual intervention, ensuring seamless and stable operation.

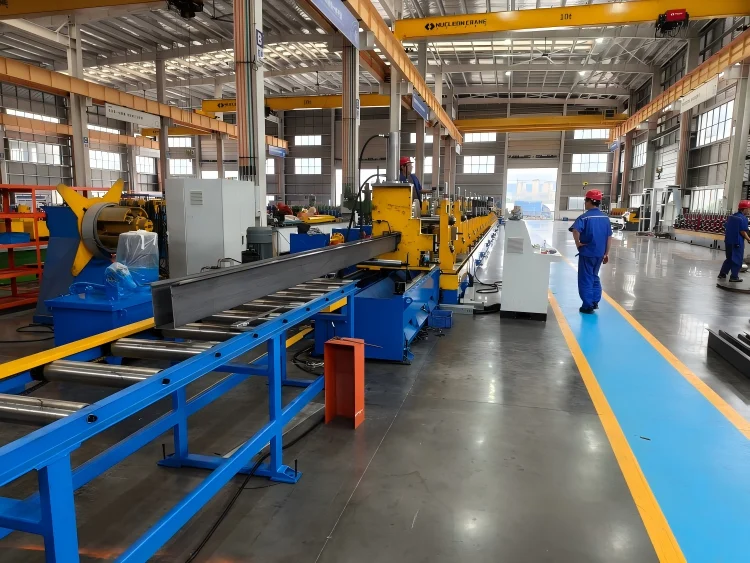

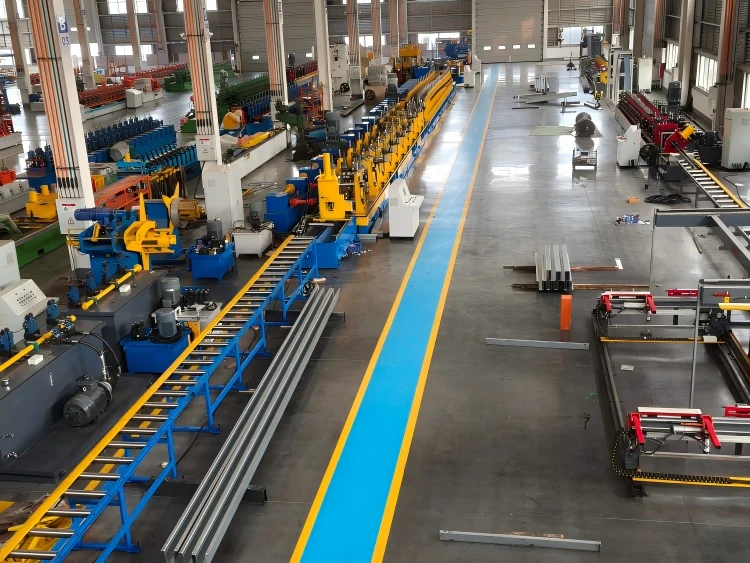

Complete production flow: Hydraulic uncoiler → Sheet straightening & guiding device → Multi-stage roll forming system → Hydraulic fixed-length cutting → Finished product stacking

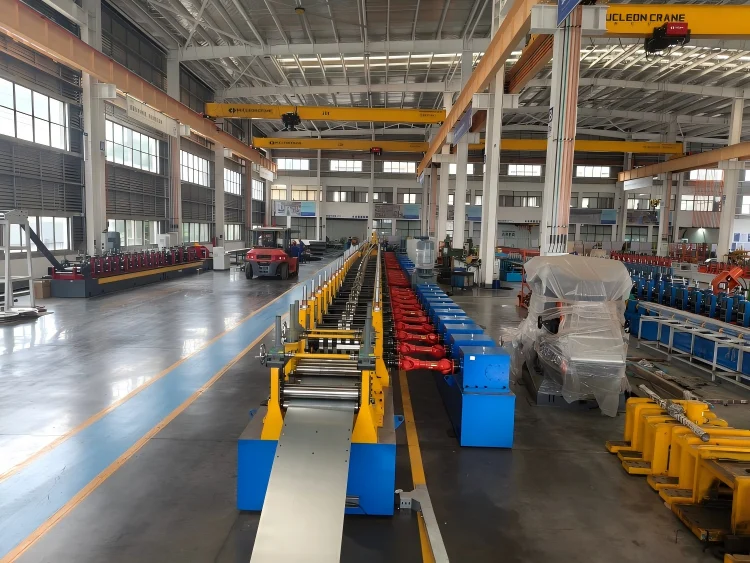

First, the uncoiler steadily releases the steel coil, and the straightening device eliminates sheet deformation to ensure flat feeding. Then, the multi-group precision rollers gradually bend the steel sheet into a standard hat cross-section through staged molding, avoiding one-time bending deformation and profile distortion. Finally, the hydraulic cutting system accurately cuts profiles according to preset lengths, and finished products are automatically stacked for packaging and transportation.

Core Advantages of Our Hat Section Steel Forming Machine

High Forming Precision & Stable Quality

Equipped with multi-stage calibrated roller stations and high-precision processing molds, the machine ensures uniform profile size, smooth surface, and consistent bending angle. The dimensional tolerance of finished hat steel profiles is controlled within ±0.5mm, fully meeting the strict size standards of construction and photovoltaic support industries. All rollers are made of high-quality bearing steel with quenching treatment, featuring wear resistance and long service life, effectively avoiding profile scratches and deformation during long-term operation.

Full Automatic Intelligent Operation

The whole line adopts PLC intelligent control system with touch screen human-computer interaction. It supports one-key parameter setting, automatic length counting, batch production, and fault self-detection. Two operation modes (single debugging mode and continuous automatic mode) are available: single mode is convenient for equipment commissioning and mold testing, while automatic mode realizes unmanned continuous production, greatly improving production efficiency. Operators can adjust production speed, cutting length, and batch quantity in real time through the touch screen.

Wide Material & Specification Adaptability

Our hat steel forming equipment is compatible with multiple raw materials, including hot-dip galvanized steel, color-coated steel (PPGI), and aluminum alloy sheets, with applicable material thickness ranging from 0.4mm to 3.0mm. We support non-standard customization of hat profile height, width, and groove size, and can quickly replace molds to produce different specifications of hat channel steels, meeting personalized production needs of different customers.

Durable Structure & Low Maintenance Cost

The main frame of the machine adopts thickened steel plate welding structure, with high rigidity and strong shock resistance, effectively reducing equipment vibration during high-speed operation and ensuring long-term stable operation. Core components such as motors, hydraulic pumps, and bearings adopt international famous brands, with reliable performance and low failure rate. The equipment is designed with a modular structure, which is convenient for daily maintenance and parts replacement, reducing later operation and maintenance costs for customers.

High Production Efficiency & Energy Saving

The optimized transmission system and hydraulic power structure enable the machine to run at a stable high speed, with a daily output of up to thousands of qualified hat steel profiles, suitable for large-scale industrial production. Equipped with an energy-saving power control system, the equipment automatically adjusts power output according to production status, effectively reducing energy consumption and production costs while ensuring production capacity.

Technical Parameters

Основные сценарии применения

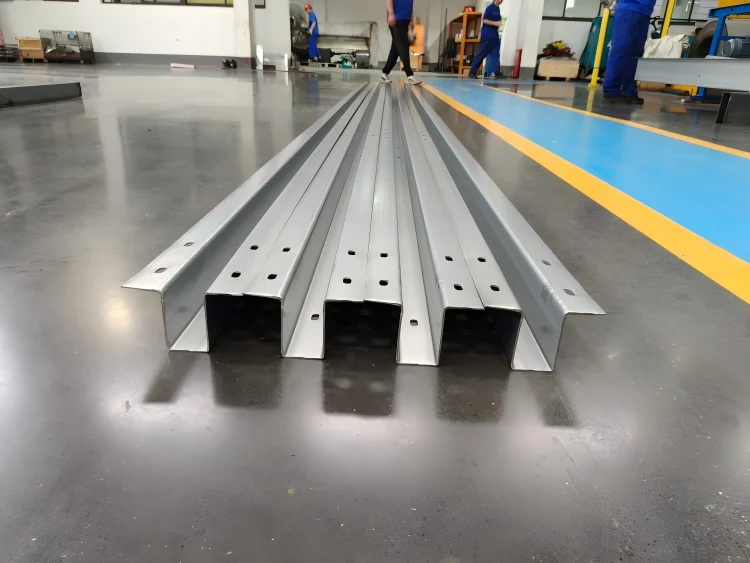

Hat-shaped steel profiles produced by our automatic forming machine have lightweight, high strength, and strong structural stability, which are widely used in multiple fields:

Construction Decoration: Ceiling keels, interior wall partition frames, building curtain wall auxiliary structures

Photovoltaic Industry: Solar panel mounting brackets and fixed keels

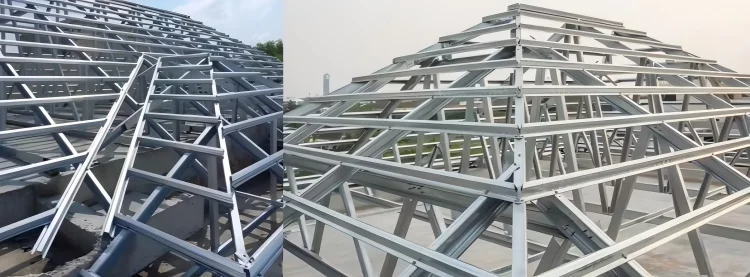

Steel Structure Engineering: Light-duty roof purlins, factory building wall support structures

Prefabricated Building: Modular house frame accessories and supporting profiles

Why Choose Our Hat Section Steel Roll Forming Machine?

With years of experience in roll forming equipment R&D and manufacturing, we have professional technical teams and standardized production workshops. All our hat section steel forming machines undergo strict quality inspection and debugging before delivery, with stable performance and qualified rate up to 99%.

We provide one-stop services including equipment customization, production installation, technical training, and after-sales maintenance. For global customers, we support personalized mold customization according to local profile standards, and provide long-term spare parts supply and remote technical guidance. Our equipment has been exported to Southeast Asia, Europe, Africa, and other regions, winning high recognition from overseas customers with reliable quality and professional service.

FAQ

Q1: Can the machine produce customized hat steel profiles?

A1: Yes. We support full customization of profile size, thickness, and appearance. Our technical team will design exclusive molds and adjust equipment parameters according to customers' drawings and production needs.

Q2: Is the equipment easy to operate for new workers?

A2: The machine adopts intelligent PLC touch screen control with simple operation. We will provide detailed English operation manuals and video tutorials, and support remote technical training to ensure workers can master the operation quickly.

Q3: What is the after-sales service guarantee?

A3: We provide 1-year warranty for the whole machine and lifelong maintenance services. In case of equipment failure, our technical team will provide remote guidance within 24 hours to solve the problem efficiently.
