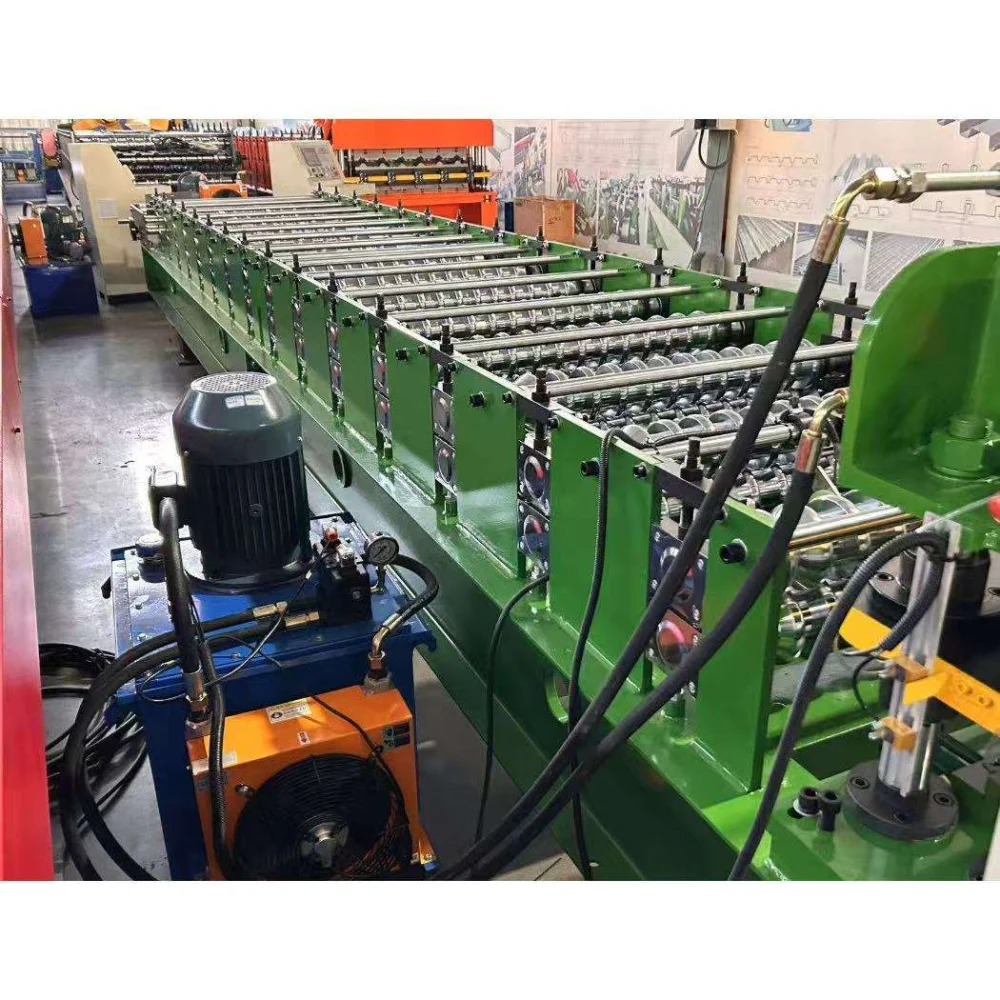

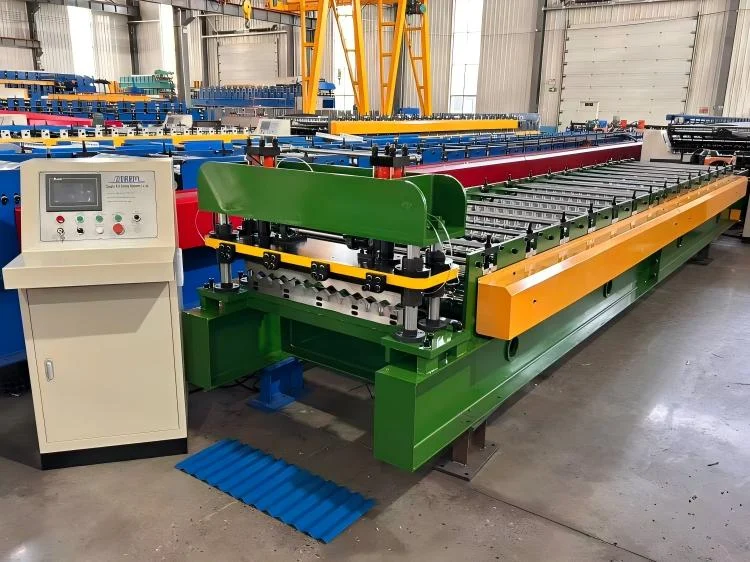

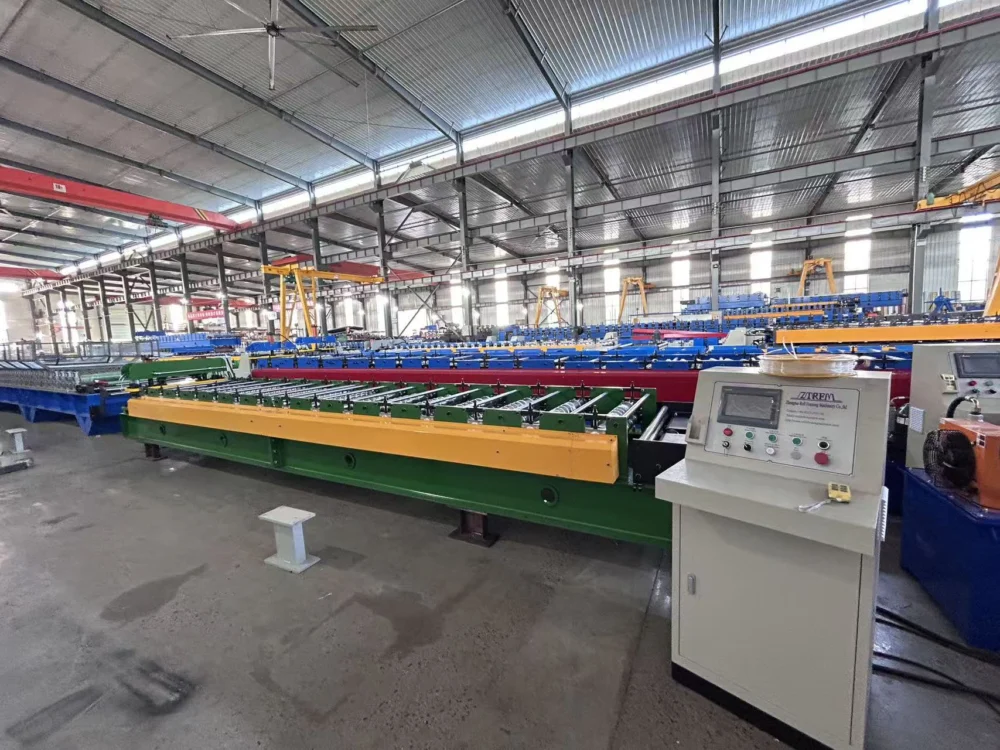

Corrugated Roof Sheet Roll Forming Machine：Automatic Metal Roof Panel Making Machine

Description:The corrugated roof sheet roll forming machine is a fully automatic cold roll forming system designed for mass production of corrugated metal roof panels. As one of the most popular metal roofing manufacturing machines in the global construction industry, this equipment processes flat steel coils into standard wave-shaped corrugated sheets through continuous rolling, forming and hydraulic cutting. It is widely used for producing waterproof and weatherproof roof panels for industrial factories, warehouses, poultry houses, prefab buildings, residential villas and agricultural buildings.

Adopting progressive multi-pass cold bending technology, our corrugated roof sheet machine shapes metal strips gradually without damaging the material surface or coating. Compared with traditional stamping processing, roll forming ensures uniform wave height, consistent pitch and flat sheet surface for every finished panel. The whole production line realizes unmanned automatic operation from coil feeding to finished sheet output, delivering stable output, low material loss and excellent finished product consistency.

Working Principle & Production Flow

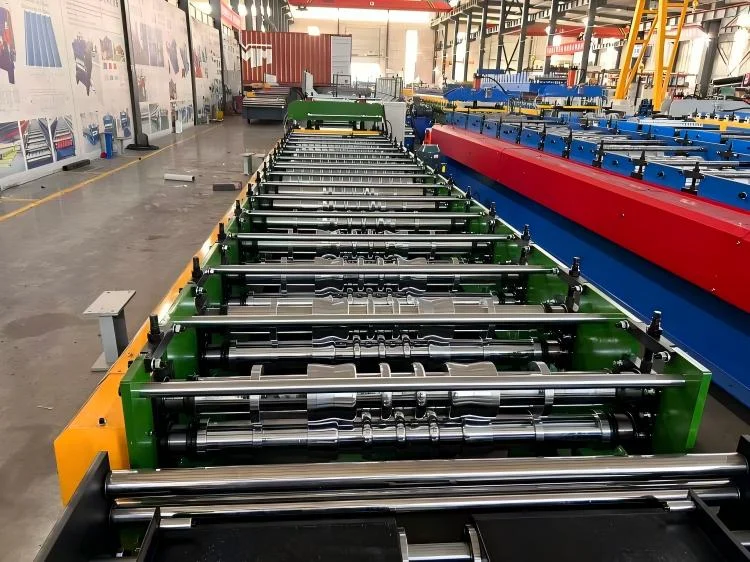

This corrugated roof panel forming machine works based on continuous cold roll forming principles. Multiple groups of precision forming rollers apply gradual and even pressure on flat metal strips, bending the raw material into standard sinusoidal or trapezoidal corrugated profiles step by step. This progressive forming method effectively eliminates internal material stress, avoids panel deformation and coating scratches, and guarantees long-term structural stability of the finished roof sheets.

The complete automatic production process is smooth and streamlined. First, the automatic decoiler steadily releases galvanized steel, PPGI or aluminum coils for continuous feeding. The leveling device corrects raw material bending and warping to ensure flat feeding status. After precise guiding, the steel strip enters the multi-stage roller forming area to complete corrugated profile molding. Finally, the hydraulic flying cutting system cuts panels to customized fixed lengths, and finished sheets are automatically output and stacked. The entire process requires minimal manual intervention, greatly improving production efficiency.

Основные характеристики и преимущества

High Forming Precision & Perfect Panel Quality

All forming rollers are made of high-quality alloy steel with vacuum heat treatment and fine polishing processing. The rollers feature high hardness, strong wear resistance and long service life, ensuring no pattern deviation after long-term operation. Equipped with a high-precision servo tracking cutting system, the machine controls the cutting tolerance within ±1.5mm. The finished corrugated sheets have neat incision, no burrs, uniform wave shapes and excellent flatness, fully meeting international construction standards.

Full Automatic Intelligent Control

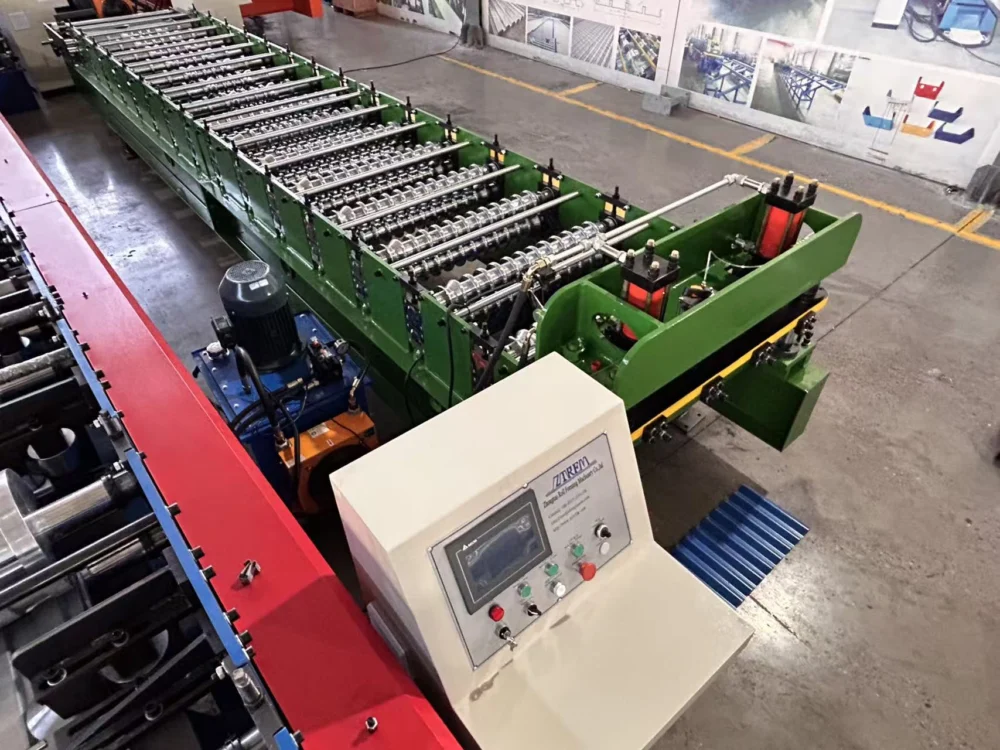

Equipped with famous brand PLC control system and intuitive touch screen operation panel, the machine supports one-click parameter setting, automatic length counting, fixed-length cutting and continuous cyclic production. Operators can freely adjust production speed, sheet length and batch quantity on the screen. The system features automatic fault alarm and overload protection functions, which effectively reduce operation risks and equipment failure rates, realizing safe and efficient unmanned production.

Широкая совместимость материалов и спецификаций

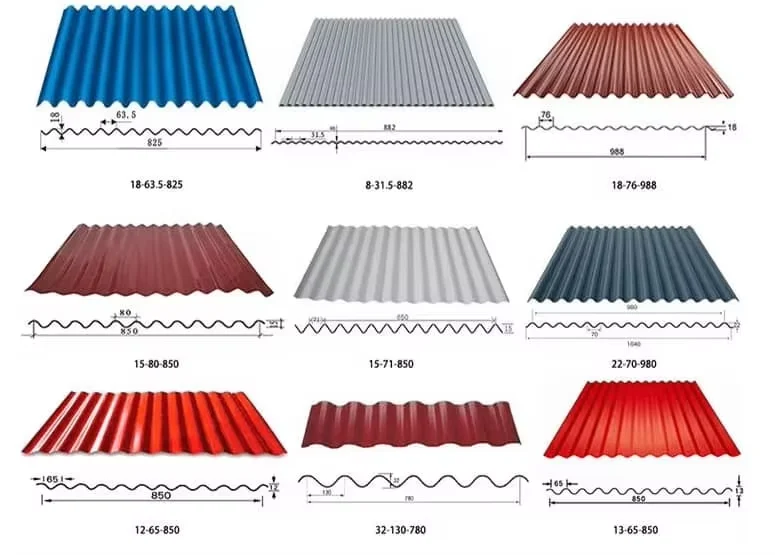

This roll forming machine supports multiple raw materials, including galvanized steel coil, color coated steel coil, cold-rolled steel and aluminum coil. It adapts to conventional building material thicknesses and can produce various common corrugated roof sheet specifications. The flexible adjustable structure allows quick specification switching, realizing one machine for multiple purposes. It perfectly meets the diversified roof panel demands of different construction projects and market standards.

Stable Structure & Long Service Life

The main frame adopts thickened steel plate welding structure with overall stress relief treatment, which is firm and durable without deformation after long-term high-speed operation. The transmission system adopts stable chain or gearbox drive, ensuring synchronized and stable operation of each working part. Key hydraulic and electrical components adopt international famous brands, effectively reducing later failure rate and maintenance costs, and extending the overall service life of the equipment.

High Production Efficiency & Low Operation Cost

The machine supports continuous high-speed production with stable operating speed, greatly improving daily output and shortening customer production cycles. The precise feeding and cutting system minimizes material waste, effectively reducing production costs. Meanwhile, the modular structural design simplifies daily maintenance and component replacement work, saving time and labor costs for enterprise operation.

Application Scenarios

Corrugated roof sheets produced by this machine have excellent waterproof, windproof, corrosion-resistant and weather-resistant performance. They are the most widely used building roofing materials in modern construction industries. The finished panels are suitable for roofing and wall cladding of industrial workshops, logistics warehouses, steel structure buildings, prefabricated container houses, rural self-built houses, agricultural breeding houses, gymnasiums and temporary engineering buildings. With lightweight, high strength and easy installation features, these corrugated sheets are favored by global construction and building material manufacturers.

Quality Certification & After-Sales Service

All our corrugated roof sheet roll forming machines are manufactured in strict accordance with international mechanical manufacturing standards. Each equipment undergoes strict factory testing, including continuous operation aging test, precision detection and safety performance test. The machines have passed CE certification, complying with export standards for Europe, Southeast Asia, the Middle East, Africa and other global regions, supporting smooth customs clearance and market access.

We provide full-cycle one-stop overseas services for global customers. Before delivery, we complete full machine debugging and trial operation, and provide complete English operation manuals, maintenance documents and professional operation video tutorials. We support personalized equipment customization according to customers' local market specifications and production requirements. In terms of after-sales support, we provide long-term remote technical guidance, fault diagnosis, spare parts supply and lifelong technical consultation services to ensure stable and continuous customer production.

Why Choose Our Corrugated Roof Sheet Roll Forming Machine

We are a professional manufacturer focusing on the R&D, production and export of metal roll forming equipment, with rich overseas project experience. Different from ordinary low-end equipment on the market, our corrugated roof sheet forming machine focuses on high precision, high stability and low failure rate, bringing higher production efficiency and economic benefits for customers.

We adopt factory direct sales mode, eliminating intermediate links and providing customers with cost-effective equipment prices. Whether it is small-scale factory trial production or large-scale batch standardized production, our equipment can fully meet the demand. With reliable product quality and perfect after-sales system, our machines have been exported to dozens of countries and regions, winning consistent recognition from global customers.

If you are looking for a stable, high-efficiency and cost-effective automatic corrugated roof sheet making machine, welcome to contact us for free quotation, detailed parameter list and customized production solutions!
