Cable Tray Roll Forming Machine: Fully Automatic & High Precision Production Line

Description:A cable tray roll forming machine is a professional cold roll forming system dedicated to the mass production of standard and custom metal cable trays. As core manufacturing equipment for electrical infrastructure hardware, it efficiently processes galvanized steel, stainless steel, and aluminum coils into finished cable trays through automated uncoiling, leveling, punching, continuous forming, fixed-length cutting, and stacking. Widely used in data centers, commercial construction, industrial plants, petrochemical projects, and power transmission engineering, this automated production line helps manufacturers deliver high-quality cable tray products that comply with global industry standards.

Integrated Automatic Workflow for Higher Productivity

Our cable tray roll forming machine adopts an all-in-one integrated design, integrating all production procedures into one compact and efficient line. Different from traditional segmented production equipment that requires repeated manual handling and secondary processing, this streamlined system minimizes human intervention and eliminates intermediate processing errors.

The production speed ranges from 8m/min to 25m/min, fully adapting to small-batch custom orders and large-scale mass production demands. Standard models support a forming width of 50mm to 600mm and a material thickness of 0.8mm to 2.0mm, while heavy-duty customized versions can process materials up to 3.0mm thick. This flexible parameter configuration covers most conventional cable tray production requirements for global engineering projects.

Diversified Production Capacity for Multiple Cable Tray Types

Equipped with adjustable roller sets and modular punching units, the roll forming line can produce four mainstream cable tray types to meet diverse application scenarios worldwide. All finished products feature seamless molding, uniform surface treatment, and stable structural performance without welding gaps.

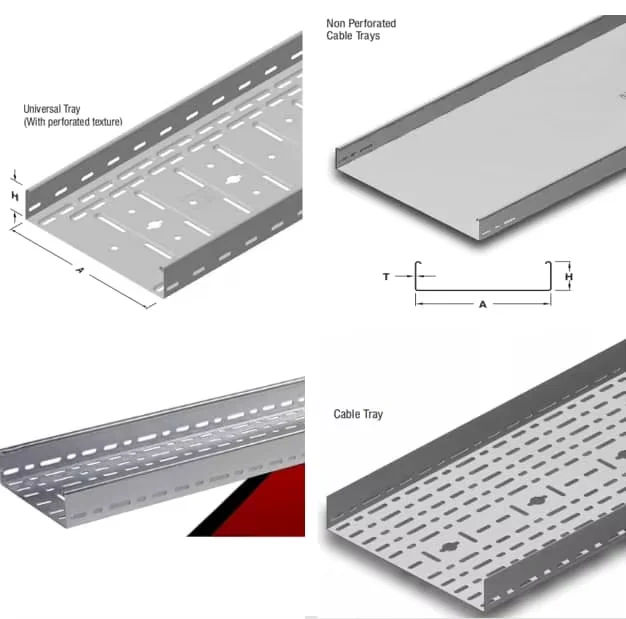

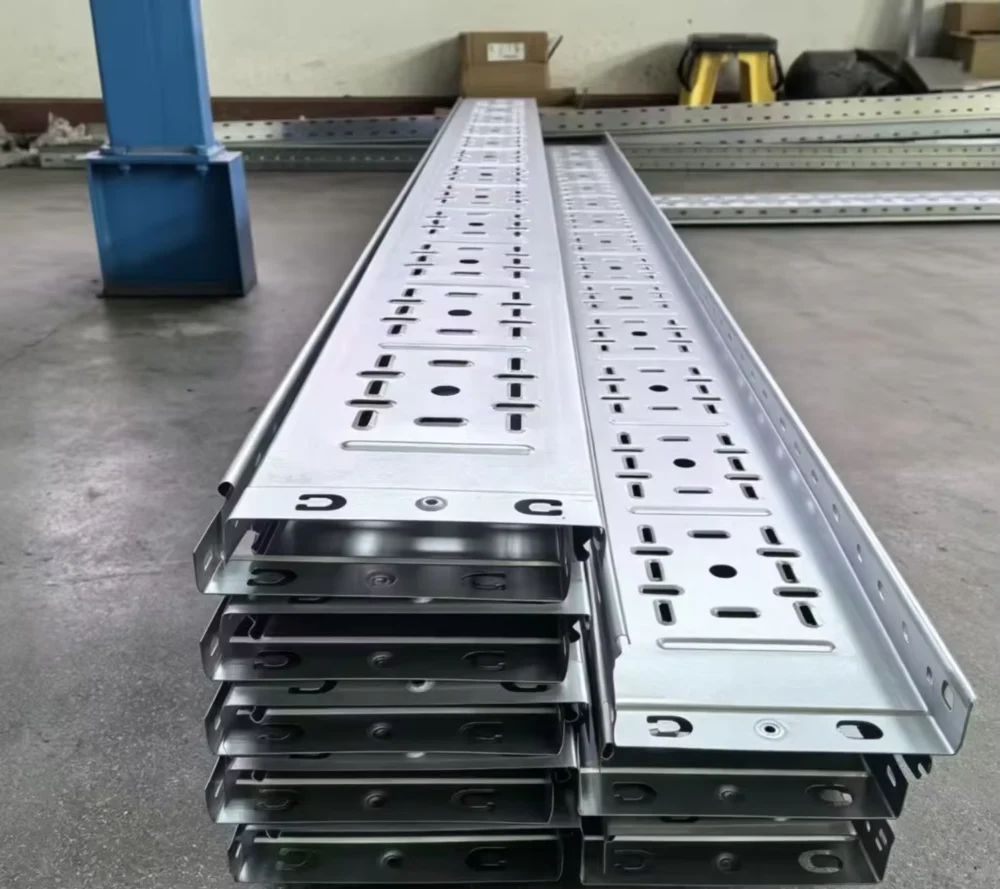

Ladder-type cable trays produced by the machine own excellent ventilation and heat dissipation performance, making them suitable for outdoor power projects and high-temperature industrial environments. Solid-bottom trough cable trays provide full closed protection for internal cables, ideal for dusty, humid, and corrosive working conditions. Perforated cable trays balance heat dissipation and structural stability, which are widely applied in data center wiring and modern commercial building electrical systems. In addition, the equipment supports customized hole spacing, hole shapes, and profile sizes to meet personalized engineering specifications.

High Precision Molding with Stable Operational Performance

Precision and stability are the core competitive advantages of our cable tray roll forming machine. The entire production line is equipped with a mature CNC servo control system and high-precision roller positioning technology, controlling the dimensional error of finished products within ±0.5mm. The scientific gradual deformation design of roller stations avoids material stretching, deformation, and surface scratches during high-speed forming, ensuring consistent product quality in every batch.

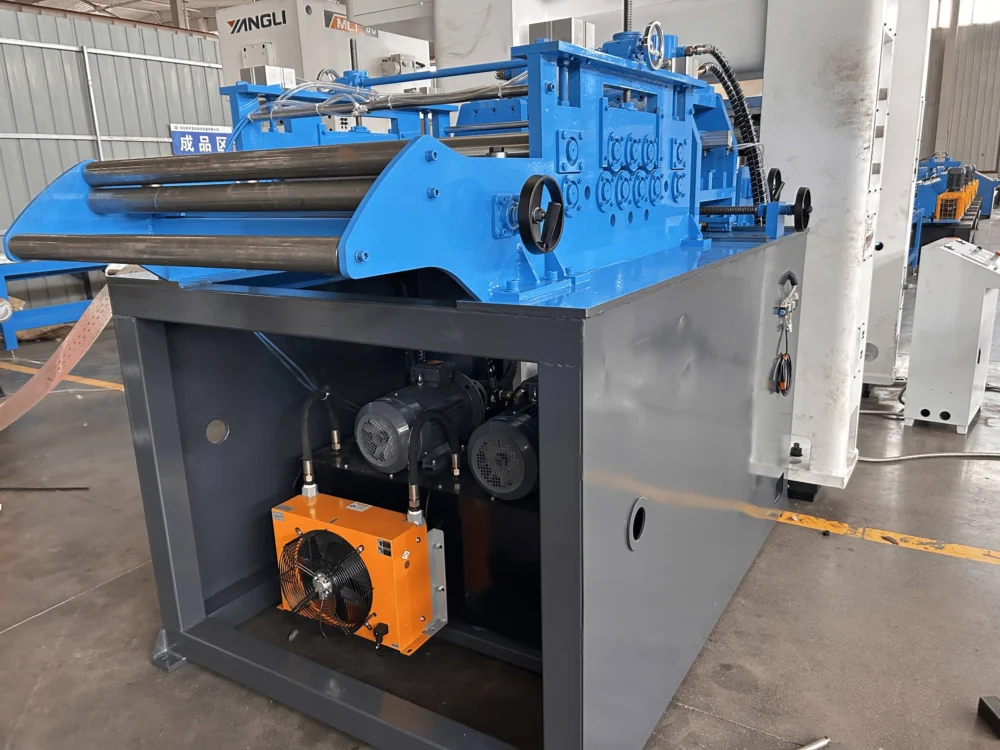

Built-in hydraulic leveling systems and automatic deviation correction devices guarantee flat raw material feeding and uniform molding effects. The independent online punching unit operates synchronously with the forming process, ensuring accurate punching positions and neat product edges. With stable mechanical structure and optimized transmission systems, the equipment supports long-term continuous operation with low failure rates.

Cost-Effective & Energy-Saving Production Solution

Designed for sustainable and low-cost production, the modern cable tray roll forming machine is fitted with energy-saving drive components and intelligent power adjustment modules, effectively reducing unit energy consumption during continuous operation. The precise automated feeding and cutting system controls the material scrap rate below 0.3%, greatly improving raw material utilization and lowering production costs.

The whole machine adopts a modular structural design, with wear-resistant alloy rollers and durable transmission parts. These high-quality core components extend the equipment service life and reduce daily maintenance and parts replacement costs. For cable tray manufacturers, in-house production with this automatic line can effectively cut supply chain procurement costs, shorten delivery cycles, and enhance overall market competitiveness.

Intelligent Upgrade for Industry 4.0 Smart Manufacturing

Keeping pace with global intelligent manufacturing trends, our upgraded cable tray roll forming production line supports real-time data monitoring and remote intelligent operation. The built-in data analysis system automatically records production speed, daily output, equipment operating status, and fault data, realizing predictive maintenance and early fault warning. This intelligent function effectively avoids unplanned production downtime and improves production continuity.

The human-machine interaction interface is simple and user-friendly, supporting one-key parameter setting and quick switching of different product specifications. It greatly reduces the technical threshold for operators and improves production flexibility, enabling factories to quickly respond to diverse market order demands.

Reliable Certification & One-Stop Global Service

All our cable tray roll forming machines strictly comply with international manufacturing standards and have obtained CE certification, meeting EU safety and quality requirements. With decades of professional roll forming equipment manufacturing experience, our products have been exported to more than 50 countries and regions, serving electrical manufacturers, metal processing factories, and engineering construction enterprises worldwide.

We provide full-cycle one-stop customized solutions, including profile design optimization, production line personalized configuration, on-site installation guidance, and long-term after-sales technical support. Our professional engineering team offers 24-hour remote technical services and regular equipment maintenance guidance, ensuring long-term stable and efficient operation of customer production lines.

Final Words

Whether you need standard automatic cable tray production lines or customized multi-functional roll forming equipment for special profiles, we can provide high-precision, cost-effective, and intelligent production solutions. Our cable tray roll forming machines help global customers realize efficient, low-cost, and standardized cable tray manufacturing, and create stable economic benefits for electrical infrastructure production projects.
