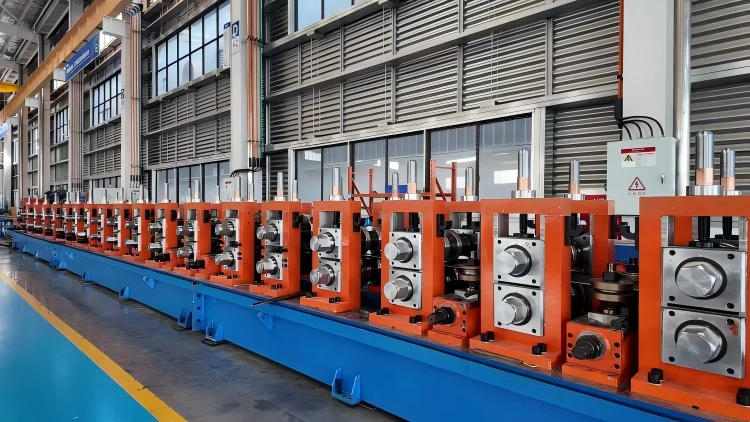

C Section Roll Forming Machine：High Precision & Low Energy Consumption

Description:Professional C section roll forming machine with full automatic operation, customizable sizes, high stability & low noise. Ideal for steel structure construction. Get factory price!

The C section roll forming machine is a core industrial equipment for continuous cold roll forming of steel strips, widely applied in steel structure workshops, warehouse buildings, photovoltaic support systems and construction engineering industries. As a professional roll forming equipment manufacturer, we provide fully automatic, high-precision and energy-saving C section roll forming machines that meet international production standards, helping global clients improve production efficiency and reduce operating costs.

Core Advantages of Our C Section Roll Forming Machine

Different from ordinary forming equipment, our C section roll forming machine adopts optimized industrial design and high-quality core components, solving the common pain points of traditional equipment such as low precision, easy deformation, high energy consumption and frequent failure. It has obvious competitive advantages in global industrial equipment procurement.

Full Automatic Intelligent Operation

Equipped with international standard PLC intelligent control system and touch screen operation panel, the machine realizes one-key automatic completion of feeding, leveling, forming, punching, cutting and discharging. Workers only need to set parameters such as section width and height on the screen, which greatly reduces manual operation errors and labor costs. The automatic counting and fault alarm function ensures uninterrupted and stable production.

High Forming Precision & Stable Structure

The forming roller is made of high-strength alloy steel with quenching treatment, featuring wear resistance and long service life. The whole machine adopts heavy-duty steel plate welding frame, with firm structure and no vibration during high-speed operation. The product forming error is controlled within ±0.5mm, and the C-shaped steel surface is smooth without burrs, fully meeting the precision requirements of high-standard steel structure projects.

Multi-Size Customization & Strong Compatibility

Our C section roll forming machine supports free adjustment of C steel specifications, covering common sizes of 80mm-300mm width and 40mm-80mm height. It can produce various specifications of C-shaped steel for building purlins, photovoltaic brackets, wall beams and other purposes. One machine for multiple uses effectively saves equipment investment costs for clients.

Low Energy Consumption & Environmental Protection

Matching energy-saving frequency conversion motor and low-noise transmission system, the equipment has low power consumption and low operating noise, meeting EU environmental protection standards. The continuous forming process reduces steel material waste, with a material utilization rate of over 98%, which is more energy-saving and environmentally friendly than traditional processing equipment.

Working Principle & Production Process

The C section roll forming machine processes hot-rolled or cold-rolled steel strips into standardized C-shaped steel profiles through continuous cold bending deformation. The whole production process is automatic and streamlined without secondary processing. The complete workflow is as follows:

Raw material feeding → automatic leveling → servo feeding → precise punching → multi-pass roll forming → fixed-length cutting → automatic discharging → finished product stacking

Each link is precisely controlled by the system to ensure the consistency and uniformity of each batch of C-shaped steel products, avoiding product deformation and size deviation caused by manual intervention.

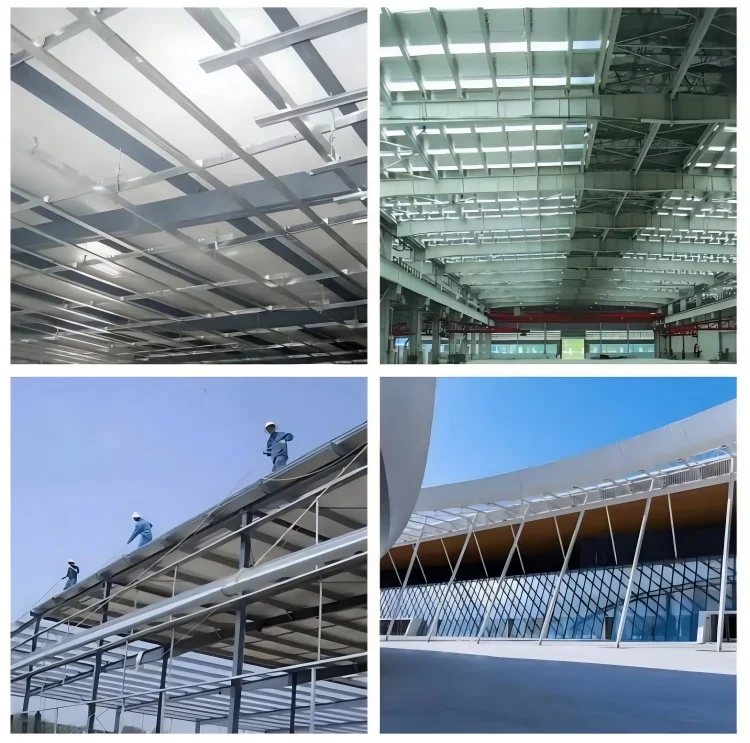

Широкие сценарии применения

Our high-performance C section roll forming machine is suitable for multiple industrial fields, and the produced C-shaped steel is an indispensable profile for modern steel structure buildings:

Steel structure factory buildings, warehouses, logistics parks (main purlin and wall beam materials)

Photovoltaic power station support systems, solar panel mounting brackets

High-speed railway, bridge and tunnel auxiliary steel structures

Container houses, prefabricated steel structure buildings

Other industrial and civil building steel structure engineering

Equipment Technical Parameters

We provide standardized and customized equipment parameters to meet the differentiated production needs of global clients. The mainstream technical parameters of the equipment are as follows:

Applicable raw materials: Cold-rolled steel strip, hot-rolled steel strip, galvanized steel strip

Material thickness: 1.5mm - 3.0mm

Forming speed: 8-15m/min (adjustable)

Control system: PLC full automatic control

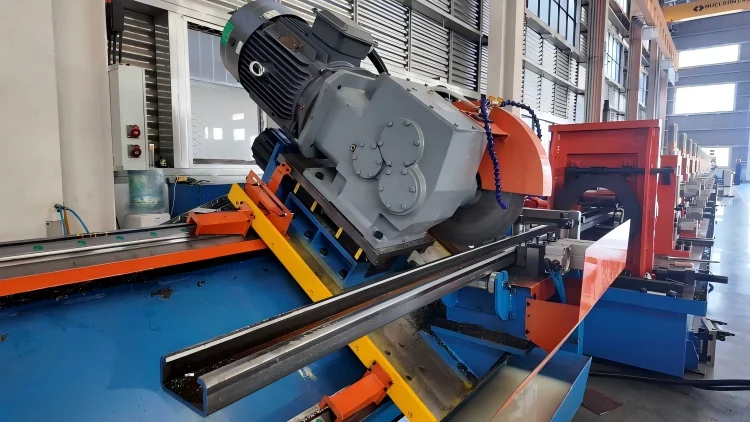

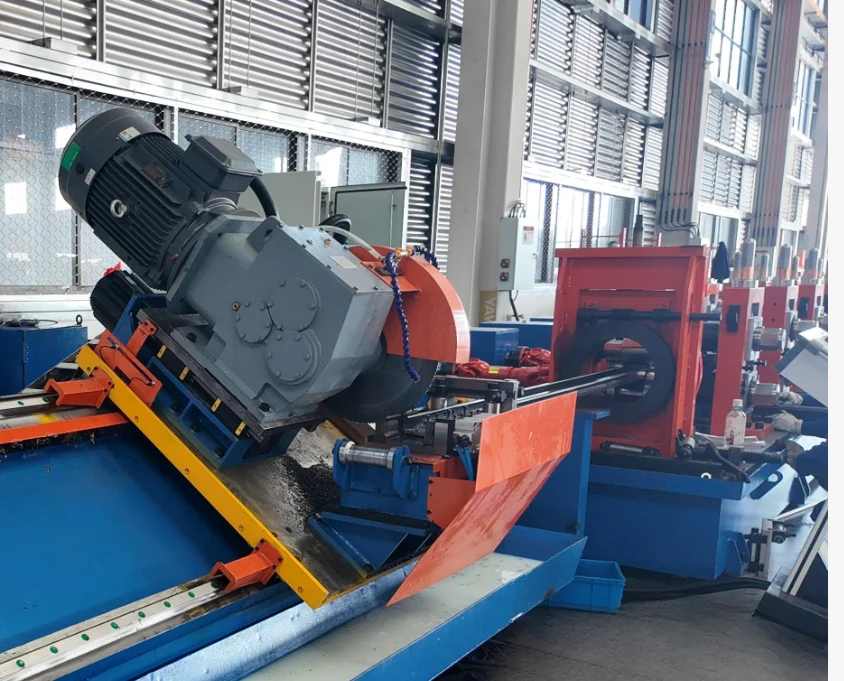

Cutting mode: Servo fixed-length cutting

Machine weight: About 3.5-6 tons (depending on customized models)

Our Factory & Service Advantages

As a professional roll forming machine manufacturer with more than 10 years of production and export experience, we have a complete production workshop, advanced processing equipment and a professional technical team. All equipment is strictly tested before delivery to ensure stable quality.

We provide one-stop export services including equipment customization, production, testing, packaging, sea freight guidance, installation debugging and after-sales maintenance. We support OEM & ODM customization, and provide English operation manuals, installation videos and remote technical guidance to solve all after-sales problems for overseas clients.

Common FAQs

Q1: Can the machine produce different sizes of C steel?

Yes. Our C section roll forming machine supports stepless adjustment of conventional sizes. You only need to adjust the system parameters and roller position to produce C-shaped steel of different specifications, with strong versatility.

Q2: What is the delivery time of the equipment?

The standard model has a 7-10 working days delivery cycle. For customized models, we will confirm the production cycle according to the specific requirements and deliver the goods on time.

Q3: Do you provide overseas installation guidance?

Yes. We provide free remote installation and debugging guidance, professional English technical support and lifelong after-sales maintenance service, ensuring the normal operation of the equipment for a long time.
