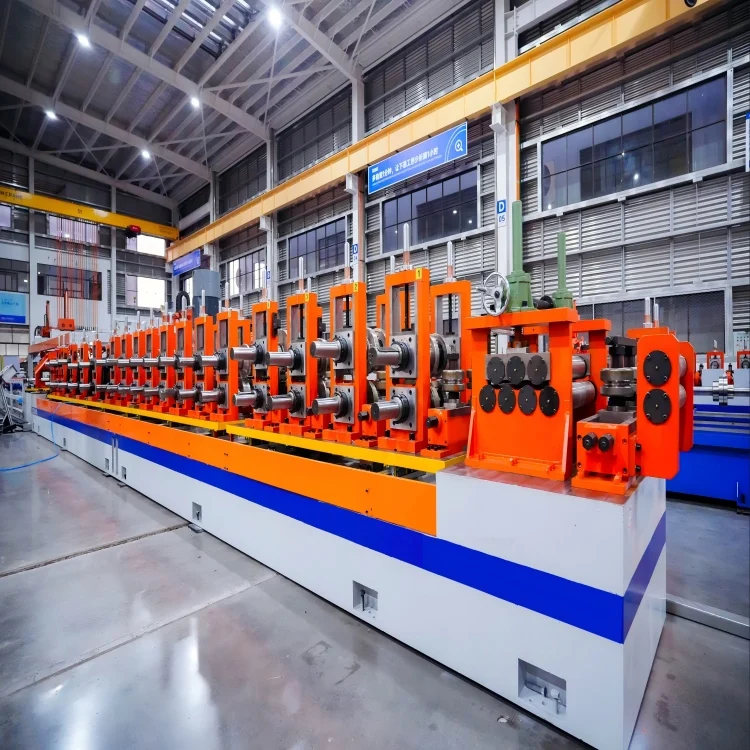

C Purlin Roll Forming Machine：High Precision & High Speed Cold Roll Forming Equipment

Description:A C Purlin Roll Forming Machine is a specialized cold roll forming equipment designed for continuous mass production of C-shaped steel purlins. As core secondary steel structure machinery, it processes hot-rolled or cold-rolled steel coils into standardized C purlins through uncoiling, leveling, roll forming, punching, cutting and automatic discharging. Widely applied in steel structure workshops, warehouse buildings, industrial factories, logistics parks and large-scale construction projects, this machine helps manufacturers produce high-stability, high-precision building steel components with low production costs and high efficiency.

Different from traditional manual welding and cutting processes, our C purlin roll forming machine realizes fully automatic one-step molding. The finished C purlins feature uniform size, smooth surface and excellent structural bearing capacity, which fully meets international building steel structure standards. It is the preferred processing equipment for steel structure manufacturers worldwide.

Core Working Principle

The working process of the automatic C purlin roll forming machine is continuous and automated, with no manual intervention required in the whole production line. The complete workflow is as follows:

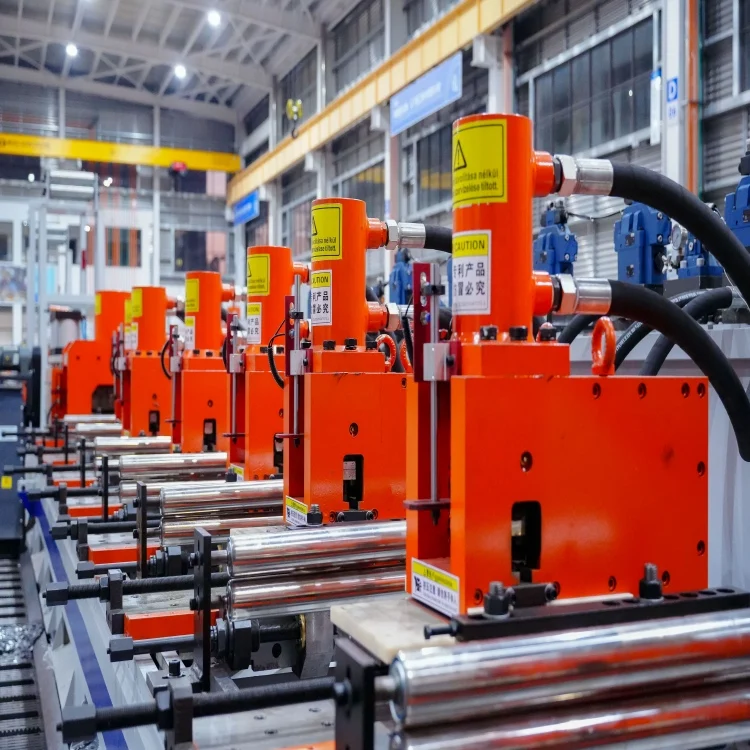

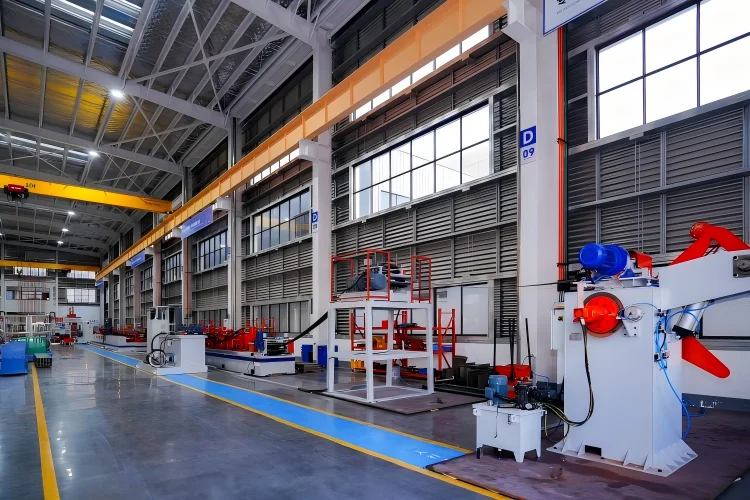

First, the raw steel coil is placed on the hydraulic uncoiler for automatic unwinding. The leveling device flattens the deformed steel strip to ensure flat raw materials. Then the steel strip is sent to the multi-group roll forming system, which gradually bends and presses the steel plate into a standard C-shaped section through precise roller positioning. After molding, the precision punching system completes bolt hole punching according to customized specifications. Finally, the hydraulic

Key Technical Parameters

We provide standard and customized C purlin roll forming machines to adapt to different production needs. The core technical parameters are clear an

Product Specification Range: 80mm-300mm web height, 40mm-80mm flange width

Forming Speed: 8-15m/min (adjustable)

Control System: Full-automatic PLC computer control, touch screen operation

Punching Accuracy: ±0.5mm

Cutting Accuracy: ±1.0mm

Main Motor Power: 15KW-22KW

Machine Weight: About 3.5-5 tons

Working Voltage: Customized (380V/415V/440V 50/60Hz)

Outstanding Advantages of Our C Purlin Roll Forming Machine

High Production Efficiency & Cost Saving

The fully automatic integrated design realizes unmanned continuous production. Compared with traditional processing equipment, it saves more than 60% of labor costs and doubles daily output. The adjustable forming speed meets both small-batch customized orders and large-scale mass production, greatly improving the capital turnover efficiency of steel structure enterprises.

High Precision & Stable Molding Quality

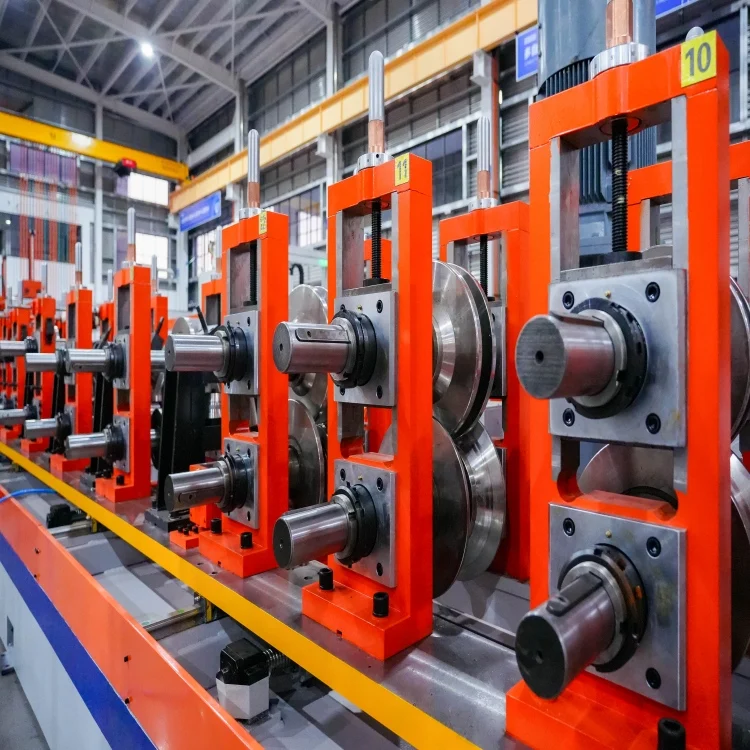

Equipped with high-precision alloy rollers and imported PLC control system, the machine ensures accurate molding size and no deformation of finished C purlins. The surface of the purlin is smooth without scratches, and the overall flatness and verticality fully comply with international construction steel standards. The finished products have strong bearing capacity and good anti-seismic performance, which can improve the overall stability of steel structure buildings.

Strong Compatibility & Customization

This equipment supports free adjustment of C purlin height, width and thickness, covering most mainstream specifications of construction C purlins. We can also customize special models with non-standard punching positions, special sizes and fully intelligent upgraded functions according to customer project requirements, adapting to diverse construction scenarios in different countries and regions.

Durable & Low Maintenance Cost

The main body of the machine adopts thickened steel plate welding structure, with firm overall structure and strong shock resistance. The key wearing parts are made of high-hardness alloy materials, with long service life. The equipment has a simple and modular structure, convenient daily maintenance and low failure rate, effectively reducing the later operation and maintenance costs for customers.

Intelligent & Easy Operation

Humanized touch screen operation interface supports multi-language switching (English, Spanish, Arabic, etc.). Workers can complete parameter setting, production start and stop, fault query and other operations after simple training. The system has automatic fault alarm and overload protection functions to ensure safe and stable long-term operation of the equipment.

Широкие сценарии применения

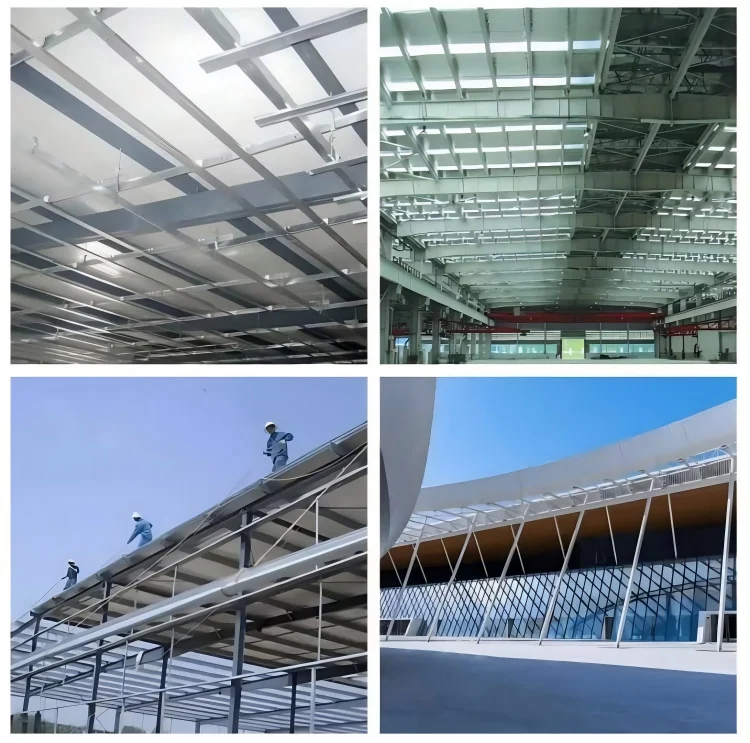

C purlins produced by our roll forming machines are indispensable key components for steel structure buildings, widely used in various engineering fields worldwide:

Industrial steel structure workshops and factory buildings

Large logistics warehouses and storage centers

Commercial buildings, exhibition halls and stadiums

Agricultural greenhouses and breeding sheds

Prefabricated steel structure buildings and temporary engineering projects

Roof and wall support systems of various light steel buildings

Why Choose Our C Purlin Roll Forming Machine?

As a professional manufacturer of steel structure roll forming equipment with more than 20 years of experience, we have independent R&D, production and sales capabilities, providing one-stop solutions for global customers.

First, we strictly control every production process of the equipment, from raw material procurement to factory debugging, all implement standardized quality inspection to ensure 100% qualified factory products. Second, all our machines have passed CE certification, meeting European, American, Southeast Asian, African and other regional import standards, supporting smooth customs clearance.

In addition, we provide comprehensive after-sales services, including free installation debugging, technical training, long-term technical support and spare parts supply. No matter local or overseas customers, we can respond to after-sales needs in the shortest time to ensure normal production of customer equipment.

FAQ

Q1: Can this machine produce different sizes of C purlins?

Yes. Our standard machine can adjust parameters to produce C purlins of 80mm-300mm specifications. For special non-standard sizes, we support personalized customization to meet different engineering needs.

Q2: What is the delivery cycle of the equipment?

The delivery cycle of standard models is 45-60 working days. Customized models will be determined according to the specific customization requirements, and we will clearly inform customers of the production cycle before ordering.

Q3: Do you provide overseas installation and after-sales service?

Absolutely. We provide door-to-door installation, debugging and worker operation training services for overseas customers, and provide lifelong free technical consultation and paid spare parts replacement services.

Q4: What raw materials are suitable for the machine?

The equipment is suitable for galvanized steel coil, color steel coil, Q235, Q345 and other conventional building steel materials, with strong raw material adaptability.
