Top Hat Channel Roll Forming Machine：Omega Furring Purlin Making Line
Cangzhou Zhongtuo Roll Forming Machinery Co.,Ltd comes from Hebei-China. It is a manufacturer dedicated to design and manufacture.
different types of cold roll forming machines. We are a factory with a long history, engaged in the design and manufacture of roll forming machines since 2006. The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceiling system forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, hot laminating filmed machine,etc.
different types of cold roll forming machines. We are a factory with a long history, engaged in the design and manufacture of roll forming machines since 2006. The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceiling system forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, hot laminating filmed machine,etc.
For more information, delivery time and prices, please mail us!

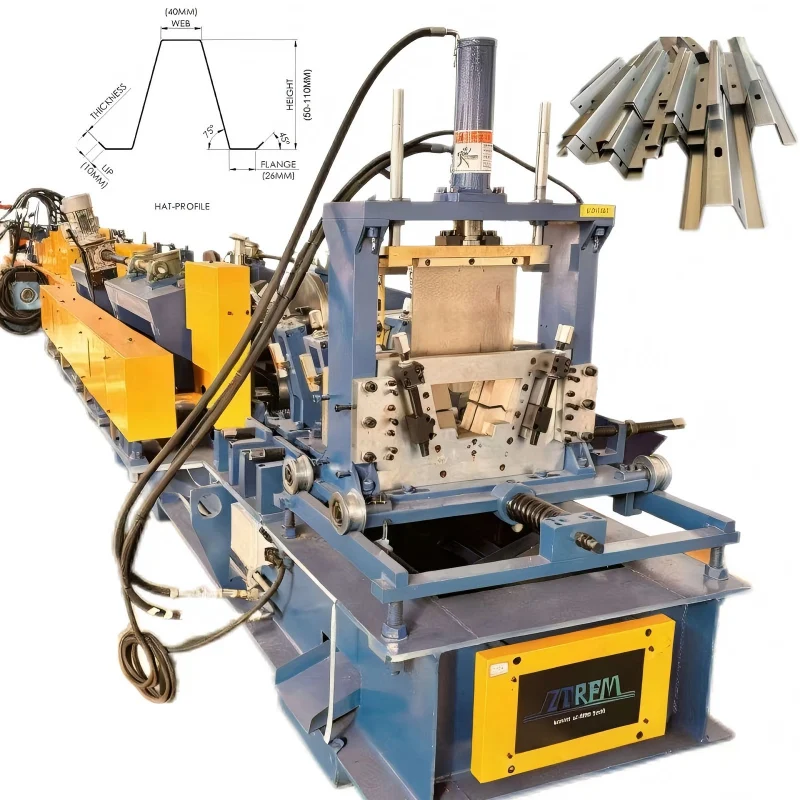

Top Hat Channel Roll Forming Machine：Omega Furring Purlin Making Line
Description:Zhongtuo top hat channel roll forming machine makes precision hat shape / omega furring channels from galvanized steel. Optional pre-punching, hydraulic flying cut, for ceiling, drywall, roof and solar support framing. Contact us for drawing and quote.
A top hat channel roll forming machine, also known as omega furring channel forming machine, is a dedicated cold roll forming line that converts galvanized steel coil, PPGI or light carbon steel strip into hat-shaped metal profiles. Different from C purlin and Z purlin machines, the top hat (omega) section features a flat top surface with two outward bent flanges, which delivers excellent stiffness while remaining lightweight. It is widely favored for interior ceiling furring, drywall partitions, wall cladding supports and light roof secondary framing projects.

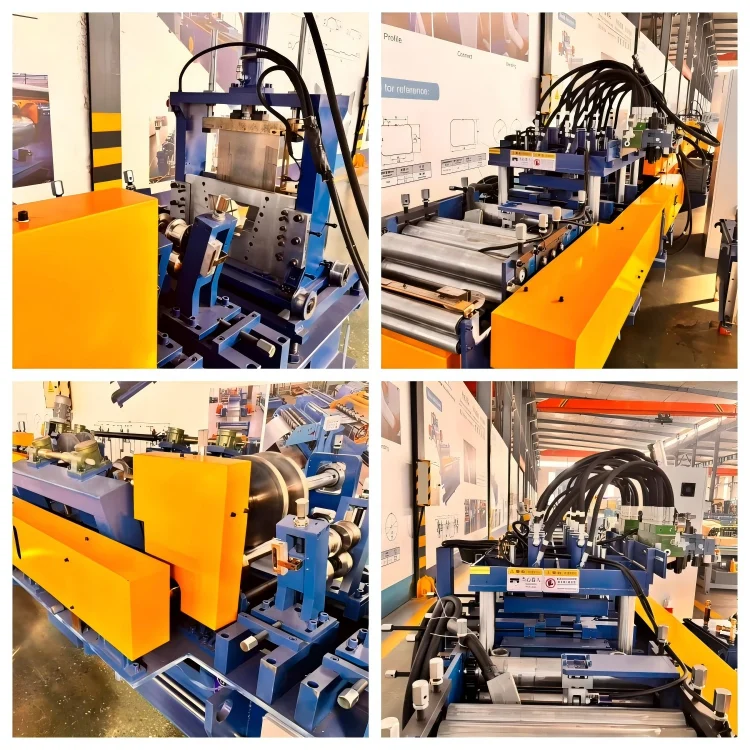

Our Zhongtuo hat channel roll former adopts heavy welded stress-relieved frame and mature PLC + touchscreen control system. Operators can set target length, running speed and punching parameters directly on the HMI. Servo feeding guarantees stable material advance, while hydraulic flying shear provides clean, low-burr cutting ends. Motorized size adjustment model is available for fast switching among different hat channel sizes without replacing rollers frequently.
Key Features of Top Hat Roll Forming Machine
Specialized for top hat / omega furring channel, smooth forming, low noise and less maintenance
Adjustable profile sizes, custom hat dimensions supported according to client drawings
Forming rollers made of GCr15 bearing steel, quenched and polished for long service life
Optional servo pre-punching unit for mounting holes, slotted holes or hole arrays
Tight forming tolerance within ±0.4 mm, straight profiles without twisting or warping
Variable frequency drive, stable forming speed: 10–22 m/min
Full safety guard cover, emergency stop button, CE standard electrical parts
Customizable: material thickness range, punching layout, stacking table, local voltage and control brand
Why Choose Our Omega Hat Channel Forming Line?
Lightweight and high rigidity is the biggest advantage of hat channel profiles. If your factory supplies metal framing for interior decoration, modular buildings or solar mounting sub-structures, this dedicated top hat machine will bring stable batch quality and higher yield rate.
Finished hat furring channels have uniform flatness and hole spacing, making screw installation much easier on construction sites. The whole line is designed for continuous long-shift production, suitable for small and medium metal profile factories with steady orders of ceiling keels and furring battens.
We supply complete after-sales service: English operation manual, remote video debugging, overseas engineer commissioning on request, operator training and lifetime technical consultation. Spare parts can be shipped globally with short lead time.

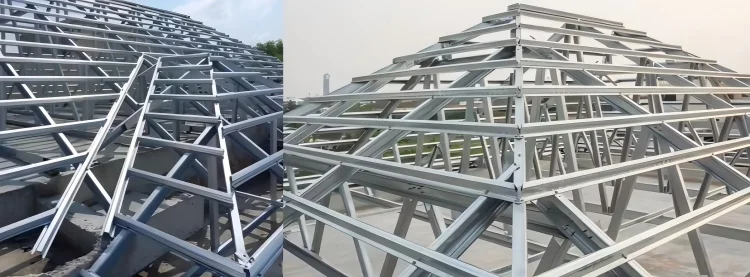

Application of Top Hat / Omega Furring Channels
Top hat furring channels are widely used in light construction and decoration sectors:
Suspended ceiling furring, drywall partition framing, interior wall battens
Metal wall cladding support, facade substructure
Light steel villa, prefab house and modular building secondary framing
Low-profile roof purlins for metal roofing panels
Solar panel mounting brackets and small load support frames
Clean room, office partition and commercial interior decoration projects

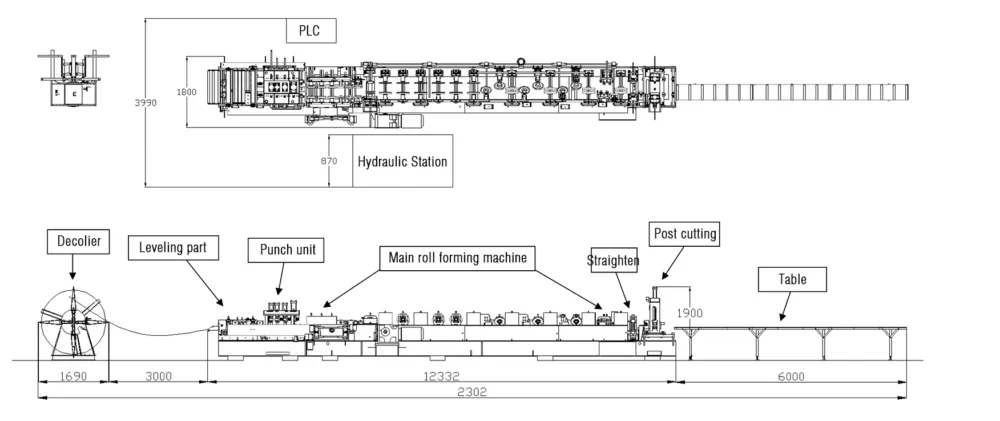

Working Flow of Hat Channel Roll Forming Line
Steel coil → Decoiler → Leveling & feeding guide → Multi-station roll forming → Optional servo punching → Hydraulic flying cut → Finished hat channel → Discharge stacking table
Technical Reference
Raw material: Galvanized steel, PPGI, light carbon steel
Material thickness: 0.6 mm – 2.0 mm

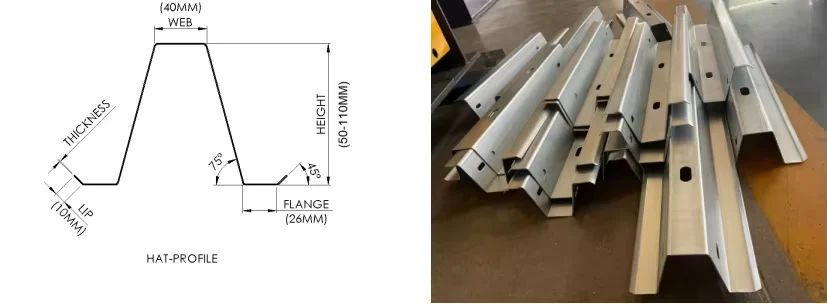

Profile type: Top hat / Omega furring channel
Control system: PLC + touch screen
Cutting method: Hydraulic flying shear
Forming speed: 10–22 m/min
Power supply: Customized to match local standard
