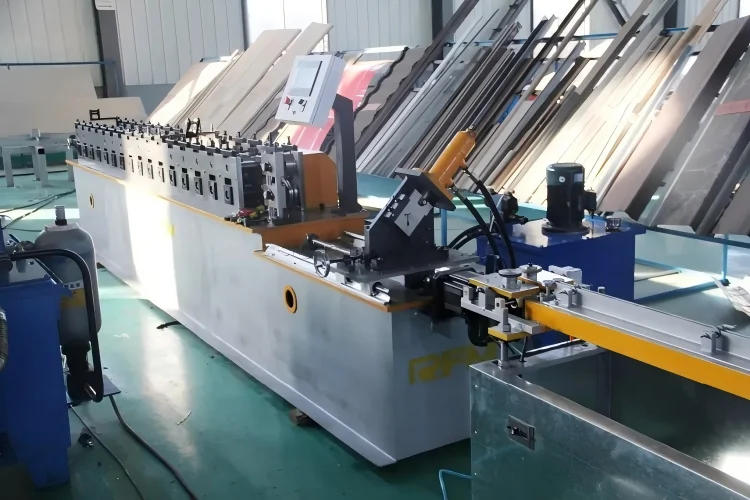

T-Bar Keel Forming Machine：Fully Automatic Ceiling Grid Roll Former

Description:T-Bar Keel Forming Machine is a professional high-speed roll forming system designed for mass production of suspended ceiling T-grid keels, cross tees, and ceiling frame profiles. As core equipment in the ceiling metal profile manufacturing industry, this machine integrates decoiling, leveling, continuous punching, precise roll forming, straightening, and fixed-length cutting into one fully automated workflow. It replaces inefficient manual and semi-automatic production processes, helping manufacturers produce standard and customized ceiling T-bars with consistent precision, lower labor costs, and higher output. Ideal for large-scale building material factories and ceiling profile suppliers worldwide.

In modern commercial and residential construction, suspended ceiling systems require standardized, high-flatness, and high-strength T-bar keels to ensure stable installation and neat finishing. Traditional production methods often suffer from uneven forming sizes, slow production speed, burrs on cut surfaces, and high defective rates. Our automatic T-bar keel forming machine solves these industry pain points perfectly. Adopting optimized roll tooling and servo control technology, it delivers stable, high-precision profile production, fully complying with international ceiling grid standards and global construction material procurement requirements.

Complete Working Principle & Production Flow

The T-Bar Keel Forming Machine uses galvanized steel strips as the main raw material, completing continuous one-time molding without secondary processing. The entire production line runs automatically under PLC intelligent control, realizing unmanned continuous cyclic production.

First, the automatic hydraulic decoiler steadily releases steel coils to avoid material deviation and tension deformation. The precision leveling unit flattens the raw steel strip thoroughly, eliminating bending, warping and surface irregularities to lay a foundation for high-precision forming. Next, the servo feeding system accurately transports materials to the punching station, completing pre-punching of connection holes, positioning holes and assembly notches required for T-bar installation. Then, multiple groups of high-hardness forming rollers perform gradual cold bending molding to shape the standard T-section structure. After profile shaping and straightening treatment, the hydraulic fixed-length cutting system cuts profiles precisely according to customized lengths, and finished products are automatically discharged and stacked. The whole process is smooth and efficient, with no manual intervention needed.

Core Performance & Competitive Advantages

Compared with ordinary ceiling keel forming equipment on the market, our T-bar keel roll forming machine has prominent advantages in production precision, operational stability, automation level and cost performance, meeting the high-standard production demands of modern building material enterprises.

Ultra-High Forming Precision & Stable Quality

Equipped with imported servo drive positioning system and numerical control precision calibration module, the machine controls feeding error within ±0.1mm and finished product size deviation within ±0.2mm. The precision-machined integral forming rollers ensure uniform stress on the steel strip surface, making the produced T-bar keels flat in surface, straight in body, free of wave edges, twists and deformations. The cutting section is smooth and burr-free without secondary trimming. All finished profiles feature high overall consistency and interchangeability, fully meeting the strict assembly requirements of suspended ceiling projects.

Full Automation & High Production Efficiency

This fully automatic T-bar keel production line realizes one-key start and continuous unmanned operation from raw material feeding to finished product stacking. Only one operator is required to complete parameter setting, material replacement and daily equipment monitoring, reducing over 80% of labor costs compared with traditional equipment. The stable running speed reaches 20-30 meters per minute, with a daily output far exceeding semi-automatic machines. It supports long-time uninterrupted industrial production, effectively shortening production cycles and improving enterprise delivery capacity.

Strong Compatibility & Flexible Customization

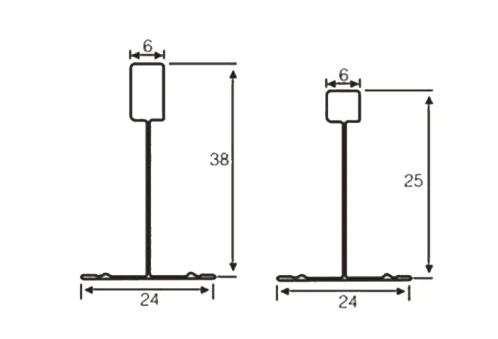

The equipment supports processing of conventional galvanized steel strips with a thickness of 0.3mm-1.0mm, covering mainstream specifications of domestic and international ceiling T-bar keels. By adjusting equipment parameters and replacing customized molds, it can produce standard main T-bars, cross T-bars, narrow-edge and wide-edge ceiling keels, and supports non-standard profile size customization according to customer drawings. One machine meets diversified production needs, greatly improving equipment utilization and reducing customer investment costs.

Low Operation Cost & Long Service Life

The equipment adopts optimized mechanical transmission structure and high-strength wear-resistant accessories, with low failure rate and stable long-term operation. The precise molding process minimizes raw material waste, raising material utilization rate to over 98%. The energy-saving motor and control system effectively reduce daily power consumption and production operation costs. All core components undergo strict aging and wear tests, with a service life of more than 15 years, bringing long-term stable economic benefits for customers.

Intelligent Control & Simple Operation

Equipped with industrial PLC intelligent control system and human-machine touch screen interface, the machine supports one-key switching of multiple product parameters. Customers can store various standard and non-standard product formulas in advance, realizing fast size switching within 10 minutes and avoiding repeated parameter debugging. Meanwhile, it has automatic fault alarm, material shortage reminder and emergency stop protection functions, which can timely detect abnormal operation, ensure production safety and stability, and reduce production risks.

Wide Application Scenarios

The automatic T-Bar Keel Forming Machine is widely applicable to the production of metal ceiling keels in various construction scenarios, serving global building material manufacturers, decoration engineering companies and profile processing factories:

Commercial Building Ceilings: Office buildings, shopping malls, hotels, hospitals, schools and other public space suspended ceiling T-grid keels

Industrial Plant Ceilings: Factory workshops, warehouses, industrial purification workshops fireproof ceiling keels

Civil Residential Decoration: High-rise residential indoor suspended ceiling profiles, light steel keel accessories

Special Engineering Scenarios: Moisture-proof, fireproof and anti-corrosion customized ceiling T-bar keels for special construction environments

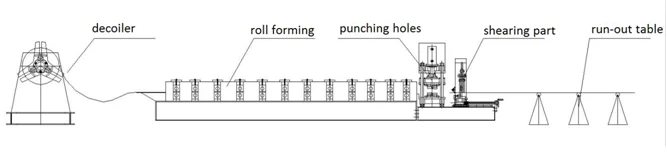

Standard Production Line Configuration

We provide complete standard and upgraded T-bar keel forming production lines, with flexible configuration schemes to adapt to different customer budgets and production scale needs:

Automatic hydraulic decoiler: Loads steel coils automatically, stable feeding without tension fluctuation

Multi-roller precision leveling machine: Corrects strip flatness to ensure uniform raw material stress

Servo precision feeding & punching unit: Accurate hole spacing, one-time forming of assembly holes

High-precision roll forming host: Gradual molding, stable profile forming effect

Profile straightening device: Eliminates forming stress to ensure straight finished keels

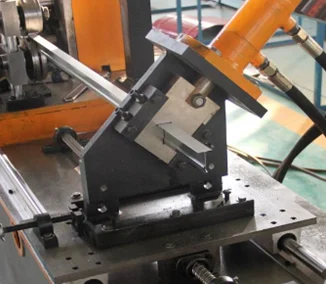

Hydraulic fixed-length cutting mechanism: Precise sizing, smooth and burr-free incision

Automatic discharging & stacking system: Realizes automatic collection of finished products

PLC intelligent control cabinet: Centralized control, simple and efficient operation

Why Choose Our T-Bar Keel Forming Machine?

With more than 20 years of roll forming equipment R&D and manufacturing experience, we focus on providing professional, efficient and cost-effective metal profile forming solutions for global building material customers. Different from ordinary equipment manufacturers, we insist on customized design according to customer production demands, and every machine is tailored to adapt to local market product standards.

We support OEM and ODM customization services, from profile design, equipment parameter optimization to production line overall matching, providing one-stop professional solutions. All equipment adopts international brand core parts, with stable performance and low failure rate. We provide full-cycle overseas services including pre-sales technical consultation, personalized scheme design, factory inspection, on-site installation and commissioning, operator training and after-sales lifelong maintenance, ensuring zero worries for global customers in equipment use and production operation.

Frequently Asked Questions

Q1: What raw materials and thicknesses can the machine process?

This machine is mainly suitable for galvanized steel strips, with a processing thickness range of 0.3mm-1.0mm. It can meet the production needs of most light steel T-bar ceiling keels on the market.

Q2: Can it produce customized non-standard T-bar keel sizes?

Yes. We support full personalized customization. According to customers' product drawings, special sizes, hole positions and process requirements, we can modify molds and adjust equipment parameters to produce various non-standard ceiling T-bar profiles.

Q3: What is the equipment delivery cycle and after-sales service?

The delivery cycle of standard equipment is 15-25 working days. We provide overseas on-site installation, commissioning and technical training services, 1-year free warranty and 24-hour online lifelong technical support to solve customer production problems in a timely manner.

Q4: What is the daily output of the automatic production line?

According to different product specifications and running speeds, the equipment can operate continuously for 24 hours, with a daily output several times that of traditional semi-automatic equipment, which can fully meet the needs of large-scale mass production.

Conclusion

With the continuous upgrading of global construction and decoration standards, high-precision, automated and low-consumption ceiling keel production equipment has become the mainstream choice of building material manufacturers. Our T-Bar Keel Forming Machine wins market recognition with stable performance, high production efficiency, excellent product quality and flexible customization capabilities, helping global customers reduce production costs, improve product competitiveness and expand market share.

If you are looking for a reliable, high-efficiency and cost-effective T-bar keel forming machine, feel free to contact us for free professional technical consultation and customized production solutions!
