Strut Solor Roll Forming Machine：High Precision & Fully Automatic Roll Forming Solution
Cangzhou Zhongtuo Roll Forming Machinery Co.,Ltd comes from Hebei-China. It is a manufacturer dedicated to design and manufacture.
different types of cold roll forming machines. We are a factory with a long history, engaged in the design and manufacture of roll forming machines since 2006. The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceiling system forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, hot laminating filmed machine,etc.
different types of cold roll forming machines. We are a factory with a long history, engaged in the design and manufacture of roll forming machines since 2006. The machines we can produce include: roof tile making machine, cz purlin making machine, light steel keel making machine, metal embossing machine, door system forming machine, ceiling system forming machine, high frequency pipe welding machine, slitting line, cut to length line, shelf system forming Machine, floor decking forming machine, color stone tile production line, hot laminating filmed machine,etc.
For more information, delivery time and prices, please mail us!
Strut Solor Roll Forming Machine is a professional cold roll forming equipment specially designed for mass production of solar photovoltaic mounting brackets. With the rapid development of the global new energy industry, standardized, high-efficiency and cost-effective PV bracket production equipment has become the core demand of solar accessory manufacturers worldwide. Our fully automatic PV bracket forming machine integrates feeding, punching, forming, cutting and discharging, helping enterprises produce high-quality solar brackets stably and improve market competitiveness effectively.
Core Advantages of Our PV Bracket Forming Machine
Different from ordinary metal forming equipment, our solar PV bracket roll forming machine is customized for the structural characteristics of photovoltaic brackets, with outstanding advantages in precision, efficiency and stability, fully meeting large-scale industrial production needs:
Fully Automatic Intelligent Production
The equipment adopts PLC intelligent control system, supporting one-key start, automatic material feeding, fixed-length cutting and continuous discharging. The whole production process requires only one worker for monitoring, which greatly saves labor costs. It supports custom parameter setting for different bracket specifications, realizing fast switching of multiple production modes and solving the problem of single product production of traditional equipment.
High Forming Precision & Stable Quality
Adopting high-precision alloy roller and integrated welding frame structure, the machine ensures no deformation during long-term operation. The forming error is controlled within ±0.5mm, and the punching and cutting positions are accurate and neat. The produced PV brackets have smooth surface, uniform specification and good assembly consistency, which fully meets the installation standards of ground photovoltaic power stations, rooftop solar systems and industrial photovoltaic projects.
High Production Efficiency & Low Energy Consumption
The running speed of the PV bracket forming machine can reach 15-25m/min, with continuous and uninterrupted production. Compared with semi-automatic equipment, the production efficiency is increased by more than 40%. At the same time, it is equipped with an energy-saving motor and intelligent power-off protection device, which reduces idle energy consumption, helping enterprises reduce production costs and achieve green and low-carbon production.
Strong Compatibility & Wide Applicability
This roll forming equipment can process various metal materials such as galvanized steel, aluminum alloy and stainless steel, and is suitable for producing various common PV brackets including C-type brackets, U-type brackets, solar support rails and fixture profiles. It can be customized according to customer drawings and project requirements to meet the personalized production needs of different regional photovoltaic projects.
Complete Working Process of Strut Solor Forming Machine
Our PV bracket production line adopts integrated assembly line design, with smooth and orderly process, realizing one-time forming from raw material to finished product:
Raw Material Feeding: The coiled metal raw materials are placed on the automatic uncoiler, and the equipment automatically feeds materials at a uniform speed without manual auxiliary feeding.

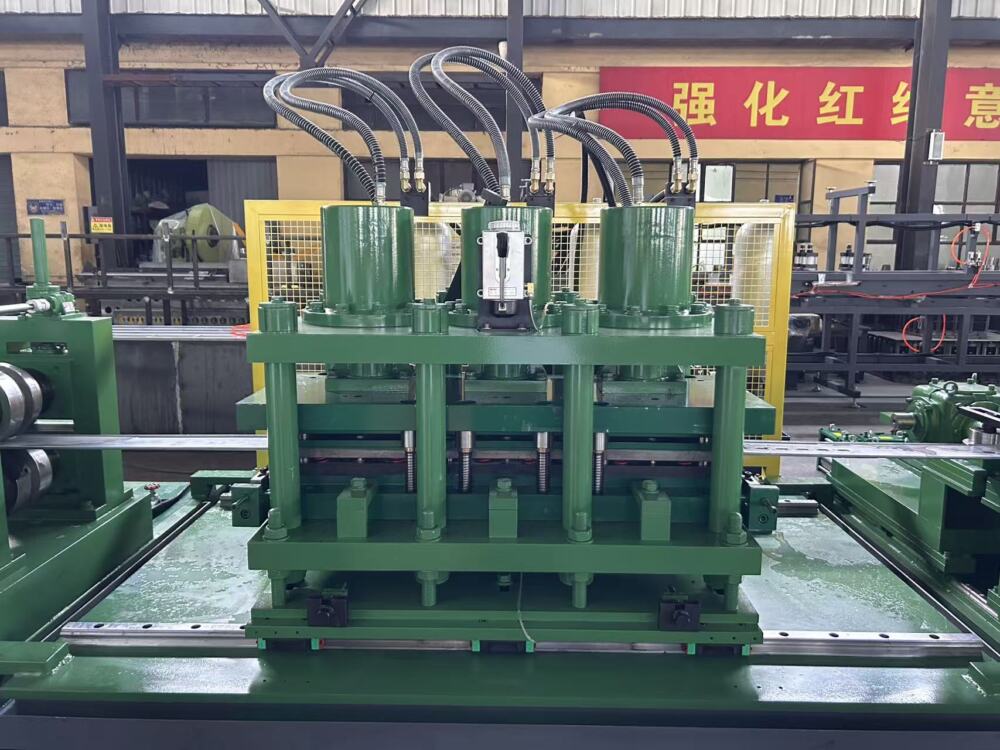

Leveling & Punching: The leveling device corrects the flatness of the raw materials to avoid forming deviation; the automatic punching system completes precise hole punching according to the bracket installation size requirements.

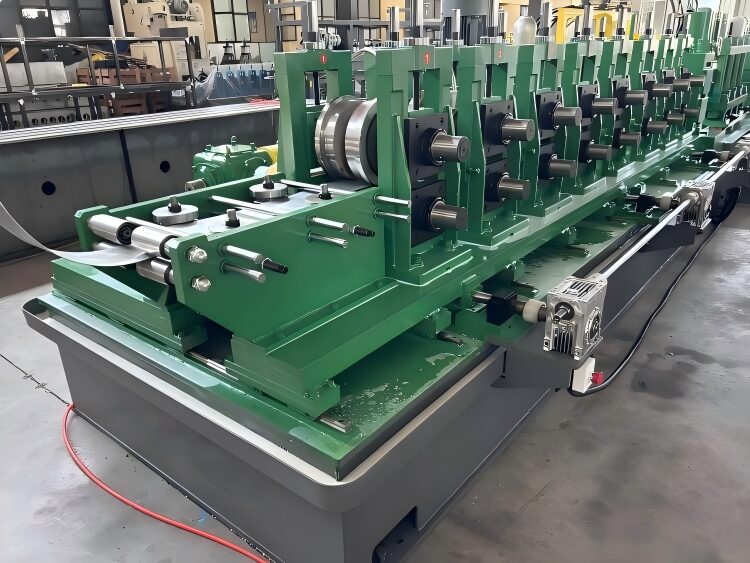

Roll Forming: Through multi-group precision rollers, the metal plate is gradually rolled and bent into the standard PV bracket section shape, with stable forming and no rebound.
Fixed-Length Cutting: The high-speed cutting device automatically cuts off according to the set length, with flat cutting surface and no burrs.
Automatic Discharging: The finished brackets are automatically discharged and stacked, which is convenient for subsequent packaging, transportation and warehouse storage.
Product Technical Parameters
We provide standardized and customized PV bracket forming machines, and the mainstream technical parameters are as follows for customer reference:
Processing Material: Galvanized steel, aluminum alloy, stainless steel coil
Material Thickness: 1.2mm – 3.0mm (customizable)
Production Speed: 15-25m/min
Forming Precision: ±0.5mm
Control System: PLC full automatic control + touch screen operation
Machine Weight: 3500KG – 6000KG (according to configuration)
Power Supply: 380V 50Hz 3Phase (customizable for global voltage)
Application Scenarios of PV Bracket Products
The photovoltaic brackets produced by our forming machine are widely used in global new energy photovoltaic projects, covering multiple mainstream scenarios:
Large-scale ground photovoltaic power stations
Industrial and commercial rooftop solar power generation systems
Household distributed photovoltaic power generation projects
Solar tracking support systems
Photovoltaic agricultural complementary and fishery complementary projects
Why Choose Our PV Bracket Forming Machine?
Professional Manufacturing Experience
We have more than 10 years of experience in roll forming equipment R&D and manufacturing, focusing on new energy photovoltaic accessory production equipment. We have in-depth understanding of the production pain points and quality standards of global PV bracket manufacturers, and can provide targeted equipment solutions.
Strict Quality Certification
All our PV bracket forming machines are manufactured in strict accordance with international production standards, with stable performance and long service life. The equipment has passed CE, ISO and other international certifications, meeting the import and export standards of most countries and regions in Europe, America, Southeast Asia, Africa and Oceania.
Full-Cycle After-Sales Service
We provide one-stop services including equipment customization, production, installation, commissioning and after-sales maintenance. We support overseas door-to-door installation and technical training, provide lifelong technical consultation and equipment maintenance services, and quickly solve equipment operation problems for global customers to ensure stable production.
Customized Solution Support
In addition to standardized equipment, we can customize exclusive PV bracket forming production lines according to customers’ product drawings, output requirements, factory space and budget, helping customers create differentiated product advantages and occupy more market share.
Conclusion
With the continuous growth of global photovoltaic installed capacity, the market demand for high-precision and high-efficiency PV bracket production equipment is increasing day by day. Our fully automatic PV bracket forming machine has become the preferred equipment for new energy accessory manufacturers with its high efficiency, high precision, low energy consumption and strong compatibility. We adhere to taking customer demand as the core, provide high-quality equipment and professional solutions for global users, and work together to promote the development of the global new energy photovoltaic industry.
If you are looking for a reliable PV bracket forming machine manufacturer, welcome to contact us for free quotation and technical solution!
