Description:A solar panel bracket forming machine is a professional automated cold roll forming production line specially designed for manufacturing PV solar mounting brackets and strut channels. As the global solar energy industry continues to expand rapidly, standardized, high-precision, and low-cost solar bracket production has become a core demand for solar equipment manufacturers, solar project contractors, and metal profile processing factories worldwide.

This industrial forming equipment processes raw metal coils including galvanized steel, aluminum alloy, and aluminum-magnesium-zinc coated steel into finished solar mounting profiles such as U-channel, C-channel, sigma bracket, and customized solar support structures. It integrates automatic decoiling, leveling, punching, continuous forming, fixed-length cutting, and automatic output, realizing fully unmanned batch production. Compared with traditional manual welding and stamping processes, our solar panel bracket forming machine greatly improves production efficiency, ensures consistent product precision, and effectively reduces overall production costs.

Core Working Principle & Production Process

The solar panel bracket roll forming machine adopts advanced cold roll forming technology, which shapes metal materials through multiple groups of precision forming rollers under room temperature conditions, avoiding material deformation and performance damage caused by high-temperature processing. The whole production line operates under PLC intelligent closed-loop control, with stable operation and simple operation logic. The complete working process is as follows:

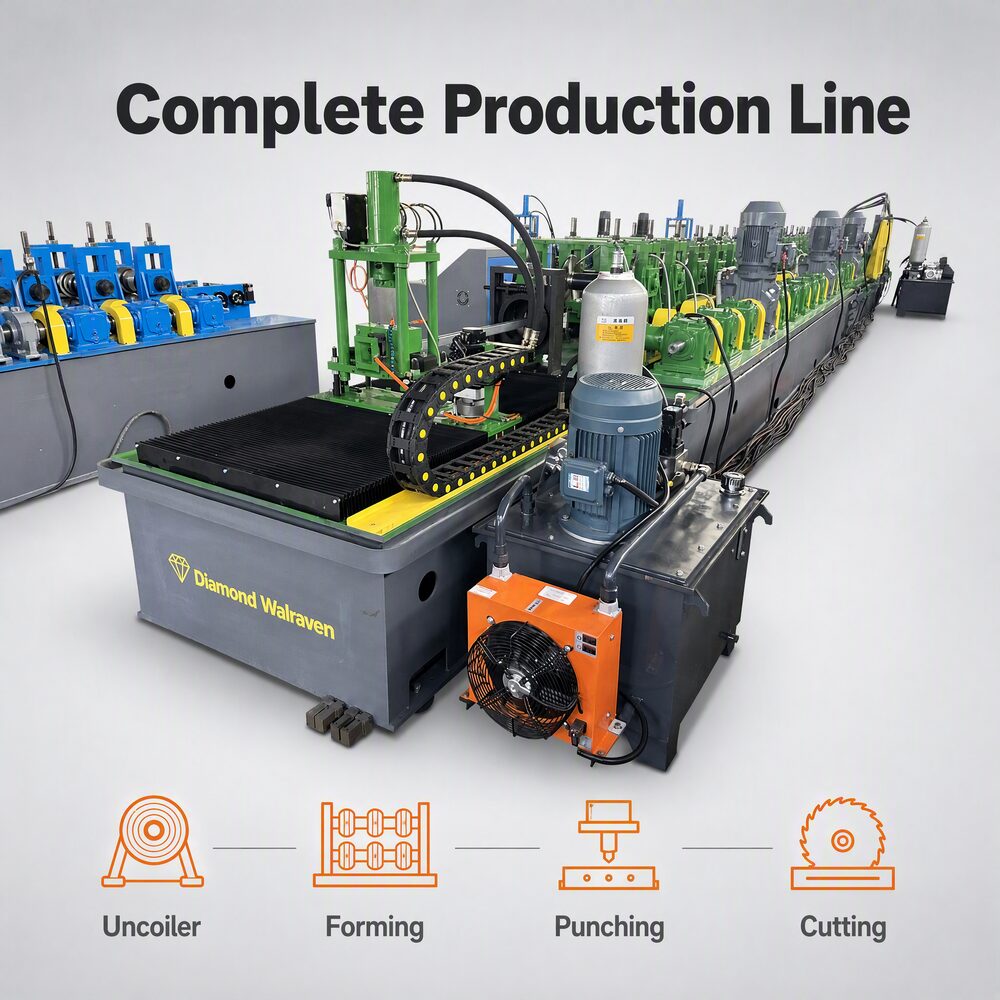

Automatic Decoiling & Feeding: Equipped with hydraulic automatic decoiler and loading cart, it stably unwinds metal coils and automatically feeds materials to

Precision Leveling: Multi-layer leveling rollers correct coil flatness errors, ensuring the flatness and straightness of raw materials, laying a foundation for high-precision forming of subsequent brackets.

Hydraulic Punching: The servo-driven punching system completes precise hole punching, notch cutting, and positioning hole processing according to solar bracket installation standards, with punching error controlled within ±0.1mm, meeting the installation matching requirements of global solar projects.

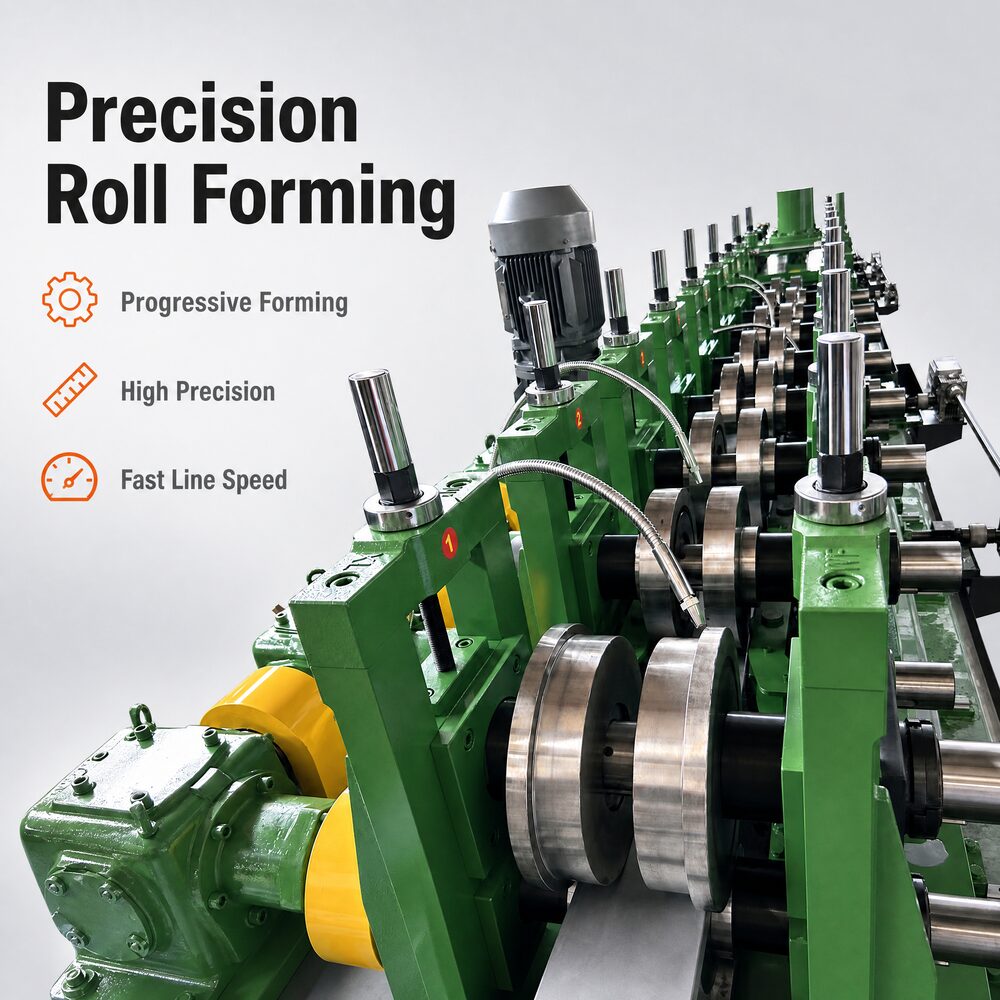

Multi-station Roll Forming: 20-24 groups of high-hardness forming rollers perform gradual bending and shaping on metal materials to form standard solar bracket profiles, avoiding one-time forced forming that causes material cracks.

Fixed-length Cutting & Output: Adopts flying saw hydraulic cutting technology, realizing non-stop dynamic cutting during operation. The cutting length is adjustable freely, and finished brackets are automatically output and stacked, saving manual handling costs.

Key Features & Technical Advantages

Our high-performance solar panel bracket forming machine is optimized for the characteristics of global solar engineering projects, with outstanding advantages in precision, efficiency, durability, and flexibility, becoming the preferred equipment for medium and large-scale solar bracket production enterprises:

Ultra-high Forming Precision: The forming rollers are made of Cr12MoV high-quality steel with hard chrome plating treatment, with hardness up to HRC58-62. The whole machine adopts integrated processing technology, and the profile dimensional tolerance is controlled within sub-millimeter level, ensuring the tight fit and structural stability of solar brackets in outdoor photovoltaic power stations.

High-efficiency Continuous Production: The optimized transmission structure and servo control system support a production speed of 8-15m/min. It can operate 24 hours continuously without failure, effectively meeting the mass production demand of utility-scale solar farm bracket orders and greatly shortening project delivery cycles.

Strong Compatibility & Flexibility: The equipment supports processing of various metal materials and can produce multiple mainstream solar bracket profiles including U-type, C-type, and sigma type. It supports customized mold development according to customer drawings, adapting to residential, commercial, and ground solar power station bracket production needs in different regions.

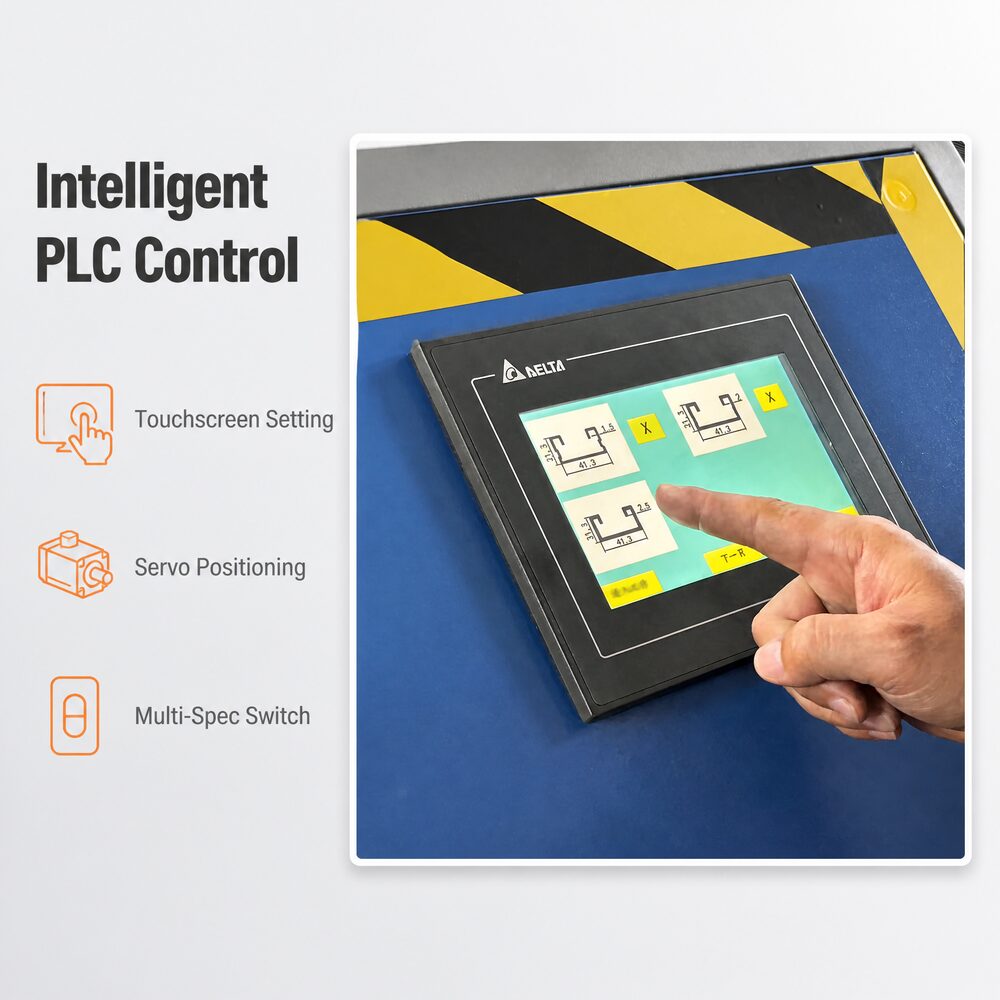

Intelligent & Easy Operation: Equipped with industrial touch screen PLC control system, users only need to set parameters such as profile size, cutting length, and punching spacing to realize automatic production. It supports one-key parameter storage and recall, reducing technical threshold and manual operation errors.

Stable & Durable Structure: The main frame adopts thickened steel plate welding and integral annealing treatment, with strong compression resistance and deformation resistance. Core electrical components adopt international famous brands, with low failure rate and long service life, reducing later maintenance costs for customers.

Energy-saving & Eco-friendly: Cold roll forming process has no high-temperature pollution, low noise and low energy consumption during operation, which conforms to global green manufacturing standards and renewable energy industry development concepts.

Main Technical Parameters

We provide standardized and customized solar panel bracket forming machine solutions, and the core technical parameters are as follows for customer reference:

Application Scenarios

Our solar panel bracket forming machine is widely applicable to all types of photovoltaic power station supporting structure manufacturing, covering global mainstream solar project scenarios:

Residential Solar Systems: Produce lightweight and durable small solar mounting brackets for household rooftop solar panel installation, with flexible size adjustment to adapt to various roof structures.

Commercial & Industrial Solar Projects: Provide high-strength standardized brackets for factory buildings, shopping malls, and office building rooftop photovoltaic systems, meeting long-term outdoor anti-corrosion and load-bearing requirements.

Utility-scale Solar Farms: Support mass production of high-standard solar strut channels and support brackets for large ground photovoltaic power stations, ensuring project construction efficiency and structural safety.

Custom Solar Engineering: Meet the customized bracket production needs of special terrain solar projects such as mountainous areas, water surfaces, and deserts.

Why Choose Our Solar Panel Bracket Forming Machine?

With years of focus on roll forming machine R&D, production and export experience, our solar bracket forming equipment has been exported to more than 80 countries and regions including Europe, America, Southeast Asia, the Middle East, Africa, and Oceania, winning consistent recognition from global customers. We always take high-quality equipment and professional after-sales service as the core to help customers maximize project benefits:

Professional Customization Service: We provide one-stop customized solutions according to customers' local market standards, product drawings, and production output requirements, no matter standard or special-shaped bracket equipment can be accurately matched.

Strict Quality Control: All equipment undergoes strict factory debugging, aging test and precision detection before delivery, and complies with international CE, ISO and other quality certifications, ensuring stable operation in different working environments.

Complete After-sales System: Provide overseas on-site installation guidance, operator training, long-term technical support and spare parts supply services. Respond to customer faults and technical consultations within 24 hours to solve production worries.

Cost-effective Solution: Optimize equipment structure and production process, reduce equipment purchase and later operation maintenance costs for customers, and create higher return on investment for solar bracket manufacturing business.

Conclusion

With the continuous growth of global new energy demand, the solar photovoltaic industry will maintain a high-speed development trend, and the market demand for high-precision and high-efficiency solar panel bracket forming machines will continue to rise. Our automatic solar bracket roll forming production line relies on superior precision, stable performance and intelligent operation, helping global solar equipment manufacturers improve production efficiency, optimize product quality, and occupy more market share in the competitive new energy industry.
