Professional guide to solar bracket forming machine, including types, features, advantages and applications. High-precision automatic photovoltaic bracket roll forming machine for global solar mounting system production.

With the explosive growth of the global renewable energy industry, solar photovoltaic power stations have become the core of green energy construction in various countries. Solar mounting brackets are indispensable supporting components for photovoltaic power generation systems, responsible for fixing solar panels, resisting wind and snow loads, and ensuring long-term stable power generation. A high-efficiency solar bracket forming machine is the key core equipment for mass production of standard and customized solar brackets, helping manufacturers improve production efficiency, reduce costs, and meet the booming global solar project demand.

This professional guide focuses on photovoltaic bracket forming equipment, systematically introducing its working principle, mainstream types, core advantages, technical features and global application scenarios. It provides professional procurement references for solar equipment distributors, metal product manufacturers, and photovoltaic engineering contractors worldwide, fully complying with international industrial production standards.

What Is a Solar Bracket Forming Machine?

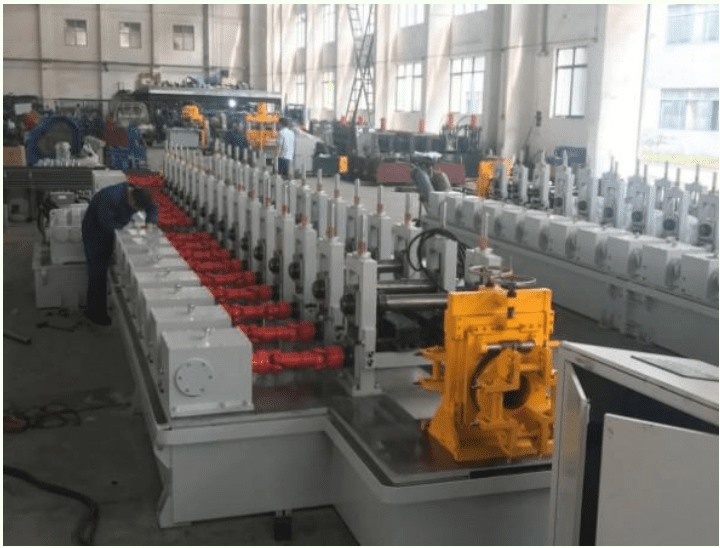

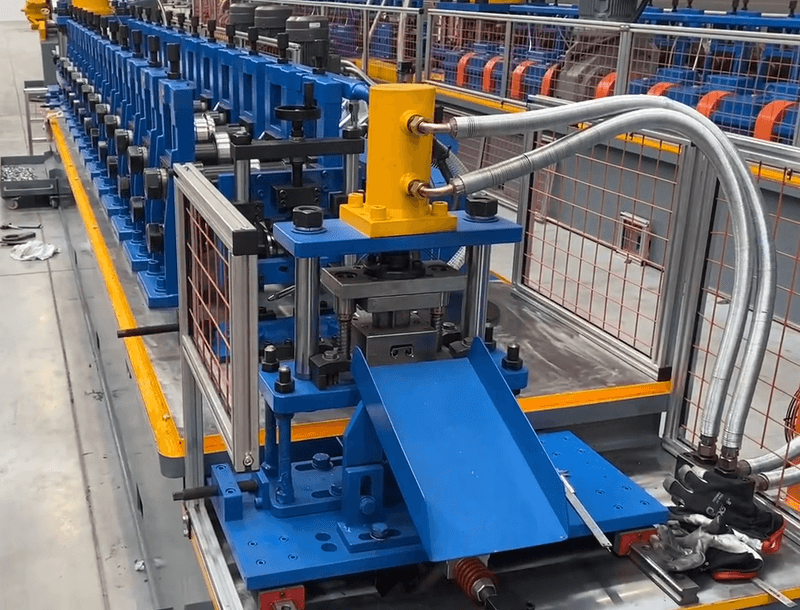

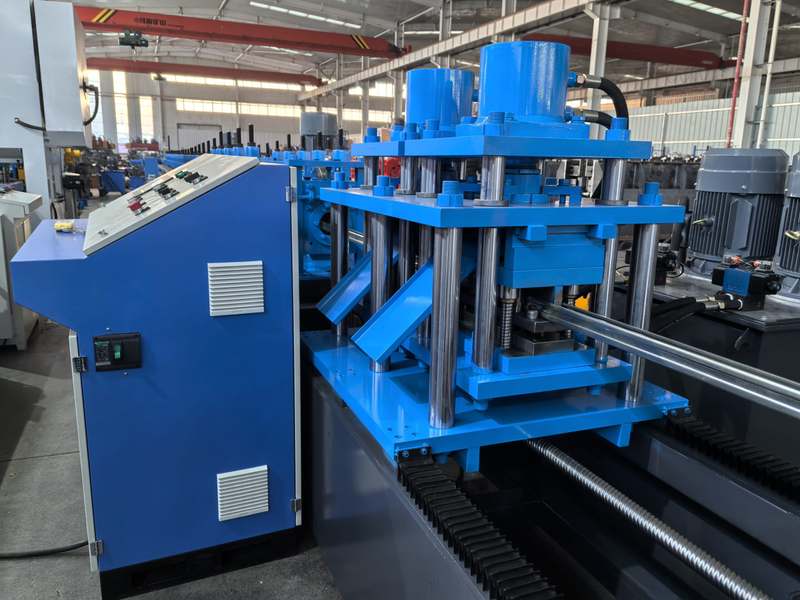

The solar bracket forming machine, also known as photovoltaic bracket roll forming machine, is a specialized continuous cold roll forming equipment designed for solar mounting structure production. It processes galvanized steel, aluminum alloy strips and other raw materials through continuous rolling, bending, forming, cutting and punching, and one-time produces finished solar brackets that meet industry installation standards.

Different from traditional stamping and bending processing equipment, the photovoltaic bracket forming machine adopts an integrated automatic production mode. From raw material feeding to finished product discharging, the whole process is automated, which solves the problems of low efficiency, inconsistent product precision and high labor cost of traditional manual processing. It is the mainstream production equipment for modern solar bracket manufacturing factories.

Main Types of Solar Bracket Forming Machines

According to the structural types of finished solar brackets and production functions, mainstream photovoltaic bracket forming equipment on the global market is mainly divided into the following categories, covering all common solar mounting system production needs:

C-Shape Solar Bracket Forming Machine

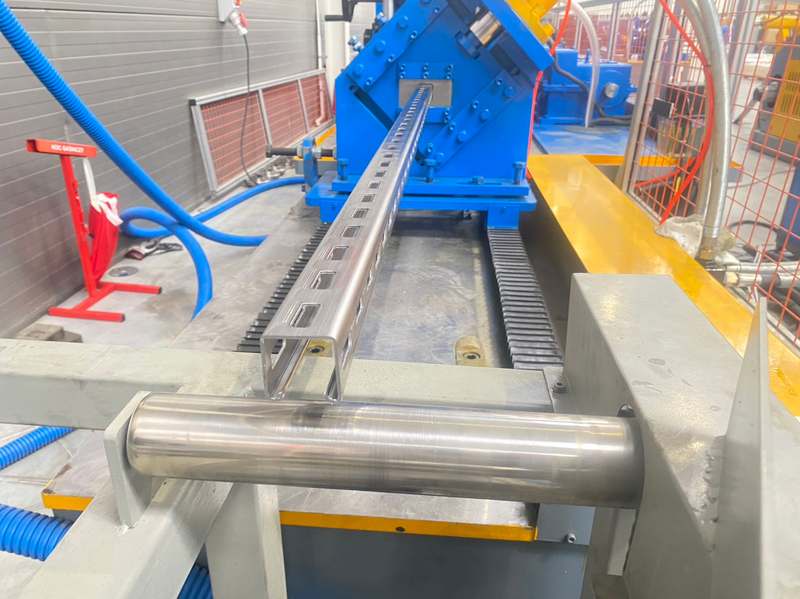

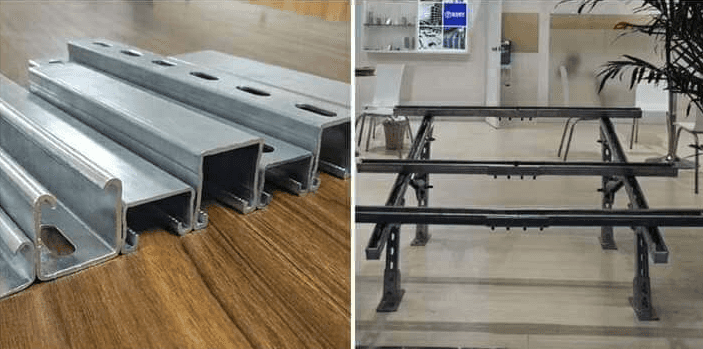

C-type solar bracket is the most widely used mounting accessory in ground photovoltaic power stations and rooftop solar projects. The C-shape solar bracket forming machine is specially designed for C-section steel bracket production. It can process different specifications of C-shaped steel with adjustable height and width, featuring strong compatibility.

Core Features: Adopts multi-group precision rolling dies, smooth product surface without scratches, stable molding size. Equipped with automatic punching and fixed-length cutting functions, the produced C-brackets have high flatness and strong bearing capacity.

Application: Suitable for mass production of conventional ground solar brackets, rooftop distributed photovoltaic supports, and industrial solar power station mounting structures.

U-Shape Photovoltaic Bracket Forming Machine

U-type solar brackets have better structural stability and pressure resistance, often used for large-scale ground photovoltaic power stations and high-wind-load area solar projects. The U-shape forming machine realizes one-time continuous molding of U-section steel through precision roller design.

Core Features: High structural rigidity of finished products, accurate size tolerance, no deformation after long-term use. The equipment runs stably with low failure rate and meets the high-standard production requirements of large photovoltaic projects.

Application: Large centralized solar power plants, desert photovoltaic projects, coastal wind-resistant solar mounting systems, and heavy-load solar bracket production.

Adjustable Multi-Specification Bracket Forming Machine

Facing the diversified customized needs of global solar projects, multi-specification adjustable solar bracket forming machines have become popular equipment in the international market. The equipment can freely adjust the molding width, height and hole spacing through a numerical control system, realizing one machine for multiple uses.

Core Features: No need to replace rollers, fast specification switching, short production preparation time. It supports customized production of non-standard solar brackets to meet personalized needs of different regional projects.

Application: Medium and small-sized bracket manufacturing factories, customized solar engineering supporting production, and multi-specification solar structure batch processing.

High-Speed Automatic Solar Bracket Machine

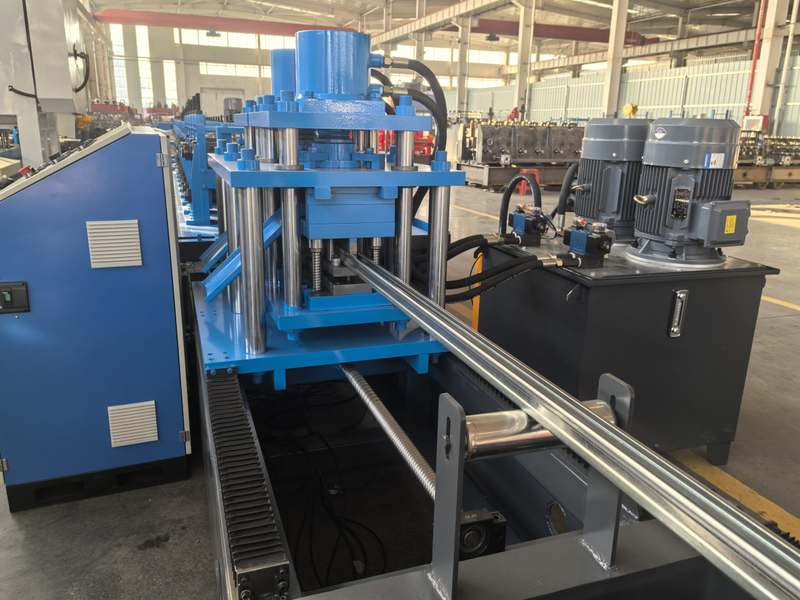

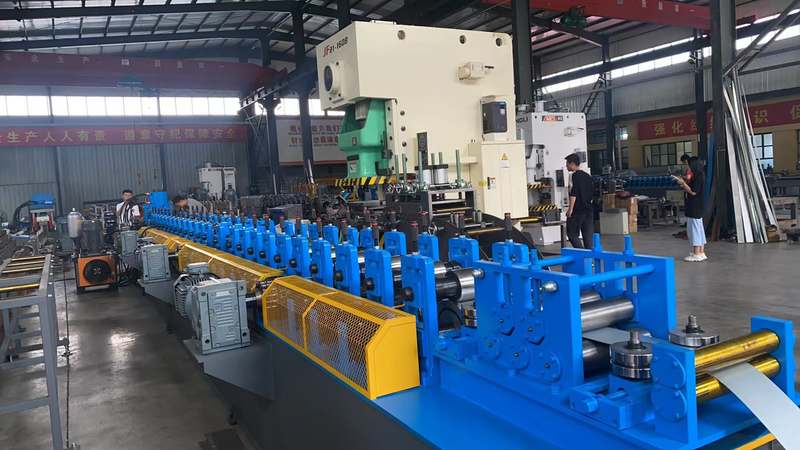

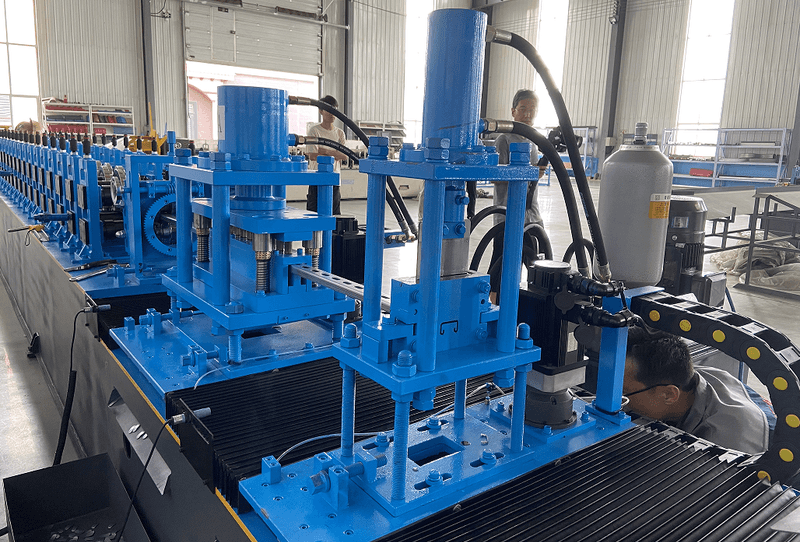

This is an upgraded high-efficiency model for large-scale mass production. It integrates automatic feeding, leveling, punching, rolling forming, fixed-length cutting and finished product output, with a production speed far exceeding conventional equipment.

Core Features: Intelligent PLC numerical control operation, automatic error alarm, high production efficiency, saving a lot of labor costs. The whole production line runs synchronously with stable product consistency and zero size deviation.

Application: Large-scale professional solar bracket manufacturers, large-volume order mass production, and long-term stable photovoltaic supporting product production lines.

Core Advantages of Solar Bracket Forming Machine

Compared with traditional discrete processing equipment, modern photovoltaic bracket forming machines have obvious competitive advantages in industrial production, which is also the core reason why they are widely purchased by global solar equipment manufacturers:

High Production Efficiency: The fully automated assembly line operation realizes uninterrupted production, and the hourly output is several times that of traditional processing equipment, effectively shortening the production cycle and improving order delivery efficiency.

High Product Precision & Consistency: Controlled by professional numerical control system and precision rolling dies, the size of each finished bracket is accurate, with uniform hole position and flat molding, fully meeting international solar project installation standards.

Wide Material Compatibility: It can process various common raw materials such as hot-dip galvanized steel, electro-galvanized steel, aluminum alloy and color-coated steel, adapting to different anti-corrosion and durability requirements of global solar projects.

Low Operating Cost: The equipment has low energy consumption, long service life of rollers, low failure rate and simple daily maintenance. It greatly reduces the comprehensive production and maintenance costs for manufacturers.

Strong Customization: It supports personalized adjustment of product specifications, punching styles and production speeds, which can perfectly match the diversified technical standards of solar projects in Europe, Southeast Asia, Africa and other regions.

Key Technical Parameters for Equipment Procurement

When purchasing a suitable photovoltaic bracket making machine for global production projects, buyers need to focus on the following core parameters to ensure the equipment matches production needs:

Processing Material Thickness: Conventional equipment supports 1.0mm-3.0mm metal strip processing, covering the thickness requirements of most civil and industrial solar brackets.

Production Speed: The conventional speed is 8-15m/min, and the high-speed model can reach 20-30m/min, which can be selected according to daily output requirements.

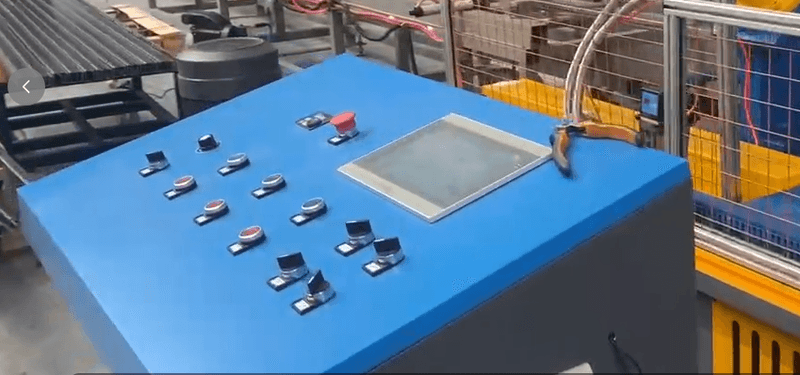

Control System: Adopts international standard PLC numerical control system, supports multi-language switching, automatic parameter storage and one-key adjustment, convenient for foreign workers to operate.

Mold Material: High-quality chromium-molybdenum alloy steel rollers are wear-resistant and deformation-resistant, ensuring long-term high-precision production.

Cutting & Punching Accuracy: The size tolerance is controlled within ±0.5mm, meeting the precision requirements of high-standard solar engineering accessories.

Global Application & Market Prospects

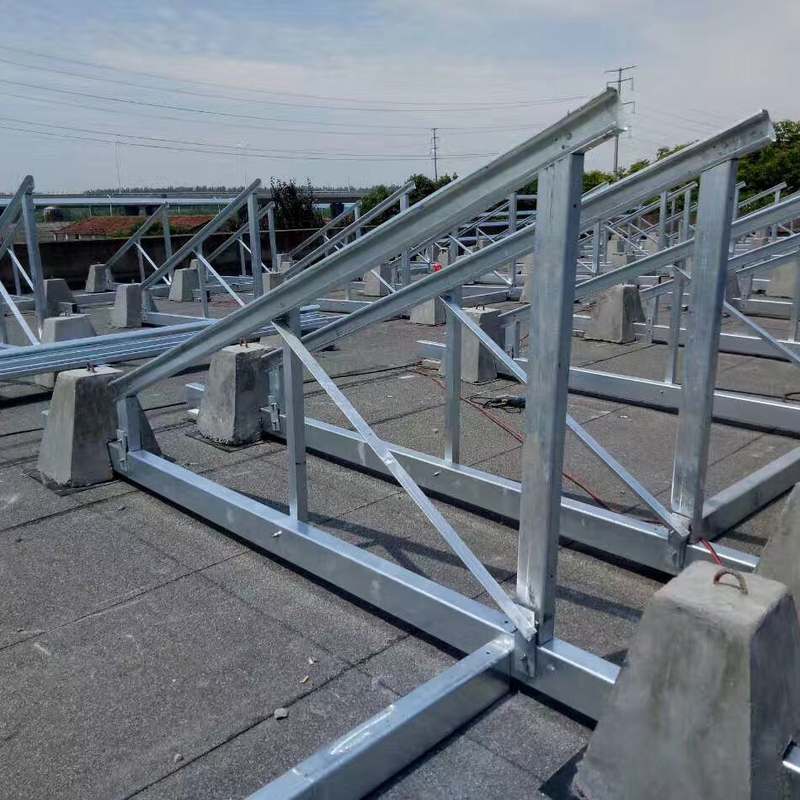

With the global carbon neutrality strategy advancement, countries continue to increase investment in photovoltaic power generation. Whether it is residential rooftop distributed solar systems, commercial industrial photovoltaic projects, or large ground photovoltaic power stations, stable and high-quality solar mounting brackets are required, which drives the continuous growth of market demand for solar bracket forming machines.

This equipment is widely exported to Southeast Asia, Europe, the Middle East, Africa and Latin America, and is favored by local metal processing factories and solar energy supporting manufacturers. Its high automation, stable performance and low cost help downstream manufacturers quickly occupy the local solar accessory market and obtain stable profit margins.

Conclusion

The solar bracket forming machine is essential core equipment for the industrialized production of photovoltaic mounting systems. Various types of forming machines such as C-shaped, U-shaped and multi-specification adjustable models can fully meet the production needs of different scenarios and different scale solar projects. Its advantages of high efficiency, high precision and low consumption make it an indispensable production tool for the global renewable energy supporting industry.

As a professional supplier of solar energy processing equipment, we provide full-series customized solar bracket forming machines, including standard models and non-standard customized equipment. All equipment adopts international advanced technology, supports multi-language operation and after-sales service in various regions, and provides one-stop solutions for global solar accessory manufacturers.
