The Sigma Steel Roll Forming Machine is a professional automated production equipment specifically designed for manufacturing sigma-shaped steel sections (σ-steel), a unique and high-performance structural component widely used in modern steel structure projects. As a core device in the global metal processing and construction materials industry, it adopts advanced cold roll forming technology to process metal coils (such as hot-dip galvanized coils, cold-rolled coils, zinc-aluminum-magnesium coils, and high-strength steel coils like S450, Q235, Q345) into high-precision, high-torsional-rigidity sigma steel sections with uniform dimensions and excellent load-bearing performance. Widely adopted in global commercial, industrial, residential, and infrastructure construction projects, this specialized machine plays an irreplaceable role in upgrading steel structure performance, improving production efficiency, and reducing overall project costs.

Its working principle is based on continuous cold roll forming without high-temperature processing, which avoids material deformation, performance degradation, and energy waste caused by heat treatment—consistent with the cold-formed steel manufacturing process that enhances surface quality and increases material hardness and tensile strength. The entire production process follows a seamless automated workflow: starting with steel coil loading, followed by uncoiling, precision leveling, step-by-step roll forming, optional punching (for assembly), fixed-length cutting, and finally outputting finished sigma steel sections.

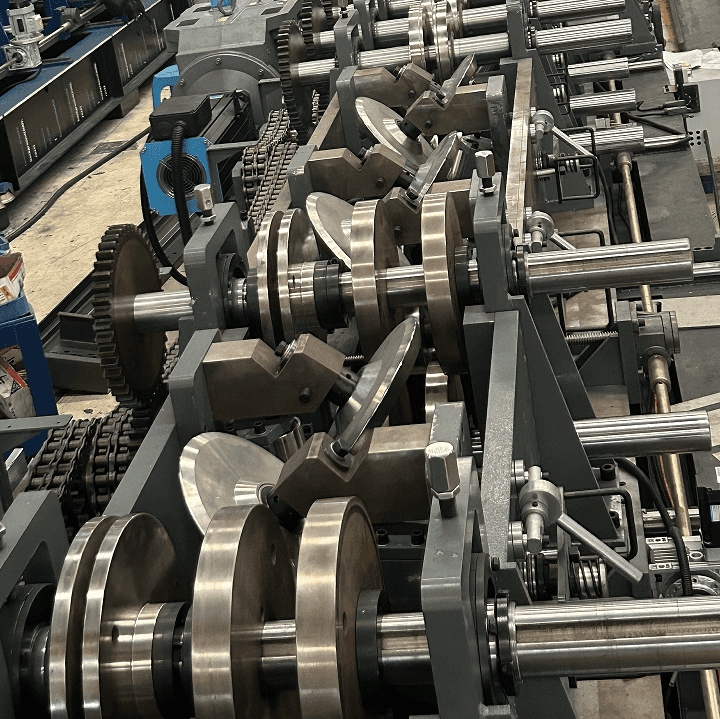

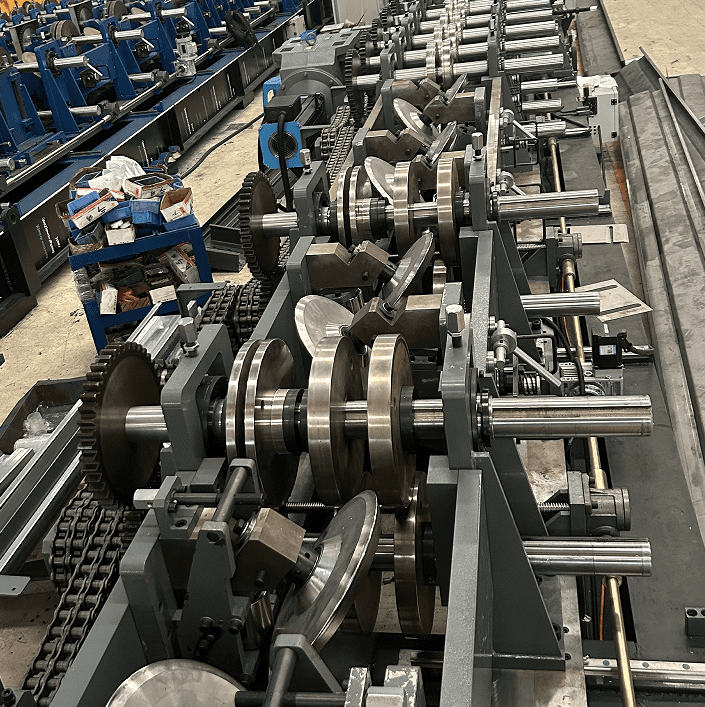

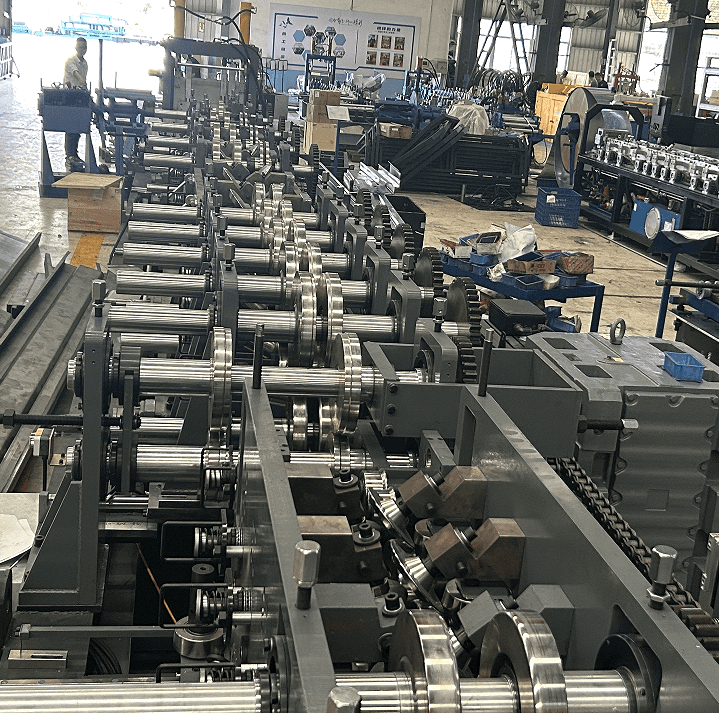

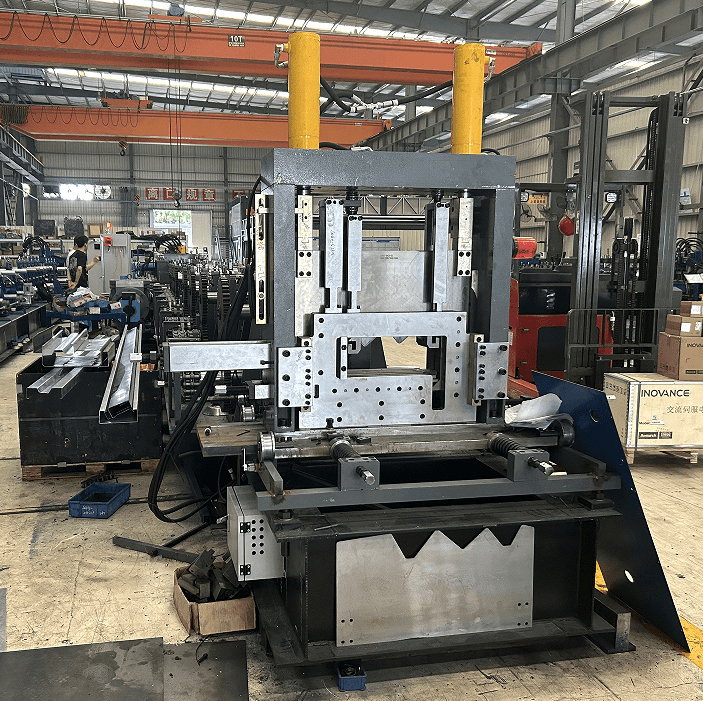

CZ120-400 Automatic Type Changing Roll Pressing Forming Equipment

Core Advantages of Our Sigma Steel Roll Forming Machine

High Efficiency & Mass Production Capacity

Our Sigma Steel Roll Forming Machine is equipped with a high-performance servo drive system and optimized forming process, enabling a maximum production speed of 10-25 meters per minute—adjustable according to material thickness and section size. This production efficiency is 35% higher than traditional forming equipment, making it ideal for large-scale steel structure projects (such as industrial parks, logistics warehouses, and solar farms). This high-efficiency production capacity can significantly shorten the production cycle, quickly meet the large demand for sigma steel sections, ensure on-time delivery of projects, and help you seize more market opportunities in the global steel structure market.

Superior Precision & Stable Structural Performance

Precision and structural stability are the core competitiveness of our equipment. Adopting advanced numerical control technology, precision-machined forming rollers, and a synchronous servo drive system, the machine can strictly control the dimensional error of sigma steel sections within ±0.5mm and the straightness error within 2mm/m. The produced sigma steel sections have uniform cross-sections, consistent thicknesses, and excellent load-bearing performance—with a minimum yield stress of 450 N/mm² for sections made of S450 steel, and vertical load-bearing capacity up to 7000kg per section. They fully comply with international steel structure standards (such as CE, ASTM, EN 1090), ensuring stable performance in harsh environments and enhancing your brand reputation in the international market.

Strong Versatility & Flexible Customization

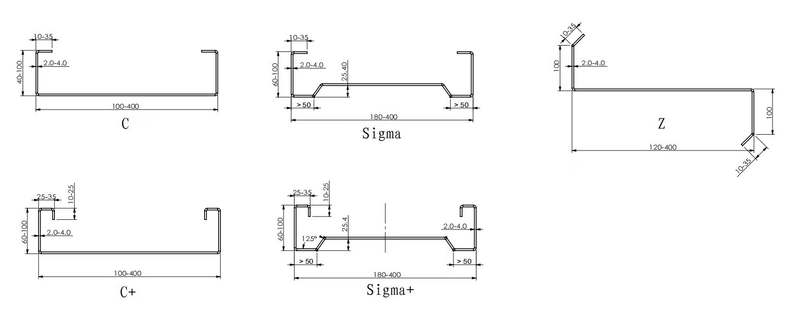

To meet the diverse needs of global customers for different specifications of sigma steel sections, our machine adopts a modular design. By adjusting the forming rollers or replacing the roller set (which can be completed in 30 minutes by professional technicians) and adjusting parameters through the touch screen, it can produce sigma steel sections of different cross-sectional sizes (width: 50-400mm, height: 40-150mm) and lengths (2-12 meters). In addition, we provide personalized customization services according to customer-specific requirements, such as customizing section thickness (0.8-3.5mm), punching positions, material compatibility (including high-strength steel and galvanized steel), and forming speed, developing exclusive forming solutions to help you meet the personalized needs of different regional steel structure markets and improve market competitiveness.

Energy Saving & Cost-Effective

In response to the global call for energy conservation and environmental protection, our Sigma Steel Roll Forming Machine integrates a series of energy-saving technologies. The optimized transmission system reduces energy loss, and the servo drive system adjusts power output according to production needs, saving 20%-30% of energy compared with traditional equipment. At the same time, the full-automatic production mode reduces manual operation (needing only 1-2 operators), lowers labor costs; the high-precision forming process reduces material waste (waste rate ≤1%), effectively reducing your overall production costs and improving economic benefits. In addition, the produced sigma steel sections have good corrosion resistance (especially when processed from galvanized coils with Z275 coating), extending their service life and reducing maintenance costs for end customers.

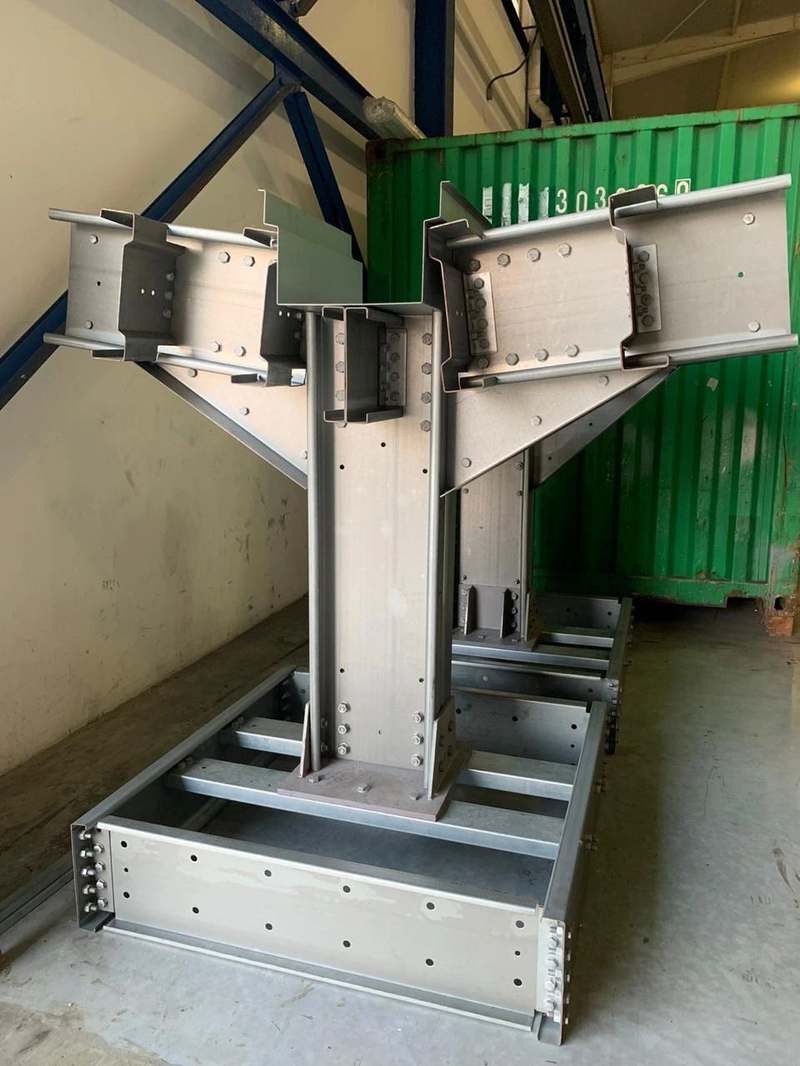

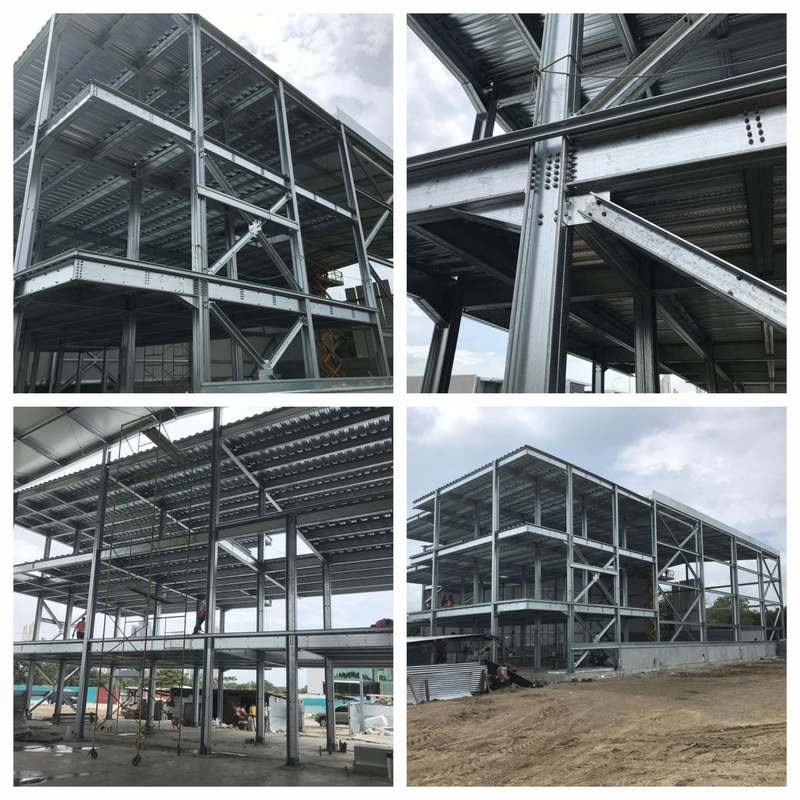

Application

Video
