Shelf Upright Roll Forming Machine: Complete Buyer's Guide 2026

Description:A shelf upright roll forming machine is the core equipment that manufactures the vertical posts (uprights) used in warehouse pallet racking, supermarket shelving, and industrial storage systems. As e-commerce fulfillment and automated warehousing continue to expand worldwide, demand for reliable rack upright production lines has grown steadily. This guide explains how these machines work, which specifications to compare, and why a well-built upright forming line directly determines your rack system's load capacity, production cost, and delivery speed.

What Is a Shelf Upright Roll Forming Machine?

A shelf upright roll forming machine — also called a rack upright making machine, storage column roll former, or pallet rack post line — continuously transforms galvanized or cold-rolled steel coil into perforated upright profiles. Unlike a simple C-channel forming line, an upright line integrates in-line punching: it creates teardrop, diamond, or keyhole slots at precise pitches so the finished post arrives ready for beam connectors without secondary operations.

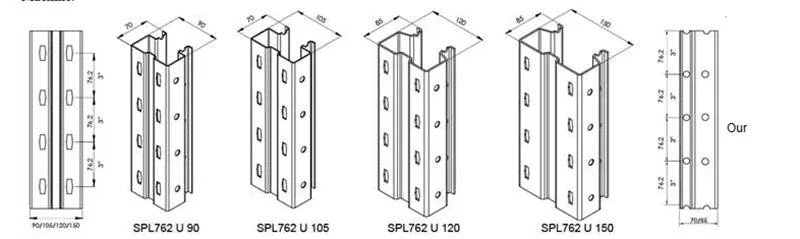

The output profiles range from light-duty L-shape shelving columns to heavy-duty C-type pallet rack uprights. Common dimensions include 70×42 mm, 80×52 mm, 90×62 mm, 100×72 mm, and 120×92 mm profiles, with steel thickness from 1.5 mm up to 3.0 mm depending on the load class.

How the Production Line Works

The line follows a continuous flow from coil to finished post:

Hydraulic decoiler — holds and pays off the steel coil (typically 3-ton loading capacity).

Leveling unit — flattens coil curvature before forming.

Servo feeder + punch press — punches holes and slots at programmable pitches.

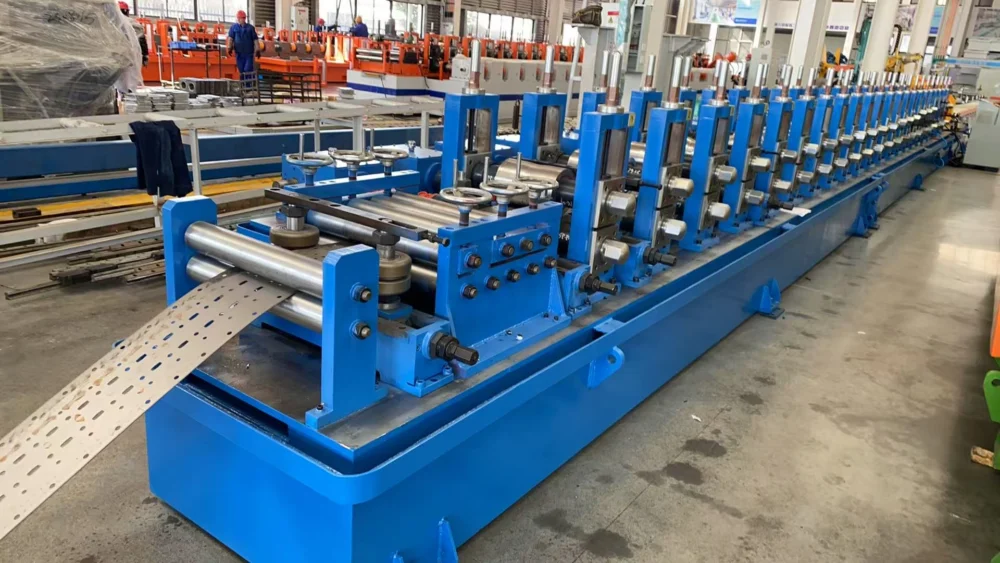

Roll forming stations — progressively bend the strip into the upright profile.

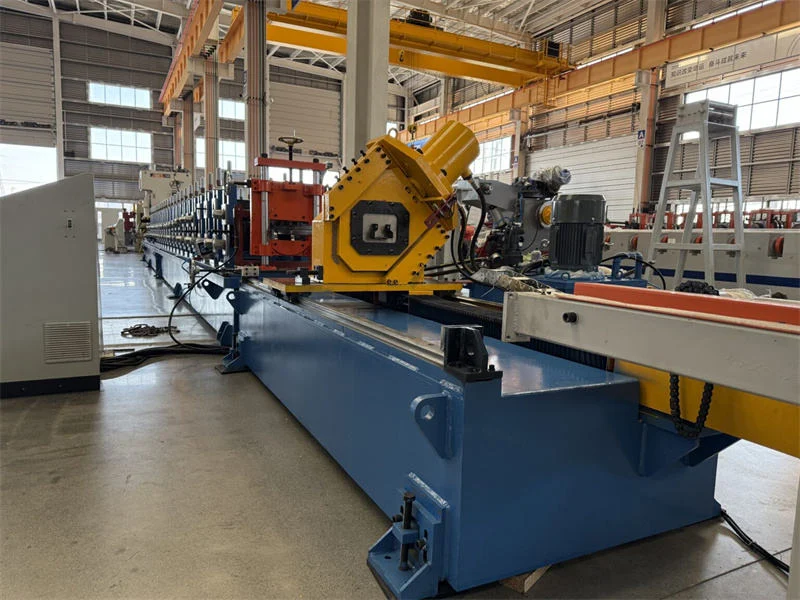

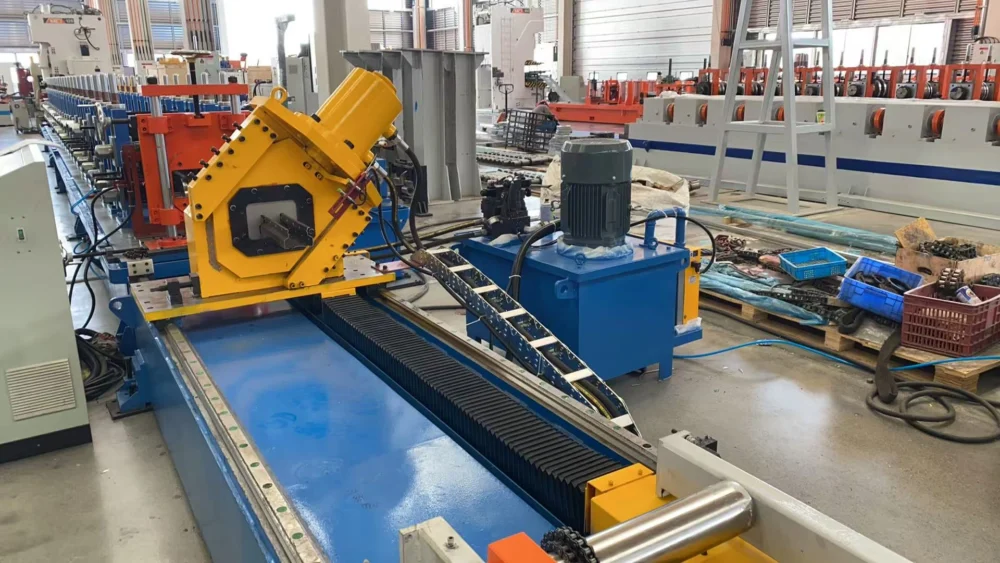

Hydraulic cutoff — shears the profile to exact length under PLC control.

Output table — collects and stacks finished posts for bundling.

Because punching happens before forming, the hole pattern stays straight and undistorted — a critical quality factor for correct rack assembly and load testing.

Core Components and What to Compare

When evaluating quotations, compare these modules rather than looking only at price. Each component directly affects uptime, accuracy, and tooling life.

Technical Specifications — ZTRFM Rack Upright Line

The following parameters represent the standard ZTRFM shelf upright roll forming machine configured for heavy-duty pallet rack production:

Features That Give You a Competitive Edge

PLC Recipe-Based Automatic Size Changeover

Modern upright lines store each size as a digital recipe — punch pitch, cut length, frame width, and line speed. On the ZTRFM line, the entire roll-forming frame travels along a long ground shaft on servo commands, so switching between a 120×92 mm heavy upright and an 80×52 mm light profile takes minutes instead of hours. This is the single biggest productivity factor when you must produce multiple SKUs on one line.

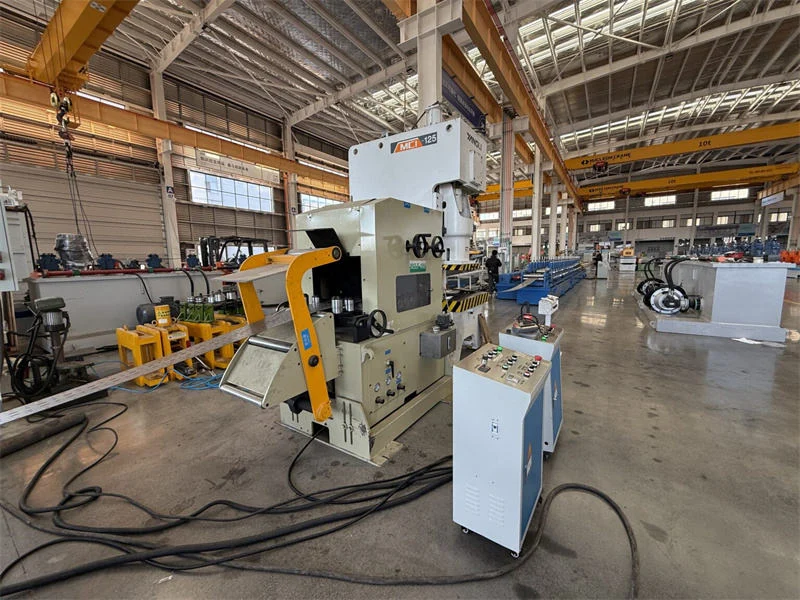

In-Line Punching with Servo Feeder

A 100-ton press punching eight holes per stroke at 60 strokes per minute delivers the pattern accuracy rack engineers require. The servo feeder guarantees pitch repeatability so hook beams seat correctly — a defect that would otherwise cause field load-test failures and product recalls.

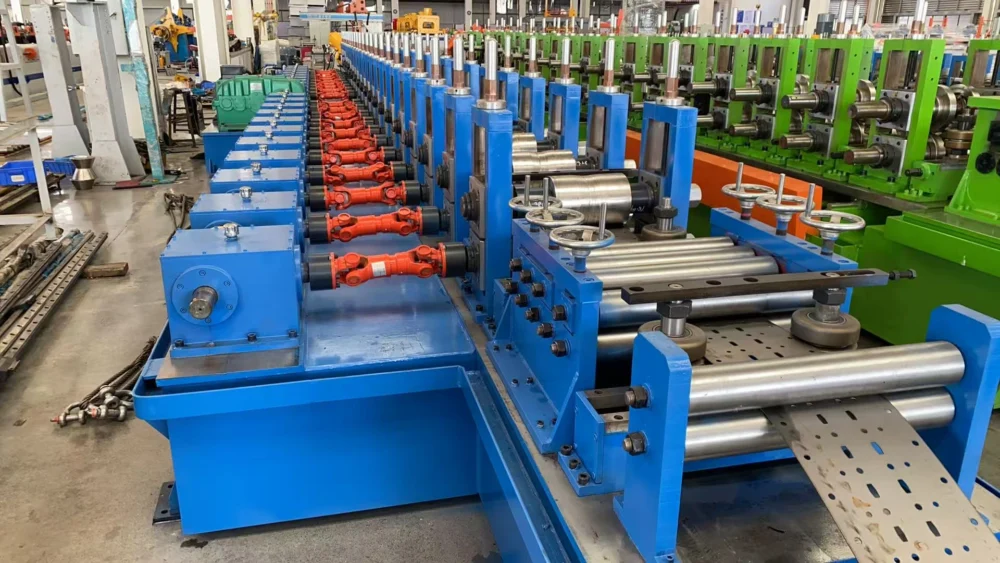

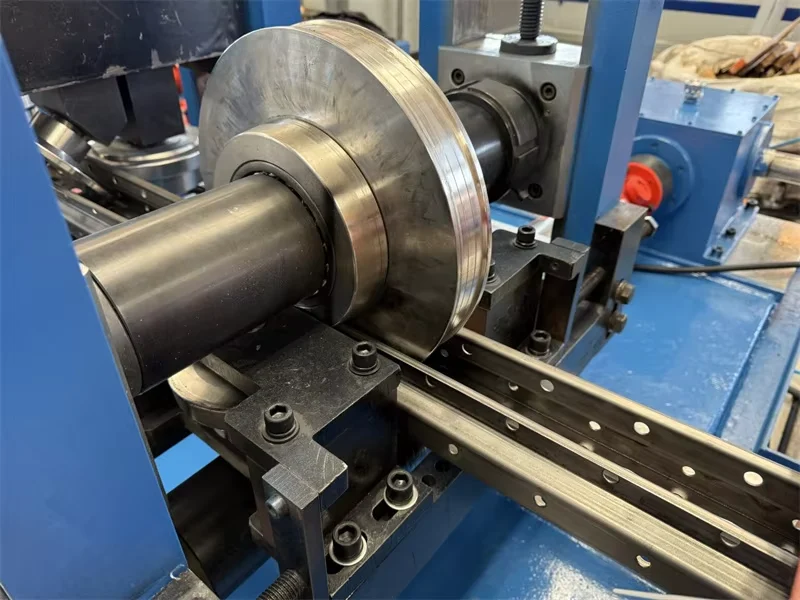

Hardened Rollers and Ground Gear Drive

Rollers in Cr12 alloy steel hardened to HRC 56–58 resist wear over millions of strokes. 42CrMo hardened-and-ground gears with computer-controlled oil-drip lubrication and an automatic cooling circulation keep the drive train stable in two-shift, high-capacity operation. The welded machine body is ground after welding to eliminate frame deformation.

Teardrop vs. Keyhole: Match the Hole Pattern to Your Market

The hole pattern defines which market you can serve — choose the punching die set accordingly:

Teardrop holes (2-inch pitch): dominate North American pallet racking and work with hook-style beam connectors under ANSI MH16.1. Tooling costs more and wears faster on the irregular profile, but it is the standard for US and Canadian export.

Keyhole / round holes (50 mm pitch): common in European, Australian, and light-duty shelving applications, using drop-in beam connectors.

A reputable manufacturer can configure the punch die set for your target market's connector standard before production begins.

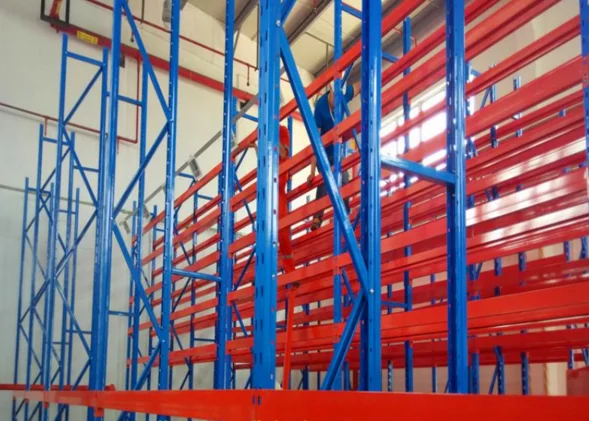

Applications and Target Markets

A shelf upright roll forming line serves manufacturers producing:

Selective pallet rack, drive-in rack, and push-back rack systems

Supermarket and retail display shelving

E-commerce fulfillment center storage

Mezzanine floors and long-span racking

Cold storage and freezer rack systems

Automated warehouse (AS/RS) upright frames
