Metal Roof Solar Mounting Metal Roofing Panel Rolling Machine

Description:Our metal roof solar mounting metal roofing panel rolling machine produces precision standing seam & trapezoidal roof sheets compatible with PV solar mounting systems. High speed, PLC automatic control, quick profile change.

Metal Roof Solar Mounting Metal Roofing Panel Rolling Machine

The metal roof solar mounting metal roofing panel rolling machine is a specialized cold roll forming line designed to manufacture metal roof panels perfectly matched for solar PV mounting installations. As rooftop solar projects keep expanding globally, standing seam and trapezoidal metal roofs become the preferred substrate for non-penetrating solar clamps. This roll former delivers consistent roof profiles that simplify solar bracket fitting, reduce leakage risk and speed up on-site PV installation.

Many roof manufacturers and solar EPC suppliers choose this machine because it integrates roofing sheet production with solar mounting compatibility. Instead of making general corrugated panels that need extra modification for solar clamps, this rolling machine forms accurate seam heights, rib spacing and panel widths according to solar mounting drawing requirements. Every finished metal roof sheet can directly fit standing seam solar clamps without drilling or secondary machining.

Main Machine Configuration & Working Flow

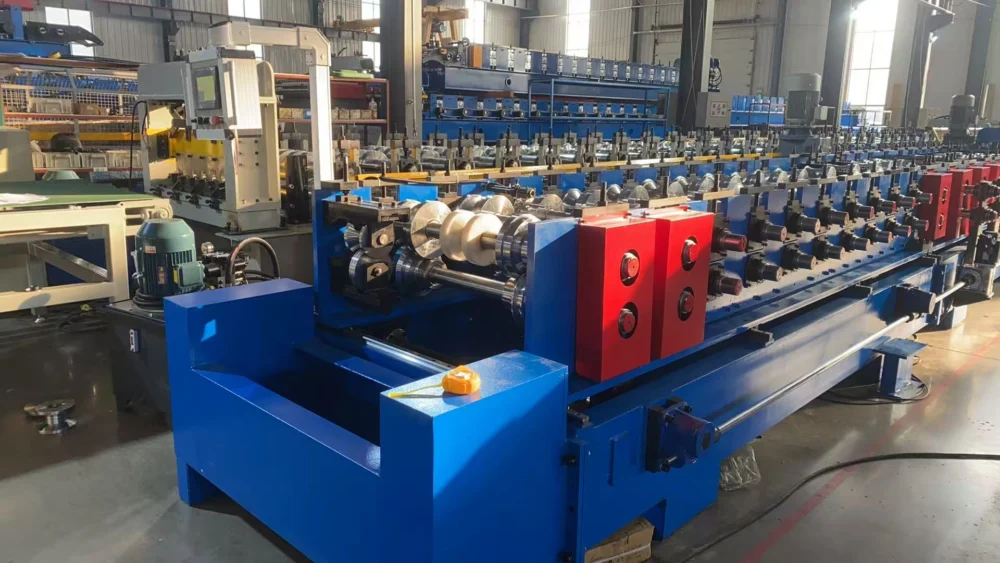

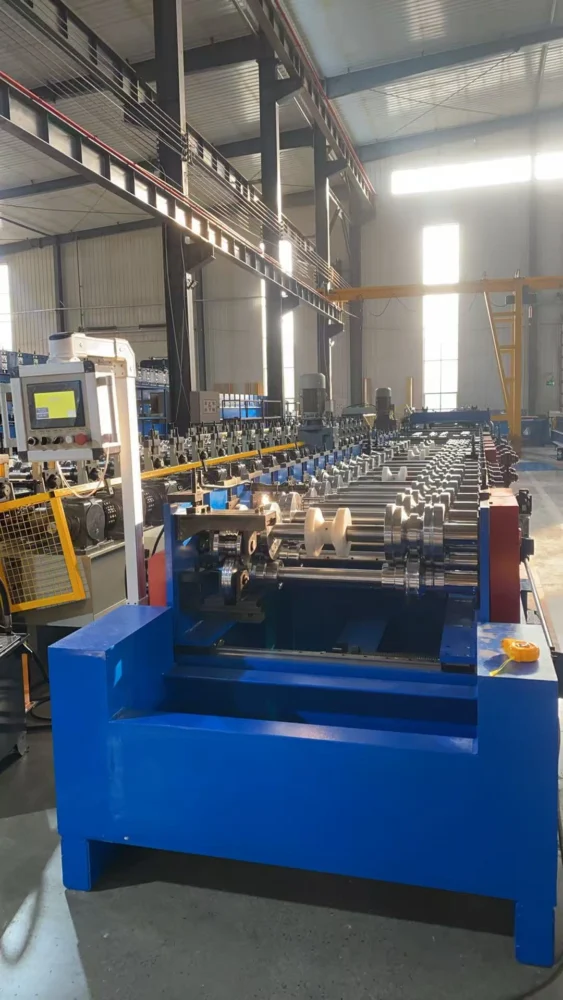

This metal roofing panel rolling machine for solar-ready roofs consists of automatic uncoiler, leveling unit, servo feeding system, roll forming stations, hydraulic punching station, hydraulic cutting unit and finished product stacking table.

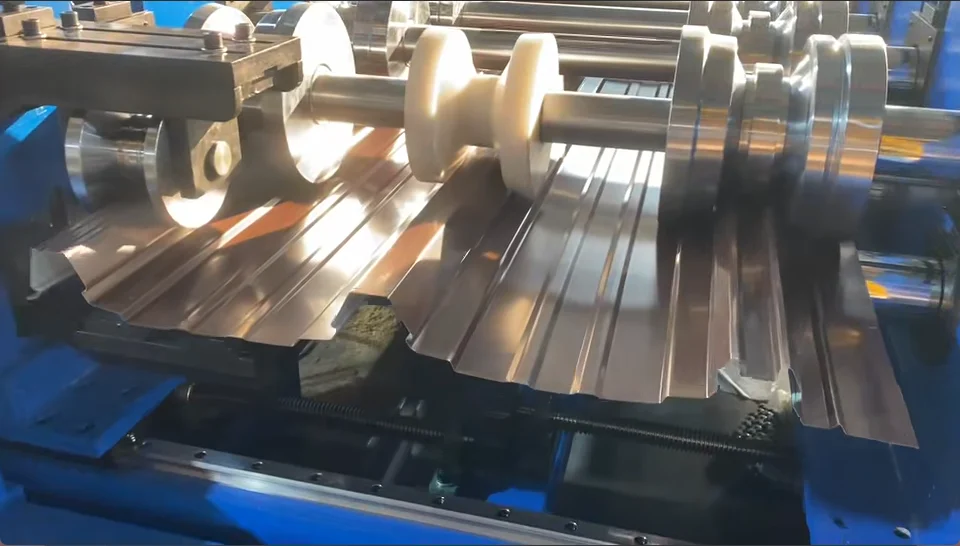

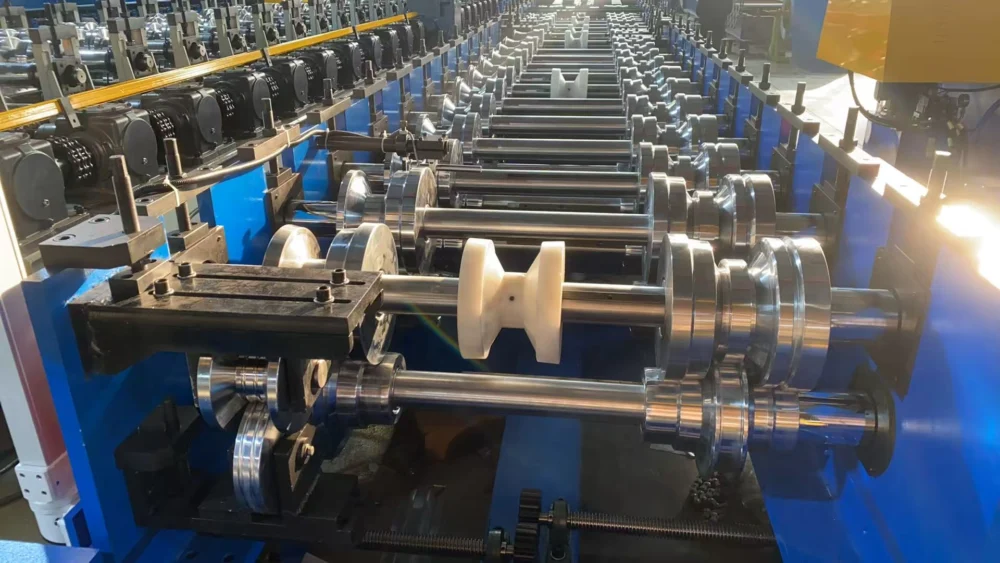

Flat galvanized steel, PPGI, aluminum or galvalume coils feed continuously through forming rollers. The progressive cold rolling process shapes the metal into standing seam, trapezoidal or custom rib profiles. PLC touch screen control lets operators set panel length, batch quantity and punching positions easily. The whole line runs automatically with minimal manual intervention.

Key Features for Solar-Compatible Metal Roof Panels

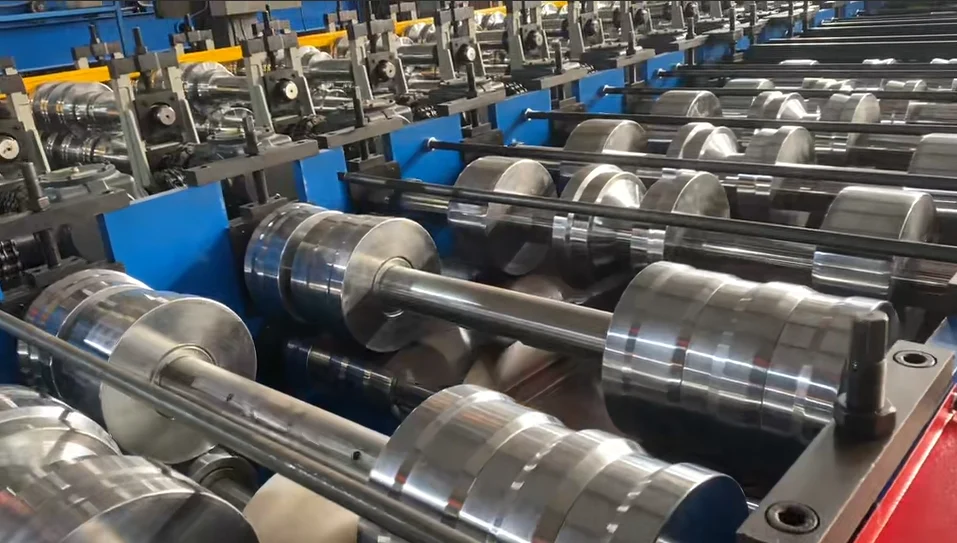

High forming precision: Roller material adopts Cr12Mov with vacuum heat treatment. Dimension tolerance keeps within ±0.5 mm. Uniform seam height ensures solar clamps lock tightly and avoid slipping under wind and snow loads.

Wide material adaptability: Works with 0.4–1.2 mm PPGI, galvanized steel, aluminum coil. Color coated surface stays undamaged during rolling to maintain roof anti-corrosion performance.

Adjustable & quick change profiles: Optional quick-change roller sets. One base machine can switch between standing seam roof, trapezoidal metal roof and other solar-friendly profiles, good for mixed order production.

Stable running speed: Normal production speed ranges from 8–20 m/min, adjustable based on material thickness and punching requirements. High output supports large solar roof project orders.

Waterproof profile design: Optimized seam structure helps stop rainwater penetration, a critical advantage when solar panels cover large roof areas.

Why Solar Project Buyers Prefer This Roof Panel Machine

Traditional metal roof sheets sometimes have inconsistent ribs, which causes solar mounting clamps to loosen or deform the roof surface. Poor matching may void roof warranty and bring hidden leaking trouble after solar installation.

With our metal roof solar mounting metal roofing panel rolling machine, all panels follow unified profile standards. Roof fabricators can supply pre-qualified solar-ready metal roof sheets directly to solar installers. This cuts communication cost between roof factory and PV contractor, shortens project lead time and lowers after-sales risk.

It fits multiple application scenarios: residential rooftop solar, commercial warehouse solar roof, agricultural building PV systems and industrial plant solar arrays. We also support custom profile development if customers have special solar mounting bracket specifications.

Technical Parameters Reference

Profile types: Standing seam metal roof, trapezoidal roofing panel

Suitable material: PPGI, GI, GL, aluminum coil

Material thickness: 0.4–1.2 mm

Control system: PLC + touch screen

Cutting mode: Hydraulic flying cut

Power supply: Customized for different countries (380V/415V etc.)

Roller stations: Configurable by profile drawing

After-Sales & Service

We provide machine layout drawing, foundation drawing, operation manual and video training. Our engineers support overseas installation guidance, commissioning and operator training. Spare roller parts, hydraulic seals and electrical components can be supplied on demand for long-term production support.

Frequently Asked Questions

Can this machine make standing seam roof for clamp-on solar mounts?

Yes. Standing seam profile is one of our standard options. The seam size can be customized to match common non-penetrating solar clamps widely used in Europe, USA, Australia and Southeast Asia.

Is it possible to change roof profile on the same machine?

Yes. With quick-change roller sets, you can produce different solar-compatible roof panels. If you often switch many profiles, we recommend our automatic quick-change roll forming line.

What documents do I need to send for quotation?

Please share your target roof profile drawing, material thickness, coil width and required production capacity. Our engineering team will check the design and send you a detailed quotation and layout.

Conclusion

If you run a metal roof factory or supply roof panels for solar EPC companies, this metal roof solar mounting metal roofing panel rolling machine helps you produce high-quality, solar-ready metal roof sheets at stable output. It reduces fitting issues between roof panels and solar mounting hardware and improves your competitiveness in the renewable rooftop market.
