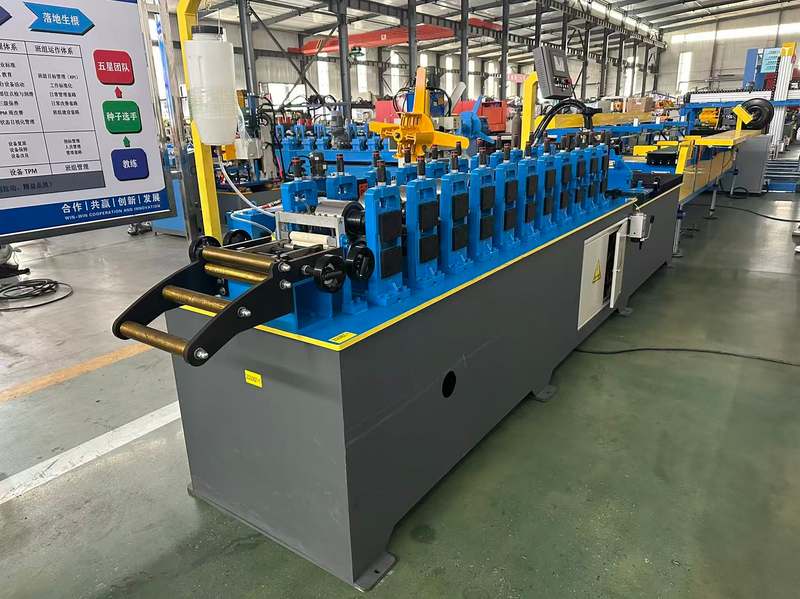

The C-shaped keel forming machine is a specialized industrial equipment that processes metal coils (such as galvanized sheets, cold-rolled sheets, and aluminum plates) into standardized or customized C-shaped keel profiles through continuous rolling forming technology, based on the principle of metal plastic deformation. Its core workflow is clear and efficient: First, metal coils are fixed on the material placement rack and precisely conveyed to the forming machine via an automatic feeding device. Inside the machine, multiple sets of precision rollers progressively roll, bend, and shape the metal materials according to the preset C-shaped cross-section contour, gradually forming a C-shaped keel prototype that meets specifications. Subsequently, a high-precision fixed-length cutting system accurately cuts the continuously formed keels to the required length as per customer specifications. Finally, after leveling and optional punching processes, the finished products are automatically discharged. The entire process requires minimal manual intervention, achieving efficient and standardized production of C-shaped keels through precise mechanical coordination and intelligent control system regulation.

Trend of technology development

Intelligent and Digital Upgrades: Intelligence is the core development direction of C-type keel forming machines. By integrating industrial internet, IoT sensors, and AI algorithms, the equipment enables real-time monitoring of production processes (such as data collection of roller pressure, material thickness, and finished product dimensions), fault warnings, and automatic debugging. The digital control system allows cloud storage and remote access of production parameters, facilitating multi-device collaboration and global production scheduling for customers. Additionally, visual operation interfaces and multilingual support have become essential features for exported equipment, enhancing operational convenience for international clients.

Energy Efficiency, Environmental Protection, and Green Manufacturing: As global environmental regulations grow stricter, green production has become a key competitive advantage for manufacturers. The C-type keel forming machine achieves energy-saving and eco-friendly upgrades through three key approaches: First, it employs energy-efficient motors and variable frequency drive systems to reduce operational energy consumption by 15%-30% compared to traditional equipment. Second, it optimizes production processes to minimize material waste and enhance raw material utilization. Third, it uses environmentally friendly lubricants and a closed production structure to reduce pollutant emissions, meeting the environmental compliance standards of markets such as Europe, America, Japan, and South Korea.

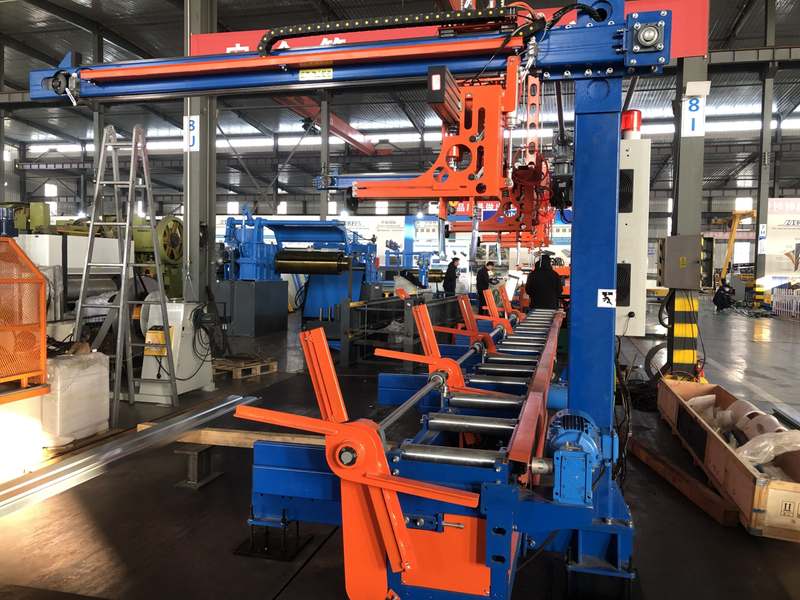

Multifunctional Integration and Flexible Production: To meet diverse production requirements across multiple specifications and materials, the C-shaped keel forming machine is evolving toward multifunctional integration. Its modular design enables rapid switching between C-shaped, U-shaped, L-shaped, and other cross-sectional profiles, while integrating functions like punching, leveling, bending, and palletizing to reduce subsequent equipment investments for customers. Additionally, the application of flexible production technology allows precise adaptation to metal materials with varying thicknesses (0.5-3.0mm) and materials, significantly enhancing the equipment’s versatility and market adaptability. This meets the production needs of small and medium-sized customers for multiple product varieties and small batches.

Our Product Advantages

Product Features and Functions

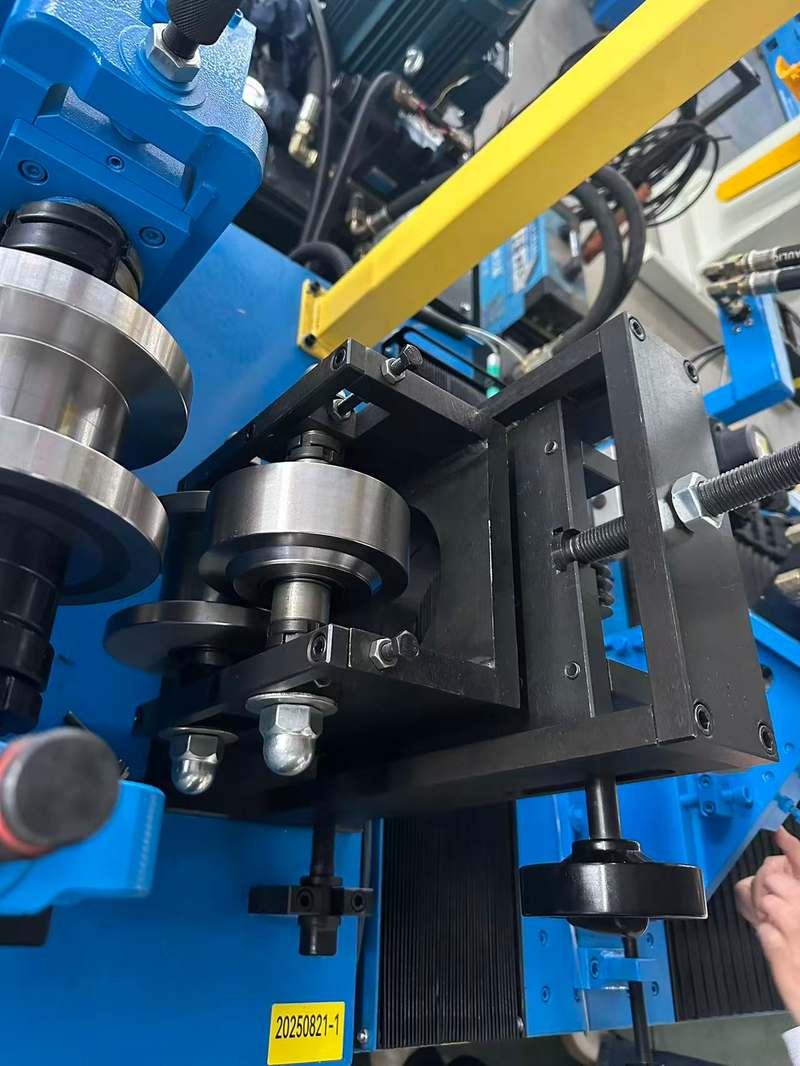

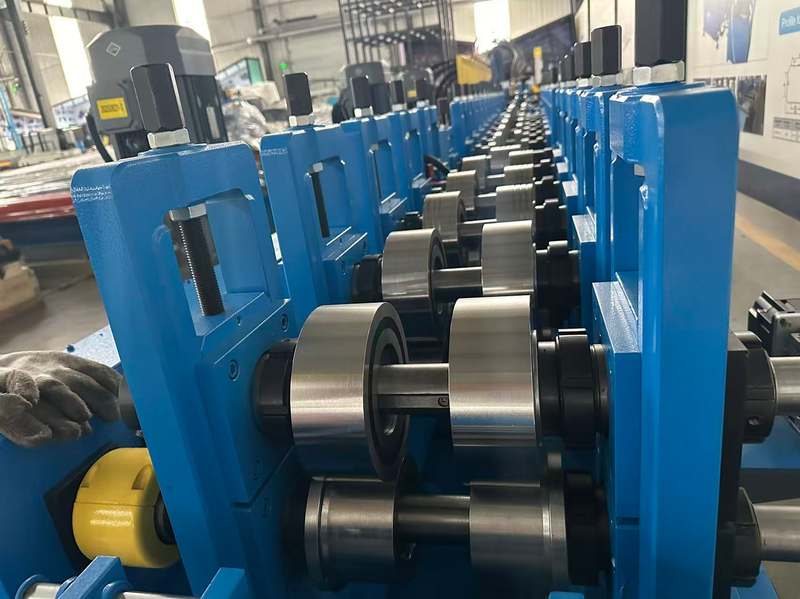

Our C-shaped keel forming machine demonstrates exceptional competitiveness in the global market through its precision, efficiency, and intelligent design. Key features include: High-precision forming: Utilizing imported precision roller molds and servo-driven systems, the rollers undergo heat treatment and precision grinding to achieve high hardness and wear resistance. This ensures dimensional accuracy of ≤±0.1mm for C-shaped keel cross-sections, with flawless surface flatness free from ripples or wrinkles, fully meeting stringent quality standards in markets like Europe, America, Japan, and South Korea. The rolling forming process is optimized for various materials (galvanized steel, cold-rolled steel, aluminum, stainless steel) to prevent material damage and deformation, thereby improving product yield.

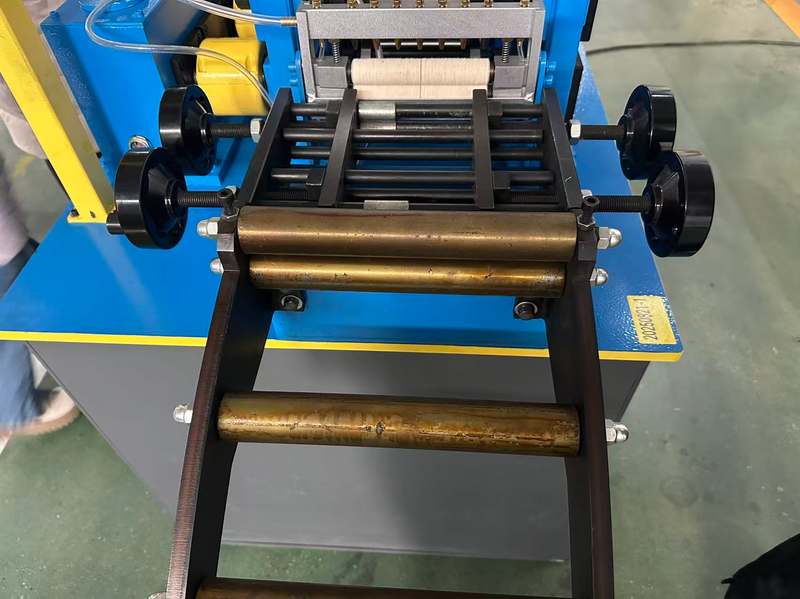

High-efficiency production: Featuring high-power energy-saving motors and an optimized transmission system, the fully automated model achieves high-speed forming at 1,500-3,000 meters per hour, exceeding the industry average by over 20%. The equipment employs an integrated welded frame with aging treatment to eliminate internal stresses, ensuring stable operation with minimal vibration and 24/7 continuous operation, significantly boosting production efficiency. Additionally, the automatic alignment device effectively prevents forming defects caused by material deviation, further ensuring production stability.

Versatile adaptability: Enables rapid production switching for various C-shaped keel specifications, with adjustable height (38mm-200mm) and thickness (0.5mm-3.0mm). Customizable cross-section dimensions are achievable through mold replacement. Optional automatic punching module supports precision processing of round/long round holes with ≤±0.2mm positional accuracy, meeting specialized installation requirements in shelving and steel structure applications.

Technological Innovation and Quality Assurance

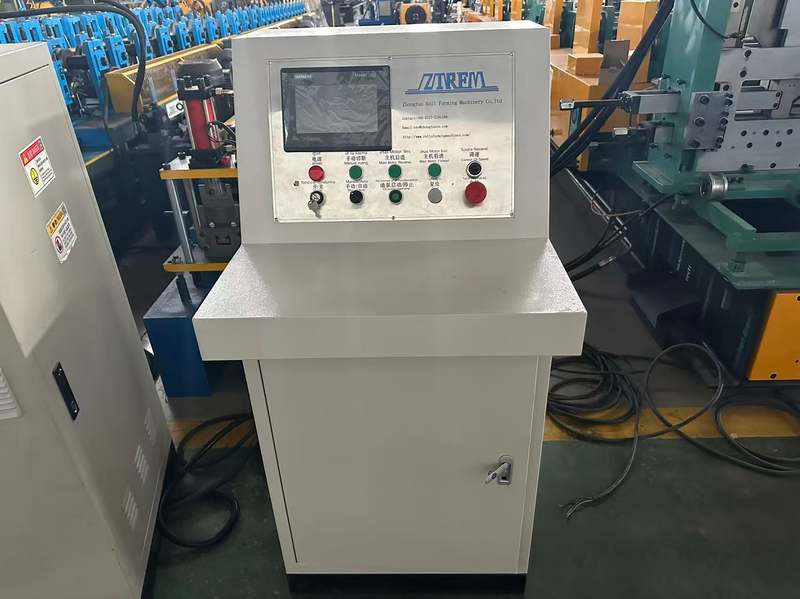

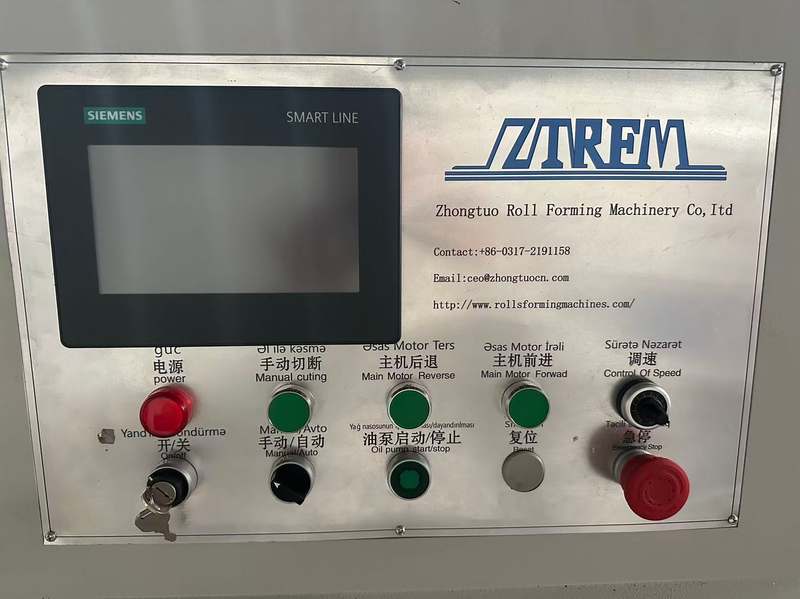

In technological innovation, we consistently benchmark against global industry leaders while ramping up R&D investments. Our core innovations include: 1) Intelligent control systems integrating PLC, touchscreen, and cloud data interaction, supporting multilingual operation (Chinese, English, Spanish, Arabic, etc.) with one-click production parameter settings, real-time data monitoring, and remote fault diagnosis; 2) Novel wear-resistant coating technology for rollers, tripling service life and reducing mold replacement costs; 3) Energy-efficient design featuring variable frequency drive and idle mode, achieving 25% reduction in overall energy consumption to align with global sustainability trends.

In terms of quality assurance, we have established a comprehensive quality control system covering the entire process from raw material procurement, production processing, finished product testing to factory acceptance. All raw materials are sourced from renowned domestic and international suppliers (such as Baosteel and POSCO), with material inspection reports provided. During production, each process is supervised by dedicated quality inspectors using precision equipment like laser diameter gauges and hardness testers for real-time monitoring. Finished products undergo rigorous testing for dimensional accuracy, surface quality, load-bearing performance, and other critical parameters before being released. Our products have obtained multiple international certifications including CE and ISO9001, fully complying with quality and safety standards in major markets such as the EU and North America. They have gained recognition from customers in numerous countries and regions.

Customized service capabilities

We recognize the diverse needs of clients across different countries and industries, offering comprehensive customized services that align with client requirements throughout the entire process—from equipment design to production and delivery. For specification customization, we can design forming machines tailored to special materials (e.g., stainless steel, high-strength aluminum alloy) and specific cross-sectional dimensions (such as oversized or miniature C-shaped frames). For functional customization, we can add modules like automatic punching, irregular bending, finished product palletizing, and surface coating as needed. For adaptability customization, we optimize the electrical system and structural design of the equipment to meet voltage standards (e.g., 110V,220V,380V), power frequency (50Hz/60Hz), and installation site conditions in different countries. Additionally, we provide mold customization services to help clients quickly respond to market-specific demands.
