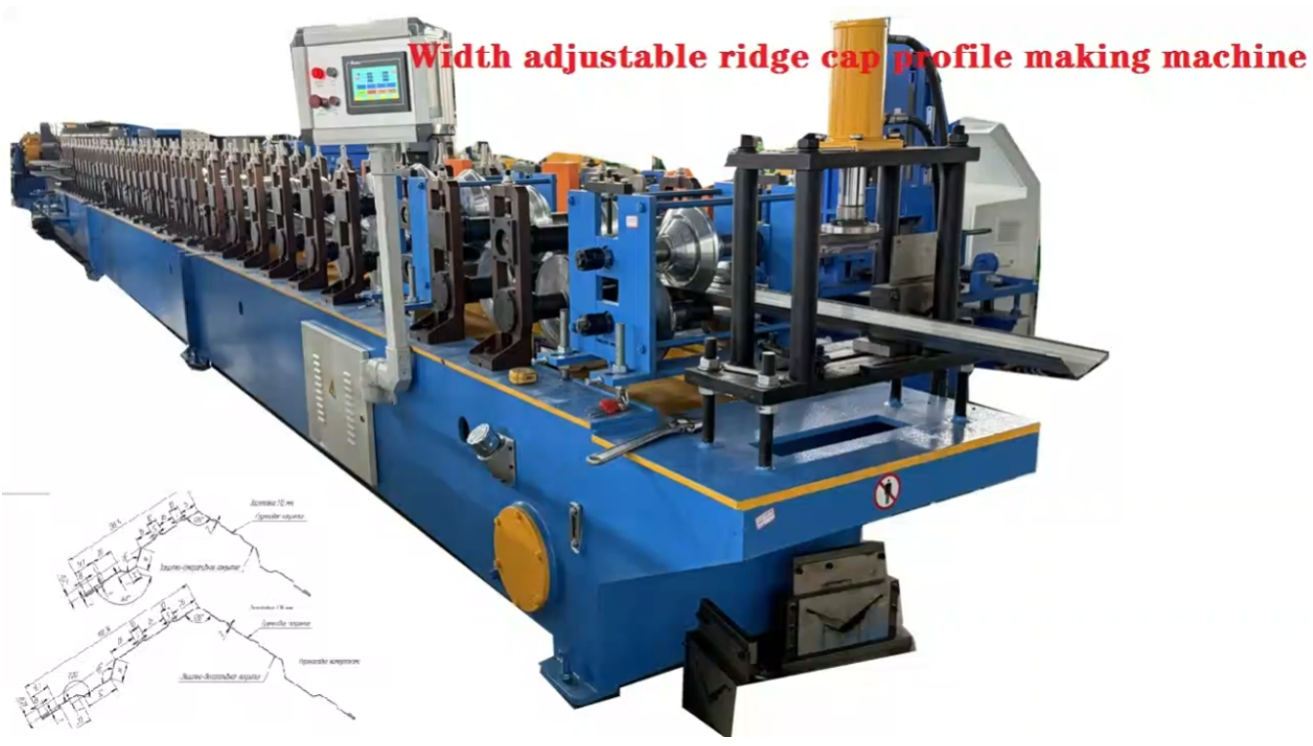

Ridge Cap Profile Making Machine

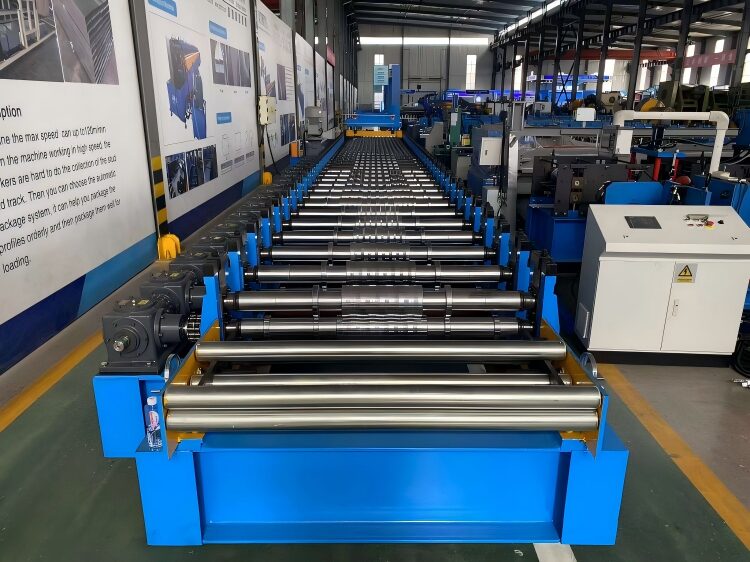

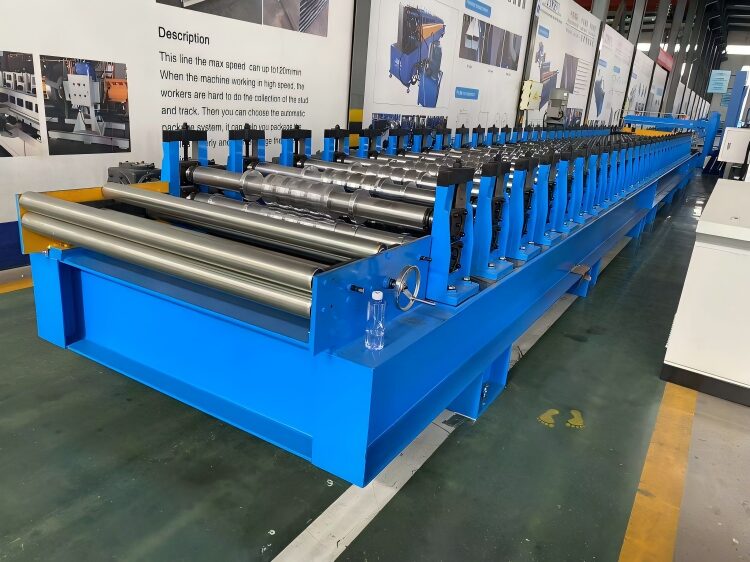

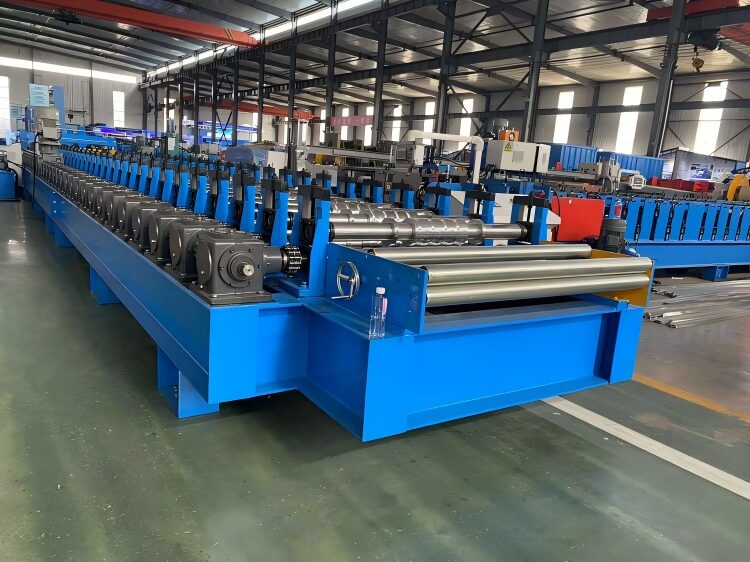

Wave roof tile forming machine is a professional metal roll forming equipment specially designed for producing standardized corrugated and wave-shaped roofing tiles. Widely applicable to color steel coils, galvanized steel coils, and aluminum coils, this machine automatically completes feeding, leveling, roll forming, hydraulic cutting, and discharging processes in one go. It is the core automated equipment for construction material factories, roofing panel manufacturers, and engineering suppliers to mass-produce high-quality wave roof tiles. With stable performance, flexible configuration, and low operation cost, our wave roof tile forming machine has become the preferred solution for global customers engaged in building material production and construction engineering projects.

Core Working Principle of Wave Roof Tile Forming Machine

The whole working process of the wave roof tile forming machine is fully automated and controlled by an intelligent PLC system, realizing unmanned continuous production. First, the raw material steel coil is fed into the equipment through the automatic feeding frame, and the leveling device corrects the flatness of the steel plate to eliminate bending and deformation of the raw material. Then, the steel plate passes through multiple groups of precision alloy rollers in sequence. Through gradual rolling and pressure shaping, the flat steel plate is precisely pressed into a standard wave arc structure with uniform wave height, pitch and radian.

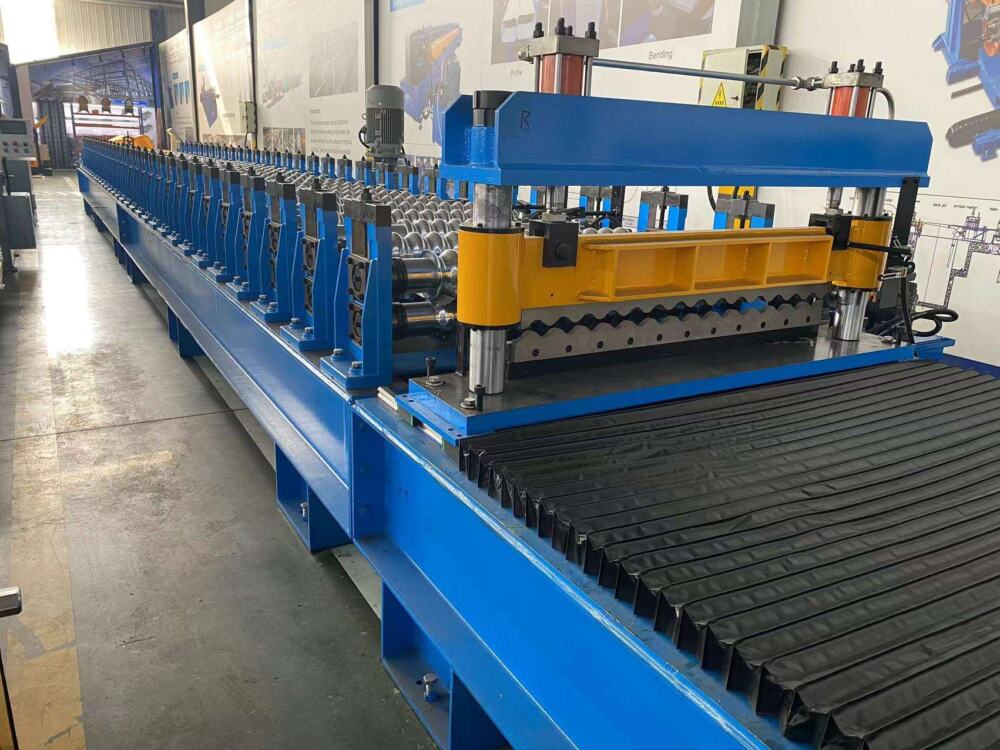

After the forming process is completed, the high-precision hydraulic cutting system automatically cuts the wave roof tiles according to the preset length. Finally, the finished products are discharged through the discharging platform. The whole production process runs smoothly without manual intervention, effectively avoiding product errors caused by human operation and ensuring the consistency of each batch of wave roof tiles. Compared with traditional manual or semi-automatic forming equipment, this integrated forming machine greatly improves production efficiency and product qualification rate.

Key Advantages of Our Wave Roof Tile Forming Machine

High Production Efficiency & Stable Output

Equipped with high-power driving motor and optimized roller arrangement structure, our wave roof tile forming machine supports a production speed of 15-20 meters per minute, realizing continuous mass production. The equipment runs stably for a long time with low failure rate, effectively meeting the large-order production demands of medium and large building material factories. While ensuring high output, it maintains stable forming accuracy, avoiding wave distortion, uneven size and other quality problems.

Precise Forming & Wide Material Adaptability

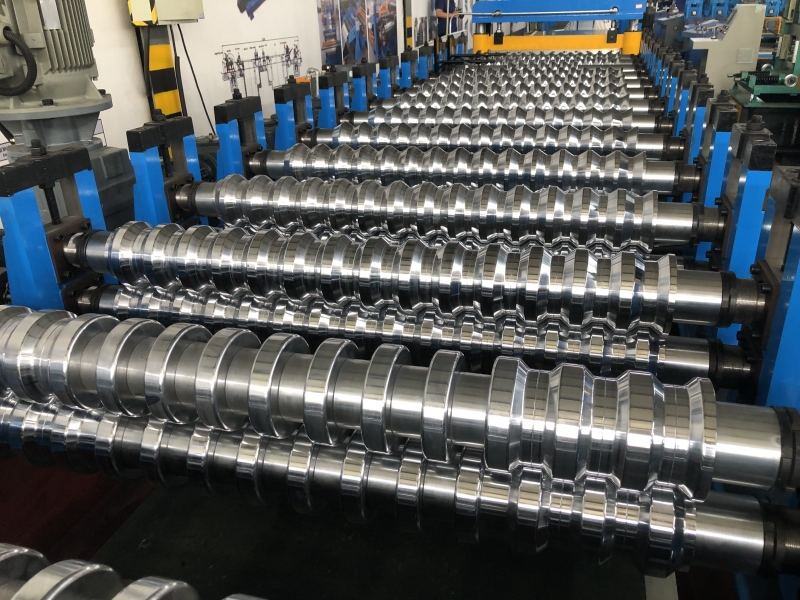

The equipment adopts customized high-hardness alloy rollers with anti-wear and anti-scratch treatment on the surface, which can perfectly shape various metal raw materials. It is compatible with color coated steel sheets, galvanized steel sheets, aluminum sheets and other common building materials, with applicable material thickness ranging from 0.2mm to 0.7mm and effective processing width covering 800mm-1250mm. The formed wave roof tiles have smooth surface, standard wave shape and good waterproof and wind resistance, fully meeting the construction standards of residential buildings, factories, warehouses and commercial buildings in various countries.

Intelligent Control & Easy Operation

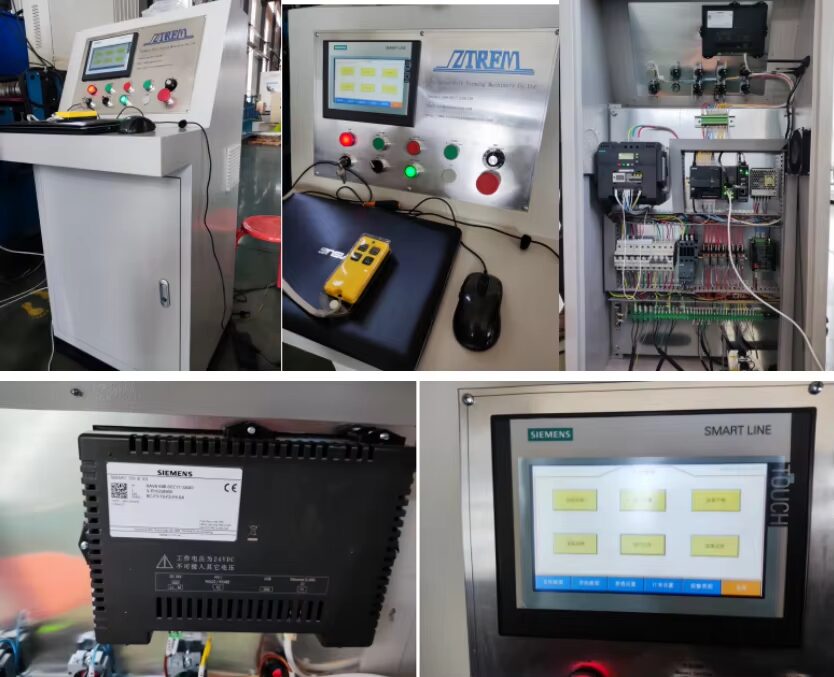

Adopting mature PLC intelligent control system, the machine supports parameter presetting, digital length setting and automatic error alarm. Operators only need to set the production parameters such as tile length and production quantity on the touch screen, and the equipment can run automatically. The operation interface is simple and intuitive, with low technical threshold, which can quickly adapt to workers of different proficiency levels. In addition, the system has automatic counting and shutdown protection functions, effectively reducing material waste and equipment loss.

Durable Structure & Low Maintenance Cost

The whole machine adopts thickened steel plate welding frame, with strong rigidity and no deformation after long-term operation. Key components such as rollers and bearings are made of high-quality wear-resistant materials, with long service life. The equipment has a modular integrated structure, which is convenient for daily maintenance and parts replacement. It effectively reduces later operation and maintenance costs, and improves the overall return on investment of the production line, which is very suitable for long-term continuous production of factories.

Main Technical Parameters

To help global customers accurately select equipment, we have sorted out the core technical parameters of the standard wave roof tile forming machine, supporting personalized customization according to customer production needs:

Applicable raw materials: color steel coil, galvanized steel coil, aluminum coil

Material thickness: 0.2mm – 0.7mm

Effective processing width: 800mm – 1250mm (customizable)

Production speed: 15 – 20m/min

Control system: PLC full automatic control + touch screen operation

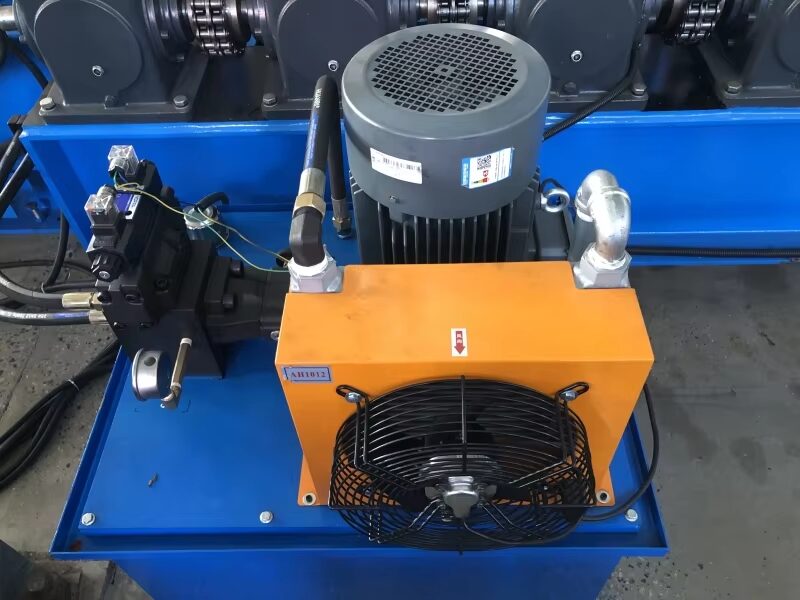

Cutting mode: hydraulic automatic cutting

Forming precision: error ≤ ±1mm

Total power: 7.5KW – 11KW (standard model)

Equipment weight: about 2.8T – 3.5T

광범위한 애플리케이션 시나리오

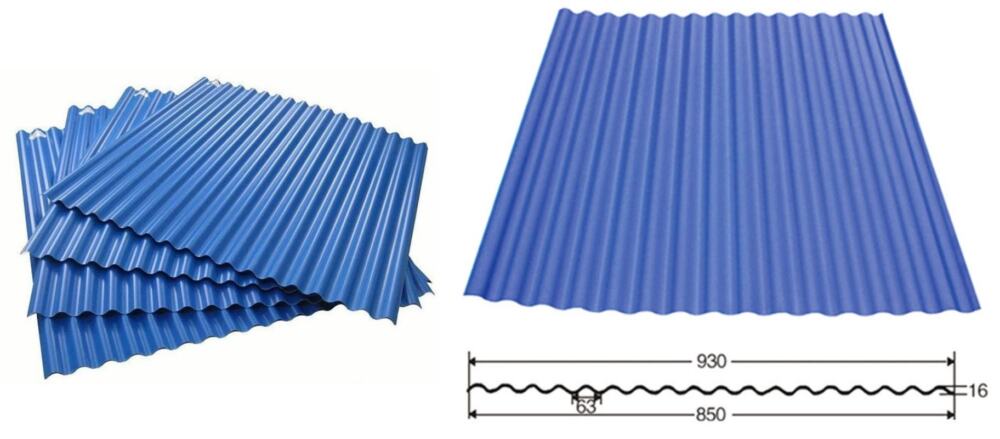

The wave roof tiles produced by our forming machine have excellent waterproof, heat insulation, wind resistance and corrosion resistance, and are widely used in various construction scenarios around the world. They are the ideal roofing materials for industrial factories, logistics warehouses, rural self-built houses, urban residential buildings, stadiums, exhibition halls and temporary construction facilities. At the same time, the equipment is suitable for building material processing factories, metal sheet processing enterprises and engineering supporting companies to carry out standardized and large-scale production, and has high market adaptability in Southeast Asia, Africa, South America, the Middle East and other emerging construction markets.

Why Choose Our Wave Roof Tile Forming Machine?

As a professional manufacturer of roll forming equipment with years of export experience, we always focus on providing high-quality and cost-effective forming solutions for global customers. All our wave roof tile forming machines have passed international quality certification, with stable quality and compliant performance, meeting the import standards of most countries and regions.

We support customized equipment according to customers’ local building standards, raw material specifications and production requirements, including wave shape adjustment, size optimization, and functional configuration upgrading. In terms of after-sales service, we provide full-process support including factory inspection, equipment debugging, operation training, remote technical guidance and overseas door-to-door maintenance services. We also complete export documents efficiently to ensure smooth customs clearance for customers’ orders.

Final Words

With the continuous development of the global construction industry, the market demand for standardized, high-strength and durable wave roof tiles is increasing day by day. A high-efficiency and stable wave roof tile forming machine is the key for building material enterprises to improve product competitiveness and expand market share. Our equipment has won wide recognition from global customers for its precise forming, stable operation, low energy consumption and perfect after-sales service system.

If you are looking for a reliable wave roof tile forming machine manufacturer, welcome to contact us for free equipment parameter consultation, customized scheme design and factory price quotation. We will provide you with the most professional roll forming production solution to help your business create greater value.
