The high-quality C-beam forming machine is a fully automated, high-precision equipment specifically designed for processing C-beams (the core category of cold-formed thin-walled steel sections). Widely used in cold bending of metal sheets such as color-coated steel, galvanized steel, and aluminum, it produces both standardized and customized C-beam profiles. As a core processing equipment in steel structure construction, warehousing logistics, and bridge scaffolding, this machine plays a pivotal role. With the global steel structure industry advancing toward lightweight, efficient, and eco-friendly designs, C-beams have become the preferred choice for construction due to their lightweight, high load-bearing capacity, easy installation, and recyclability. The high-quality C-beam forming machine serves as the key support for efficient and precise C-beam production, helping export-oriented enterprises enhance product competitiveness and capture global market share.

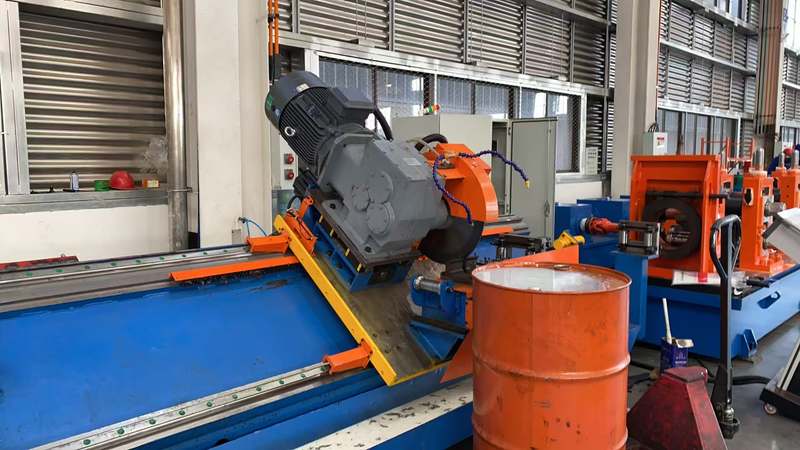

The system operates on cold bending technology, utilizing precision-arranged rolling rolls to continuously shape metal coils. Without high-temperature heating, it transforms flat metal sheets into standardized C-shaped profiles through fully automated assembly lines. The production line integrates an automatic uncoiler, leveling device, precision forming unit, CNC cutting machine, and optional punching system, creating a seamless workflow from raw material input to finished product output. The process begins with the uncoiler evenly unrolling the metal coil to prevent wrinkles. The leveling device then precisely adjusts sheet flatness, ensuring no warping or deformation during shaping. The metal sheet enters the core forming unit where multiple rolls progressively create the C-shaped profile while simultaneously performing optional punching and cutting. The CNC cutting machine then precisely cuts the material to preset lengths (with ±1mm tolerance), producing ready-to-install C-shaped steel products. This cold bending process preserves the metal’s inherent strength while achieving high-precision, high-efficiency production with minimal manual intervention, perfectly suited for mass export manufacturing.

Core Features of High Quality C Steel Forming Machine

High precision in forming, with profile quality meeting international standards

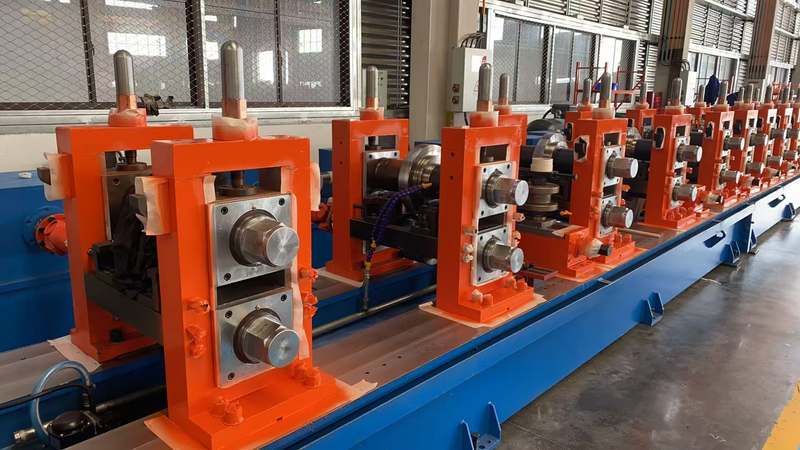

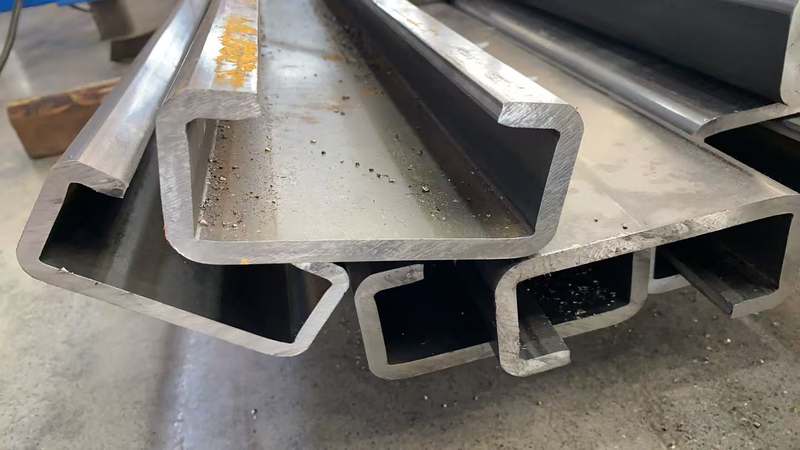

As a core equipment for foreign trade exports, forming precision directly determines product competitiveness and represents the key advantage of high-quality C-beam forming machines. The equipment employs imported CNC machining equipment to customize rolls, with surfaces treated through high-frequency quenching and precision grinding, achieving hardness of HRC60-62. These rolls exhibit exceptional wear resistance and dimensional accuracy, with roll spacing errors controlled within ±0.02mm. Equipped with servo positioning systems and PLC control systems, the entire forming process is monitored in real-time to precisely adjust forming force, speed, and spacing. This ensures the resulting C-beams have regular cross-sections, uniform dimensions, vertical flanges, and flat webs without scratches or wrinkles, with cross-sectional dimensional errors ≤±0.5mm. Fully compliant with international standards such as ISO and CE, these products can be directly exported to multiple countries and regions including Europe, America, Southeast Asia, and the Middle East. They meet local construction requirements without secondary processing, significantly improving the qualification rate of export products.

Full automation in mass production doubles efficiency while cutting costs.

To meet the bulk order demands of foreign trade enterprises, high-quality C-shaped steel forming machines employ fully automated control systems that enable unmanned continuous production. This significantly boosts production efficiency, reduces labor costs, and helps companies shorten order delivery cycles. The equipment features a touchscreen interface, allowing operators to input parameters such as profile specifications, production speed, cutting length, and punching positions to initiate full automation of the production line, eliminating manual intervention in core processes like forming, cutting, and punching. Taking a foreign trade building materials company as an example: Before adopting the high-quality C-shaped steel forming machine, the company used semi-automatic equipment requiring 2-3 operators with a daily output of only 500-600 meters. After implementing this equipment, just one operator is needed to monitor operations, achieving a daily output of 1,500-2,000 meters with a production efficiency increase of over 200%. Simultaneously, it reduces material waste caused by human operational errors, improving raw material utilization from 88% to 99%, substantially lowering production costs, and helping foreign trade enterprises gain a competitive edge in price wars.To meet the bulk order demands of foreign trade enterprises, high-quality C-shaped steel forming machines employ fully automated control systems that enable unmanned continuous production. This significantly boosts production efficiency, reduces labor costs, and helps companies shorten order delivery cycles. The equipment features a touchscreen interface, allowing operators to input parameters such as profile specifications, production speed, cutting length, and punching positions to initiate full automation of the production line, eliminating manual intervention in core processes like forming, cutting, and punching. Taking a foreign trade building materials company as an example: Before adopting the high-quality C-shaped steel forming machine, the company used semi-automatic equipment requiring 2-3 operators with a daily output of only 500-600 meters. After implementing this equipment, just one operator is needed to monitor operations, achieving a daily output of 1,500-2,000 meters with a production efficiency increase of over 200%. Simultaneously, it reduces material waste caused by human operational errors, improving raw material utilization from 88% to 99%, substantially lowering production costs, and helping foreign trade enterprises gain a competitive edge in price wars.

Extremely adaptable, supports multi-specification customization

Global construction standards and manufacturing requirements vary across countries and regions. High-quality C-beam forming machines demonstrate exceptional adaptability, meeting the diverse and customized needs of international clients. The equipment processes various metal sheet materials, including color-coated steel (0.3-1.0mm thickness), galvanized steel (0.5-1.2mm thickness), and aluminum (0.6-1.5mm thickness) – all common profile materials. The machine allows flexible customization of C-beam specifications, with flange width, web height, and profile thickness adjustable according to client orders (standard specifications: flange 50-200mm, web 100-400mm, thickness 0.5-1.5mm), accommodating different load-bearing requirements. Additionally, the machine can be equipped with optional punching and bending devices to achieve integrated C-beam processing. This eliminates the need for additional processing equipment, enabling both standard production and specialized international orders, thereby enhancing corporate order acceptance capabilities.
