In the global wave of industrialization and infrastructure construction, steel structures have become the core choice for modern architecture, warehousing, and energy projects due to their high strength, light weight, and cost-effectiveness. As a key equipment in steel structure processing, the C steel forming machine plays an irreplaceable role in realizing efficient, precise, and standardized production of C-shaped steel purlins. Our C steel forming machine, integrating advanced technology, stable performance, and humanized design, is dedicated to providing global customers with high-quality solutions for steel processing, helping you gain an edge in the fiercely competitive market.

What Is a C Steel Forming Machine?

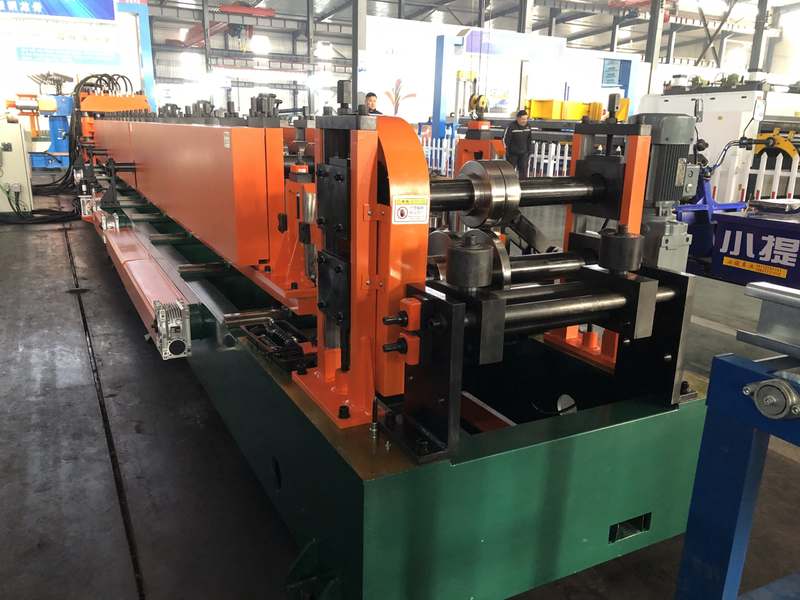

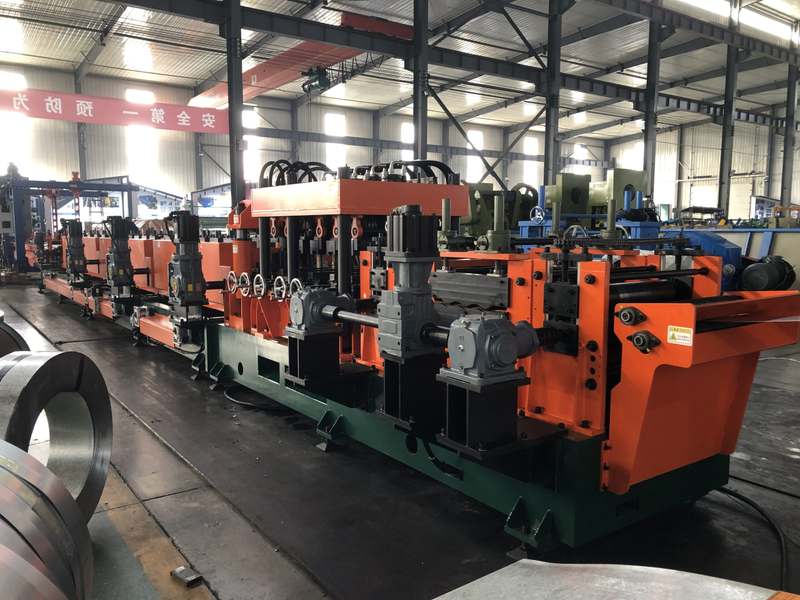

A C steel forming machine is a specialized cold roll forming equipment designed to convert hot-rolled or cold-rolled steel coils into high-precision C-shaped steel profiles through continuous roller pressing technology. Unlike traditional hot forming processes, our cold roll forming technology ensures no damage to the steel material’s internal structure, maintaining its original strength and corrosion resistance while achieving precise section shaping. The whole machine integrates uncoiling, leveling, punching, forming, and cutting functions, realizing one-stop automatic production from raw materials to finished products, which greatly improves production efficiency and reduces labor costs.

Core Advantages: Why Choose Our C Steel Forming Machine?

We adhere to the concept of “technology-driven, quality first” and continuously optimize the performance of our C steel forming machine, making it stand out in the global market with the following core advantages:

High Precision & Stable Performance

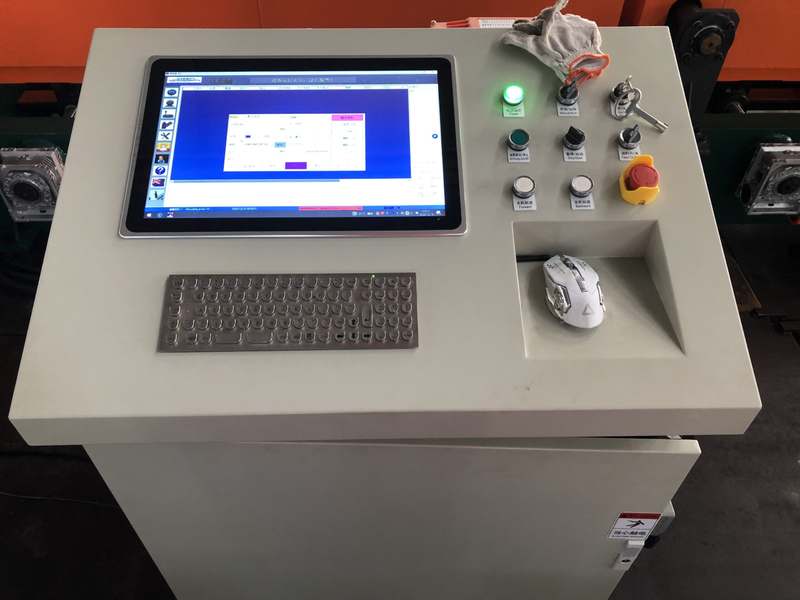

Equipped with a PLC control system and touch screen operation, the machine can accurately set production parameters such as profile size, length, and punching position, with an error control within ±0.5mm, meeting the strict precision requirements of international steel structure projects. The rollers are made of high-quality GCR15 bearing steel, processed by CNC lathes and heat treatment, ensuring high wear resistance and long service life. The main shaft, with a diameter of φ90mm, is precision machined to avoid uneven height caused by shaft breakage, ensuring stable operation even during long-term continuous production.

Efficient Production & Cost Saving

The machine adopts a continuous automatic operation mode, with a forming speed of 10-25 meters per minute (adjustable according to material thickness), which is 3-5 times higher than traditional bending and welding processes. A single machine only needs 1-2 operators to monitor the whole production process, significantly reducing labor costs. In addition, the cold roll forming process produces no edge trimming waste, and the intelligent fixed-length cutting function improves the steel utilization rate to over 95%, reducing material loss by more than 20% compared with traditional processing methods.

Flexible Customization & Easy Operation

Our C steel forming machine supports flexible customization of product specifications, capable of processing steel coils with a thickness of 1.2-3.5mm and a width of 60-350mm, and can quickly switch between different models by replacing rollers or adjusting spacers without changing cutters, with a model change time controlled within 30 minutes. The operation interface is available in multiple languages such as English, Spanish, and Arabic, and the parameter setting is simple and intuitive, allowing operators to get started quickly without professional training.

Energy Conservation & Environmental Protection

Adopting advanced servo motor drive system, the machine’s energy consumption is 30% lower than that of traditional hydraulic systems, which not only saves energy costs but also meets the global environmental protection requirements. The whole production process is free of noise, smoke, and waste water, realizing green and clean production, and complying with the environmental protection standards of EU, Southeast Asia, and other regions.

광범위한 애플리케이션 시나리오

The C-shaped steel produced by our machine has the characteristics of reasonable section shape, strong bearing capacity, and light weight, and is widely used in various fields around the world:

Steel structure buildings: Used as purlins, wall beams, and brackets for industrial workshops, warehouses, gymnasiums, exhibition halls, and prefabricated houses, adapting to the trend of global prefabricated building development.

Energy projects: Applied to solar bracket production and wind power tower internal supports, meeting the growing demand of the global new energy industry (the demand for C steel in the new energy field is expected to grow at an annual rate of 15%).

Logistics and warehousing: Used to produce shelves, container skeletons, and automated warehouse supports, adapting to the rapid development of global e-commerce logistics.

Other fields: Also applicable to agricultural greenhouses, breeding fences, traffic facilities, and municipal engineering, providing versatile solutions for various industrial and civil projects.
