In the global steel structure manufacturing industry, C-shaped and Z-shaped steels are two core components widely used in various projects due to their complementary advantages. C steel is favored for its simple structure and strong load-bearing capacity, while Z steel stands out with its symmetrical design and space-saving features. However, purchasing separate C steel and Z steel forming machines not only increases equipment investment but also takes up large factory space and causes cumbersome production switching. Our CZ Steel Integrated Forming Machine, integrating C and Z two-profile forming functions in one, breaks the limitations of single-machine single-function, providing global customers with efficient, cost-saving, and flexible steel processing solutions, helping you gain a competitive edge in the global market.

What Is a CZ Steel Integrated Forming Machine?

A CZ Steel Integrated Forming Machine is a high-performance automatic cold roll forming equipment specially designed for the continuous production of high-precision C-shaped and Z-shaped steel profiles. It integrates multiple functions such as uncoiling, leveling, punching, dual-profile forming, and fixed-length cutting into one, realizing one-stop automatic production from raw steel coils to finished C/Z steel products. Different from separate C or Z steel forming machines, our CZ integrated machine adopts a modular and integrated structural design, which can quickly switch between C and Z profiles without replacing the whole set of rollers, greatly improving production flexibility and adaptability. The cold roll forming technology adopted does not damage the internal structure of the steel material, maintaining its original strength, corrosion resistance, and flatness, fully meeting the strict requirements of international steel structure projects for profile quality.

Core Advantages: Why Choose Our CZ Steel Integrated Forming Machine?

Adhering to the concept of “precision manufacturing, customer-oriented”, we combine years of experience in cold roll forming equipment R&D and production to create a CZ Steel Integrated Forming Machine with outstanding performance. It stands out in the global market with the following core advantages, solving the pain points of traditional single-profile forming equipment:

2-in-1 Integrated Design, Cost & Space Saving

The machine integrates C and Z two-profile forming functions, which is equivalent to having two sets of single-profile forming equipment at one time, saving 40%-50% of equipment investment cost compared with purchasing separate C steel and Z steel forming machines. At the same time, the integrated structure greatly reduces the floor space, only 65% of the total area of two separate machines, which is especially suitable for factories with limited space. In addition, the integrated design reduces the number of equipment installation and daily maintenance, saving maintenance costs and labor input.

Rapid Profile Switching, High Production Efficiency

Adopting intelligent one-key profile switching technology, the machine can complete the conversion between C and Z profiles within 15-25 minutes, without disassembling and replacing the whole set of rollers, which is 3-4 times faster than traditional separate equipment. Equipped with a high-power servo motor drive system, the forming speed can reach 12-30 meters per minute (adjustable according to material thickness), and the continuous automatic operation mode ensures that the production efficiency is increased by more than 50% compared with single-function equipment. The whole production process only requires 1-2 operators to monitor, significantly reducing labor costs and improving production efficiency comprehensively.

High Precision Forming, Consistent Product Quality

Equipped with a high-performance PLC control system (Siemens optional) and touch screen operation interface, the machine can accurately set key parameters such as C/Z steel profile size, length, punching position, and forming speed, with a forming error controlled within ±0.3mm, which is higher than the international standard. The forming rollers are made of high-quality GCR15 bearing steel, processed by CNC precision lathe and high-temperature heat treatment, featuring high wear resistance and impact resistance. The unique roller design ensures that both C and Z steel profiles have a smooth surface, uniform thickness, and no deformation, with a product qualification rate of over 99%, effectively reducing material waste and production costs.

Flexible Customization, Wide Adaptability

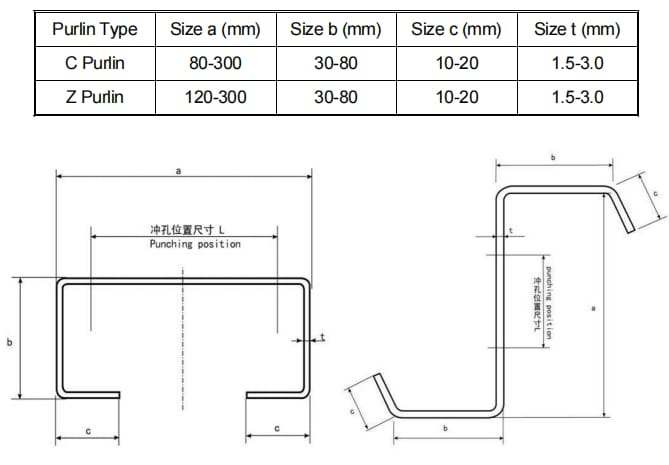

Our CZ Steel Integrated Forming Machine supports flexible customization of product specifications, capable of processing hot-rolled or cold-rolled steel coils with a thickness of 1.0-3.5mm and a width of 50-320mm, and can produce C and Z steel profiles of different sizes according to customer needs. It is suitable for processing various steel materials, including cold-rolled plates, galvanized plates, color-coated plates, and hot-rolled black steel strips, with a maximum yield strength of 550MPa. The punching function supports arbitrary punching at the bottom, waist, and flange of the profiles, and the punching mold can be quickly replaced to meet the diverse processing needs of different projects. The operation interface supports multiple languages such as English, Spanish, Arabic, and Russian, making it easy for operators from different countries to get started quickly.

Stable Operation, Long Service Life & Global Compliance

The machine adopts a heavy-duty frame structure, which is processed by integral welding and stress relief treatment, ensuring high rigidity and stability, and avoiding vibration and deformation during long-term continuous operation. Key electrical components such as contactors and sensors are imported from Schneider and Siemens, featuring low failure rate and long service life. The fully automatic lubrication system can timely lubricate key parts such as rollers and main shafts, reducing wear and extending the service life of the machine by more than 30% compared with ordinary forming machines. In addition, the machine adopts an advanced servo motor drive system, reducing energy consumption by 35% compared with traditional hydraulic-driven equipment, realizing green and clean production, and complying with the environmental protection standards of the EU, Southeast Asia, Africa, and other regions. It has passed CE, GOST, and other international certifications, ensuring smooth entry into the global market.
