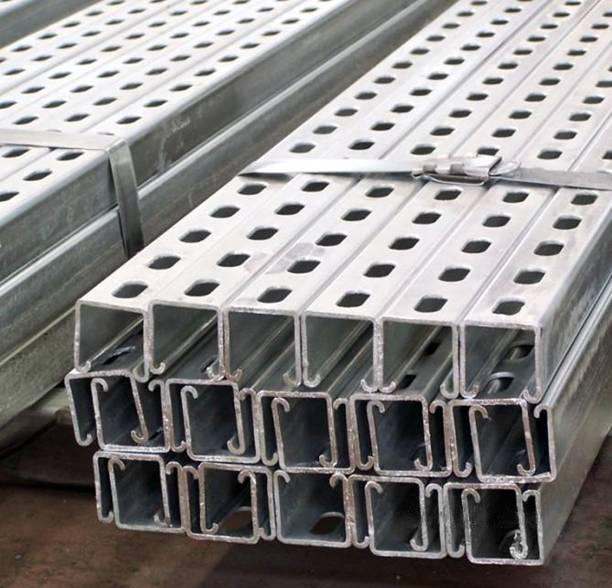

As the global photovoltaic new energy industry continues to expand steadily, the market demand for standardized, high-strength, and corrosion-resistant solar mounting structures is increasing year by year. Our solar PV bracket forming machine is a professional full-automatic roll forming solution specially developed for solar panel support, photovoltaic ground bracket, roof solar fixture, and photovoltaic stenting mass production. Adopting heavy-duty industrial cold roll forming technology, the whole line can process hot-dip galvanized steel coils, aluminum-zinc coated steel strips, and aluminum alloy strips into C-type solar brackets, U-type photovoltaic supports, Z-type purlins, and customized special-shaped mounting accessories in one continuous process. The equipment is fully compliant with international photovoltaic engineering safety standards and energy industry specifications, and is the preferred core production equipment for new energy hardware factories, photovoltaic supporting component manufacturers, and large solar EPC supporting enterprises worldwide.

Core Technical Strength & Product Highlights for Solar Energy Projects

Different from ordinary light profile forming equipment, our photovoltaic bracket roll forming machine is fully upgraded for outdoor harsh installation environments, large-scale outdoor power station supporting production, and long-duration uninterrupted factory operation, focusing on high load resistance, high dimensional accuracy and strong environmental adaptability:

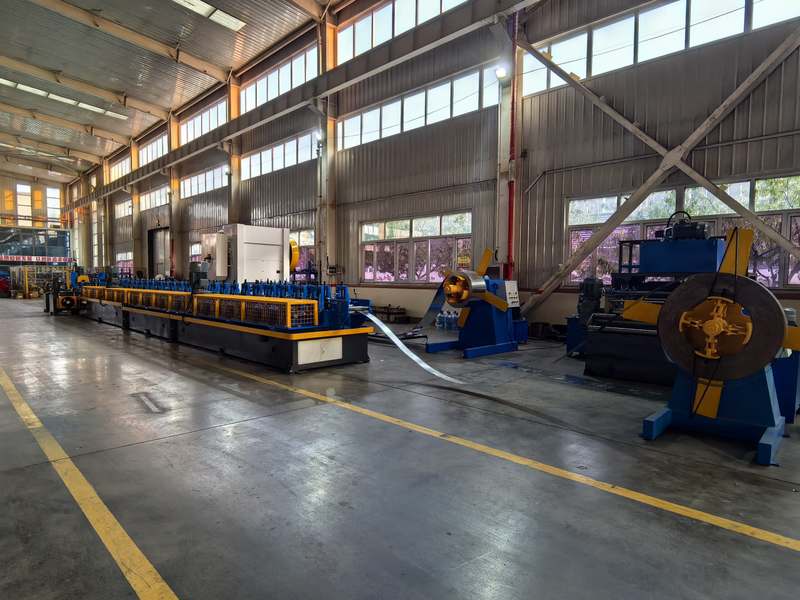

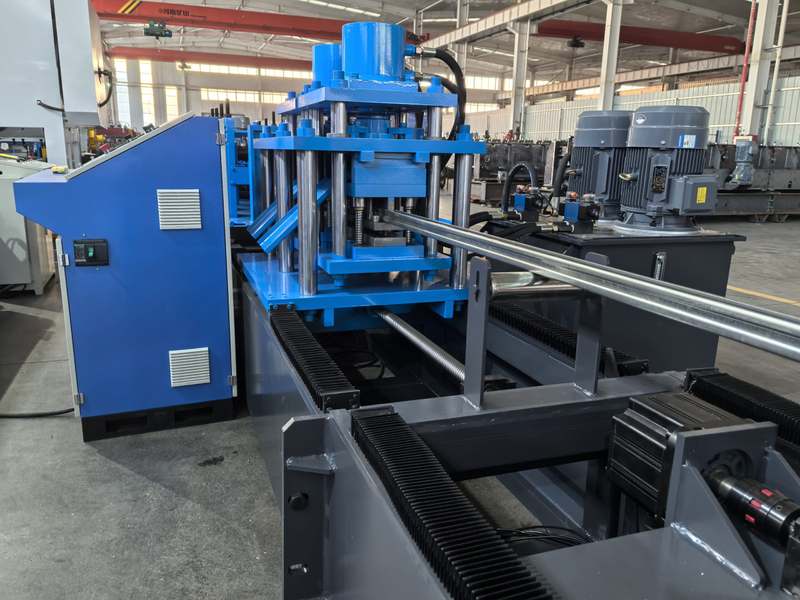

Integrated One-Pass Forming, High Mass Production Capacity: The production line integrates automatic hydraulic decoiling, material leveling, high-precision servo feeding, multi-station rolling forming, integrated hydraulic punching, coding, and fixed-length cutting and automatic discharging. The whole process is fully automated without manual intervention. The running speed can be adjusted according to the order volume, continuous 24-hour non-stop stable operation is supported, which greatly improves the daily output of photovoltaic brackets, fully meets the large-scale material supply cycle requirements of desert photovoltaic power stations, distributed rooftop solar projects, and industrial park centralized power generation projects.

Military-Grade Dimensional Accuracy, Perfect On-Site Project Installation: Equipped with industrial-grade PLC intelligent centralized control system and imported closed-loop servo synchronization system, the hole pitch, bending angle, section width and height of finished solar brackets are controlled within ultra-narrow international tolerance range. The formed brackets have smooth surface, no burr deformation, uniform stress and strong overall bearing capacity. All finished profiles can be directly matched with standard photovoltaic modules and fasteners without secondary correction, cutting and rework, effectively reducing the on-site construction and installation difficulty of global photovoltaic engineering teams.

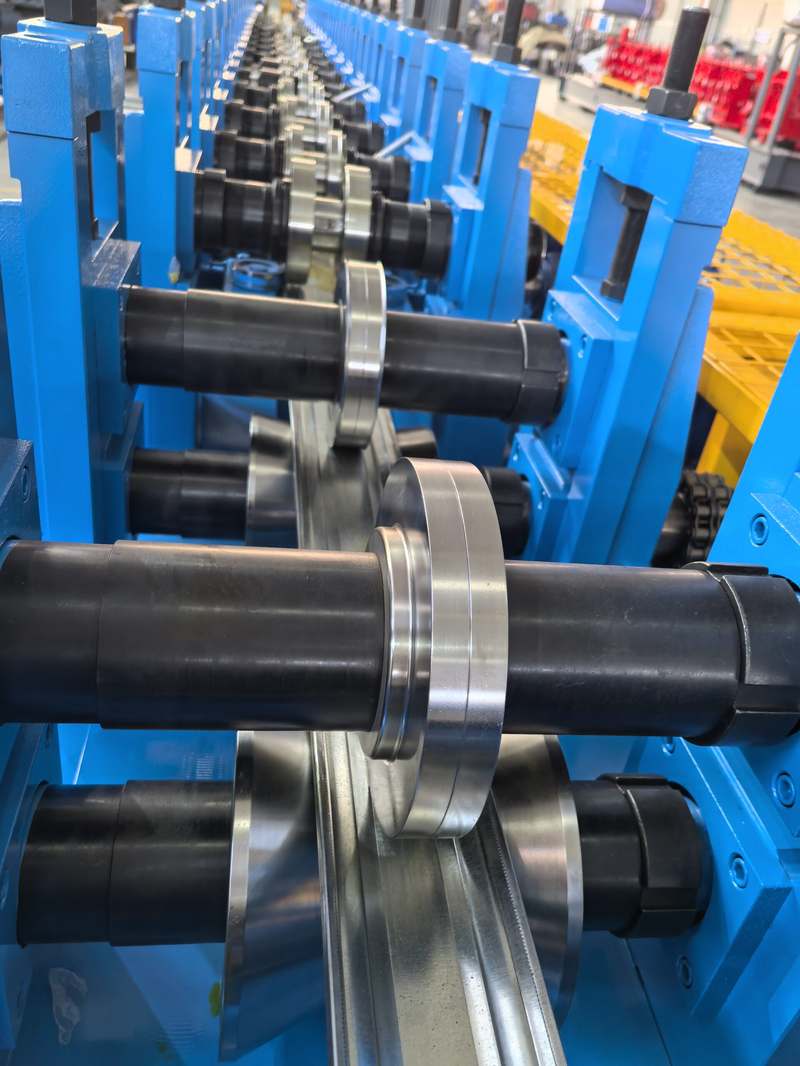

Reinforced Heavy-Duty Body, Adapt to Complex Production Conditions: The main frame of the equipment adopts integral cast steel structure and extra-thick steel plate integral welding, with secondary stress relief anti-deformation treatment. The forming rollers are made of high-chromium high-hardness alloy steel, with vacuum quenching anti-wear and anti-corrosion special surface coating. It can stably operate for a long time in high-temperature, high-humidity, coastal salt spray, dusty and other harsh factory environments in overseas new energy bases, with extremely low failure rate and super long service life, avoiding frequent shutdown maintenance affecting photovoltaic component delivery cycles.

Multi-Specification Flexible Switching, Cover Full PV Bracket Series: The equipment supports rapid mold-free adjustment and quick specification switching, and can efficiently produce all mainstream conventional photovoltaic supporting profiles in the global market: ground solar main support bracket, roof inclined photovoltaic fixture bracket, solar panel side pressure block, photovoltaic purlin connector, anti-wind and anti-seismic reinforced special-shaped bracket, etc. It can also customize exclusive roll forming molds according to the special wind resistance, snow resistance and load-bearing design standards of local photovoltaic power stations in different countries, realizing one machine for multiple purposes and greatly saving customers’ multi-equipment procurement and workshop site costs.

Energy-Saving Intelligent Control & Low Threshold Operation Management: Equipped with full set of energy-saving variable frequency drive motor system, compared with traditional old-fashioned forming equipment, the comprehensive power consumption is reduced by nearly 20%, which effectively reduces the daily production operating cost of the factory. The human-machine touch console supports one-click switching of multiple languages such as English, Spanish, Arabic, Russian and French. It is equipped with visual fault automatic alarm and one-click reset function. Ordinary workers can independently complete feeding, parameter setting, production operation and daily maintenance after simple training, only 1-2 people can manage the whole production line, saving a lot of local labor and technical management costs for overseas enterprises.

Standard Export Full Line Configuration, One-Stop Shipment & Fast Commissioning

We strictly follow international export industrial equipment packaging standards, provide complete full-line supporting accessories, no need for buyers to purchase auxiliary parts separately, and adopt fumigation-free solid wooden box sealed packaging to prevent sea transportation moisture, collision and corrosion damage:

Heavy-duty automatic hydraulic uncoiler + thick material precision leveling and straightening device

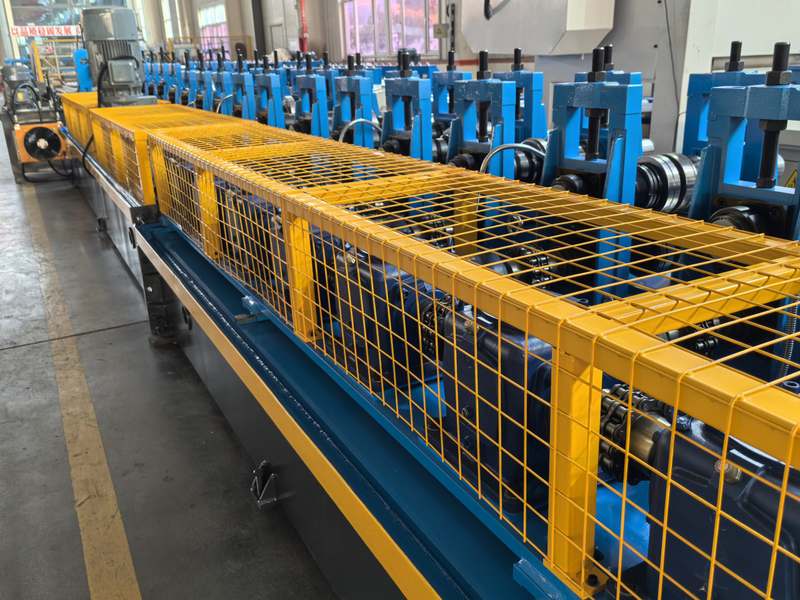

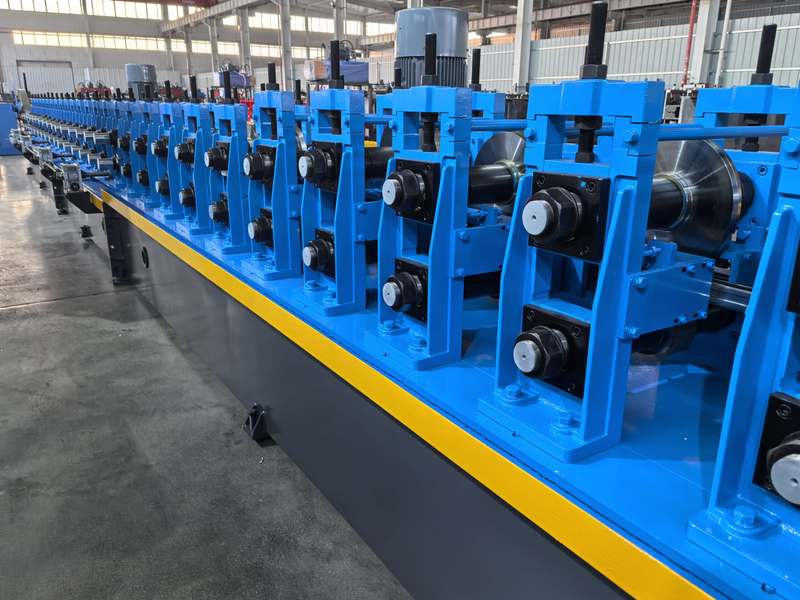

Dust-proof and reinforced multi-roller high-precision forming host unit

Multi-station synchronous hydraulic punching, notching and marking integrated mechanism

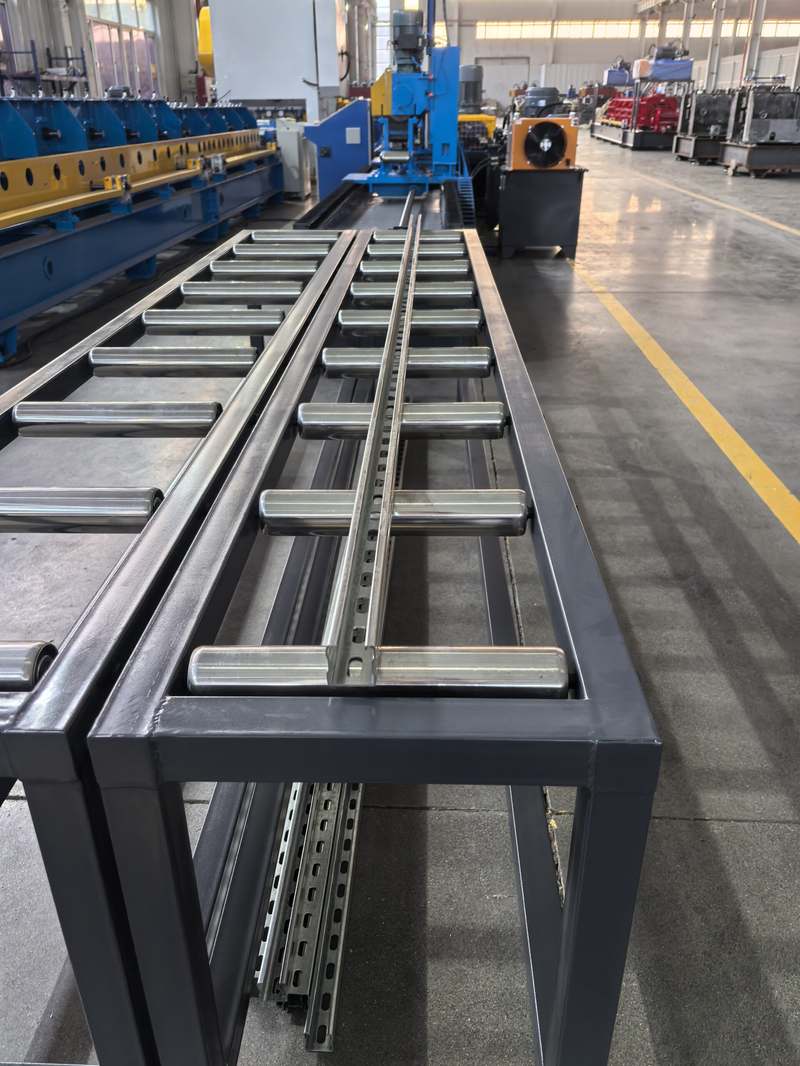

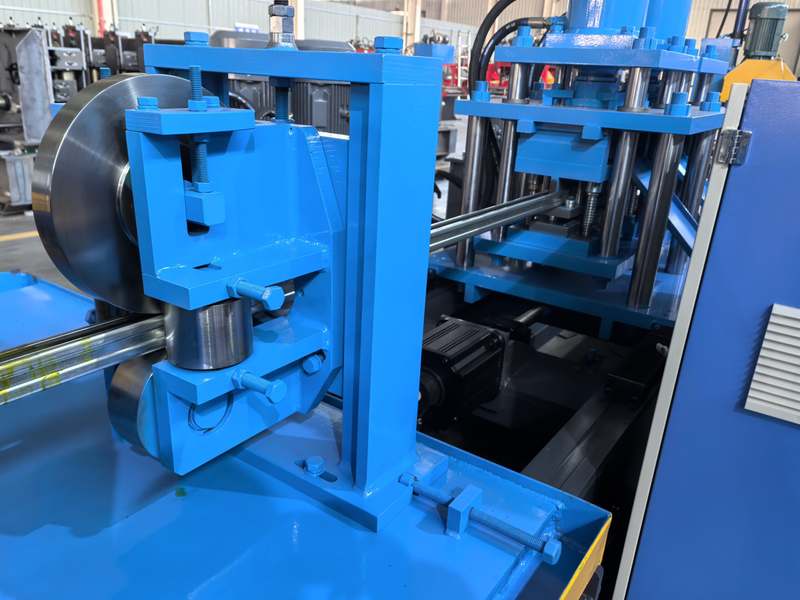

Servo tracking fixed-length cutting system + automatic finished product stacking and discharging table

Waterproof and dustproof intelligent electrical control cabinet + full set of safety protection emergency stop device

Complete installation and debugging tools, core vulnerable parts package, full English electronic and paper operation, maintenance and safety operation manual

All equipment is fully assembled, running tested and precision calibrated in our factory in advance. After arriving at the customer’s overseas factory, only simple foundation fixing, line connection and parameter fine-tuning are required to officially put into mass production, greatly shortening the equipment commissioning cycle and helping customers quickly seize the local photovoltaic new energy market opportunity.

Global Application Markets & New Energy Engineering Matching Scenarios

Our solar PV bracket forming machines have been exported in batches to more than 70 new energy key countries and regions around the world, with stable equipment performance and good market reputation, deeply trusted by local photovoltaic component manufacturers and EPC engineering companies:

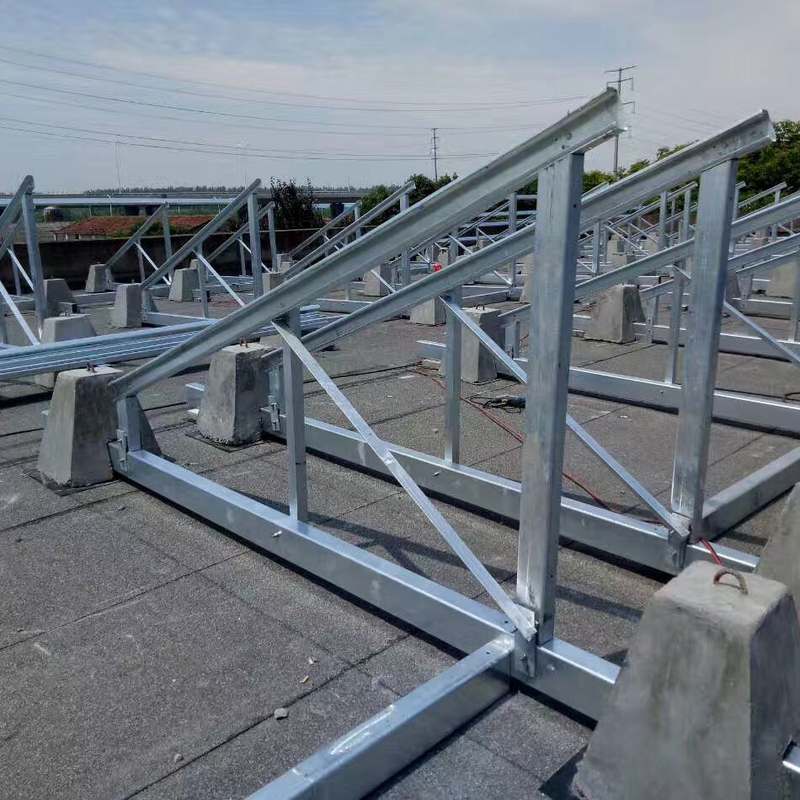

Core Application Scenarios: Large-scale desert centralized photovoltaic power station supporting facilities, urban industrial and commercial rooftop distributed solar power generation systems, rural household small photovoltaic power supply projects, solar energy storage integrated power station support structures, coastal wind-resistant high-standard photovoltaic engineering accessories, etc.

Main Overseas Cooperative Regions: Southeast Asia, Middle East high-light resource areas, Central Asia, Africa, Eastern Europe, South America, Oceania and other core photovoltaic emerging markets. We have long-term stable cooperative logistics teams and perfect export customs clearance channel experience.

All photovoltaic brackets produced by our equipment fully comply with local new energy industry safety codes, outdoor wind and snow load resistance standards, and environmental protection testing specifications of various countries, and can smoothly pass third-party engineering acceptance and market access certification without any compliance risks.

Worry-Free Export Service & Full Lifecycle Technical After-Sales Support

We deeply understand the long-distance procurement concerns of overseas new energy enterprise customers, and tailor exclusive full-process safe procurement and full lifecycle after-sales protection services for all foreign buyers to eliminate all procurement worries:

Strict Quality Warranty Commitment: The whole machine enjoys a 12-month full free warranty, key forming rollers and core electrical control components enjoy extended warranty service, and lifelong low-cost preferential maintenance and upgrade technical services are permanently provided.

24/7 Multilingual Remote Technical Support: Professional English-speaking new energy equipment technical engineers are online 24 hours a day, providing real-time video remote equipment debugging, operational parameter guidance, daily maintenance training and rapid fault emergency troubleshooting, responding to all technical questions within 30 minutes.

Full Set of Export Customs Clearance & Transaction Guarantee: Provide complete formal export documents required by international trade, including CE certification, factory inspection report, commercial invoice, packing list, bill of lading and other customs clearance materials, assist customers in one-stop handling of import declaration and tax procedures, and support a variety of safe and convenient international payment methods to ensure smooth and risk-free transactions.

Overseas On-Site Commissioning Service on Demand: For large order customers and large-scale photovoltaic industrial park supporting production line projects, we can arrange senior professional new energy equipment engineers to go to the local factory overseas for free on-site installation, precision debugging and one-on-one worker operation training to ensure the production line runs stably and efficiently for a long time.

Inquiry Now for Custom PV Bracket Machine Solution & Exact Quotation

Are you looking for high-efficiency, low-failure, cost-effective professional solar PV bracket forming equipment to expand your local new energy component production business and seize the global photovoltaic market dividend? According to your local mainstream photovoltaic bracket section drawings, required daily output, factory workshop space and power supply conditions, we can quickly tailor the most suitable exclusive automatic production line solution for you.

Contact us today to get free detailed equipment parameter sheets, real factory operation video, on-site customer case pictures, and competitive ex-factory quotation within 2 hours. Reliable quality, direct factory price, fast global door-to-door delivery, let us work together to empower your global photovoltaic new energy business development!
