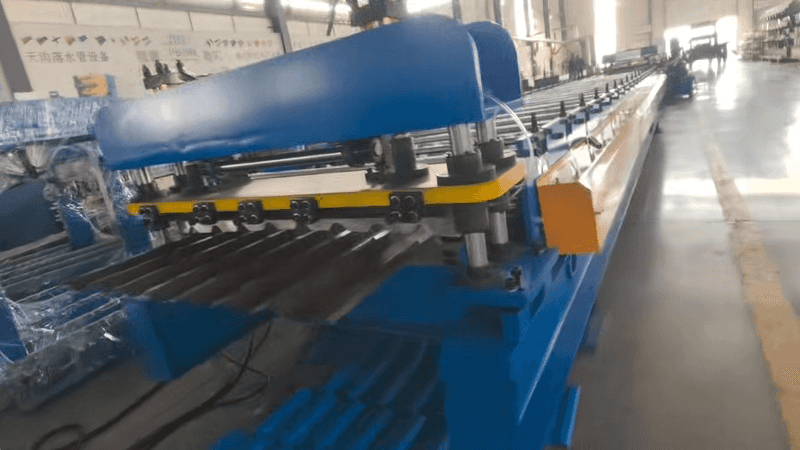

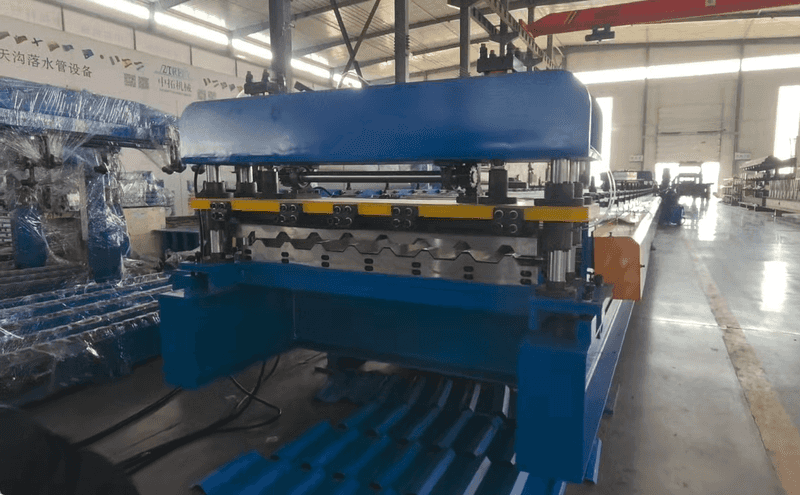

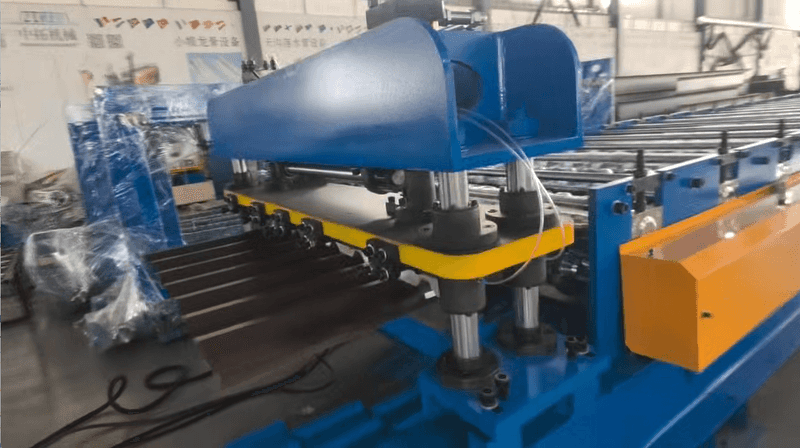

Our trapezoidal roofing sheet roll forming machine is a fully automatic, heavy-duty cold roll forming unit, specially designed for mass production of high-strength trapezoidal roof sheets. As one of the most widely used roofing materials in global construction projects, trapezoidal roof panels feature outstanding waterproof performance, strong load-bearing capacity and long service life, suitable for various industrial, commercial and residential roofing applications. This machine integrates automatic coil uncoiling, precision leveling, roll forming, fixed-length flying shear cutting and finished product stacking into a seamless workflow, delivering a stable, efficient and cost-effective production solution for global building material manufacturers, steel structure enterprises and construction contractors.

主な利点と主な機能

Professional Trapezoidal Profile Forming, Superior Waterproof Performance

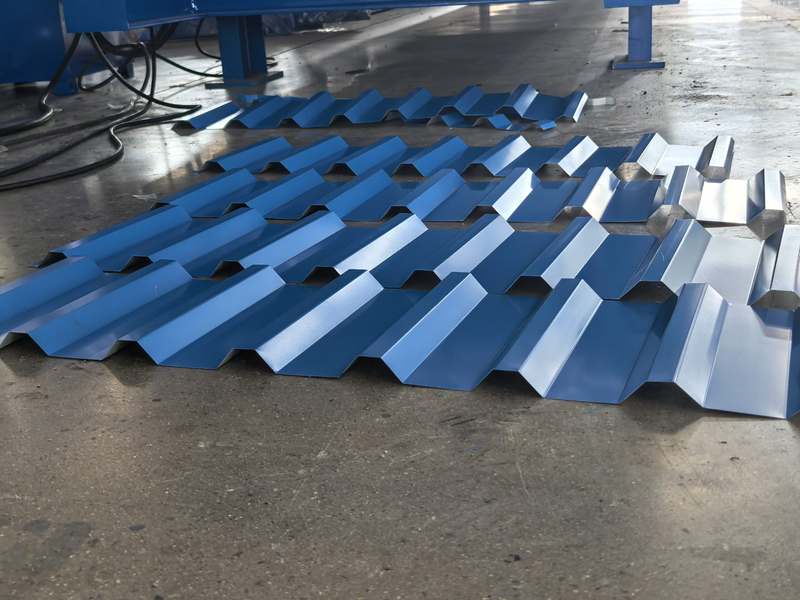

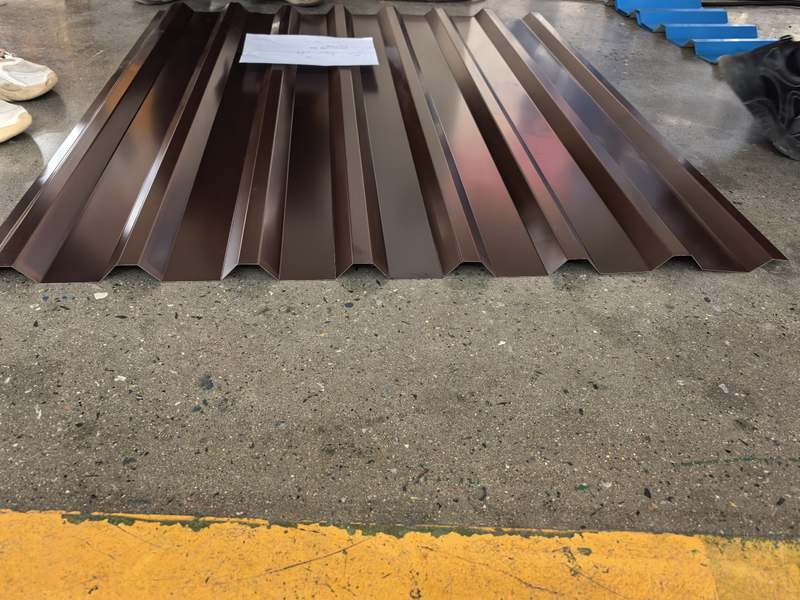

Equipped with a specially designed multi-stage forming roller system, this machine produces standard trapezoidal roofing profiles with regular shape, full ribs and tight overlapping structure. The optimized forming process ensures every roof sheet has uniform trapezoidal waves, straight edges and no deformation, warping or cracks. The reasonable rib height and spacing design creates a tight lap joint between sheets, effectively preventing rainwater leakage and meeting strict waterproof requirements for roofing projects. Finished panels boast excellent wind resistance and load-bearing capacity, adapting to various harsh weather conditions.

High-Precision Manufacturing, Stable Product Quality

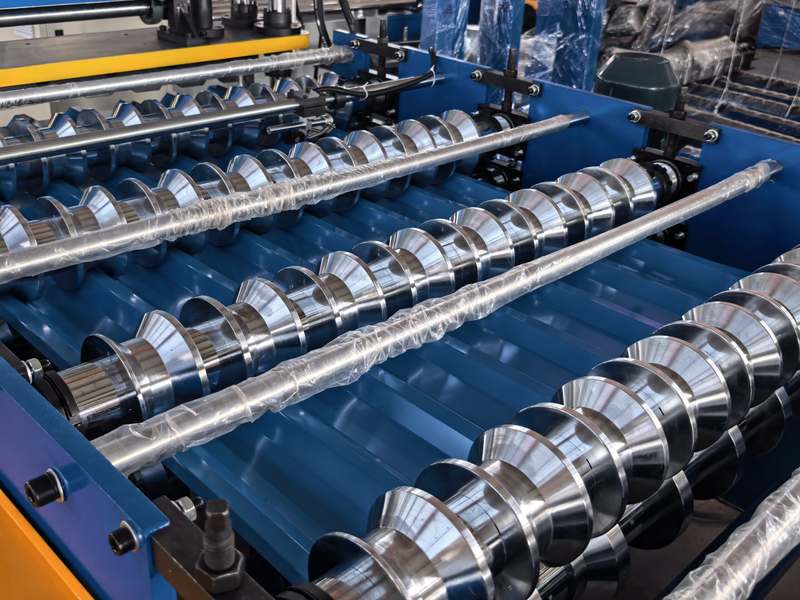

Driven by imported servo motors and high-precision positioning encoders, the machine controls product dimensional tolerance within ±0.5mm, guaranteeing consistent specifications for every trapezoidal roof sheet. All forming rollers are forged from high-grade 45# carbon steel, processed by precision grinding and multi-layer hard chrome plating, featuring exceptional wear resistance, pressure resistance and long service life. The precise forming route avoids surface scratches and coating damage, keeping the panel surface smooth and intact, improving product qualification rate and market value.

Fully Automatic Intelligent Operation, Ultra-High Production Efficiency

This machine adopts an advanced PLC touch screen control system and hydraulic automatic uncoiler, realizing fully unmanned continuous production with a stable working speed of 10-30m/min, supporting 24-hour uninterrupted batch operation. Operators only need to set production length, quantity and other parameters with one click, and the equipment automatically completes feeding, leveling, forming, cutting and stacking. The built-in flying shear cutting system achieves fixed-length cutting without stopping the production line, greatly improving efficiency, reducing manual labor input by over 65% and shortening order delivery cycles drastically.

Heavy-Duty Stable Frame, Long-Term Durable Operation

The main frame is constructed with thickened high-strength welded steel plate, treated with overall annealing process, featuring ultra-high rigidity, excellent shock resistance and stability, with zero deformation even under long-term high-load operation. The transmission system uses high-precision gearboxes and heavy-duty chains, running smoothly with low noise and minimal abrasion. Core electrical components adopt world-renowned brands such as Siemens and Schneider, ensuring stable operation, low failure rate, less downtime and reduced maintenance costs for enterprises.

幅広い素材と仕様に対応

This machine adapts to various metal coil materials commonly used for roofing, including color-coated steel, hot-dip galvanized steel, aluminum-zinc coated steel and aluminum alloy, with a material thickness range of 0.3mm-1.2mm, covering mainstream raw material specifications in the global market. It supports quick adjustment of product width, rib height and spacing, producing various common trapezoidal roofing models (such as 840mm, 900mm, 1050mm and other customized sizes), realizing one machine for multiple purposes and meeting diversified market demands.

ユーザーフレンドリーなデザインと低メンテナンスコスト

Featuring an intuitive English touch screen interface, the machine is simple to operate and easy to learn; new operators can master full operation after short-term training without professional technical background. The system is equipped with fault self-diagnosis, emergency stop and automatic alarm functions, ensuring safe operation and quick troubleshooting. Daily maintenance only requires regular lubrication and routine inspection, with simple steps and low long-term operating costs.
