Amid the global construction industry’s pursuit of efficiency, aesthetics, and durability, corrugated roof panels have emerged as the preferred roofing solution for industrial plants, sports venues, agricultural greenhouses, commercial complexes, and even luxury villas. Their unique curved design, exceptional structural stability, and versatility make them a top choice. Behind this premium roofing material lies the technological backbone of its production: the corrugated roof panel forming machine.

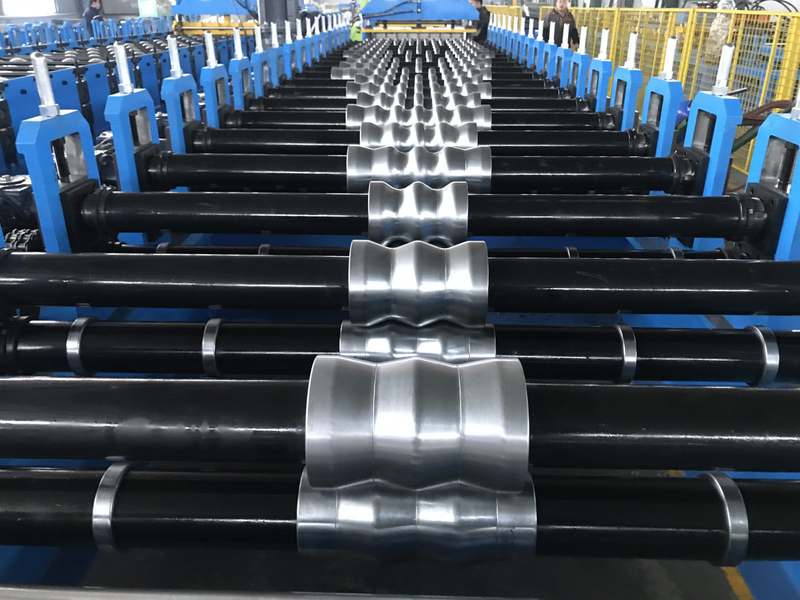

Precision-machined for both aesthetics and performance: Utilizing multi-pass precision rolling technology with 65-70mm diameter 45# quenched and tempered steel forming shafts and hard chrome-plated wheels (HR55°-57° hardness), this system ensures uniform, smooth wave profiles with ±10mm dimensional accuracy. The innovative corrugated design not only enhances roof visual depth but also improves compressive strength and drainage efficiency, with tests confirming resistance to extreme weather including strong winds, heavy rain, and snow accumulation. An integrated oiling device protects surface coatings from scratches during forming, maintaining the finished product’s premium appearance.

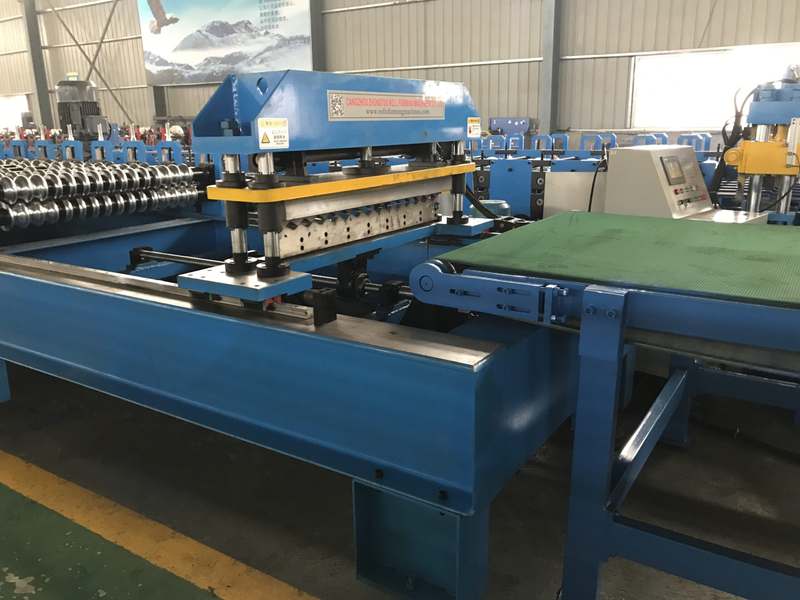

High-efficiency production with significant cost reduction: Equipped with high-power drive motors and hydraulic systems, the equipment achieves a maximum production speed of 50 meters per minute, with a daily output exceeding 3,000 meters per unit. It supports 24/7 continuous operation, significantly boosting productivity. The PLC-based intelligent control system and 10-inch touchscreen interface enable parameter memory, multi-group data settings, and automatic length-cutting, allowing non-technical operators to perform tasks effortlessly and reducing manual labor. The equipment also features non-stop cutting, where cut materials fall directly onto the conveyor belt, ensuring seamless transition from raw materials to finished products. This minimizes waste of edge materials and achieves a material utilization rate exceeding 78%.

Versatile Adaptability for Customized Needs: Featuring exceptional material compatibility, the system processes various metal materials including galvanized sheets, color-coated steel sheets, aluminum sheets, and high-strength plates with thicknesses ranging from 0.17 to 0.8mm, meeting diverse roofing material requirements across different building types. It supports forming corrugated profiles in multiple widths (8-inch, 12-inch, 16-inch) and allows customization of wave height, pitch, and other parameters to precisely achieve both standard corrugations and specialized curved wave designs. Advanced models incorporate dual-mode configurations to process two distinct plate types simultaneously, optimizing equipment footprint and maximizing production efficiency.

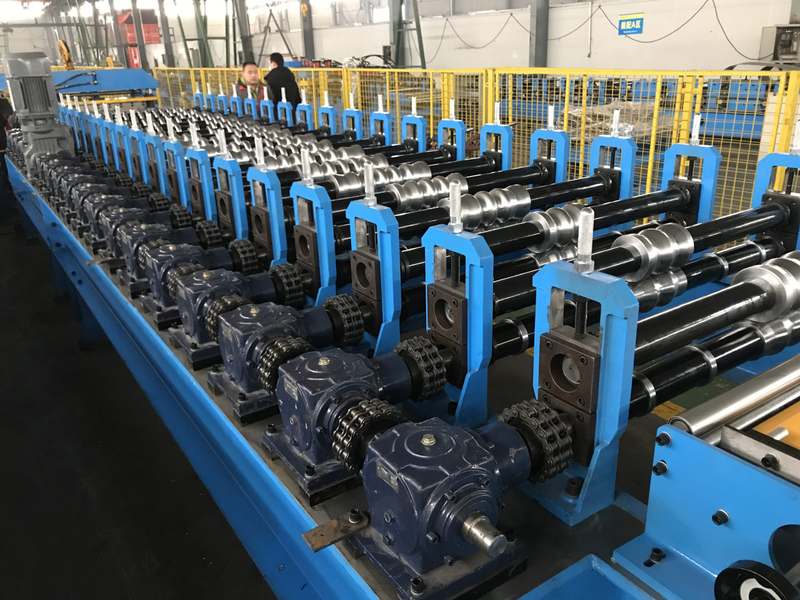

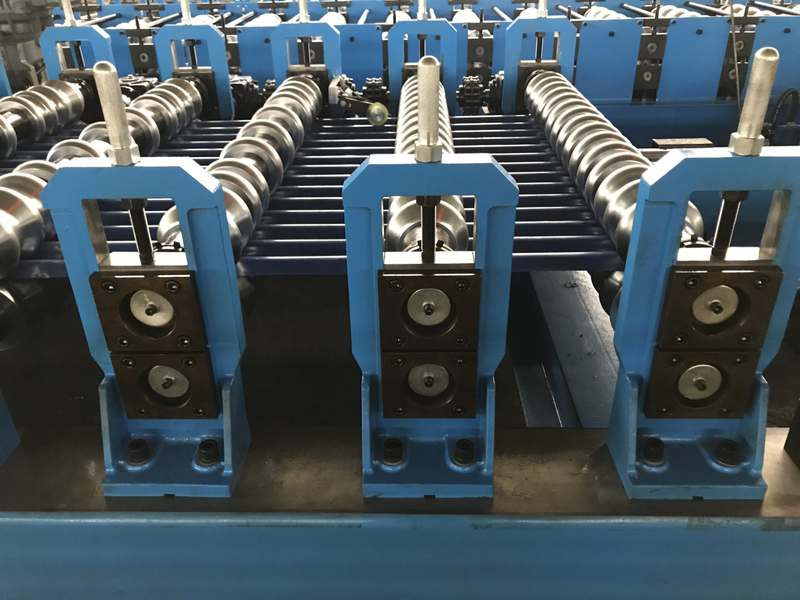

Robust and durable structure with reduced maintenance costs: The frame is constructed with welded I-beams of 250# or higher, featuring 16mm-thick middle plates and a 450-type H-beam reinforced base, ensuring deformation-free operation under high-intensity continuous use. Core transmission components utilize chain-driven mechanisms or reducer-plus universal joint couplings for stable torque transfer and exceptional wear resistance. The cutting die employs Gr12 high-strength material paired with hydraulic shearing systems to produce smooth, burr-free cuts while extending die lifespan. The equipment’s corrosion-resistant coating enables adaptation to diverse regional climates, reducing maintenance frequency and lowering operational costs.

International recognition: the best quality choice in the world

With exceptional quality and performance, our corrugated roof panel forming machines have been exported to multiple countries and regions across Asia, Europe, the Americas, and Africa, becoming the trusted choice for numerous global construction enterprises. These machines have demonstrated outstanding capabilities in various landmark projects. In a large-scale agricultural industrial park project in Central America, our dual-mode corrugated roof panel forming machine successfully enabled the client to achieve simultaneous production of water-wavy panels and trapezoidal panels, completing the entire roofing material processing task in just 45 days. The equipment’s high efficiency and stability were highly recognized by the client. After two years of use, the project’s roof has remained intact under tropical heavy rains and strong winds, with no leakage or deformation issues.

In a high-end villa complex project in Europe, the client selected our customized wave-shaped roofing panel forming machine to produce exclusive curved wave-shaped roofing materials. The finished panels not only perfectly complement the villa’s European architectural style, but their superior thermal insulation performance also helped reduce the project’s energy consumption by 30%, garnering widespread attention from the local construction industry.

During the expansion of a U.S. sports venue, our high-speed corrugated roof panel forming machine delivered roofing materials within the tight schedule at a production rate of 50 meters per minute. The manufactured corrugated panels achieved a wind resistance rating of 12, ensuring the venue’s uninterrupted operation and earning our products a strong reputation in the American market.
