In the global construction, industrial workshop, warehouse and commercial building sectors, high-quality roof panels are the core of building waterproofing, thermal insulation and structural stability. Our Double Layer Roof Panel Forming Machine is a professional integrated forming equipment specially developed for the production of double-layer composite roof panels, combining two sets of independent forming systems in one integrated machine, capable of producing two different profiles of roof panels simultaneously or separately. It breaks the limitations of traditional single-layer roof panel machines, perfectly solving the problems of low production efficiency, single product type and high equipment investment cost for overseas manufacturers, and becoming the preferred high-efficiency production solution for global roofing material suppliers and steel structure enterprises.

Adhering to the design concept of high precision, high stability and high adaptability, this machine adopts international advanced roll forming technology, matched with intelligent control system and durable structural design, to ensure that each double-layer roof panel produced has excellent waterproof performance, strong load-bearing capacity and long service life. It fully meets the building standards of Europe, America, Southeast Asia, the Middle East and other regions, helping customers expand market share with stable quality and efficient production capacity.

Core Features & Competitive Advantages

Dual-Layer Integrated Forming, Double Production Efficiency

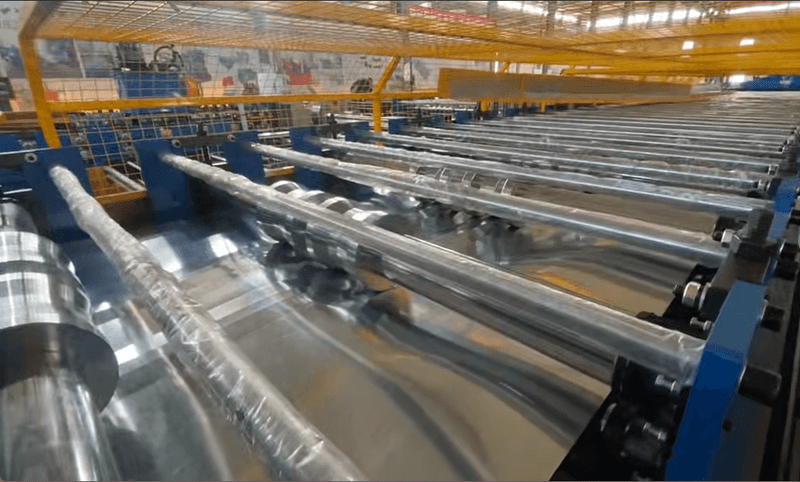

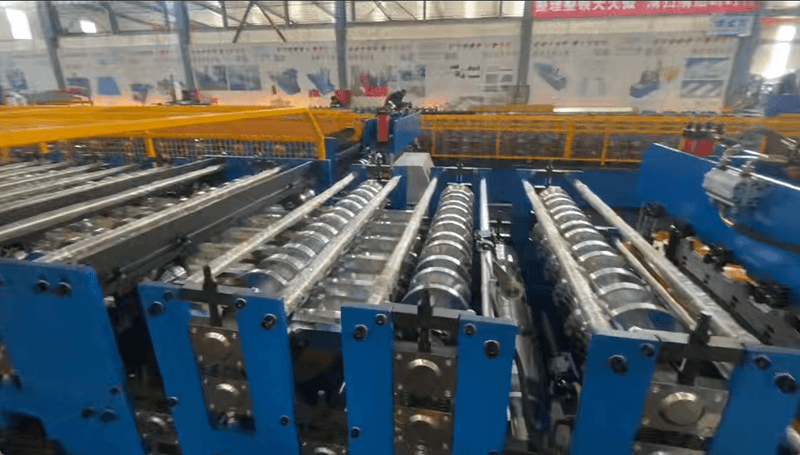

The biggest core advantage of this machine is the dual independent forming layer design, with upper and lower two sets of special roll forming lines running synchronously without mutual interference, realizing one-time forming of double-layer roof panels. It can produce two different styles of roof panels (such as corrugated roof panels, trapezoidal roof panels, hidden buckle roof panels) at the same time, and the single-line forming speed reaches 15-35 meters per minute, and the overall output is twice that of traditional single-layer roof panel machines. For large-scale construction projects with urgent delivery time, it can quickly complete batch production tasks, reduce production cycle, and help customers seize more engineering orders. Compared with purchasing two single-layer machines separately, it only needs half of the operators and half of the workshop space, greatly saving labor and site costs.

High Precision Forming, Excellent Roof Panel Performance

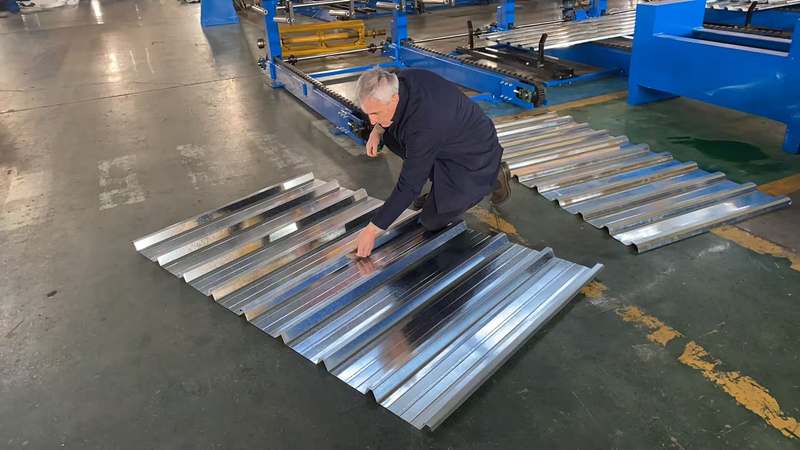

Equipped with imported PLC intelligent control system and servo motor precise positioning, the machine controls the dimensional accuracy within ±0.05mm, ensuring that each roof panel has uniform specifications, neat edges and perfect profile fitting. The forming rollers are made of high-quality GCr15 bearing steel, after high-frequency quenching and precision grinding treatment, with high hardness, wear resistance and no deformation, avoiding surface scratches, cracks and deformation of the roof panel during the forming process. The double-layer roof panels produced have tight lap joints, excellent waterproof and wind pressure resistance, strong load-bearing capacity, and are suitable for various harsh climatic conditions such as heavy rain, strong wind and heavy snow, fully complying with ASTM, CE, JIS and other international building material standards, with a product qualification rate of up to 99.8%.

Wide Material & Profile Adaptability, Flexible Production

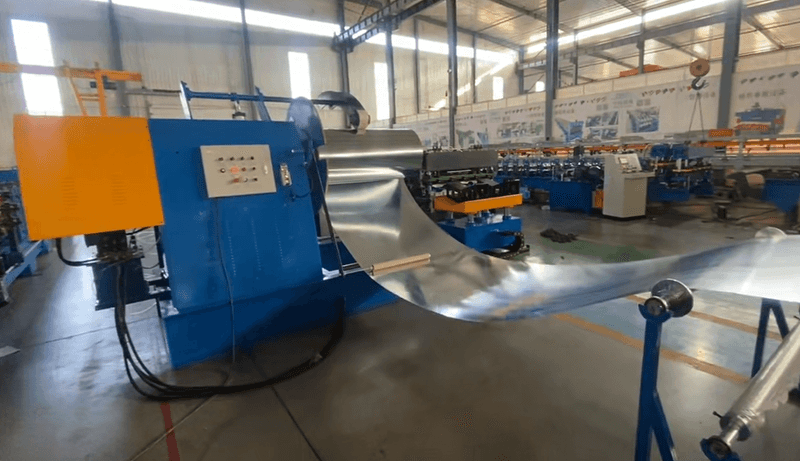

This machine has strong versatility, supporting a variety of commonly used roofing raw materials, including galvanized steel coil, color coated steel coil, aluminum zinc steel coil, aluminum alloy coil, etc., with a processing thickness range of 0.3-1.2mm, covering the conventional thickness requirements of most roof panels. The upper and lower forming lines can be independently adjusted to produce different widths, heights and profiles of roof panels, including common trapezoidal IBR sheets, corrugated sheets, hidden fastened roof panels, and composite insulation roof panel base layers. Customers can switch production specifications quickly through the touch screen without replacing the entire mold, realizing “one machine for multiple uses” and adapting to the diversified product demands of the global roofing market.

Heavy-Duty Stable Structure, Long Service Life

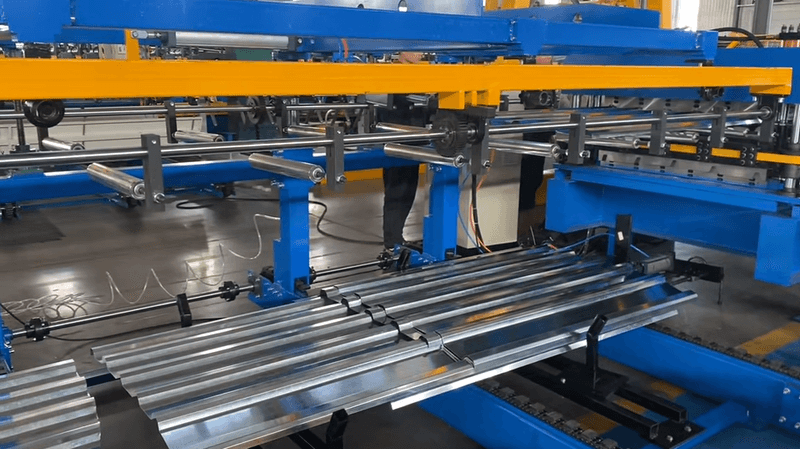

The whole machine adopts an integrated thick steel plate frame, through full welding and stress relief annealing treatment, with strong rigidity and good stability, no vibration and deformation during long-term high-speed operation, and the service life can reach more than 15 years. The key transmission parts adopt high-quality gearboxes and chain drives, with stable operation and low noise; the hydraulic cutting system is equipped with a precise positioning device, achieving fixed-length cutting without burrs, smooth cut and high accuracy. The wearing parts such as cutting blades and guide rails are made of wear-resistant alloy materials, with low failure rate and less daily maintenance, ensuring continuous and stable production and reducing equipment downtime loss.

User-Friendly Operation, Safe & Easy to Maintain

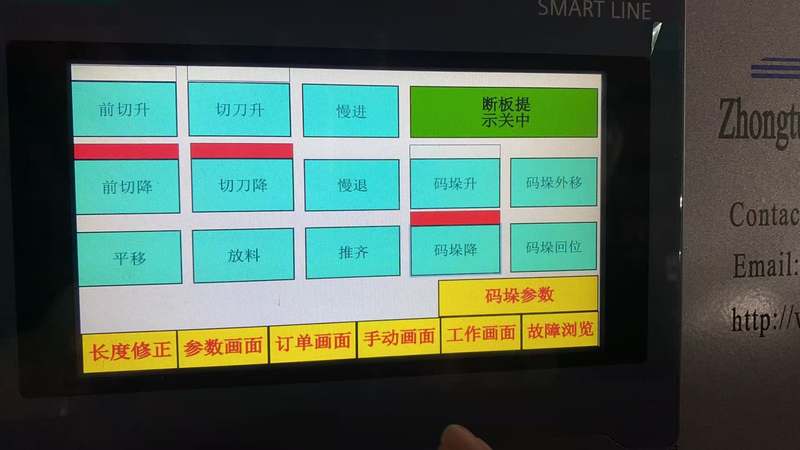

The machine is equipped with a large-size human-machine touch screen, with intuitive interface and simple operation, operators can complete parameter setting, production start and stop, speed adjustment and fault query without professional training. It has an intelligent fault self-diagnosis function, which can automatically alarm and display fault points, making maintenance more convenient. In terms of safety, it is equipped with full-covered protective covers, emergency stop buttons and safety interlock devices, fully complying with European CE safety standards, protecting the personal safety of operators in all aspects. The modular design of the machine makes the replacement of vulnerable parts and daily maintenance simple and fast, and spare parts are universal and easy to purchase globally.

Energy Saving & Eco-Friendly, In Line with Global Green Construction Trends

Adopting an energy-saving variable frequency motor and optimized power control system, the machine reduces energy consumption by 20%-25% compared with ordinary double machines, effectively reducing production costs. The cold roll forming process is adopted, without high-temperature heating, no waste gas, waste water and waste residue pollution, meeting the environmental protection requirements of various countries. The material utilization rate is as high as 98%, minimizing raw material waste, helping customers achieve green production and enhance the brand image of environmental protection and sustainable development in the international market.

Global Certification & Comprehensive After-Sales Service

Our Double Layer Roof Panel Forming Machine has passed CE, ISO9001 and other international quality certifications, complying with the equipment safety and quality standards of various countries and regions, and can be smoothly exported and used worldwide. We provide a complete set of export supporting services, including moisture-proof and shock-proof wooden case packaging, professional shipping arrangement, complete customs declaration documents and technical manuals. After-sales, we offer 24-hour online technical support, free remote installation and commissioning, operator training, and lifelong spare parts supply. Our professional after-sales team has rich experience in overseas equipment service, and can quickly solve various problems encountered in production to ensure the stable operation of customers’ production lines.

Whether you are a large-scale roofing material manufacturer, a steel structure engineering enterprise, or a building material supplier expanding the international market, our Double Layer Roof Panel Forming Machine is your ideal choice to improve production efficiency, reduce investment costs and improve product quality. With reliable quality, advanced technology and thoughtful service, our products have been sold to more than 70 countries and regions around the world, winning the unanimous trust and praise of global customers.

Contact us now to get a free customized production plan and exclusive quotation, and upgrade your roof panel production line efficiently!
