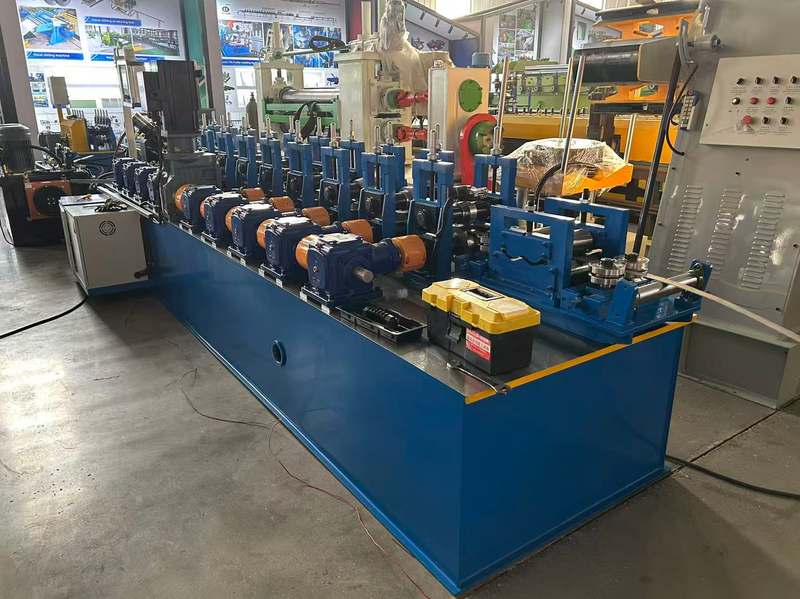

Our angle steel keel roll forming machine is a fully automatic, high-precision cold roll forming unit specially designed for mass production of high-quality angle steel keels and steel angle profiles. As a fundamental structural component widely used in construction, decoration, furniture and industrial fields, angle steel keels require strict dimensional accuracy, structural rigidity and surface flatness. This machine integrates automatic coil uncoiling, precision leveling, roll forming, fixed-length flying shear cutting, and automatic stacking into a seamless workflow, delivering stable, efficient and cost-effective production solutions for global building material manufacturers, steel processing enterprises, decoration companies and industrial hardware suppliers.

主な利点と主な機能

High-Precision Angle Forming, Perfect Right-Angle Performance

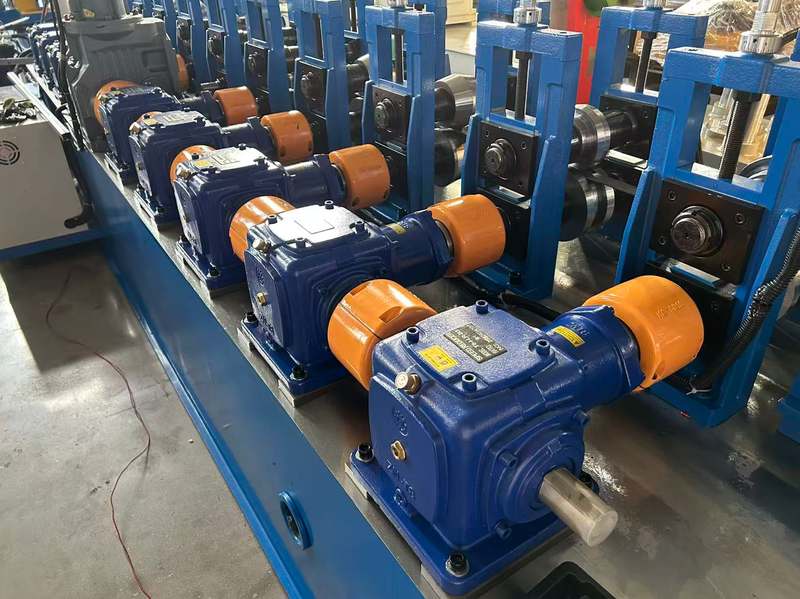

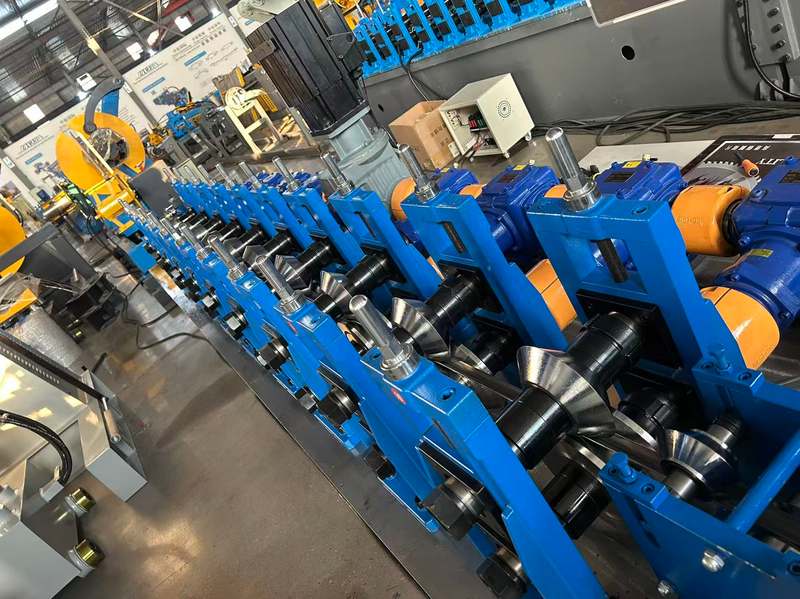

Equipped with a custom-designed multi-stage forming roller system, this machine produces standard angle steel keels with precise right angles (90°) and uniform dimensions. Driven by imported servo motors and high-precision positioning encoders, the machine controls product size tolerance within ±0.3mm, ensuring every angle steel keel has consistent leg length, thickness and angle, with no deformation, burrs or uneven edges. The optimized gradual forming process ensures the keels have strong structural rigidity, good load-bearing capacity and perfect fitting performance, fully complying with international steel profile standards (ISO, ASTM, DIN).

Multi-Specification Adaptability, Strong Production Flexibility

This machine supports quick adjustment of angle steel specifications, including leg length (30mm-100mm), thickness (1.0mm-3.0mm) and length, via the PLC touch screen without disassembling rollers. It can produce various standard and customized angle steel keels, such as equal-angle steel, unequal-angle steel and special-shaped angle keels, adapting to different construction and industrial application needs. The flexible design eliminates the need for multiple dedicated machines, reducing equipment investment costs and shortening production preparation time, perfectly matching small-batch customization and large-scale continuous production.

Fully Automatic Workflow, Ultra-High Production Efficiency

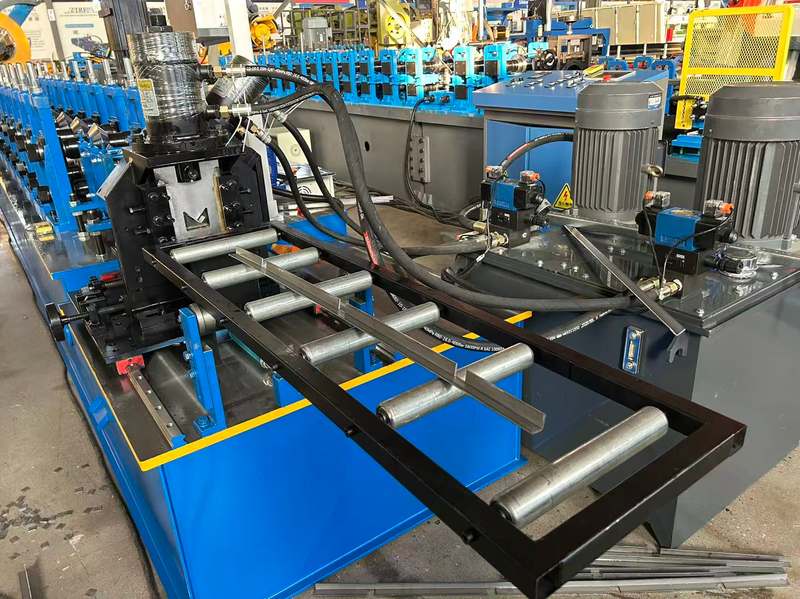

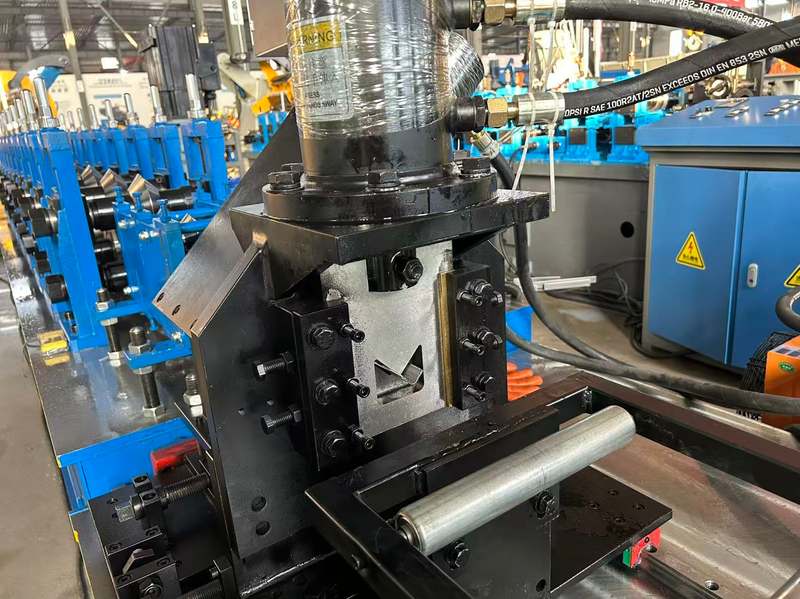

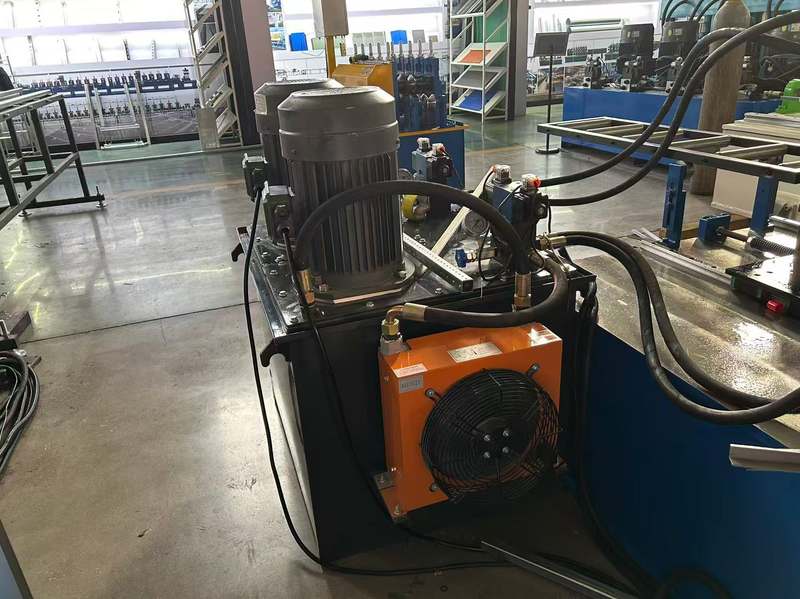

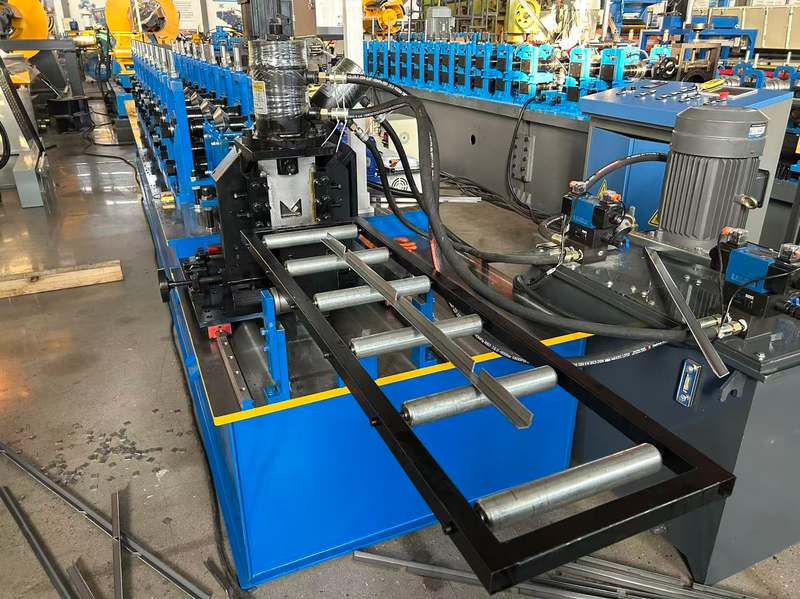

Powered by an intelligent PLC touch screen control system and hydraulic automatic uncoiler, the machine realizes fully unmanned continuous production with a stable working speed of 10-28m/min, supporting 24-hour uninterrupted operation. Operators only need to set production parameters (leg length, thickness, length, quantity) with one click, and the equipment automatically completes feeding, leveling, forming, cutting and stacking. The built-in flying shear cutting system achieves fixed-length cutting without stopping the production line, reducing manual labor input by over 65% and drastically shortening order delivery cycles.

Anti-Scratch Protection, Premium Surface Quality

Designed with a professional anti-scratch forming system, the machine uses soft rubber conveying rollers and precise gap adjustment to avoid hard friction between the metal coil and forming rollers. This effectively protects the surface of galvanized steel, cold-rolled steel, color-coated steel and other raw materials, keeping the surface of finished angle steel keels smooth, flawless and scratch-free. The high-quality surface finish enhances product corrosion resistance and aesthetic appearance, meeting the high-standard requirements of construction and decoration projects.

Heavy-Duty Stable Structure, Long-Term Reliable Operation

The main frame adopts thickened high-strength welded steel plate with overall annealing treatment, featuring high rigidity, excellent shock resistance and zero deformation even under long-term high-load operation. Forming rollers are forged from high-grade 45# carbon steel, processed by precision grinding and hard chrome plating, with exceptional wear resistance and long service life. Key electrical components adopt international premium brands including Siemens and Schneider, guaranteeing stable operation, low failure rate and minimal downtime and maintenance costs.

Wide Material Compatibility & Strong Versatility

This machine adapts to various metal coil materials suitable for angle steel keel production, such as hot-dip galvanized steel, cold-rolled steel, aluminum-zinc coated steel and high-strength weathering steel, with a material thickness range of 1.0mm-3.0mm, covering mainstream raw material specifications in the global market. It can also produce matching connecting parts and reinforcing components, realizing one machine for multi-purpose use and helping manufacturers expand product categories.

User-Friendly Operation & Low Maintenance Cost

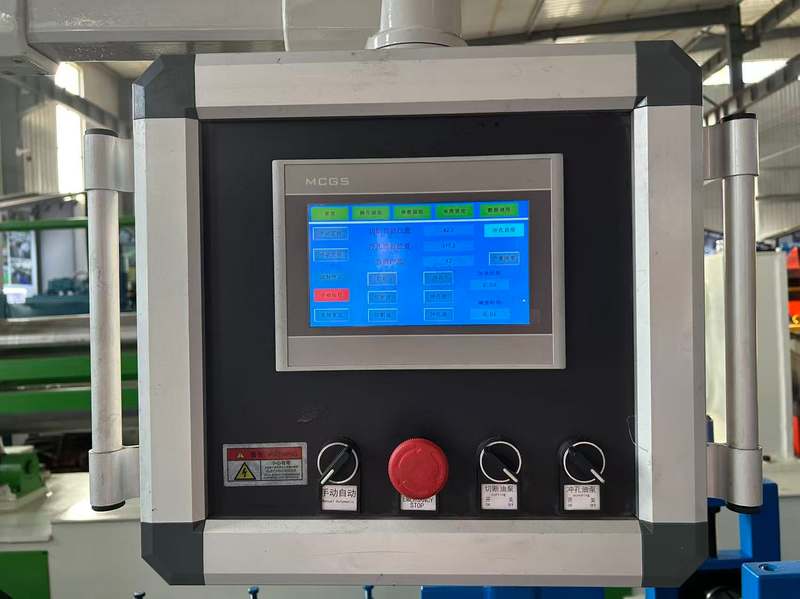

With an intuitive English touch screen interface, parameter setting and daily operation are simple and clear, and new operators can master full operation after short-term training without professional technical background. The system is equipped with fault self-diagnosis, emergency stop and automatic alarm functions for quick troubleshooting and safe operation. Daily maintenance only requires regular lubrication and routine inspection, with simple steps and low long-term operating costs.
