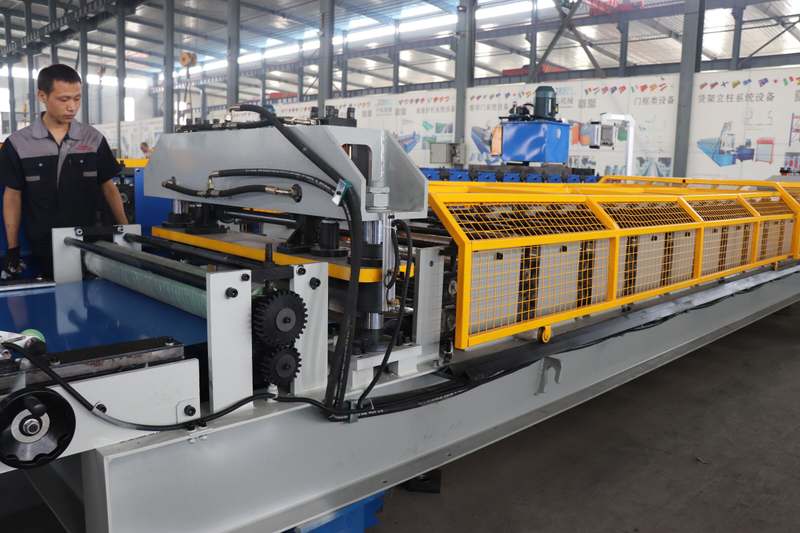

Our high-speed trapezoidal roofing sheet roll forming machine is a heavy-duty, fully automatic cold roll forming unit, specially engineered for mass production of high-strength, high-quality trapezoidal roof sheets. As one of the most widely used roofing materials in global construction, trapezoidal roof panels are favored for their excellent waterproof performance, strong load-bearing capacity, and easy installation, suitable for industrial, commercial, and residential roofing projects. This machine integrates automatic coil uncoiling, precision leveling, high-speed roll forming, fixed-length flying shear cutting, and automatic stacking into a seamless workflow, delivering ultra-efficient, stable, and cost-effective production solutions for global building material manufacturers, steel structure enterprises, and construction contractors.

Vantaggi principali e caratteristiche principali

High-Speed Forming System, Ultra-Efficient Production

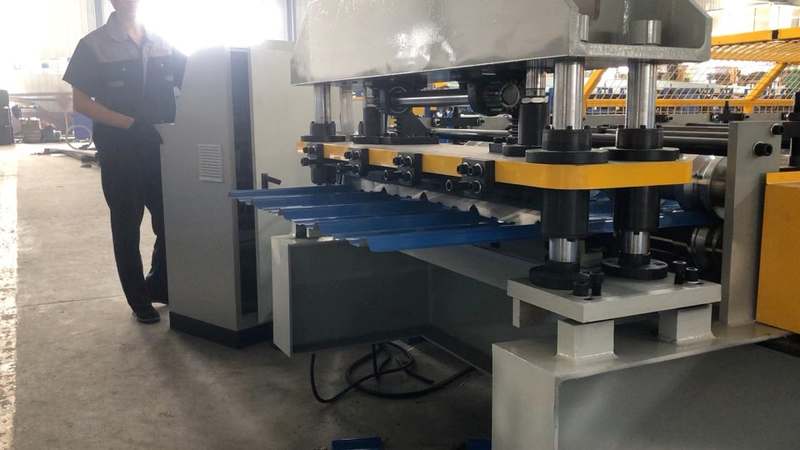

The core highlight of this machine is its optimized high-speed forming system, equipped with high-power imported servo motors and precision transmission components, achieving a stable working speed of 30-50m/min — 2-3 times faster than ordinary trapezoidal roof forming machines. It supports 24-hour uninterrupted continuous production, with daily output far exceeding traditional models, perfectly meeting large-scale batch order demands. The upgraded flying shear cutting system realizes fixed-length cutting without stopping the production line, maximizing production efficiency and drastically shortening order delivery cycles.

Professional Trapezoidal Forming, Superior Waterproof & Load-Bearing

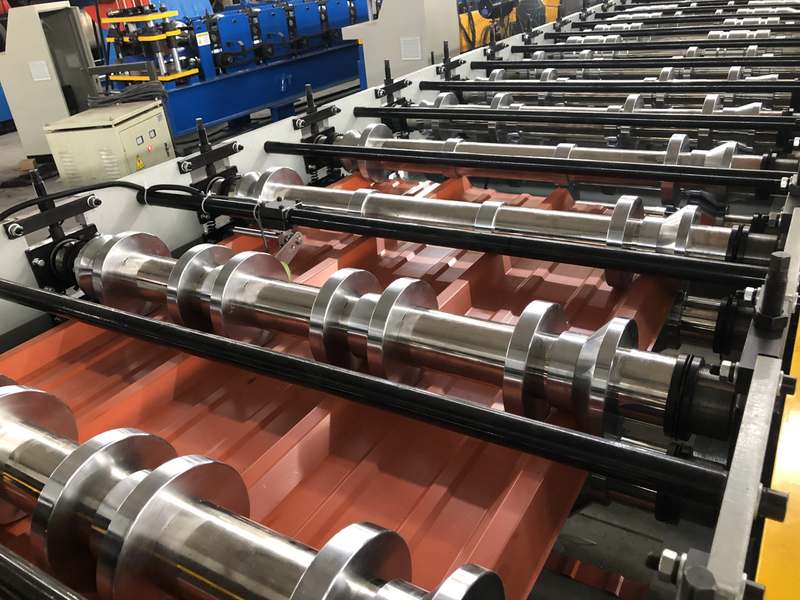

Equipped with a custom-designed multi-stage forming roller system, this machine produces standard trapezoidal roofing profiles with regular shape, full ribs, and tight overlapping structure. The optimized gradual forming process ensures every roof sheet has uniform trapezoidal waves, straight edges, and no deformation, warping, or cracks. The reasonable rib height (20mm-50mm) and spacing design create a tight lap joint between sheets, effectively preventing rainwater leakage, while enhancing wind resistance and load-bearing capacity, fully complying with international roofing construction standards (ISO, ASTM, DIN).

Controllo di alta precisione, qualità stabile del prodotto

Driven by imported high-precision positioning encoders and intelligent control systems, the machine controls product dimensional tolerance within ±0.5mm, guaranteeing consistent specifications for every trapezoidal roof sheet. All forming rollers are forged from high-grade 45# carbon steel, processed by precision grinding and multi-layer hard chrome plating, featuring exceptional wear resistance, pressure resistance, and long service life. Even in long-term high-speed operation, the machine maintains stable forming quality, avoiding surface scratches and coating damage, improving product qualification rate and market value.

Heavy-Duty Stable Structure, Reliable High-Speed Operation

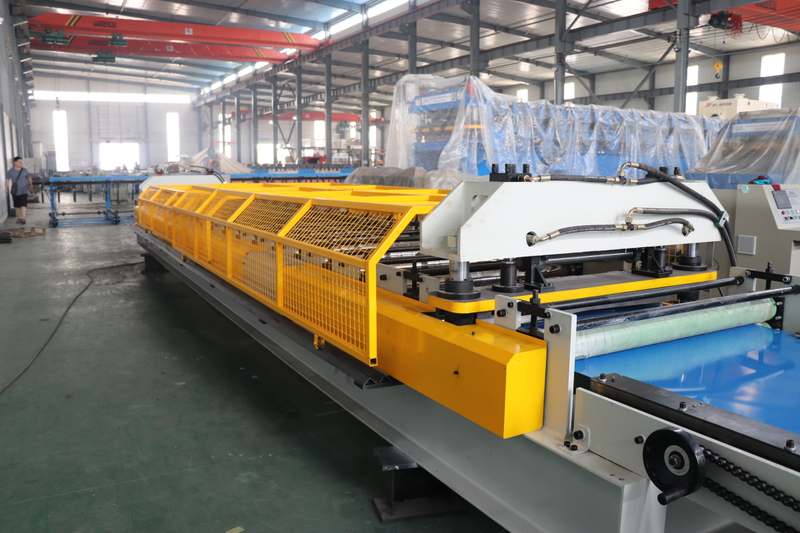

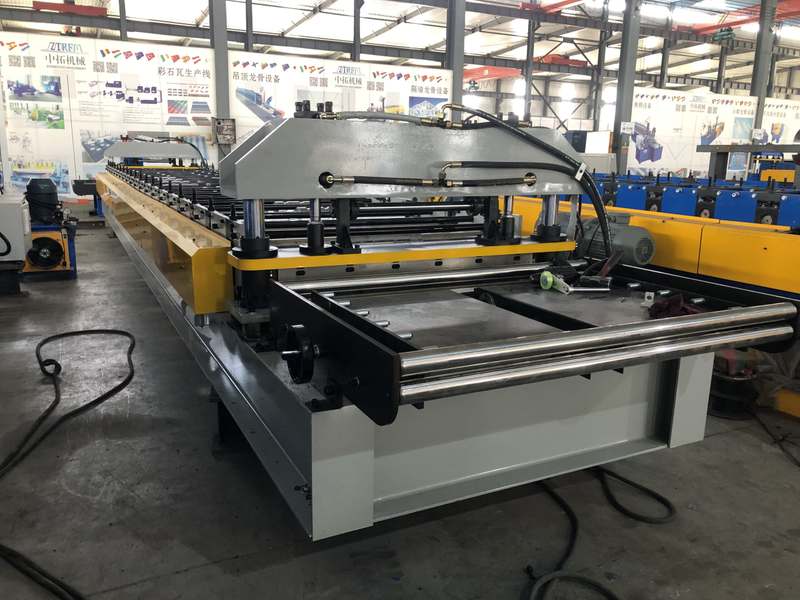

The main frame is constructed with thickened high-strength welded steel plate, treated with overall annealing process, featuring ultra-high rigidity, excellent shock resistance, and zero deformation even under long-term high-load, high-speed operation. The transmission system uses high-precision gearboxes and heavy-duty chains, running smoothly with low noise and minimal abrasion. Core electrical components adopt world-renowned brands such as Siemens and Schneider, ensuring stable operation, low failure rate, less downtime, and reduced maintenance costs for enterprises.

Ampia compatibilità di materiali e specifiche

This machine adapts to various metal coil materials commonly used for roofing, including color-coated steel, hot-dip galvanized steel, aluminum-zinc coated steel, and aluminum alloy, with a material thickness range of 0.3mm-1.2mm, covering mainstream raw material specifications in the global market. It supports quick adjustment of product width (800mm-1200mm), rib height, and spacing, producing various common trapezoidal roofing models (such as 840mm, 900mm, 1050mm) and customized sizes, realizing one machine for multiple purposes and meeting diversified market demands.

Funzionamento automatico intelligente, risparmio di manodopera e facilità d'uso

Powered by an advanced PLC touch screen control system and hydraulic automatic uncoiler, the machine realizes fully unmanned continuous production. Operators only need to set production length, quantity, and other parameters with one click, and the equipment automatically completes feeding, leveling, forming, cutting, and stacking. The system is equipped with fault self-diagnosis, emergency stop, and automatic alarm functions, ensuring safe operation and quick troubleshooting. New operators can master full operation after short-term training, no professional technical background required.

Protezione antigraffio e bassi costi di manutenzione

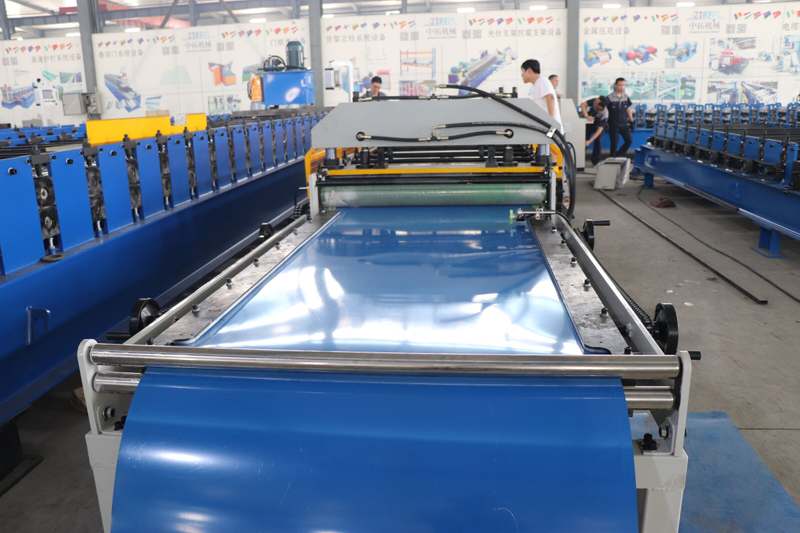

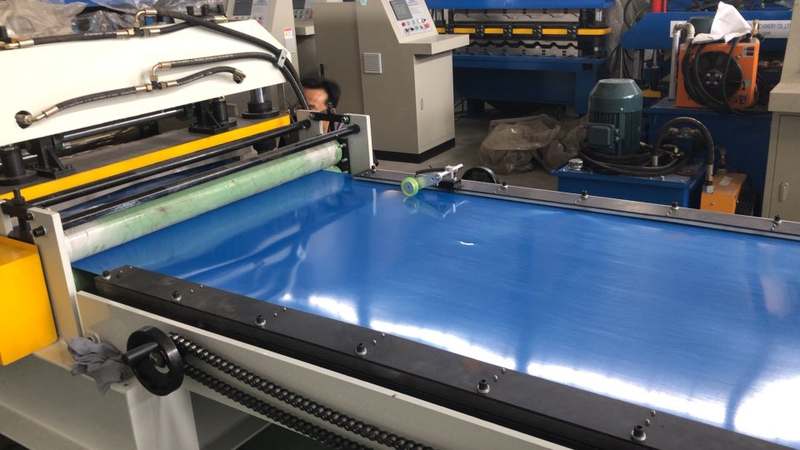

Progettata con un sistema professionale di formatura antigraffio, la macchina utilizza rulli di trasporto in gomma morbida e una precisa regolazione della distanza per evitare un forte attrito tra la bobina metallica e i rulli di formatura, proteggendo il rivestimento superficiale da graffi e abrasioni. La manutenzione quotidiana richiede solo una lubrificazione regolare e un'ispezione di routine, con passaggi semplici e bassi costi operativi a lungo termine, riducendo ulteriormente l'onere di produzione complessivo per le aziende.
