Fully Automatic Highway Guardrail Rolling Forming Machine

Two Wave and Three Wave Guardrail By One Machine Rolling Forming Machine

Looking for a high speed guardrail forming machine? Learn how our highway guardrail roll forming machine produces W-beam & thrie-beam with high precision and low cost.

Introduction

With the rapid expansion of global highway, expressway and municipal road projects, demand for high speed guardrail forming machines​ continues to rise. A reliable highway guardrail roll forming machine​ is no longer optional—it is the core equipment for manufacturers who need to produce large volumes of W-beam and thrie-beam guardrails with consistent quality and minimal labor cost.

This guide explains what a high speed guardrail forming machine is, how it works, its key technical parameters, application scenarios, and why choosing the right manufacturer matters for your export business.

What Is a High Speed Guardrail Forming Machine?

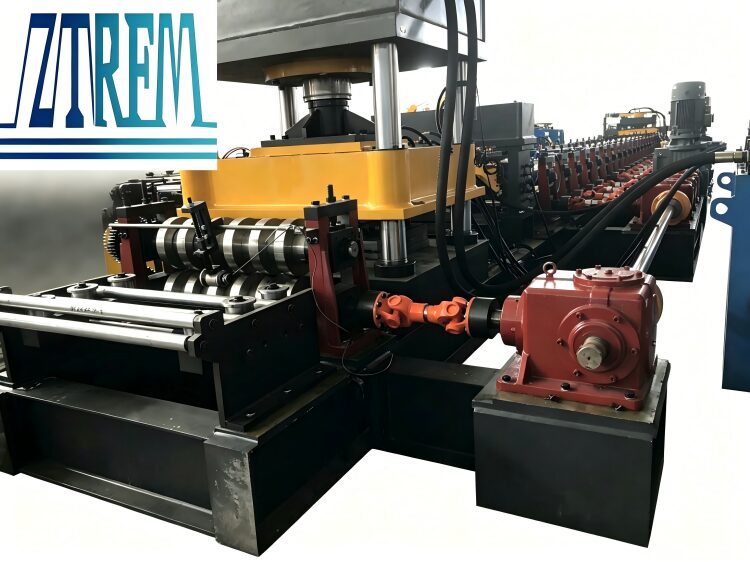

A high speed guardrail forming machine​ is a fully automated cold roll forming production line designed to manufacture corrugated steel highway guardrails from galvanized or carbon steel coils. It integrates decoiling, leveling, hydraulic punching, continuous roll forming, fixed-length cutting, and auto-stacking in one synchronized process.

The machine is mainly used to produce:

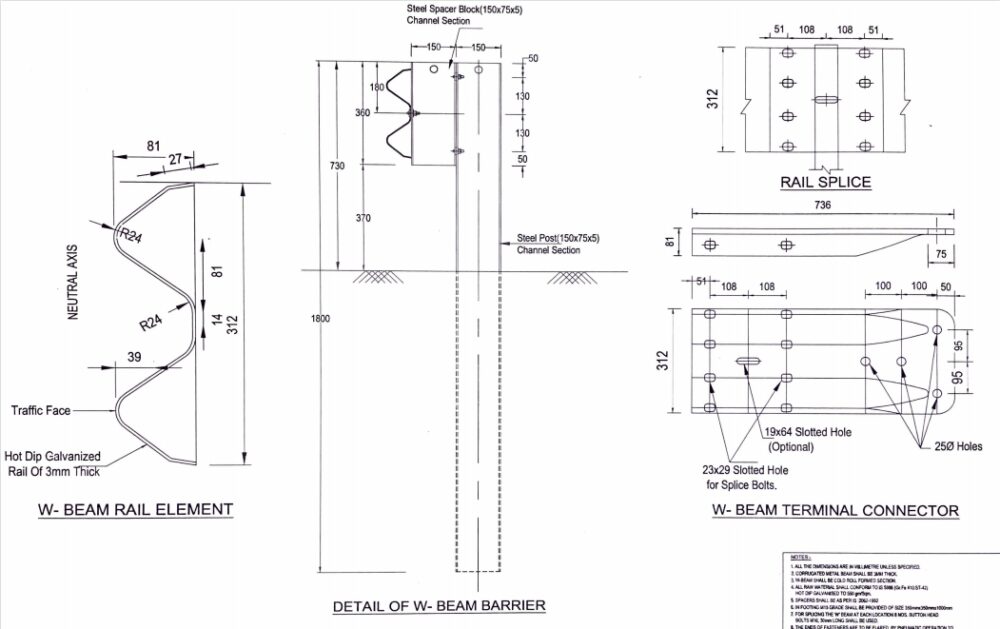

Two-wave (W-beam) highway guardrails

Three-wave (Thrie-beam) highway guardrails

Custom profiles based on AASHTO M180, EN1317 or local traffic safety standards

Key Technical Parameters of Our Highway Guardrail Roll Forming Machine

Below are standard specifications of our mainstream high-speed guardrail production line. All configurations can be customized according to your project requirements.

These parameters ensure stable production, accurate hole positions, and smooth corrugated surfaces that fully comply with international road safety standards.

Production Process Flow

A complete highway guardrail roll forming machine​ production line usually follows this workflow:

Hydraulic Decoiler​ – Uncoils steel strip safely and automatically

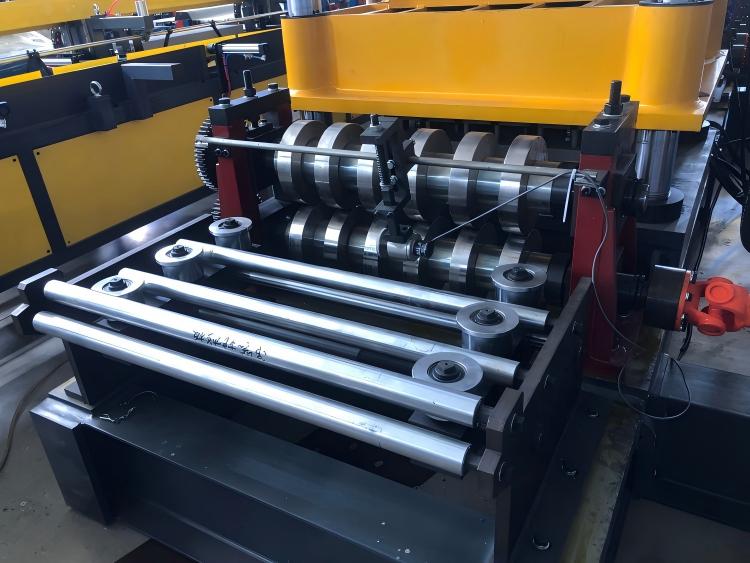

Leveling Device​ – Removes coil stress and ensures flat feeding

Servo Feeder + Hydraulic Punching​ – Punches bolt holes at precise intervals

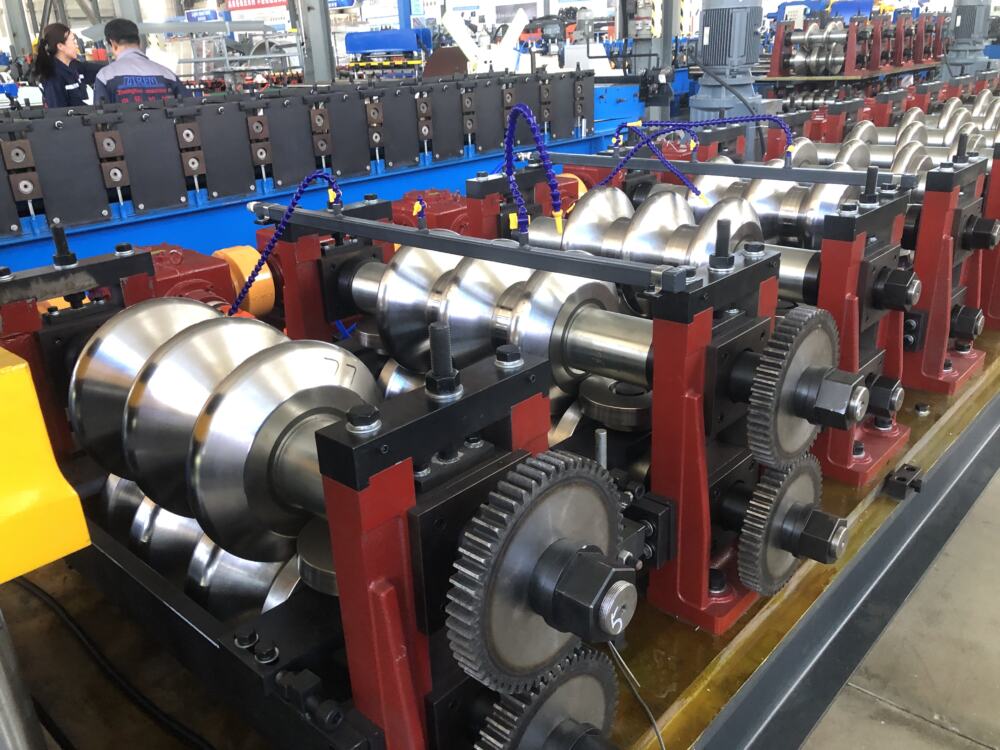

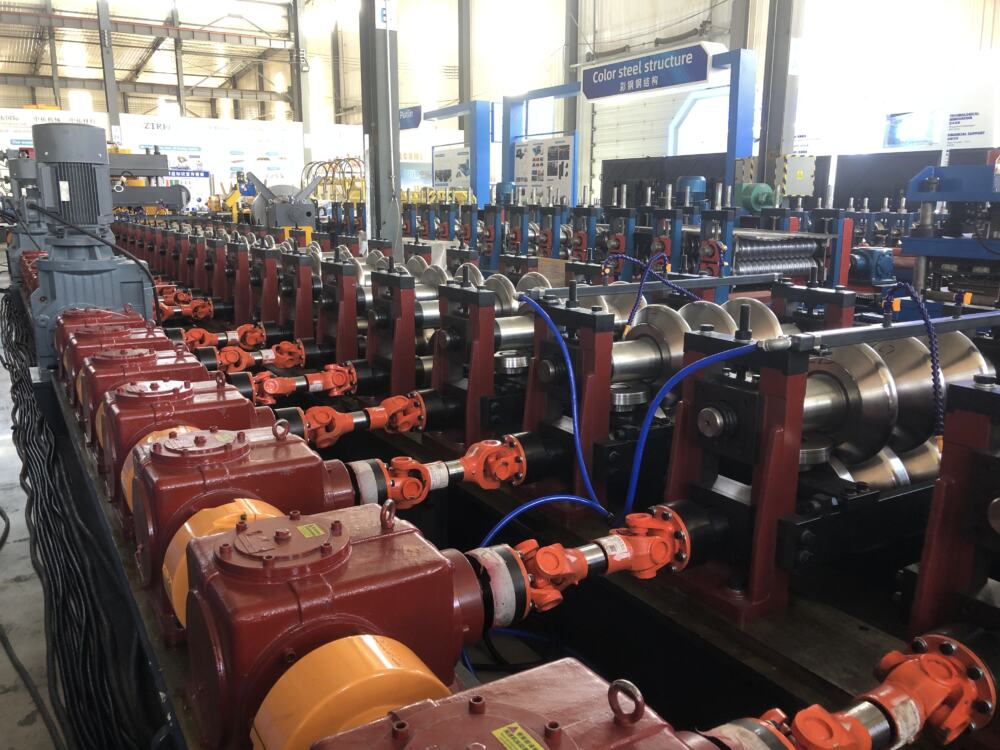

Main Roll Forming Machine​ – Progressive rollers shape W-beam or thrie-beam profiles

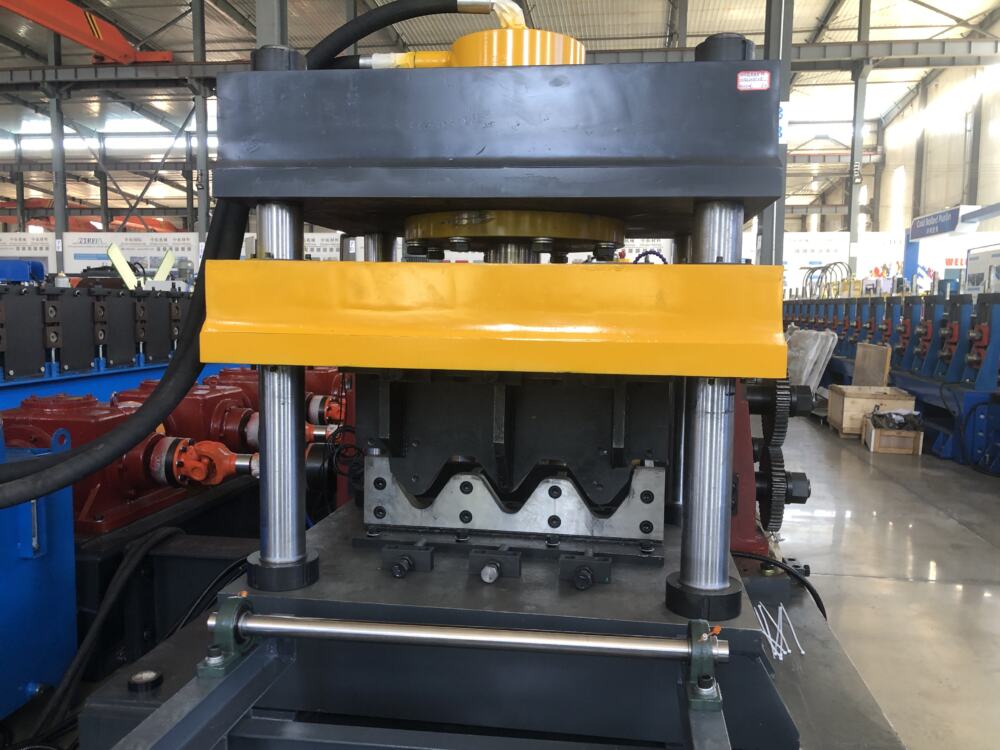

Hydraulic Cutting​ – Cuts guardrails to required length without stopping the line

Run-out Table / Auto Stacker​ – Collects finished guardrails neatly

This continuous process significantly reduces manual handling and improves daily output.

Why Choose a High Speed Guardrail Forming Machine?

Higher Production Efficiency

Traditional guardrail equipment often runs at 8–12 m/min. Our high speed guardrail forming machine​ operates at 15–25 m/min, helping you fulfill large infrastructure orders on time.

Consistent Product Quality

PLC control and high-precision rollers guarantee uniform wave height, accurate hole pitch, and clean cutting edges—critical for highway guardrail installation and crash barrier performance.

Lower Labor and Material Cost

One production line requires only 1–2 operators. Servo-controlled length cutting minimizes material waste and increases steel utilization above 98%.

Flexible Customization

We support customization of:

Coil width and thickness

Punching patterns and hole distances

W-beam / thrie-beam quick-change systems

Voltage and control system brands (Siemens, Schneider, Omron, etc.)

Application Scenarios

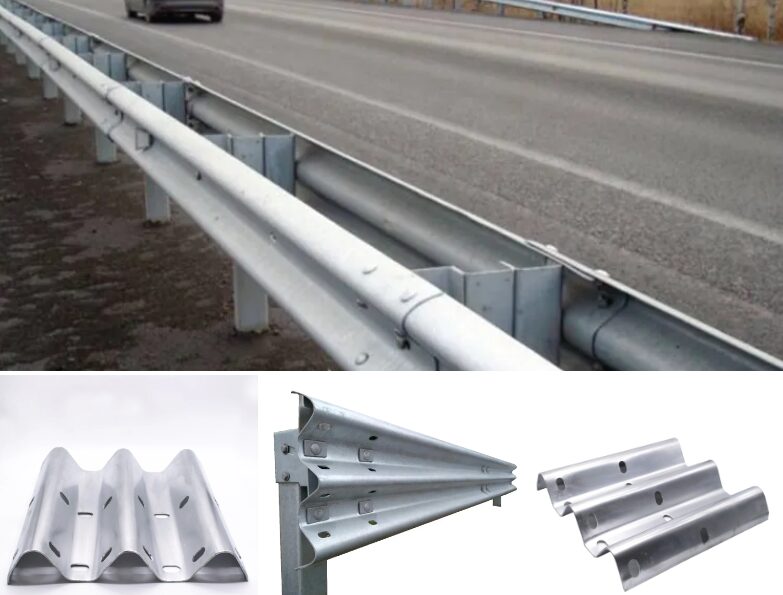

Guardrails produced by our highway guardrail roll forming machine are widely used in:

Expressway and highway main lines

Median barriers and roadside safety protection

Bridges, steep slopes and high-risk curves (thrie-beam)

Urban roads, overpasses and rural highway renovation

Airports, ports, toll stations and large parking areas

How to Choose the Right Guardrail Roll Forming Machine Supplier?

When sourcing a high speed guardrail forming machine​ for export or local manufacturing, consider the following:

Does the supplier have CE / ISO certification and export experience?

Can they provide reference projects in your target market?

Do they support remote installation guidance and long-term spare parts supply?

Are machines customizable to your national guardrail standards?

Working with an experienced manufacturer helps you avoid compliance issues, reduce downtime, and improve return on investment.

Conclusion

A high speed guardrail forming machine​ is a strategic investment for any company involved in highway safety infrastructure. With high forming speed, precise punching, and durable machine structure, our highway guardrail roll forming machine​ enables you to produce international-standard W-beam and thrie-beam guardrails efficiently and cost-effectively.
