The High-Quality Floor Deck Roll Forming Machine is a professional, heavy-duty automated production equipment specially designed for manufacturing high-strength floor decking panels, also known as floor bearing plates, which are core structural components widely applied in modern steel structure buildings across the global construction industry. As a pivotal equipment in the precision cold roll forming and building materials manufacturing sector, it adopts advanced servo-controlled continuous cold roll forming technology to process high-grade metal coils including hot-dip galvanized steel coils, Q235/Q355 high-strength carbon steel coils, galvanized aluminum-magnesium coils and weather-resistant steel coils into high-performance floor decking panels with stable structure, precise dimensions, strong load-bearing capacity and excellent corrosion resistance.

Unlike ordinary low-standard floor deck machines, our high-quality model is engineered with a reinforced heavy-duty frame, precision-machined roller sets and an intelligent control system, focusing on long-term stable operation, high forming accuracy and product durability. It supports the production of various mainstream profiled floor deck specifications, covering standard models widely used in the global market such as 688 type, 720 type, 750 type, 915 type and 1025 type, making it the top-tier production equipment for large steel structure manufacturers, construction engineering contractors, building material suppliers and export-oriented processing enterprises worldwide, perfectly matching the high-standard, large-scale production demands of high-rise buildings, industrial plants and commercial complex projects.

Adopting non-heat treatment continuous cold roll forming technology, this machine retains the original mechanical properties and anti-corrosion coating integrity of raw steel materials, avoiding material deformation, performance degradation and surface coating damage caused by thermal processing. The entire production line operates a fully automatic closed workflow: starting from heavy-duty hydraulic uncoiling, precision leveling and deviation correction, servo constant-speed feeding, multi-stage heavy-duty roll forming, synchronous punching (optional for installation and connection), fixed-length flying saw or hydraulic shear cutting, to final automatic discharging and neat stacking of finished floor deck panels. This integrated intelligent production mode ensures zero manual errors, consistent product quality, ultra-high production efficiency and full compliance with international steel structure building standards and export quality certification requirements.

Core Components of Our High-Quality Floor Deck Roll Forming Machine

Heavy-Duty Hydraulic Uncoiling System: Built for large-weight steel coils dedicated to floor deck production, this system is equipped with a hydraulic drive uncoiler with a maximum load capacity of 5-10 tons, supporting coil widths ranging from 500-1250mm and material thickness of 0.8-3.0mm. It features automatic hydraulic expansion, pressure holding and deviation correction functions, paired with a feeding guide bridge and anti-slip pressure rollers, ensuring stable and smooth feeding of thick and wide steel coils, preventing material scratches, misalignment and wrinkling, and adapting to various high-strength steel materials for high-quality floor deck manufacturing.

Precision Leveling & Servo Feeding Unit: Equipped with 11-17 groups of high-precision leveling rollers, this unit effectively eliminates curling stress, waviness and surface unevenness of wide steel strips, guaranteeing the raw material is completely flat and straight before entering the forming system. It supports adjustable leveling intensity for different steel thicknesses and strengths, which is critical to ensuring the final floor deck panels have perfect flatness, consistent cross-section and stable load-bearing performance. The servo-driven precision feeding system ensures accurate feeding length and constant speed, matching the high-speed forming process without material slipping or deviation.

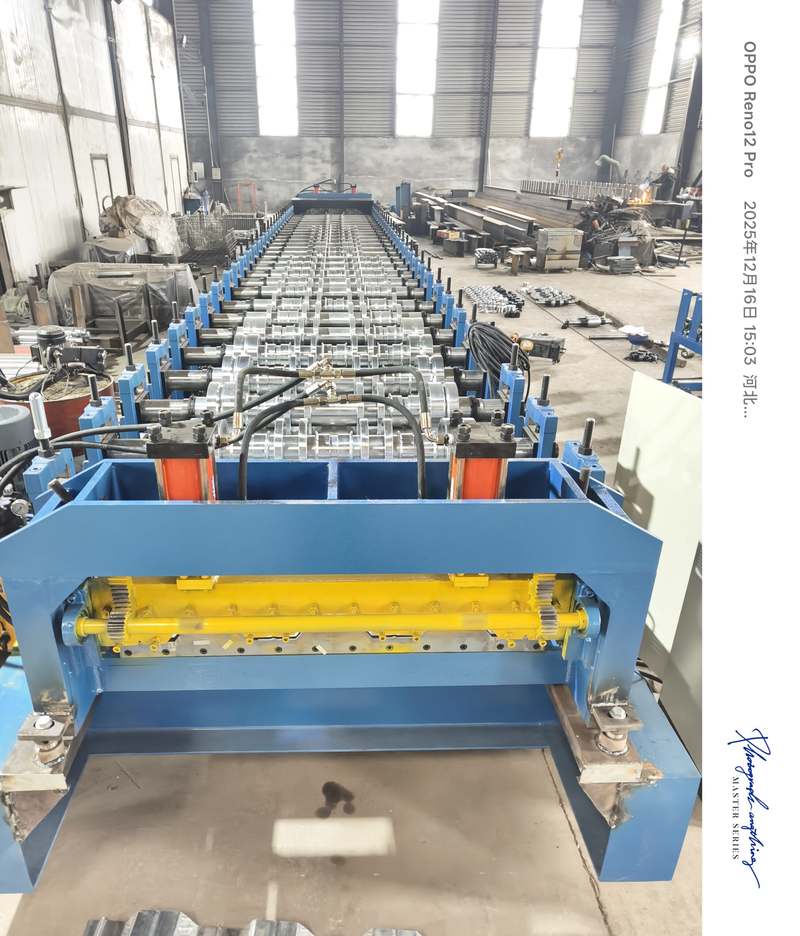

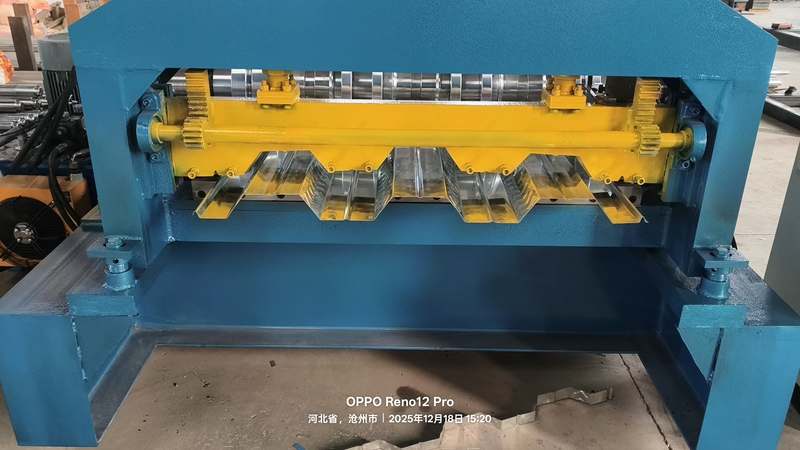

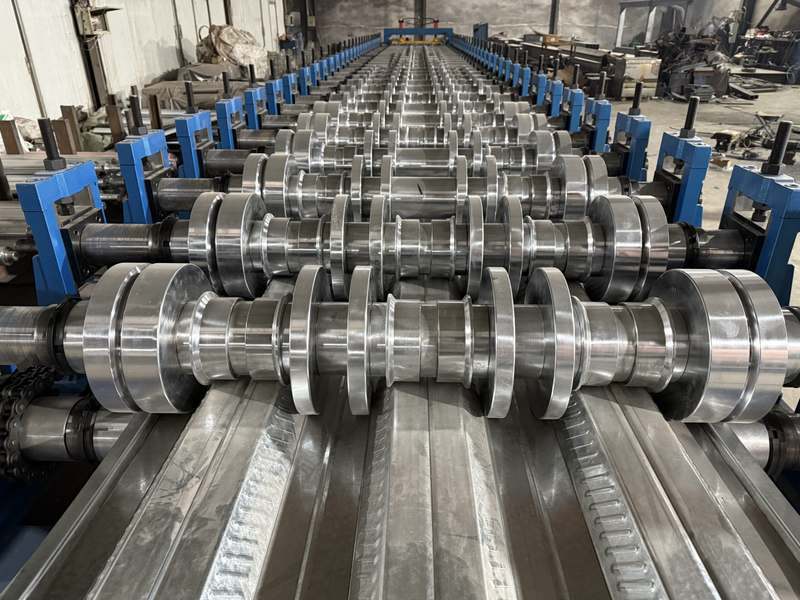

Reinforced Heavy-Duty Forming Main Unit: As the core of the entire high-quality machine, the forming unit adopts an integrated thick-walled steel frame with overall tempering and stress relief treatment, composed of 22-36 groups of heavy-duty forming roller stations. The forming rollers are made of high-grade GCr15 bearing steel or Cr12MoV alloy steel, processed by precision CNC machining, integral quenching and tempering, and hard chrome plating, with a hardness of HRC 60-65, featuring ultra-high wear resistance, pressure resistance and a service life of over 1 million meters. Driven by a high-power servo motor and precision gearbox transmission, it ensures synchronous and stable operation of all roller groups, forming high-strength profiled floor decks in one pass with no deformation or size deviation.

Optional Synchronous Punching System: For floor deck panels that need to be connected with steel beams and embedded parts, the machine can be equipped with a servo-driven synchronous punching unit that runs in full sync with the forming process without stopping the production line. It can punch standard connection holes, fixing holes and vent holes with uniform size and spacing, with punching accuracy controlled within ±0.3mm. The punching position and parameters can be flexibly set via the touch screen, fully complying with international floor deck installation standards, ensuring perfect fitting during on-site construction.

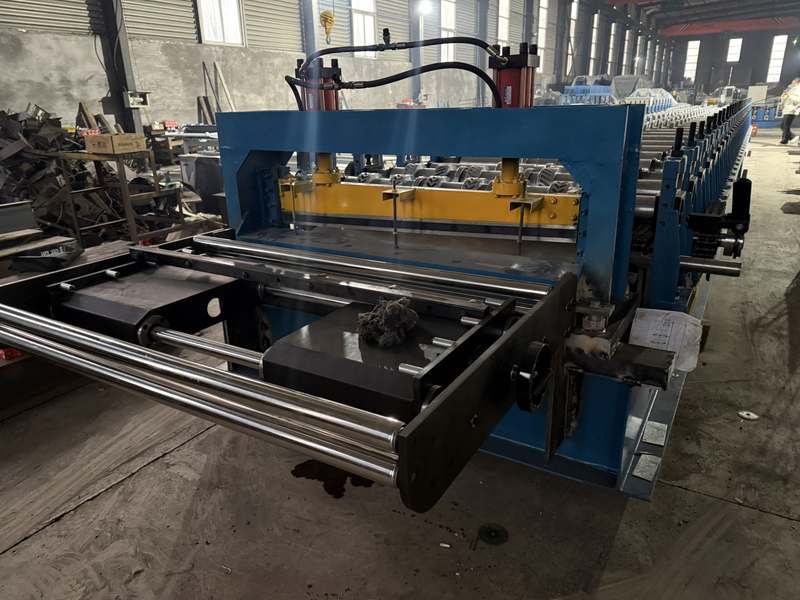

High-Precision Cutting System: To match the high-efficiency forming speed and ensure product integrity, our high-quality machine adopts advanced servo flying saw cutting or hydraulic shear cutting technology, both of which realize non-stop fixed-length cutting during continuous production. Equipped with heat-treated high-strength alloy steel blades, it ensures smooth cutting edges, no burrs and no panel deformation, with cutting accuracy as high as ±0.5mm. The cutting length can be freely adjusted between 1-12 meters via the intelligent PLC system, adapting to standard engineering lengths and customized length requirements of global construction projects.

Automatic Discharging & Stacking Mechanism: Designed for wide and heavy floor deck panels, this unit includes a hydraulic lifting discharge rack and pneumatic pressing stacking device with soft rubber contact pads, avoiding surface scratches on galvanized or coated floor decks. It can automatically stack finished panels neatly and stably, reducing manual handling labor and potential product damage, improving overall production efficiency and protecting product surface quality and corrosion resistance.

Intelligent PLC Control System: The entire production line is controlled by a well-known international brand PLC (Siemens/Mitsubishi/Delta) with a large humanized touch screen operation panel, supporting multi-language switching including English, Spanish, Arabic, French, Russian and Portuguese. It realizes full-process automatic control of uncoiling, leveling, forming, punching, cutting and stacking, with functions of production counting, fault self-diagnosis, emergency stop, parameter memory and production speed regulation. The system is easy to operate, requires only 1-2 workers to monitor, with stable and low-failure operation for long-term continuous high-intensity production.
