Arc and Trapezoid Double Layer Roofing Tile Forming Machine：High Efficiency Custom Solution

Description:Our arc and trapezoid double layer roofing tile forming machine integrates dual-mode molding, high precision & low energy consumption. Suitable for various industrial & residential roof projects. Get free customized solution & factory price!

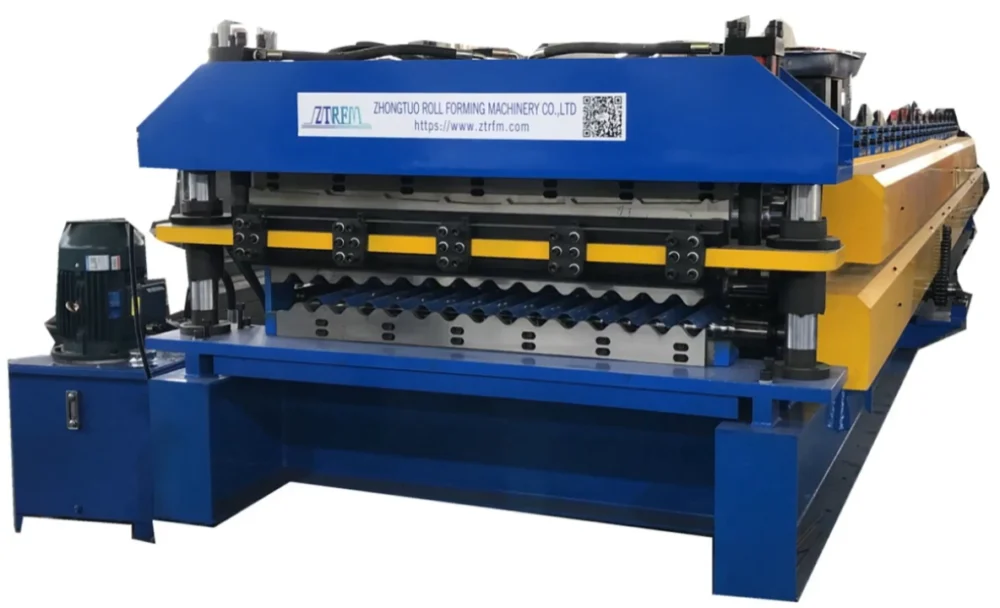

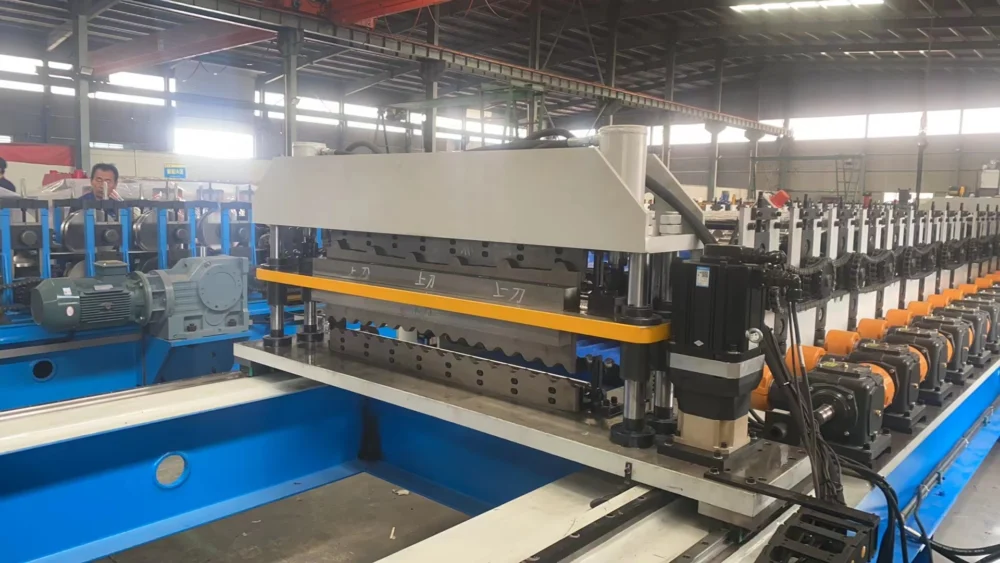

The arc and trapezoid double layer roofing tile forming machine is a multifunctional metal roofing roll forming equipment specially designed for modern construction roofing projects. Different from single-function tile pressing machines, this dual-layer integrated equipment can produce two types of roofing tiles—arc corrugated tiles and trapezoid rib tiles—on one single machine, perfectly meeting the diverse roofing design needs of industrial plants, residential buildings, warehouses, and commercial buildings. With stable operation, high molding precision and flexible customization, it has become the preferred processing equipment for global metal roofing material manufacturers.

Core Advantages of Arc and Trapezoid Double Layer Roofing Tile Forming Machine

In the global metal roofing processing industry, traditional single-structure tile forming machines have problems such as single product type, high equipment investment cost and large floor space. Our double-layer roofing tile forming machine completely solves these pain points and has obvious competitive advantages in actual production:

Dual-Mode Integrated Molding, Wide Application

This machine adopts an optimized double-layer structural design. The upper layer is responsible for arc corrugated roofing tile molding, and the lower layer completes trapezoid roofing tile pressing. It can switch production modes freely without replacing molds, realizing one machine for multiple purposes. The produced arc tiles are beautiful and waterproof, suitable for residential villa roofs and landscape buildings; trapezoid tiles have high strength and strong wind resistance, ideal for large industrial factories, logistics warehouses and stadium roofs.

High Precision & Stable Molding Quality

Equipped with imported PLC intelligent control system and high-precision roller groups, the arc and trapezoid double layer roofing tile forming machine realizes fully automatic feeding, leveling, molding, cutting and outputting. The molding size error is controlled within ±0.5mm, and the tile surface is smooth without burrs, no deformation or wrinkling. All finished tiles fully meet international construction industry standards and can pass the quality inspection of European, American, Southeast Asian and Middle Eastern markets.

High Production Efficiency & Cost-Effective

The equipment supports continuous uninterrupted production, with a production speed of 8-12 meters per minute. Compared with purchasing two separate single-layer tile machines, this integrated equipment saves 40% of equipment investment cost and 30% of workshop floor space. Meanwhile, the automatic operation reduces manual intervention, effectively lowering labor costs and improving overall production efficiency for processing enterprises.

Durable Structure & Low Maintenance Cost

The main body of the machine is made of thickened national standard steel, which is anti-rust, anti-corrosion and resistant to long-term high-load operation. Key wearing parts are made of high-hardness alloy materials, with long service life. The equipment is designed with a modular disassembly structure, which is convenient for daily maintenance and parts replacement, greatly reducing later operation and maintenance costs for users.

Complete Technical Parameters of Double Layer Roofing Tile Forming Machine

We provide standardized and customizable technical configurations to meet the personalized production needs of different customers. The core parameters of the arc and trapezoid double layer roofing tile forming machine are as follows:

Processing Material: Color steel coil, galvanized steel coil, aluminum zinc steel coil

Material Thickness: 0.3mm-0.8mm

Production Speed: 8-12m/min

Control System: PLC full automatic computer control

Molding Precision: Size error ≤±0.5mm

Total Power: 7.5KW-11KW (customizable)

Machine Weight: About 2800KG

Overall Dimension: 6800mm×1300mm×1500mm

Custom Service: Support customized tile width, height, wave distance and special-shaped molds

Ampi scenari di applicazione

The arc and trapezoid double layer roofing tile forming machine can produce two mainstream roofing tile products, covering almost all mainstream building roofing scenarios in the global market:

Civil Construction: Villa roofs, residential community roofs, rural self-built houses, tourist scenic area buildings

Industrial Construction: Factory workshops, logistics warehouses, industrial parks, factory auxiliary buildings

Commercial Construction: Shopping malls, exhibition halls, stadiums, station waiting halls, large supermarket roofs

Special Projects: Temporary construction buildings, green energy-saving buildings, wind-proof and rain-proof engineering roofs

Why Choose Our Double Layer Roofing Tile Forming Machine?

Professional Factory Strength

We are a professional manufacturer of metal cold roll forming equipment with more than 20 years of R&D and production experience. We have a complete production workshop, advanced processing equipment and professional technical team, abandoning intermediate distributors to provide customers with direct factory prices and genuine high-quality equipment.

Global Customization Service

In view of the different building standards and market demands in different countries and regions, we support personalized customization of equipment parameters, tile models and voltage specifications. Our equipment has been exported to Europe, America, Southeast Asia, Africa, the Middle East and other more than 50 countries and regions, accumulating rich overseas project experience.

Perfect After-Sales System

We provide 24-month free warranty, lifelong technical support and overseas door-to-door installation and commissioning services. We offer English operation manuals, video teaching materials and remote technical guidance to help customers quickly complete equipment installation, debugging and production training, ensuring no worries for subsequent production.

High Cost-Performance

Adhering to the principle of quality first, we strictly control every production process of the equipment to ensure stable and durable product performance. Compared with peer products, our arc and trapezoid double layer roofing tile forming machine has lower failure rate, higher production efficiency and more competitive price, bringing higher economic benefits for customers.

Purchase & Cooperation Guidance

Whether you are a roofing material processing factory, engineering construction company or equipment distributor, our arc and trapezoid double layer roofing tile forming machine is your ideal choice to expand product lines and improve market competitiveness.

We support factory inspection, sample testing, and customized solution design. If you have equipment parameter requirements, production plan demands or want to know the latest quotation, pleasecontact us for free consultation. We will arrange professional overseas sales engineers to provide you with one-stop personalized solutions within 24 hours!
