Our standing seam roll forming machine is a professional, fully automatic cold roll forming unit, specially engineered for mass production of high-quality standing seam roof panels and related components. As a premium roofing solution, standing seam roof panels are renowned for their superior waterproof performance, sleek appearance, durability and weather resistance, widely used in commercial, industrial, residential and public building roofing projects. This machine integrates automatic coil uncoiling, precision leveling, standing seam roll forming, fixed-length flying shear cutting, and automatic stacking into a seamless workflow, delivering stable, efficient and cost-effective production solutions for global building material manufacturers, steel structure enterprises, construction contractors and roofing specialists.

Principaux avantages et caractéristiques

Professional Standing Seam Forming, Superior Waterproof Performance

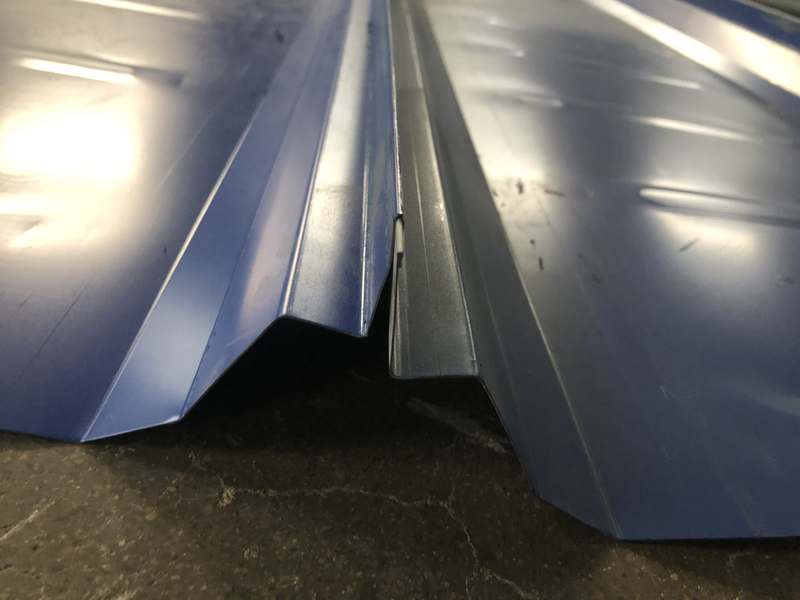

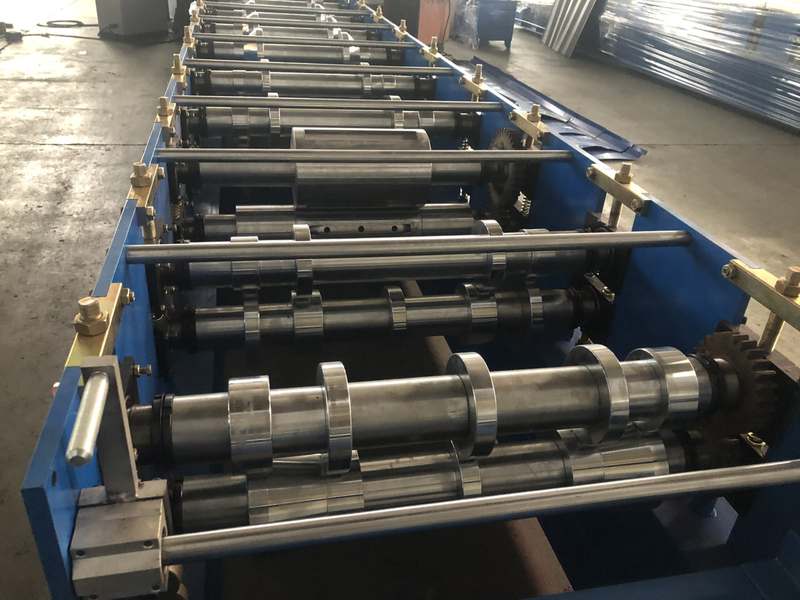

The core highlight of this machine is its custom-designed standing seam forming roller system, precisely calibrated to produce standard and customized standing seam profiles (such as snap-lock, mechanical lock, and batten seam). The optimized multi-stage gradual forming process ensures every roof panel has neat, tight standing seams, uniform seam height and width, and no deformation, warping or burrs. The interlocking standing seam design eliminates exposed fasteners, creating a seamless, watertight barrier that effectively prevents rainwater leakage, even in heavy rain, strong wind and other harsh weather conditions, fully complying with international roofing construction standards (ISO, ASTM, EN).

High-Efficiency Production, Suitable for Large-Scale Projects

Equipped with high-power imported servo motors and precision transmission components, the machine achieves a stable working speed of 20-40m/min, supporting 24-hour uninterrupted continuous production. The built-in flying shear cutting system realizes fixed-length cutting without stopping the production line, maximizing production efficiency and reducing manual labor input by over 65%. This efficient workflow drastically shortens order delivery cycles, perfectly meeting the large-scale supply needs of commercial buildings, industrial workshops and large-span roofing projects.

High-Precision Control, Stable Product Quality

Driven by imported high-precision positioning encoders and intelligent PLC control systems, the machine controls product dimensional tolerance within ±0.3mm, guaranteeing consistent seam height (25mm-50mm), panel width and length for every standing seam roof panel. All forming rollers are forged from high-grade 45# carbon steel, processed by precision grinding and multi-layer hard chrome plating, featuring exceptional wear resistance, pressure resistance and long service life. Even in long-term continuous operation, the machine maintains stable forming quality, avoiding surface scratches and coating damage, ensuring the aesthetic and durability of finished panels.

Heavy-Duty Stable Structure, Reliable Long-Term Operation

The main frame is constructed with thickened high-strength welded steel plate, treated with overall annealing process, featuring ultra-high rigidity, excellent shock resistance and zero deformation even under long-term high-load operation. The transmission system uses high-precision gearboxes and heavy-duty chains, running smoothly with low noise and minimal abrasion. Core electrical components adopt world-renowned brands such as Siemens and Schneider, ensuring stable operation, low failure rate, less downtime and reduced maintenance costs for enterprises.

Large compatibilité avec les matériaux et les spécifications

This machine adapts to various metal coil materials commonly used for standing seam roof panels, including color-coated steel, aluminum-zinc coated steel, aluminum alloy, stainless steel and hot-dip galvanized steel, with a material thickness range of 0.4mm-1.2mm, covering mainstream raw material specifications in the global market. It supports quick adjustment of panel width (300mm-600mm), seam height and length, producing various standard standing seam models and customized designs, realizing one machine for multiple purposes and meeting diversified roofing project demands.

Anti-Scratch & Weather-Resistant Protection

Designed with a professional anti-scratch forming system, the machine uses soft rubber conveying rollers and precise gap adjustment to avoid hard friction between the metal coil and forming rollers, protecting the surface coating from scratches and abrasions. This keeps the surface coating intact, ensuring finished standing seam panels have excellent rust resistance, corrosion resistance and weather resistance, suitable for long-term outdoor use in diverse climatic conditions, including coastal areas, high-altitude regions and areas with extreme temperatures.

Intelligent Automatic Operation, Labor-Saving & Easy to Use

Powered by an advanced PLC touch screen control system and hydraulic automatic uncoiler, the machine realizes fully unmanned continuous production. Operators only need to set production length, panel specifications, seam parameters and quantity with one click, and the equipment automatically completes feeding, leveling, forming, cutting and stacking. The system is equipped with fault self-diagnosis, emergency stop and automatic alarm functions, ensuring safe operation and quick troubleshooting. New operators can master full operation after short-term training, no professional technical background required.
