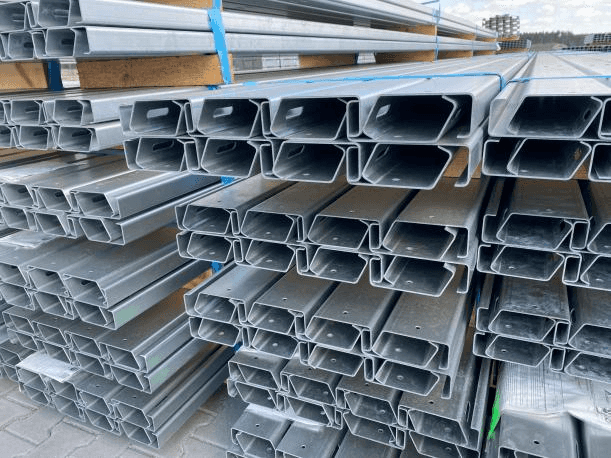

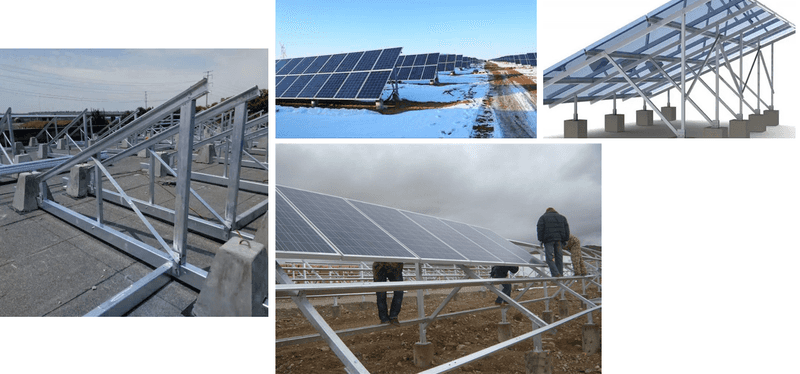

The photovoltaic steel forming machine produces C-shaped, Z-shaped, and slanted C-shaped/Z-shaped profiles. The machine design allows solar panels to align with the sun’s angle during installation, maximizing the absorption rate of photovoltaic light.

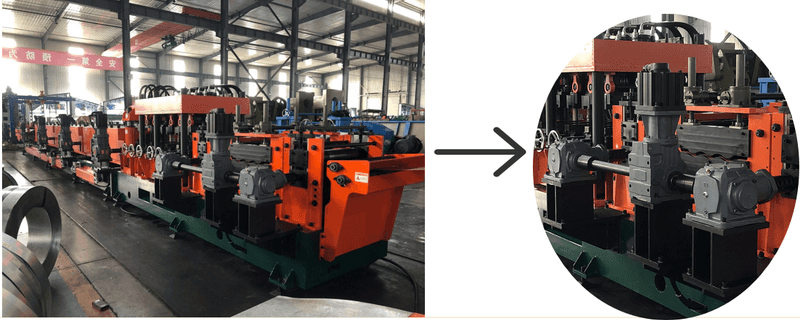

The machine adopts the servo motor gearbox transmission.

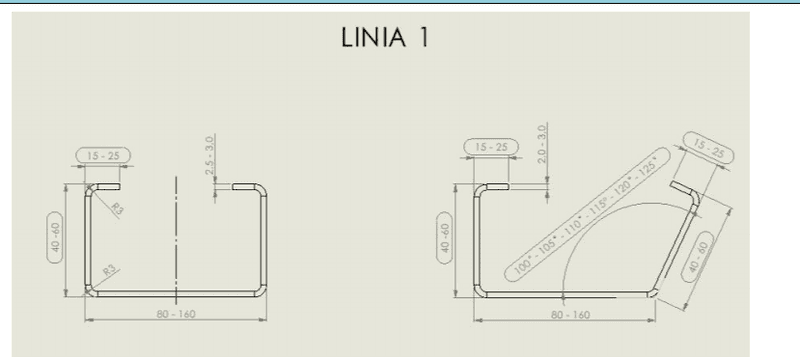

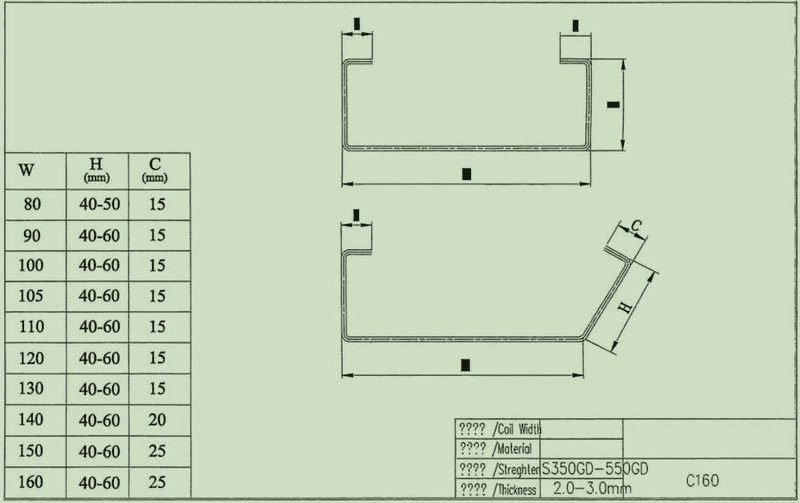

C purliine sizes and tilt angle are all adjustable

Material thickness: S350GD – 550GD hardness： 630-790Mpa. thickness：2-3mm Inner corner degree：3R

With punching online for easy to fix on the pole of the solar channel

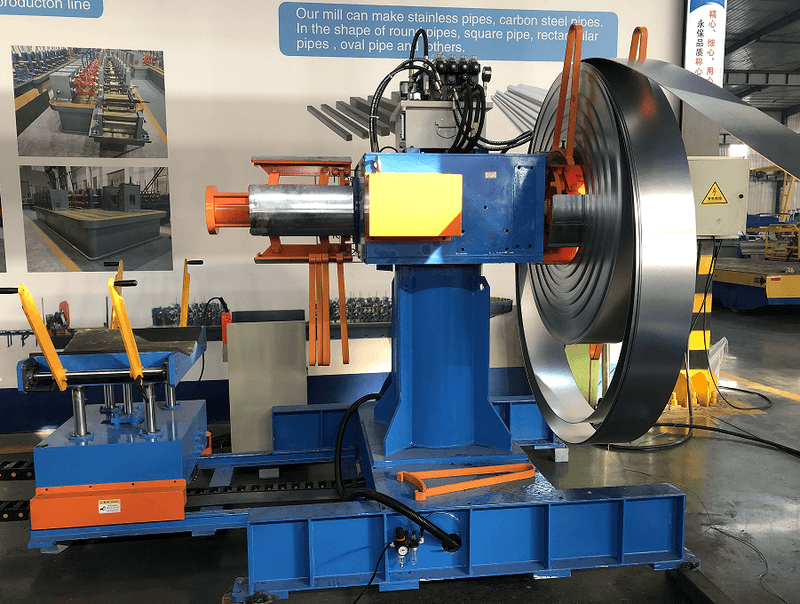

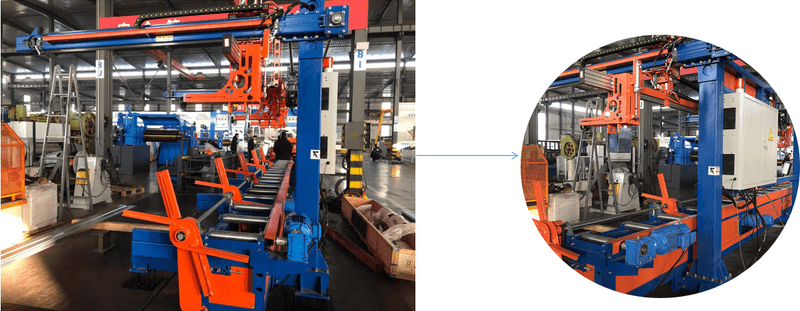

Decoiler automatic type

In order to match the high accuracy C purline production, we also use high speed and high accuracy automatic 5 ton hydraulic decoiler

Feeding

Requirement is safety.This machine employs a funnel-shaped feeding mechanism that ensures both operator safety and material integrity. The integrated process includes: material discharge from the base, pressure roller action, 90-degree vertical guide rollers, feeding and forming, active roller pushing, leveling, and recorder clamp feeding. The flexible feeding port design prevents material damage to rollers or rollers from material bending or fractures. By incorporating elastic components, the system can spring back the material before leveling, ensuring smooth operation without damaging either components. This machine employs a funnel-shaped feeding mechanism that ensures both operator safety and material integrity. The integrated process includes: material discharge from the base, pressure roller action, 90-degree vertical guide rollers, feeding and forming, active roller pushing, leveling, and recorder clamp feeding. The flexible feeding port design prevents material damage to rollers or rollers from material bending or fractures. By incorporating elastic components, the system can spring back the material before leveling, ensuring smooth operation without damaging either components.

Punching Equipment

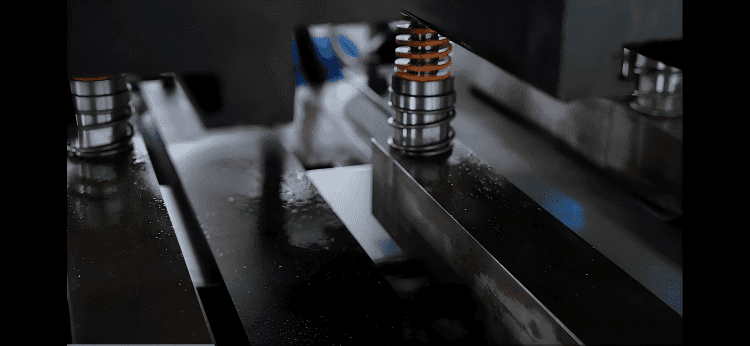

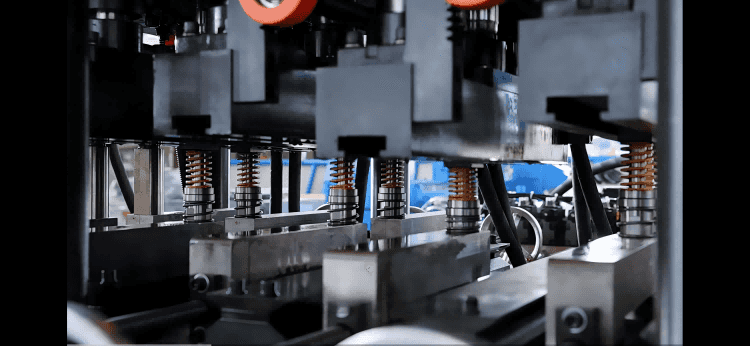

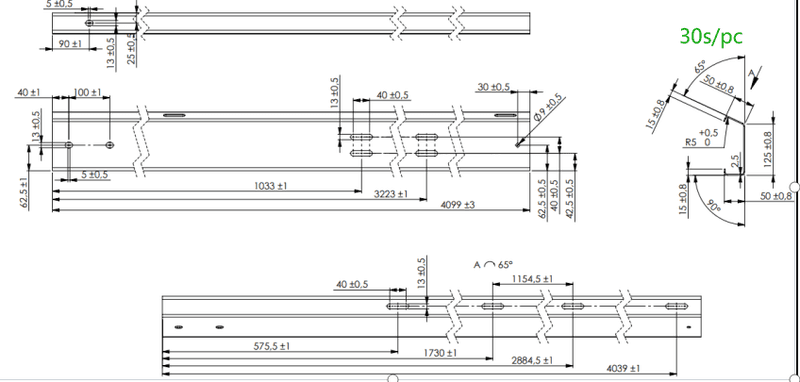

The key distinction between photovoltaic steel profiles and standard steel profiles or purlins lies in their punching capabilities. This machine features a modular punching system that supports both individual and combined punching operations. Unlike traditional photovoltaic steel profiles with densely packed punching holes, our system precisely targets specific locations for punching, achieving true intelligent punching.

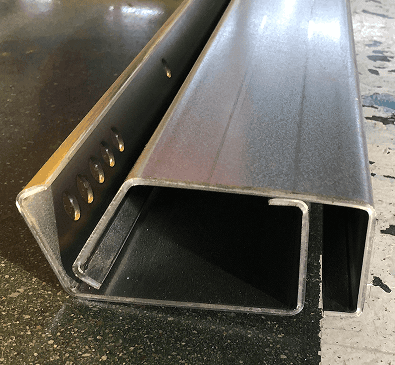

Our machine punching products feature zero burrs and exceptional smoothness. The surface remains completely undamaged, with the pattern shape remaining perfectly intact. This demonstrates the significance of our machine’s flexible design. Our machine punching products feature zero burrs and exceptional smoothness. The surface remains completely undamaged, with the pattern shape remaining perfectly intact. This demonstrates the significance of our machine’s flexible design.

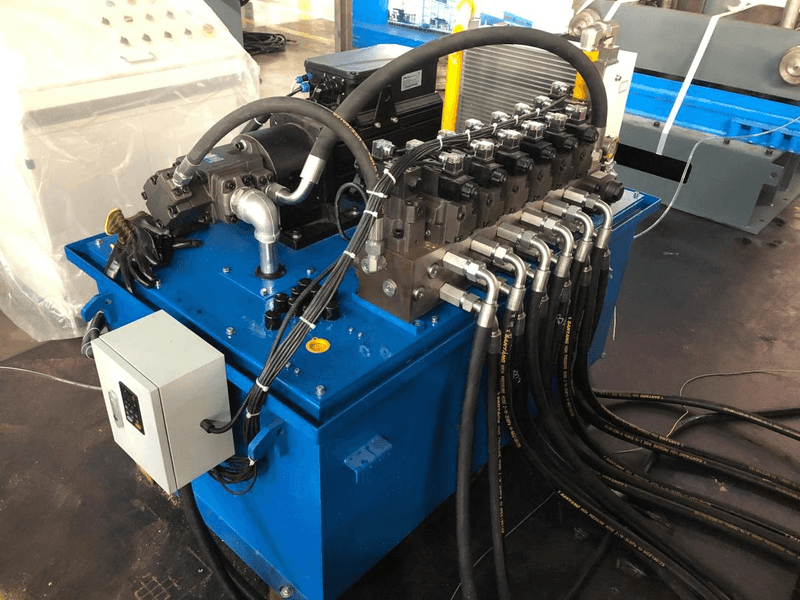

The Servo Motor of Hydraulic Station Is Adopted.

This design aligns well with Europe’s current global initiative of’ carbon tracking and carbon accounting’.

As to make sure the punching accuracy, the servo motor also used for the hydraulic station

The Control System.

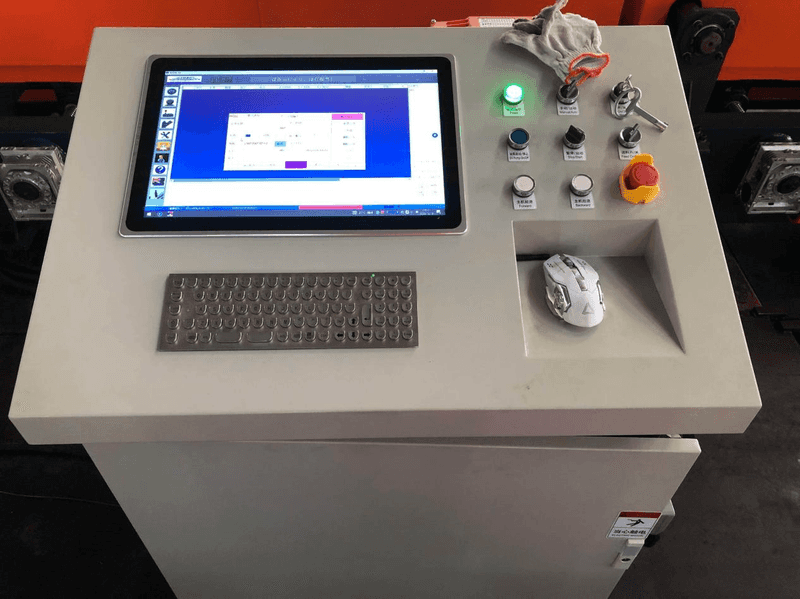

Our control system features a large display screen that visually presents MCD animations. It also includes a keyboard and mouse interface. In harsh environments where distortion or uncontrollable factors may occur, the keyboard helps ensure the equipment’s long-term durability and reliability.

With the computer inside, you can input CAD software Also with keyboard and Mouse then it is much more easier to use

The Machine Adopts Flat Cutting.

Our photovoltaic steel equipment features automatic opening/closing and sliding mechanisms, capable of producing multiple models. However, excessive blade numbers significantly increase production costs. While electrodeless cutting could deform cross-sections and cause material waste, we employ flat-cutting technology with servo motors and a split-shaft drive system. This design ensures stable power delivery without deviation, applying continuous force throughout the process to maintain uniform stress distribution in high-strength materials during forming.

The Design with turkey head

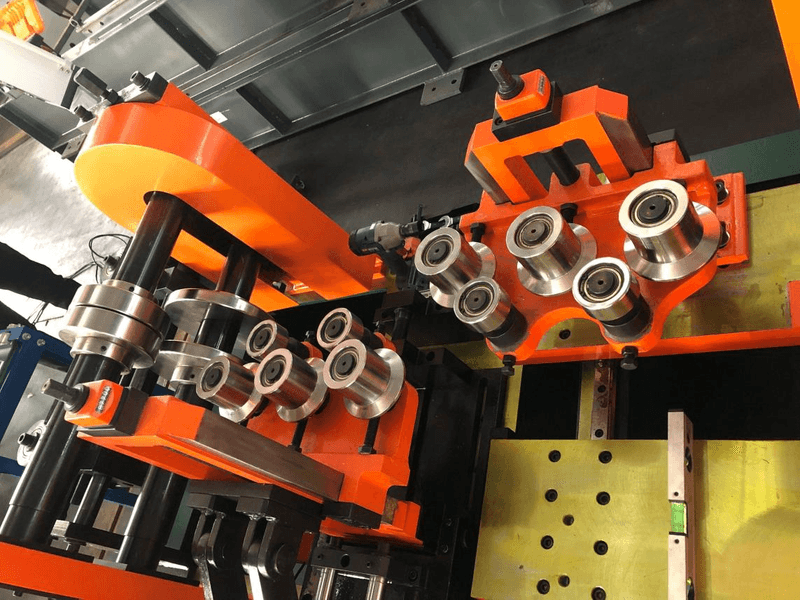

The machine features a calibration system after molding, with an adjustable marking plate that adapts to different pattern types—for example, a 45-degree bevel can be set to 45 degrees, and a 90-degree bevel to 90 degrees. This provides customers with a clearer and more intuitive visual reference.

MotorMotor

In response to Europe’s “Carbon Tracing, Carbon Integration” policy, our motors feature low energy consumption, with the entire production line capable of reaching 60 kW in power output. However, the total electricity consumption of our entire production line is less than 10 kWh per hour. This enables the realization of truly green, energy-efficient, and environmentally friendly high-performance equipment.

Automatic Palletizing Machine

The system can achieve full automation of the entire production line, including automatic flipping, palletizing, conveying, and final bundling.
