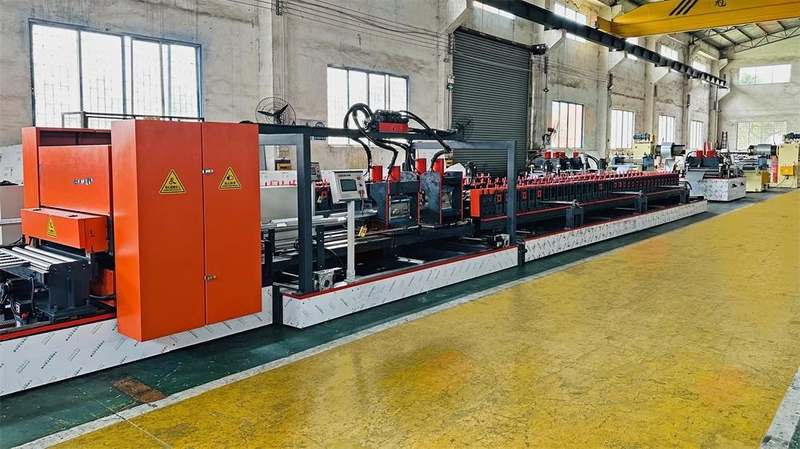

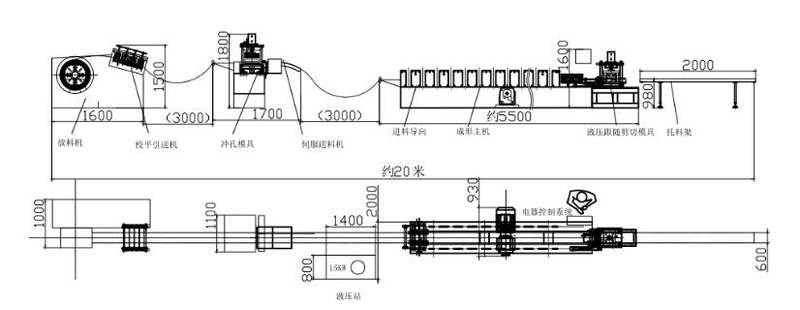

Our shelf pallet roll forming machine is a professional, fully automatic cold roll forming unit, specially engineered for mass production of high-strength, durable shelf pallets and pallet components. As a core storage and logistics accessory, shelf pallets are widely used in warehouses, logistics centers, factories, supermarkets and distribution facilities, requiring strict structural rigidity, load-bearing capacity and dimensional accuracy. This machine integrates automatic coil uncoiling, precision leveling, roll forming, synchronous punching, fixed-length flying shear cutting and automatic stacking into a seamless workflow, delivering stable, efficient and cost-effective production solutions for global logistics equipment manufacturers, shelf suppliers, warehousing enterprises and industrial hardware suppliers.

Principaux avantages et caractéristiques

Professional Pallet Forming, Superior Load-Bearing Performance

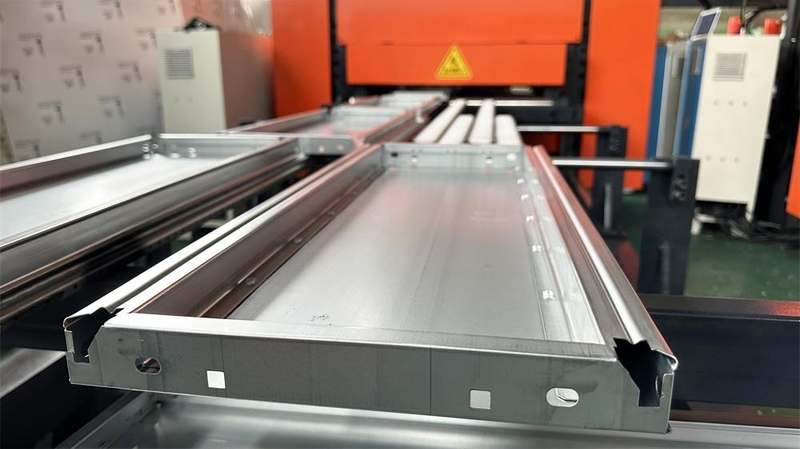

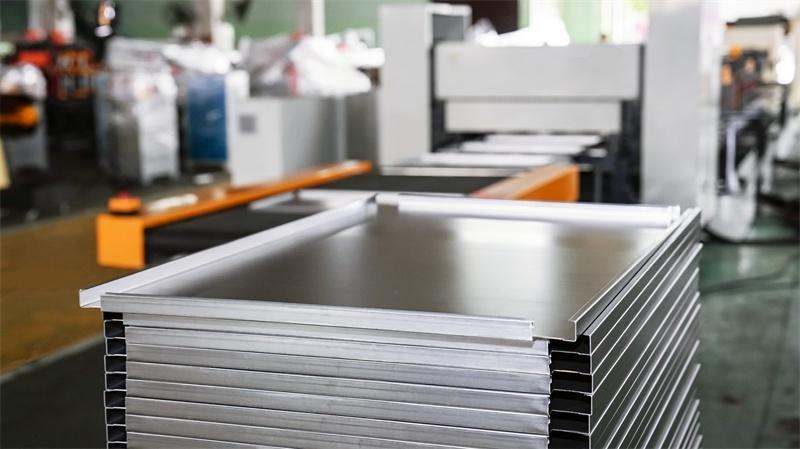

The core highlight of this machine is its custom-designed multi-stage forming roller system, precisely calibrated to produce standard and customized shelf pallet profiles, including pallet beams, stringers, deck boards and supporting components. The optimized gradual forming process ensures every pallet component has a firm structure, uniform dimensions and no deformation, warping or burrs. The formed shelf pallets boast excellent load-bearing capacity (1000kg-5000kg, adjustable according to specifications), strong impact resistance and stable structure, effectively supporting heavy goods storage and transportation, fully complying with international logistics and warehousing standards (ISO, ASTM, DIN).

High-Efficiency Production, Suitable for Large-Scale Orders

Equipped with high-power imported servo motors and precision transmission components, the machine achieves a stable working speed of 15-35m/min, supporting 24-hour uninterrupted continuous production. The built-in flying shear cutting system realizes fixed-length cutting without stopping the production line, maximizing production efficiency and reducing manual labor input by over 65%. This efficient workflow drastically shortens order delivery cycles, perfectly meeting the large-scale supply needs of global logistics and warehousing projects, especially for large warehouses and distribution centers.

High-Precision Control, Stable Product Quality

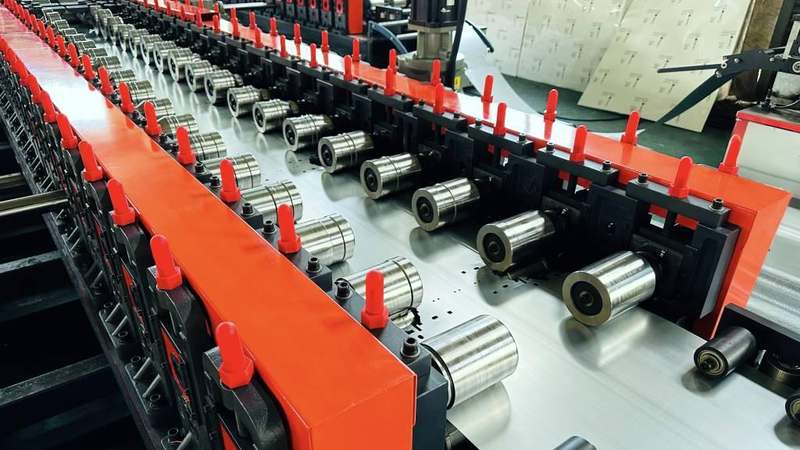

Driven by imported high-precision positioning encoders and intelligent PLC control systems, the machine controls product dimensional tolerance within±0.3mm, guaranteeing consistent width, thickness and length for every shelf pallet component. All forming rollers are forged from high-grade 45# carbon steel, processed by precision grinding and multi-layer hard chrome plating, featuring exceptional wear resistance, pressure resistance and long service life. Even in long-term continuous operation, the machine maintains stable forming quality, avoiding surface scratches and coating damage, ensuring perfect assembly of pallet components.

Heavy-Duty Stable Structure, Reliable Long-Term Operation

The main frame is constructed with thickened high-strength welded steel plate, treated with overall annealing process, featuring ultra-high rigidity, excellent shock resistance and zero deformation even under long-term high-load operation. The transmission system uses high-precision gearboxes and heavy-duty chains, running smoothly with low noise and minimal abrasion. Core electrical components adopt world-renowned brands such as Siemens and Schneider, ensuring stable operation, low failure rate, less downtime and reduced maintenance costs for enterprises.

Large compatibilité avec les matériaux et les spécifications

This machine adapts to various metal coil materials commonly used for shelf pallets, including hot-dip galvanized steel, cold-rolled steel, aluminum-zinc coated steel and high-strength low-alloy steel, with a material thickness range of 1.0mm-3.0mm, covering mainstream raw material specifications in the global market. It supports quick adjustment of pallet size (length, width, height) and component specifications, producing various standard shelf pallets (wooden-like metal pallets, heavy-duty industrial pallets) and customized models, realizing one machine for multiple purposes and meeting diversified logistics and warehousing demands.

Intelligent Automatic Operation, Labor-Saving & Easy to Use

Powered by an advanced PLC touch screen control system and hydraulic automatic uncoiler, the machine realizes fully unmanned continuous production. Operators only need to set production length, component specifications, quantity and punching positions with one click, and the equipment automatically completes feeding, leveling, forming, punching, cutting and stacking. The system is equipped with fault self-diagnosis, emergency stop and automatic alarm functions, ensuring safe operation and quick troubleshooting. New operators can master full operation after short-term training, no professional technical background required.

Anti-Scratch Protection & Low Maintenance Cost

Designed with a professional anti-scratch forming system, the machine uses soft rubber conveying rollers and precise gap adjustment to avoid hard friction between the metal coil and forming rollers, protecting the surface coating from scratches and abrasions. Daily maintenance only requires regular lubrication and routine inspection, with simple steps and low long-term operating costs, further reducing the overall production burden for enterprises.
