The IBR Metal Roof Sheet Roll Forming Machine is a fully automatic, high-efficiency cold roll forming equipment specially designed for manufacturing IBR (Inverted Box Rib) metal roof sheets — the most widely used industrial and commercial roofing material renowned for its superior strength, waterproof performance, and easy installation. As a core equipment in the global metal roofing industry, it adopts advanced servo-controlled continuous cold roll forming technology to process high-quality anti-corrosion metal coils, including hot-dip galvanized steel coils, color-coated steel coils (PPGI/PPGL), aluminum coils, and zinc-aluminum-magnesium steel coils, into high-strength, weather-resistant IBR roof sheets with uniform profile, tight lap joints, and excellent load-bearing capacity.

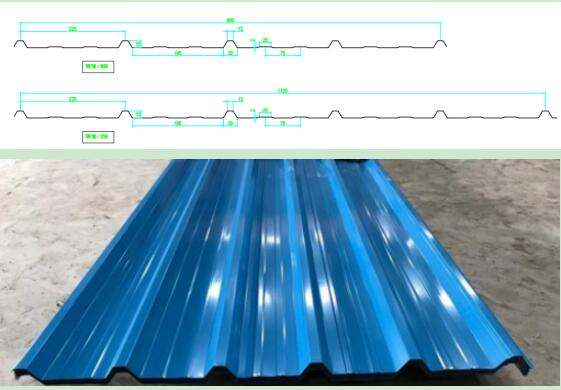

IBR metal roof sheets, characterized by their unique inverted box rib design, feature a flat surface with raised ribs that enhance structural strength, improve waterproofing, and ensure optimal water drainage. Unlike traditional roofing materials, IBR sheets are lightweight, corrosion-resistant, durable, and cost-effective, making them the preferred choice for industrial factories, warehouses, commercial buildings, agricultural facilities, and large-span structures worldwide. Our IBR Metal Roof Sheet Roll Forming Machine is engineered to produce standard IBR profiles (including 0.47mm, 0.5mm, 0.6mm thickness and 686mm, 762mm effective width) with quick parameter adjustment, ensuring compatibility with global IBR roofing standards and diverse project requirements. It is the ideal production equipment for metal roofing manufacturers, building material suppliers, engineering contractors, and export-oriented processing enterprises across the globe.

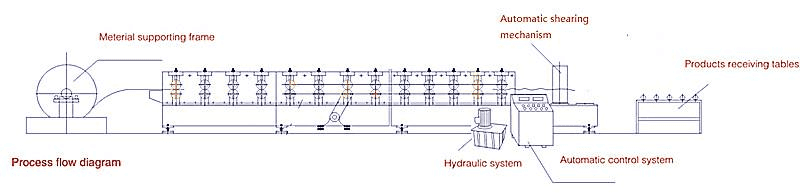

Adopting room-temperature continuous cold roll forming technology, this machine retains the original mechanical properties and complete anti-corrosion coating of raw metal materials, avoiding coating peeling, color fading, or material deformation caused by high-temperature processing. The entire production line runs a fully automatic and seamless workflow: starting from heavy-duty hydraulic uncoiling, precision leveling and deviation correction, servo constant-speed feeding, multi-stage progressive roll forming, fixed-length flying shear cutting, to final automatic discharging and neat stacking of finished IBR roof sheets. This integrated intelligent production mode ensures zero manual errors, consistent product quality, ultra-high production efficiency, and full compliance with international building material standards (such as SABS, ASTM, CE) and export quality certification requirements.

Core Components of Our IBR Metal Roof Sheet Roll Forming Machine

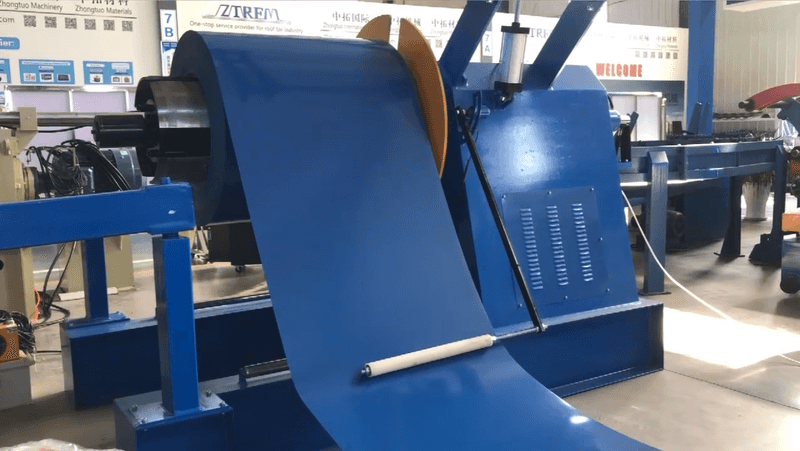

Heavy-Duty Hydraulic Uncoiling System: Built for large-size metal coils used in IBR roof sheet production, this system is equipped with a hydraulic expansion uncoiler with a load capacity of 5-10 tons, supporting coil widths ranging from 1000-1250mm and material thickness of 0.3-1.2mm. It features automatic hydraulic deviation correction, pressure holding, and anti-slip feeding rollers, paired with a reinforced feeding guide bridge to prevent material wrinkling, scratching, or misalignment during high-speed feeding. It is fully compatible with all common anti-corrosion metal coils for IBR sheet manufacturing, ensuring smooth and stable feeding for long-term high-intensity production runs.

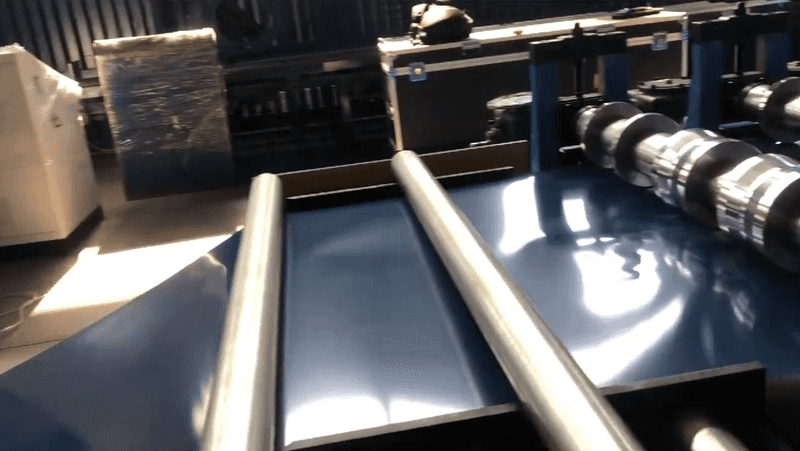

Precision Leveling & Servo Feeding Unit: Equipped with 7-11 groups of high-precision leveling rollers, this unit effectively eliminates curling stress and surface unevenness of raw metal strips, guaranteeing the material is perfectly flat before entering the forming station. It supports adjustable leveling intensity for different material thicknesses, which is critical to ensuring the finished IBR sheets have uniform rib height, straight edges, and no warping. The servo-driven precision feeding system ensures accurate feeding length and constant speed, matching the high-speed forming process without slipping or position deviation, and ensuring perfect lap joint alignment of IBR sheets.

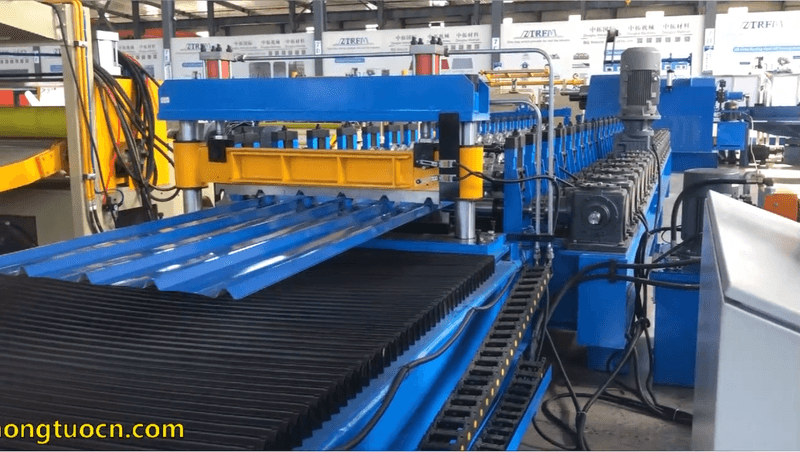

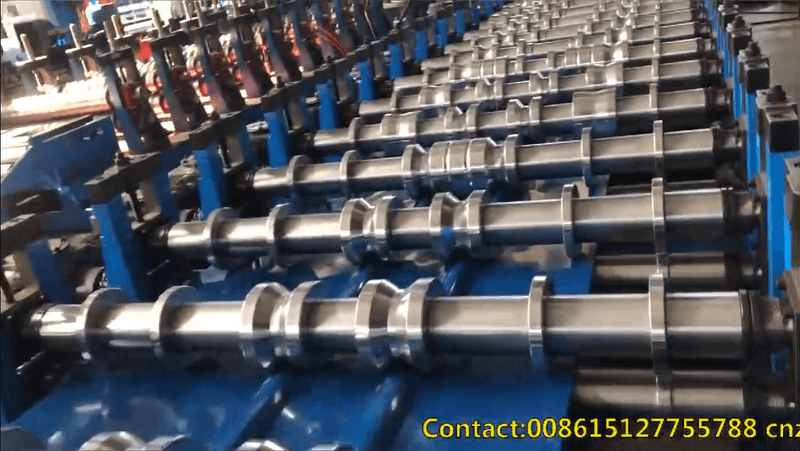

IBR Profile Specialized Forming Main Unit: As the core of the entire machine, the forming unit adopts a rigid thick-walled steel frame with overall stress relief treatment, composed of 14-24 groups of precision forming roller stations. The forming rollers are crafted from high-grade 45# hardened steel or GCr15 bearing steel, processed via precision CNC machining, integral quenching and tempering, and hard chrome plating, with a hardness of HRC 58-62, delivering excellent wear resistance and a service life of over 800,000 meters. Driven by a high-power servo motor and precision gearbox transmission, the rollers are specially designed to form the standard IBR inverted box rib profile in one pass, ensuring consistent rib spacing, perfect shape, and no distortion.

Coating Protection & Lap Joint Optimization System: The anti-corrosion coating and lap joint design are critical to the service life and waterproof performance of IBR roof sheets. Our machine is equipped with a soft-contact forming and feeding structure, minimizing friction and pressure on the metal surface to effectively protect the color-coated, galvanized, or zinc-aluminum-magnesium coating from peeling, scratching, or fading. The forming rollers are optimized to ensure tight, seamless lap joints of IBR sheets, enhancing waterproof performance and simplifying on-site installation.

High-Precision Flying Shear Cutting System: To match the high-efficiency forming speed, our machine adopts advanced servo flying shear cutting technology, enabling non-stop fixed-length cutting during continuous production. The cutting blades are made of heat-treated high-strength alloy steel, ensuring smooth, burr-free cutting edges and no sheet deformation. Cutting accuracy is controlled within ±0.5mm, and the cutting length can be freely adjusted between 0.5-12 meters via the PLC touch screen, adapting to standard transportation lengths and customized project requirements for industrial and commercial roofing.

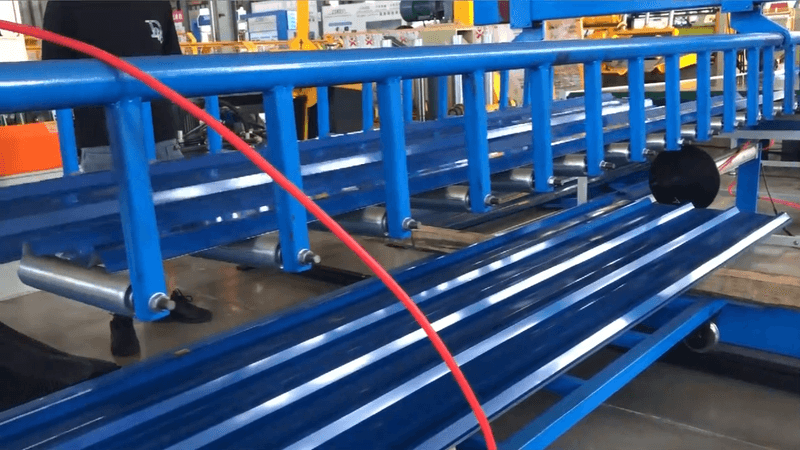

Automatic Discharging & Stacking Mechanism: Designed for lightweight IBR roof sheets, this unit features an inclined soft-contact discharge rack and pneumatic stacking device with rubber pads, avoiding surface scratches and edge damage to the finished sheets. It automatically arranges and stacks finished products neatly, reducing manual handling labor and product damage, while protecting the anti-corrosion coating integrity and overall product appearance. The stacking height is adjustable, adapting to different storage and transportation needs.

Intelligent PLC Control System: The full production line is controlled by a renowned international brand PLC (Siemens/Mitsubishi/Delta) with a user-friendly large touch screen operation panel, supporting multi-language switching including English, Spanish, Arabic, French, Russian, and Portuguese. It realizes full-process automatic control, with functions such as production counting, fault self-diagnosis, emergency stop, parameter memory, IBR profile adjustment, and production speed regulation. The system is simple to operate, requiring only 1-2 workers to monitor, with stable, low-failure operation for long-term continuous production.

With outstanding advantages of standard IBR profile forming, high precision, full automation, perfect coating protection, and easy installation compatibility, our IBR Metal Roof Sheet Roll Forming Machine produces high-quality IBR roof sheets that feature excellent waterproof performance, strong wind and snow resistance, long service life, and quick installation. These sheets are widely used in various industrial and commercial roofing projects across the globe, providing reliable, durable, and efficient roofing solutions for modern construction engineering.
