Cable Tray Roll Forming Machine：Fully Automatic High Precision Production Line

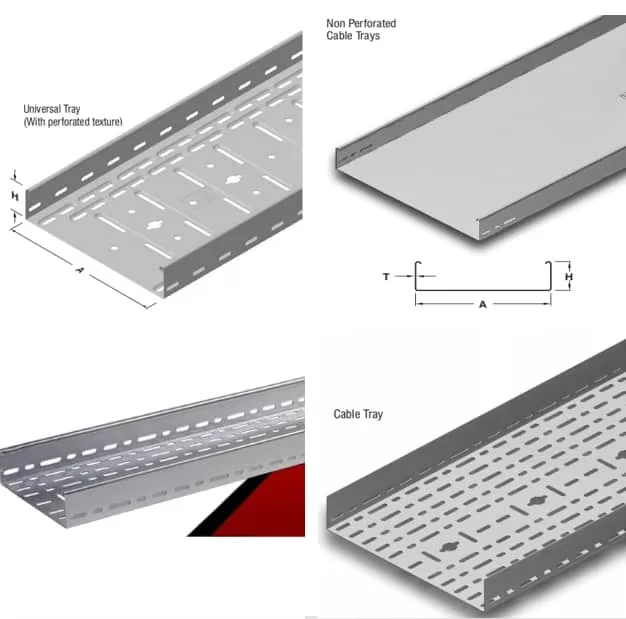

Description:The Cable Tray Roll Forming Machine is a professional fully automatic cold roll forming production line specially designed for manufacturing metal cable trays and cable trunking profiles. This industrial-grade forming equipment can process galvanized steel, cold-rolled steel and aluminum alloy coils into standard perforated cable trays, solid-bottom cable trays and ladder cable trays in one continuous process. Featuring high dimensional accuracy, stable running performance and flexible size adjustment, the machine has become the preferred core equipment for electrical hardware manufacturers, construction material factories and infrastructure engineering suppliers worldwide.
Working Principle of Cable Tray Roll Forming Machine
Different from traditional multi-process manual processing, our cable tray forming machine adopts integrated continuous cold rolling molding technology. The entire production workflow covers automatic coil uncoiling, sheet leveling, multi-pass gradual rolling forming, precise servo punching, hydraulic fixed-length cutting and automatic material receiving. The whole line operates automatically with minimal manual intervention.

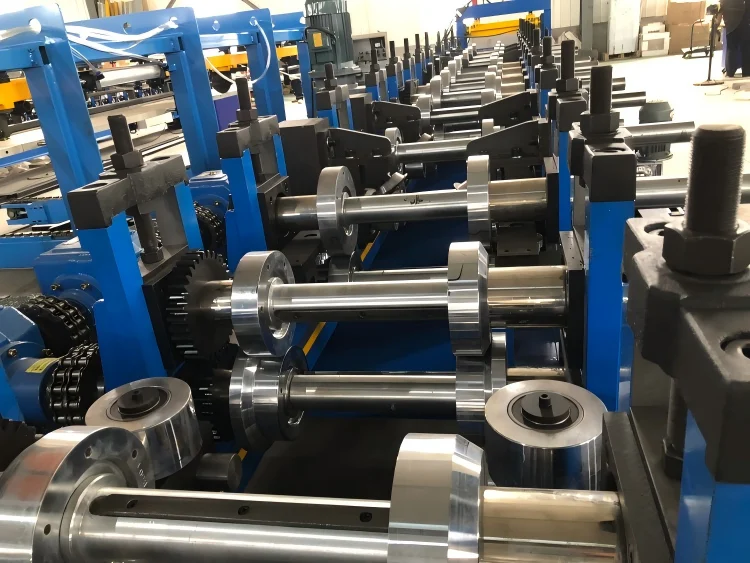

Through scientific multi-group roller gradual bending design, the equipment eliminates internal stress and profile torsion, ensuring flat tray surface, consistent bending angle and precise hole position. All finished cable trays feature uniform specifications and excellent assembly performance, fully meeting international electrical engineering installation standards.
Core Advantages of Automatic Cable Tray Forming Machine
This dedicated cable tray production line is optimized for mass production of electrical cable management profiles, solving the problems of low efficiency, poor consistency and high labor cost of traditional processing methods, with prominent market competitive advantages.
High precision and zero-defect molding quality. Equipped with high-hardness alloy forming rollers and precision servo transmission system, the machine controls the profile tolerance within ±0.5mm. The professional leveling unit effectively eliminates sheet camber and deformation, ensuring every finished cable tray is smooth without scratches or distortion. The precise punching system guarantees standard hole spacing, which supports fast and accurate on-site installation.
Wide size adjustment range and strong versatility. The equipment supports flexible production of cable trays in multiple widths and depths, covering common specifications from 300mm to 600mm. It can produce perforated cable trays for heat dissipation, solid-bottom trays for dust protection and special structural trays for engineering projects. One machine adapts to diverse order demands, greatly improving equipment utilization and reducing customer investment costs.
High production efficiency and stable output. Adopting high-speed synchronous forming technology, the production line realizes continuous cyclic operation with stable running speed. The integrated punching and cutting design saves intermediate handling procedures, effectively improving daily production capacity and fully meeting large-scale order delivery requirements for construction, power and infrastructure projects.
Intelligent operation and low labor dependence. Built with mature PLC intelligent control system and English human-machine touch screen, the machine supports one-key startup, automatic parameter operation, real-time output counting and intelligent fault alarm. Only one worker is required to complete feeding and receiving management, greatly saving labor costs and reducing technical operation thresholds.
Durable structure and low maintenance cost. The main frame adopts thickened integral welded steel structure, which is shock-resistant and deformation-proof after long-term high-load operation. All key moving parts undergo heat treatment and anti-rust treatment, adapting to long-term continuous operation in various factory environments. The modular structure design simplifies daily inspection and wearing part replacement, lowering long-term operation costs.
Complete Production Line Configuration

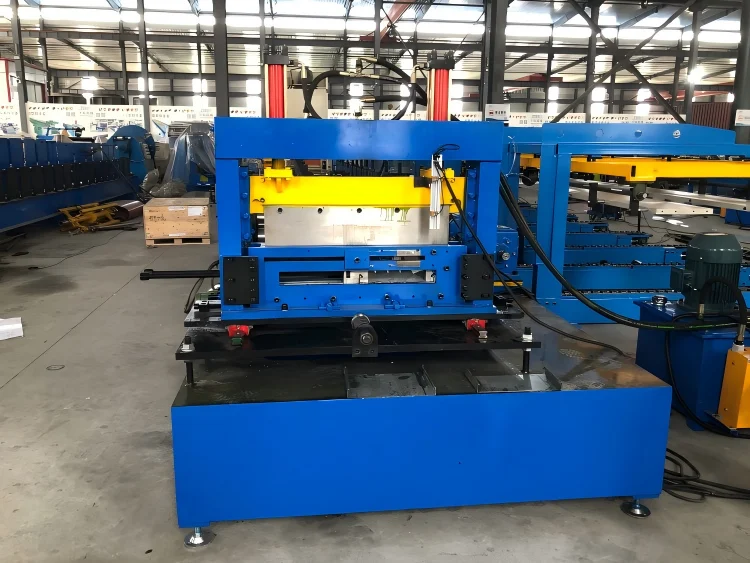

Our standard cable tray roll forming line consists of automatic hydraulic uncoiler, precision leveling device, multi-pass roll forming host, servo punching system, hydraulic cutting system, electrical control cabinet and finished product stacking table. Every core component adopts high-quality industrial accessories, with strict assembly and debugging procedures to ensure synchronous and stable operation of the whole line.

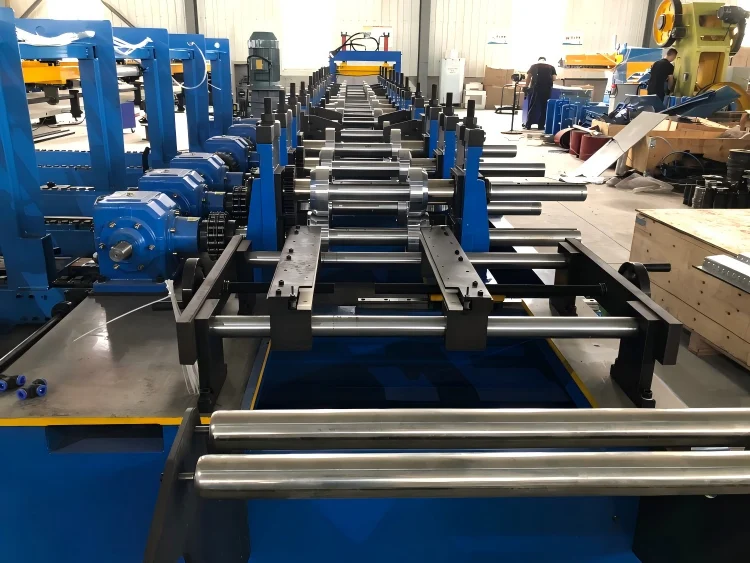

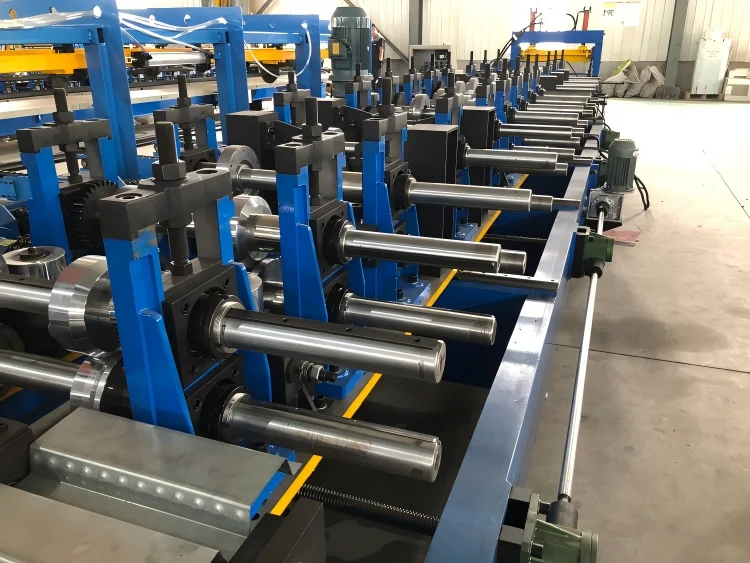

The automatic uncoiler realizes stable and tension-free coil feeding to avoid material deviation. The precision leveling unit corrects sheet deflection thoroughly to ensure flat feeding status. The multi-pass gradual rolling system ensures uniform metal deformation and stable molding effect. The servo punching system features fast response and high precision, while the hydraulic cutting system delivers neat incision without burrs. The intelligent control system supports parameter memory and one-key specification switching, realizing standardized and efficient batch production.
Wide Application Scenarios

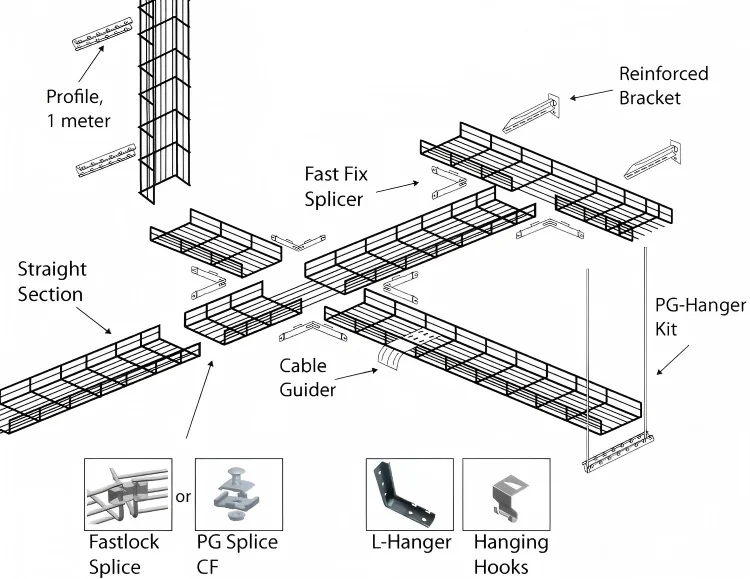

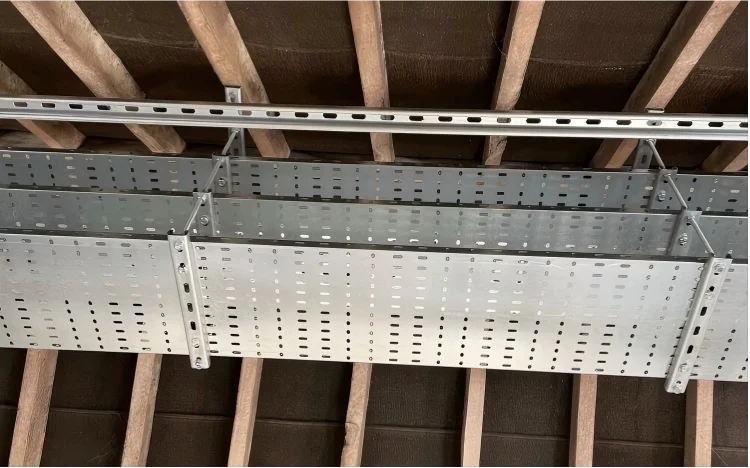

Cable trays produced by this equipment have stable structure, strong load-bearing capacity and good anti-corrosion performance, widely used in global electrical installation and infrastructure construction fields. The finished products are suitable for commercial buildings, industrial workshops, power stations, municipal engineering, subway projects, warehouse logistics parks and new energy photovoltaic power plants.
With the rapid development of global urban construction and power infrastructure upgrading, standardized metal cable trays have become essential supporting components for modern electrical wiring systems. Our high-efficiency forming equipment helps manufacturers produce high-quality cable management products and quickly occupy the local engineering market.
Customization Service for Global Buyers
We fully cater to differentiated market demands in different countries and regions. Our cable tray roll forming machine supports personalized customization including roller mold size, punching position, production speed and line configuration. We can design exclusive production solutions according to customers’ target product drawings, material thickness and production scale, adapting to local electrical industry standards and engineering requirements.
Professional Foreign Trade & After-Sales Support
As a professional foreign trade manufacturer of roll forming equipment, all our cable tray production lines are manufactured in strict accordance with international industrial standards, with complete export certification procedures to support smooth customs clearance and delivery to Southeast Asia, Europe, Africa, South America, the Middle East and other regions.
We provide full-cycle one-stop services, including pre-sales technical consultation, scheme design, factory layout planning and parameter confirmation. During production, we offer real-time progress updates and factory test videos. After delivery, we provide English operation manuals, remote technical guidance, overseas on-site installation and worker training services. Long-term spare parts supply and equipment maintenance support ensure stable and long-term operation of customer production lines.
For export packaging, we adopt standard waterproof, dust-proof and shock-proof wooden box packaging to prevent equipment damage during long-distance sea transportation.
Why Choose Our Cable Tray Roll Forming Machine
We have years of professional R&D and manufacturing experience in electrical profile forming equipment, deeply understanding the quality standards and production pain points of global cable tray manufacturers. Compared with peer products, our equipment features higher forming precision, more stable operation, lower energy consumption and longer service life.
We adopt factory direct sales mode without intermediate agents, providing customers with cost-effective factory prices. Meanwhile, we support long-term equipment upgrading and mold replacement services to help customers adapt to updated market demands and improve product competitiveness.
If you are looking for a high-efficiency, stable and easy-maintenance cable tray roll forming machine, welcome to contact us for free technical solutions and the latest exclusive quotation.
